Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch)1.7598
Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch)1.7598
Tool MaterialSteel
Insert CompatibilityCNMG 432
Shank Diameter (mm)38.10
Hand of HolderLeft Hand
Shank Diameter (Inch)1-1/2
Overall Length (Decimal Inch)12.0000
Overall Length (mm)304.80
Overall Length (Inch)12

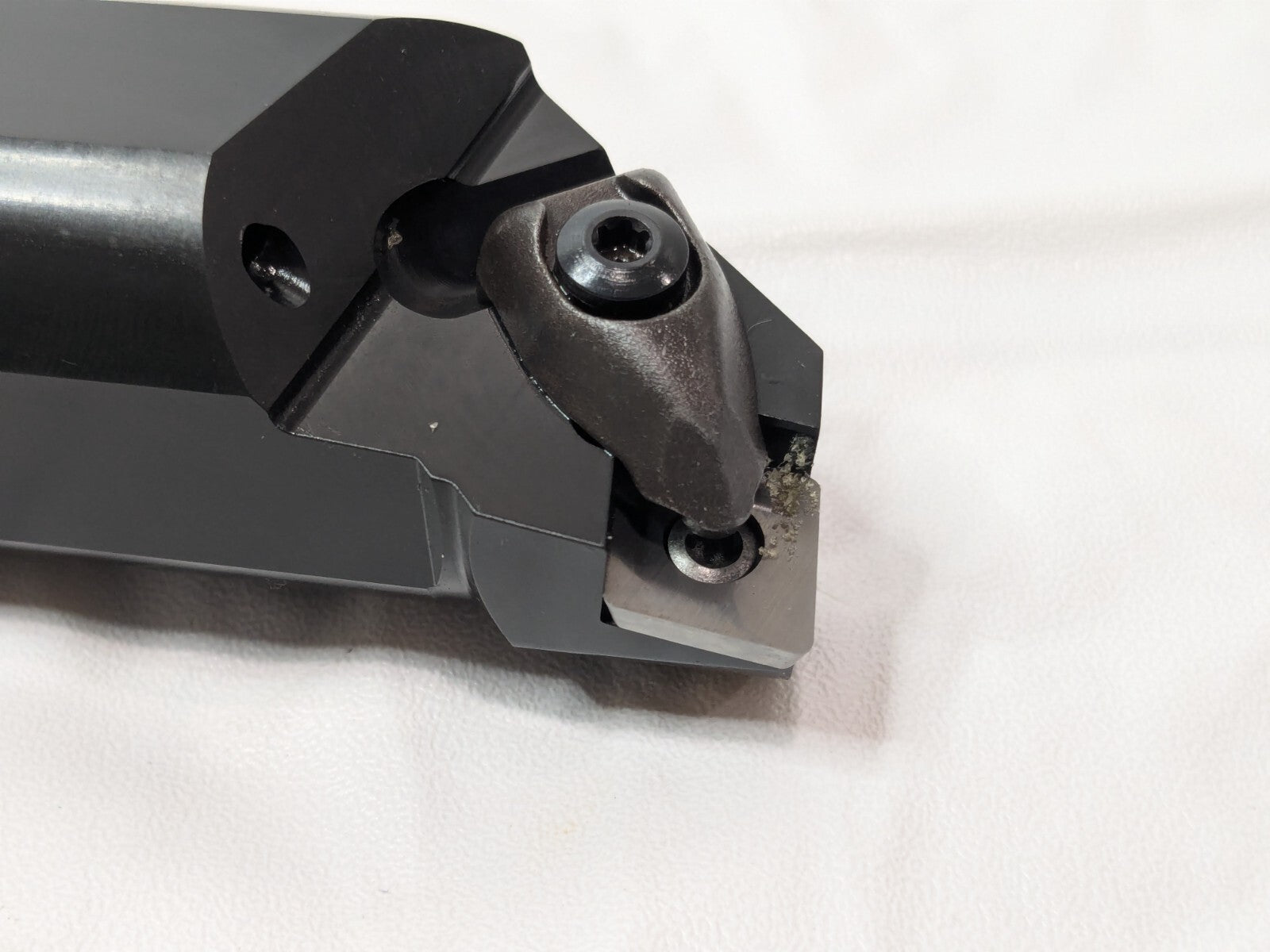

Insert Holding MethodWedge
RakeNegative
Rake Angle-6.00
Lead Angle-6
SeriesT-Max P
Insert Inscribed Circle (Inch)1/2
Insert Inscribed Circle (Decimal Inch)0.5000
Insert Inscribed Circle (mm)12.70
Multi-use ToolYes
Back of Bar to Cutting Edge (Decimal Inch)12.0000
Back of Bar to Cutting Edge (mm)304.80
Center to Cutting Edge (Decimal Inch)0.8900
Center to Cutting Edge (mm)22.61
Number of Inserts Used on Toolholder1
Neck Diameter (Decimal Inch)1.5000
UNSPSC Code23241601
Neck Diameter (Inch)1-1/2
Insert Thickness (Decimal Inch)0.1875
Insert Thickness (Inch)3/16

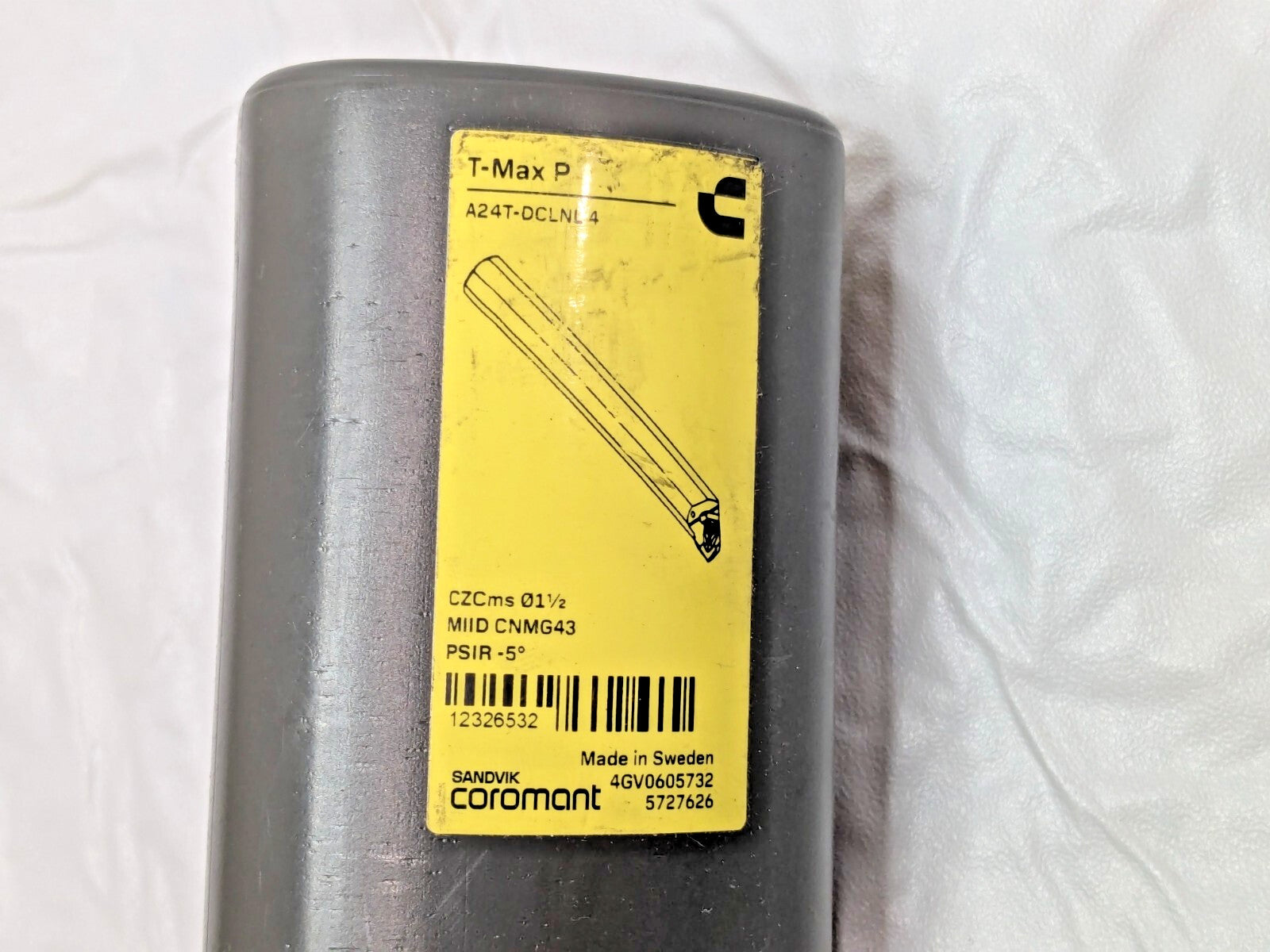

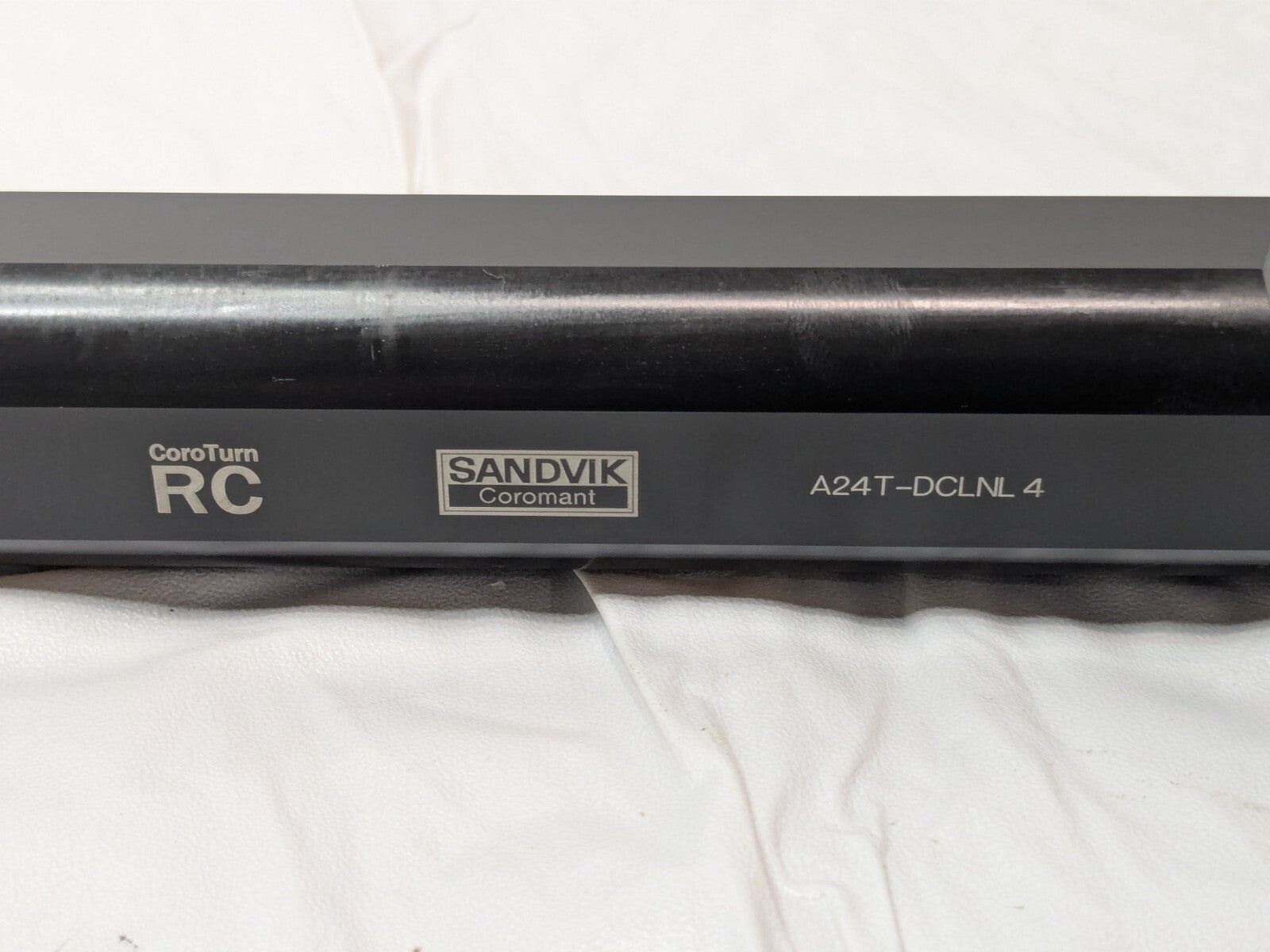

Manufacturers Catalog NumberA24T-DCLNL 4

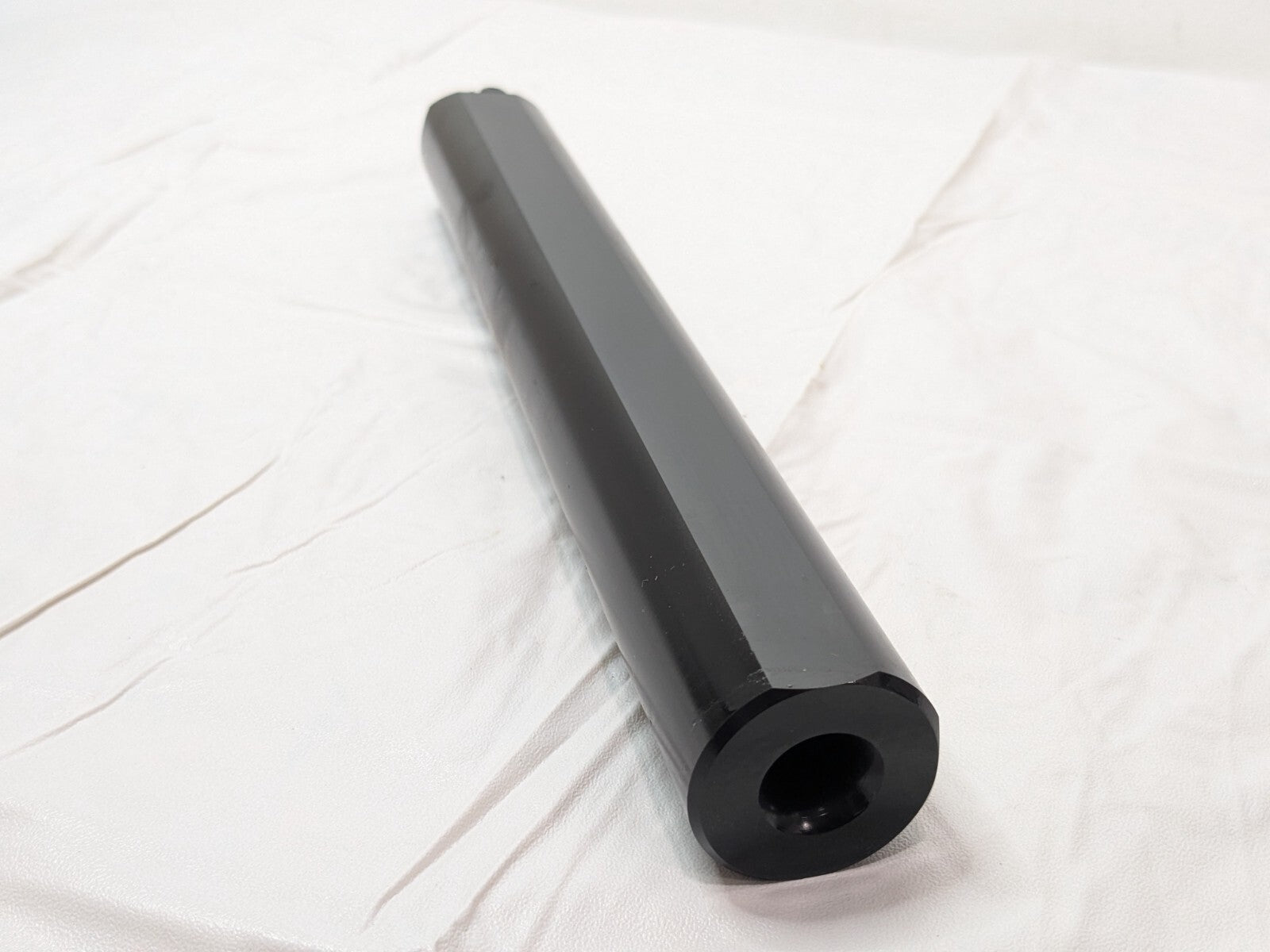

Coolant ThroughYes

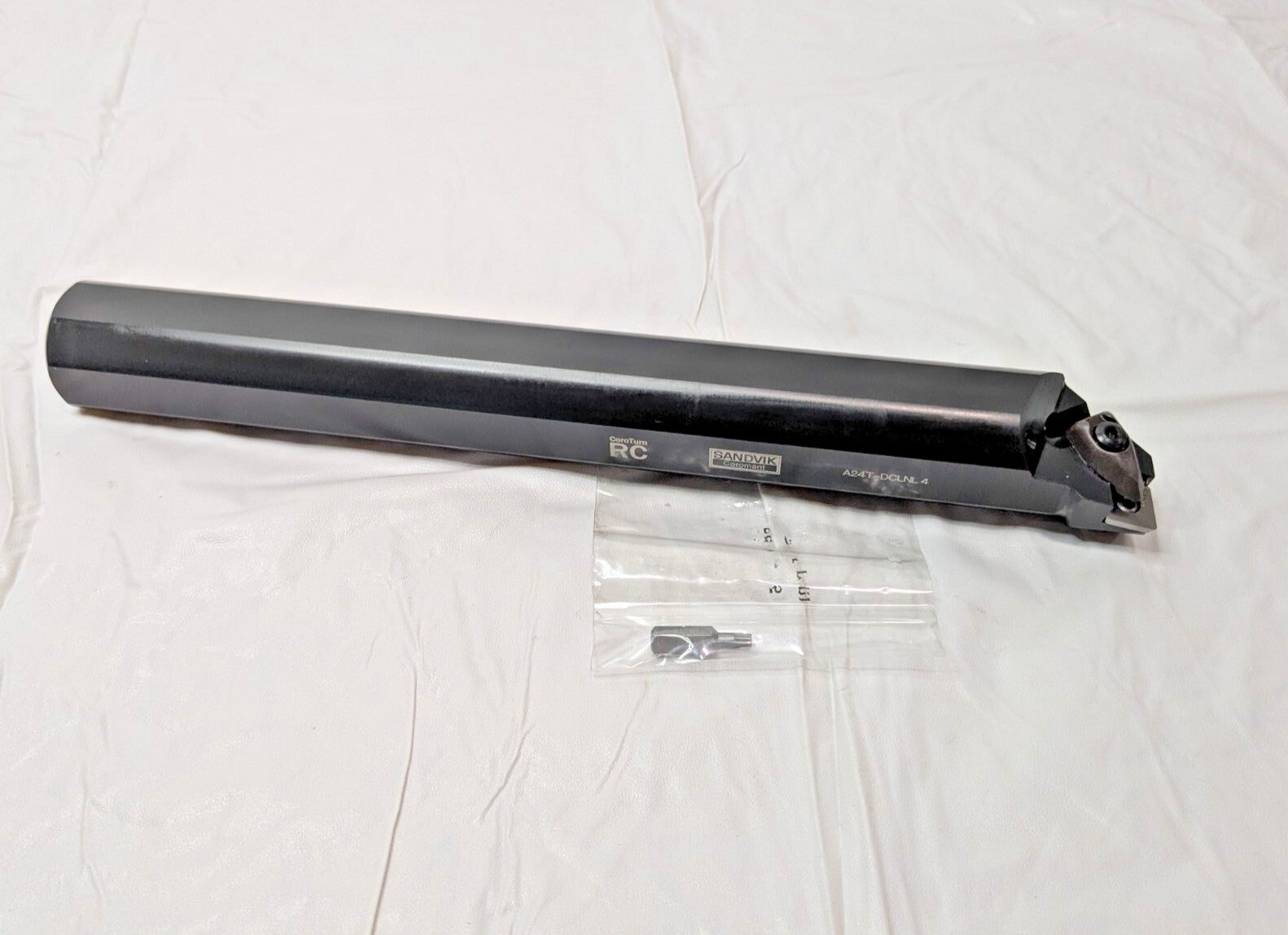

*NEW-OPEN BOX. Boring bar is in excellent condition, with no signs of previous use or wear. Open package for inspection and photos only. Comes as shown in photos and includes only what you see in photos, please review them all carefully. WARRANTY NOT INCLUDED. SOLD AS IS.

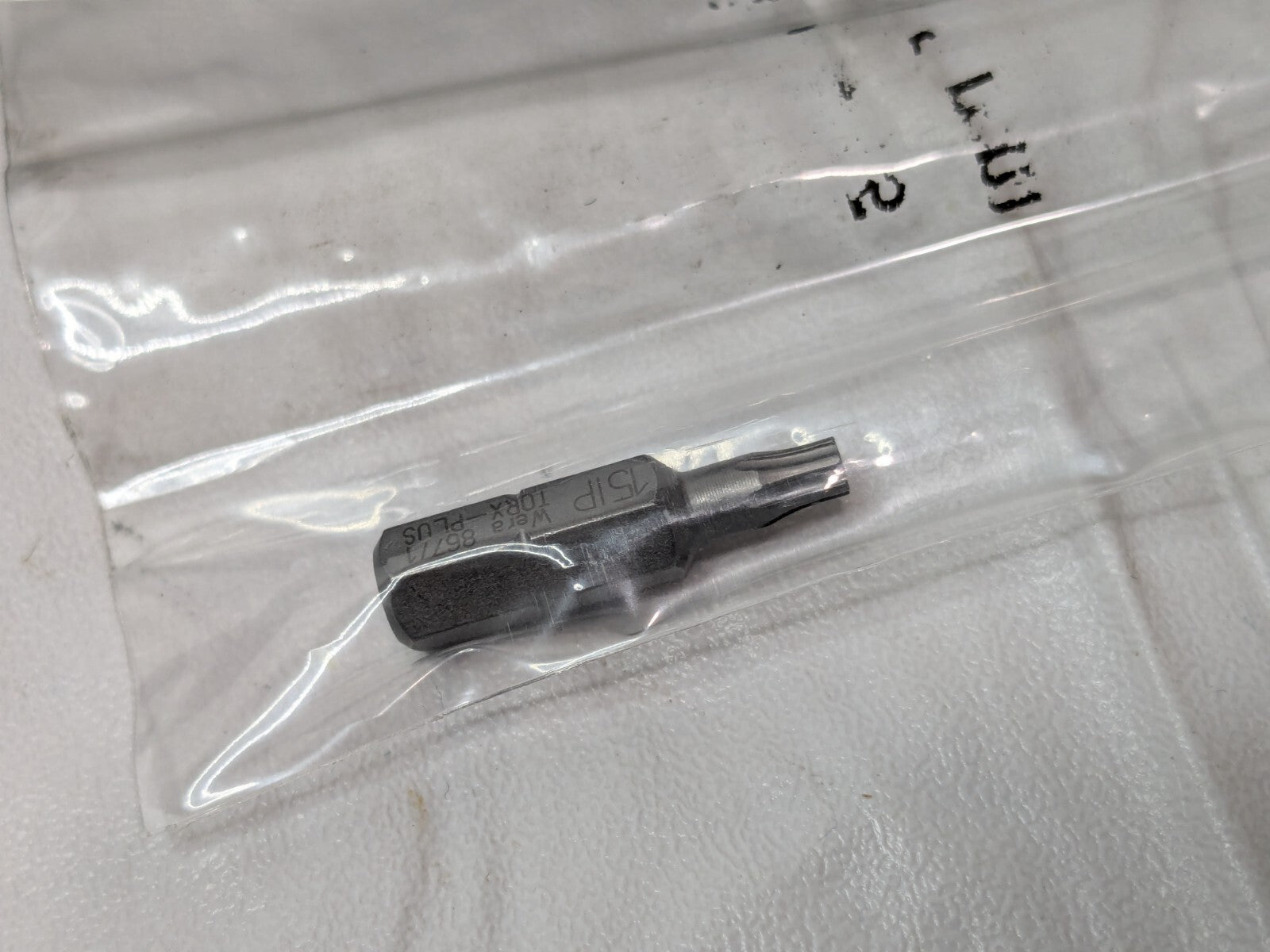

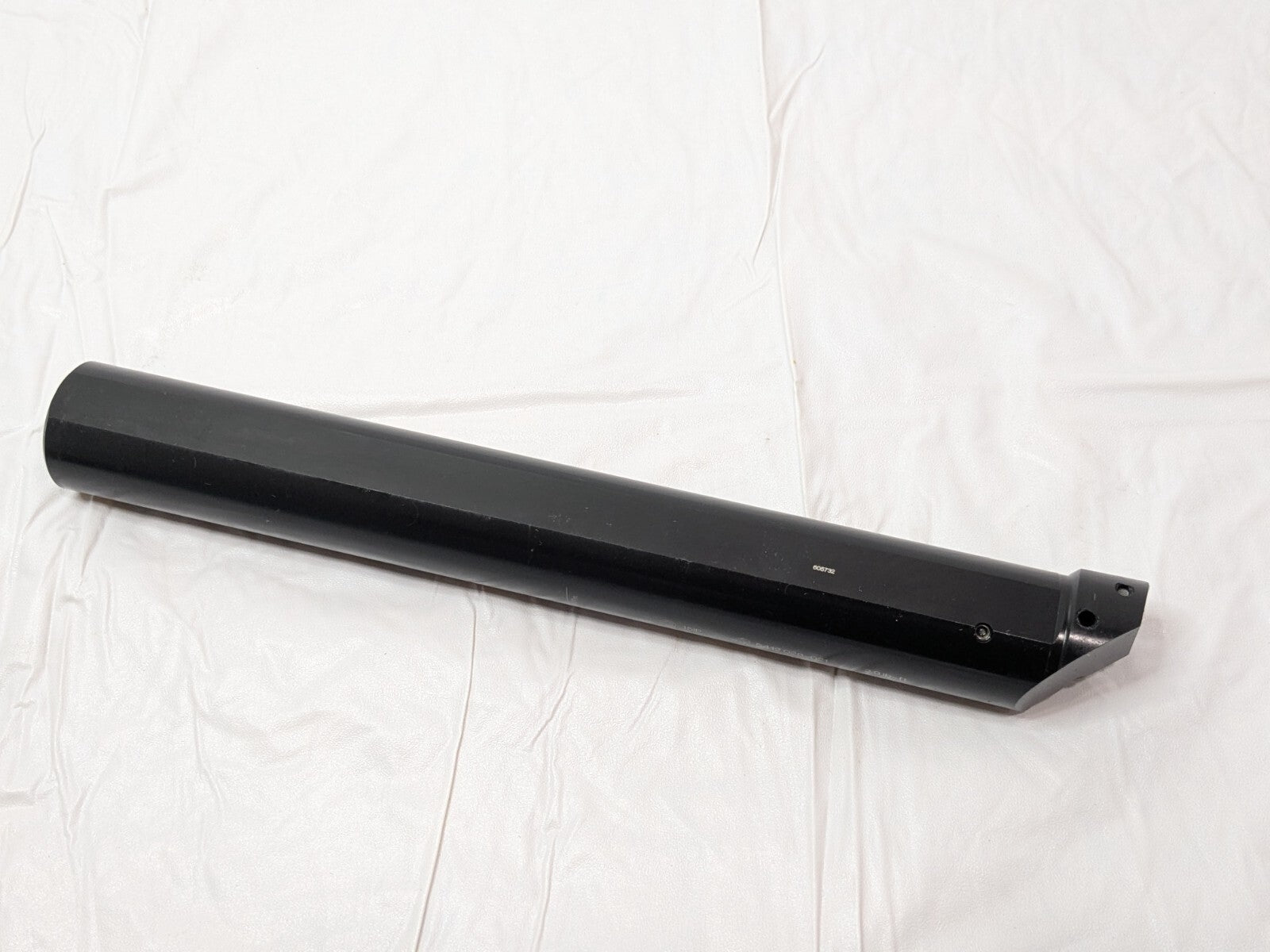

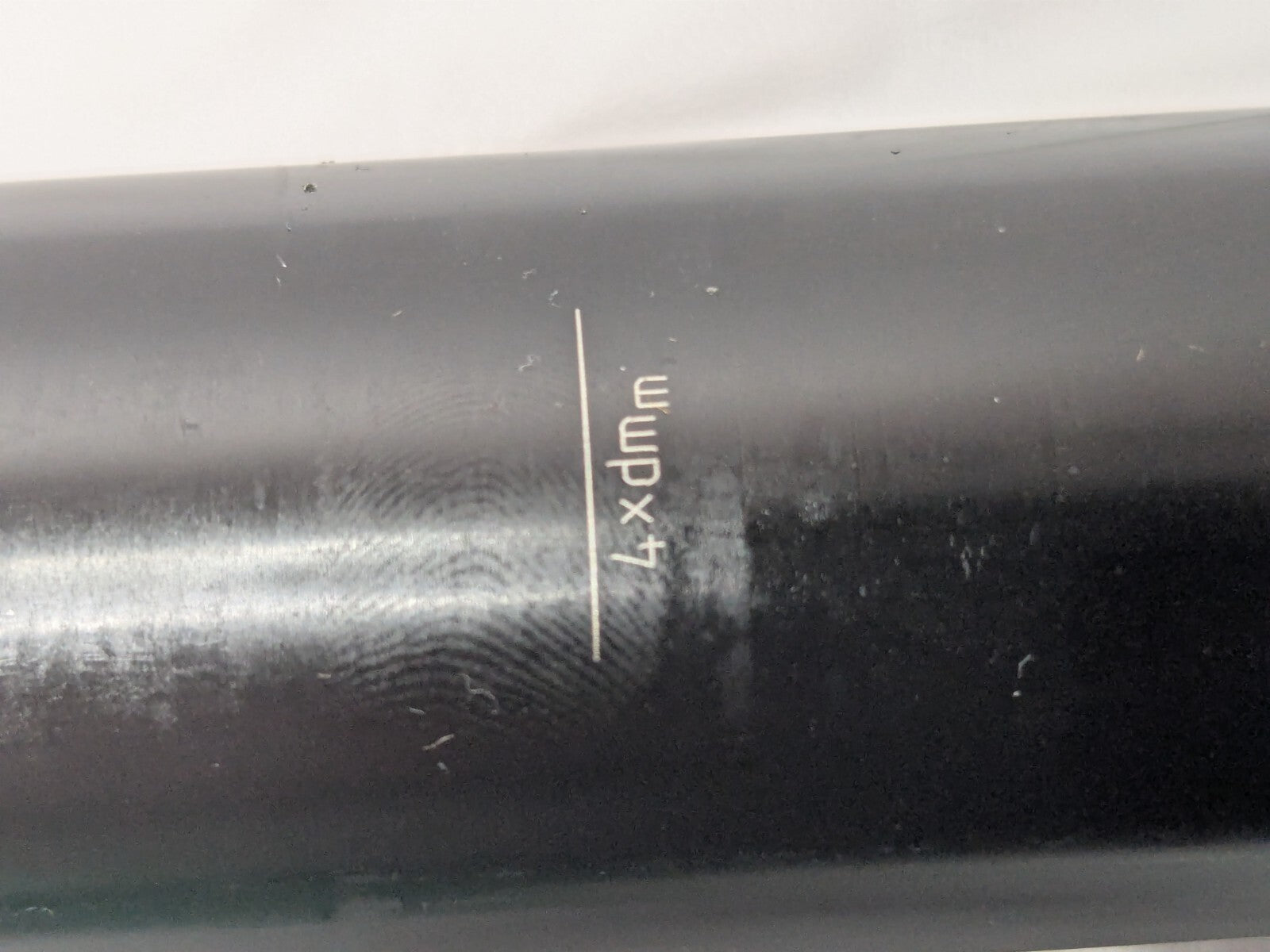

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
