SANDVIK COROMANT Square End Mill: 3/16'' Dia 6FL Solid Carbide 5739922

SANDVIK COROMANT

 Square End Mill: 3/16'' Dia 6FL Solid Carbide 5739922
MSRP: $130

• Mill Diameter (Inch) 3/16
• Mill Diameter (Decimal Inch) 0.1875
• Number Of Flutes 6
• Length of Cut (Inch) 9/16
• End Mill Material Solid Carbide
• End Type Single
• Centercutting No
• Cutting Direction Right Hand
• Shank Diameter (Inch) 1/4
• Finish/Coating TiAlN
• Overall Length (Inch) 3
• Helix Angle 50
• Chipbreaker No
• Variable Helix No
• Variable Index No
• Extended Reach No
• Length Of Cut Range (Decimal Inch) 0.5000 - 0.6000
• Length of Cut (Decimal Inch) 0.5710
• Material Grade 1620
• Shank Diameter (Decimal Inch) 0.2500
• Overall Length (Decimal Inch) 3.0000
• Flute Direction Right Hand
• Flute Type Spiral
• Helix Style Medium
• Shank Diameter Tolerance h6
• Length Type Extra Long
• Mill Diameter Tolerance H10
• Neck Length (Decimal Inch) 0.1790
• Reach Length (Decimal Inch) 0.7500
• Series CoroMill Plura

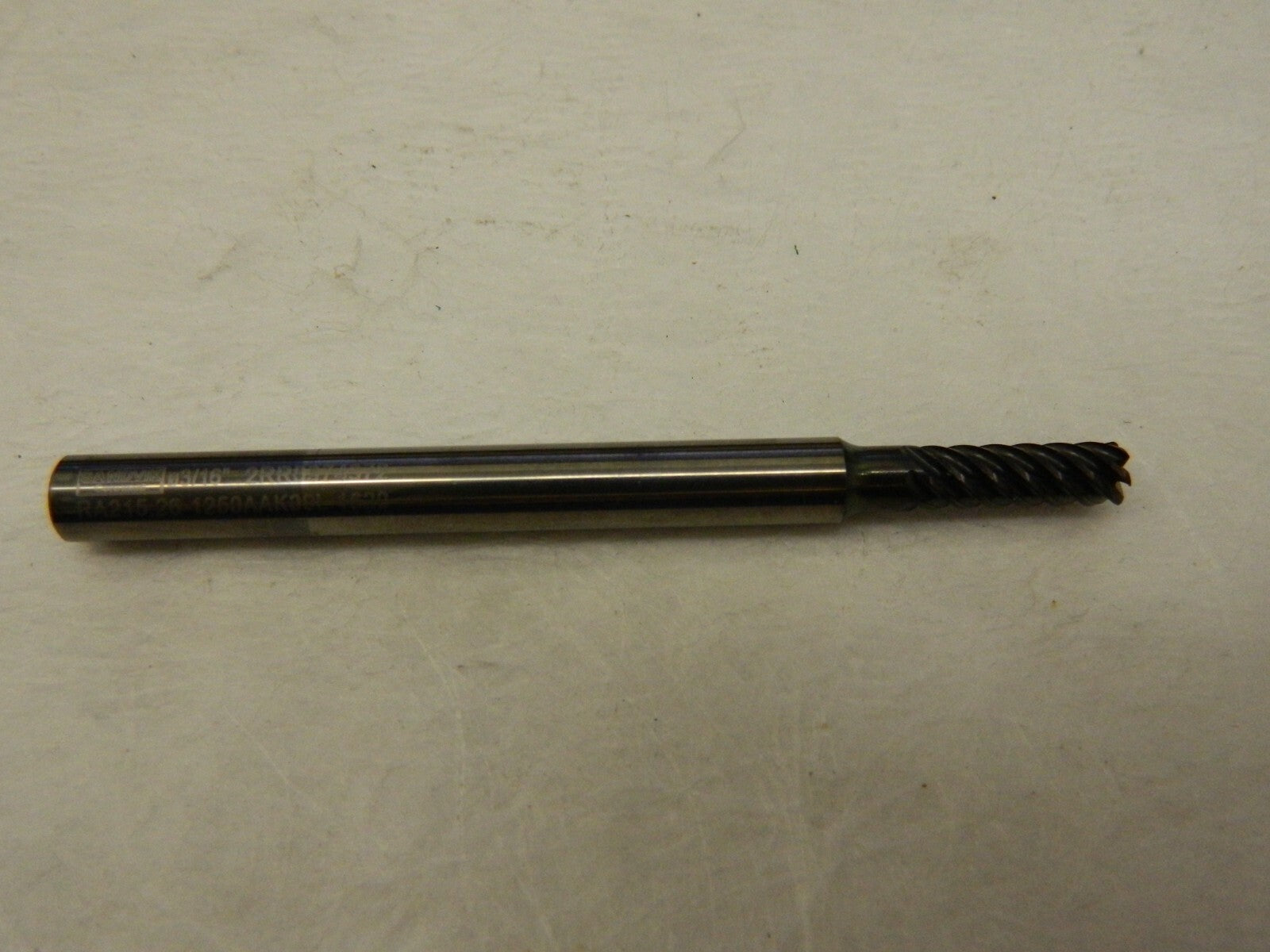

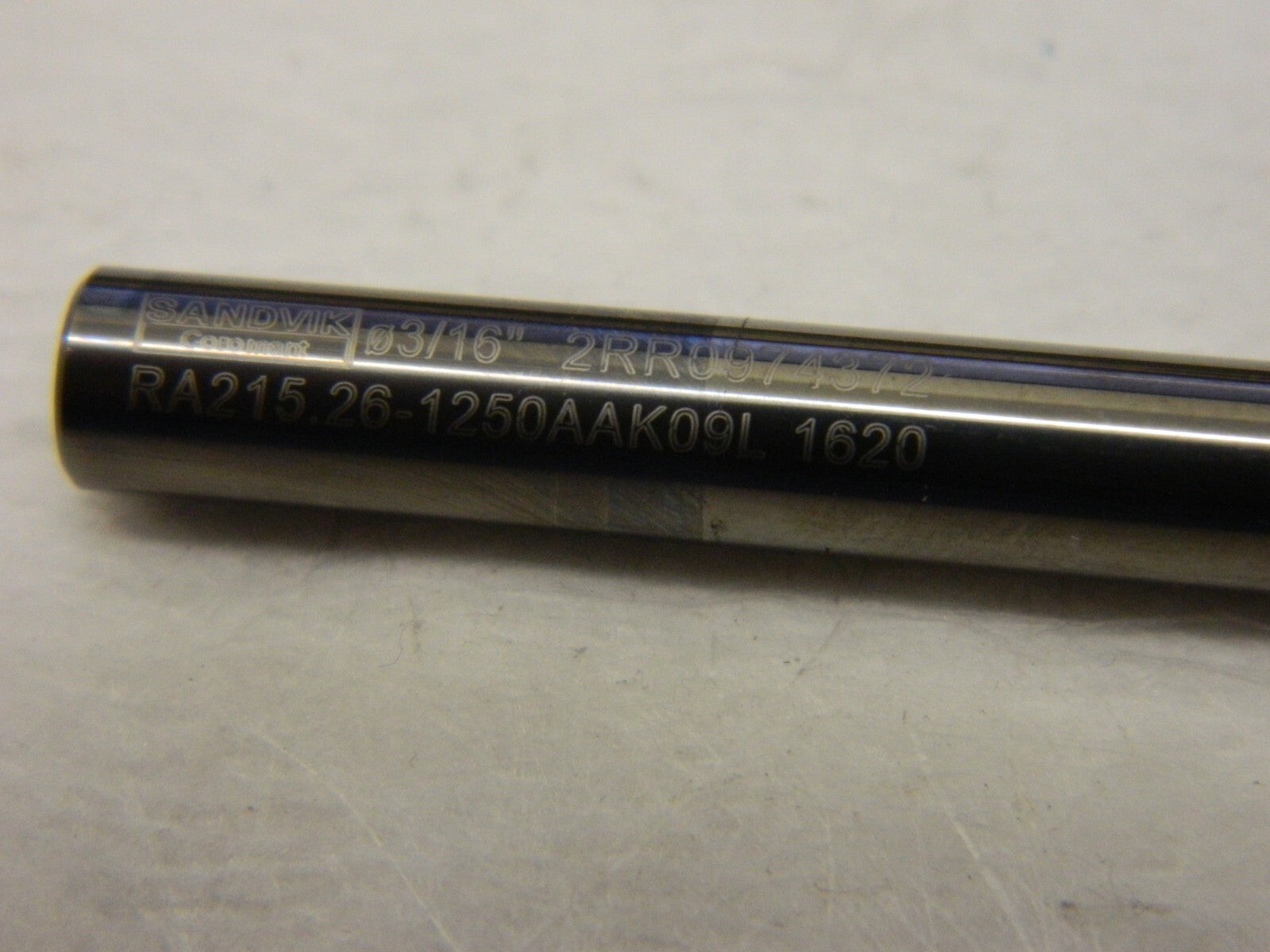

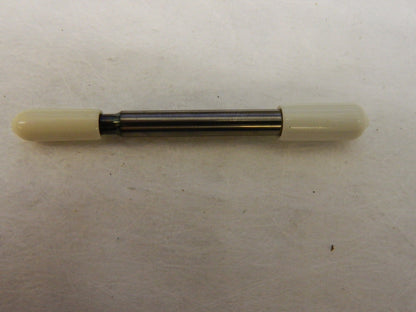

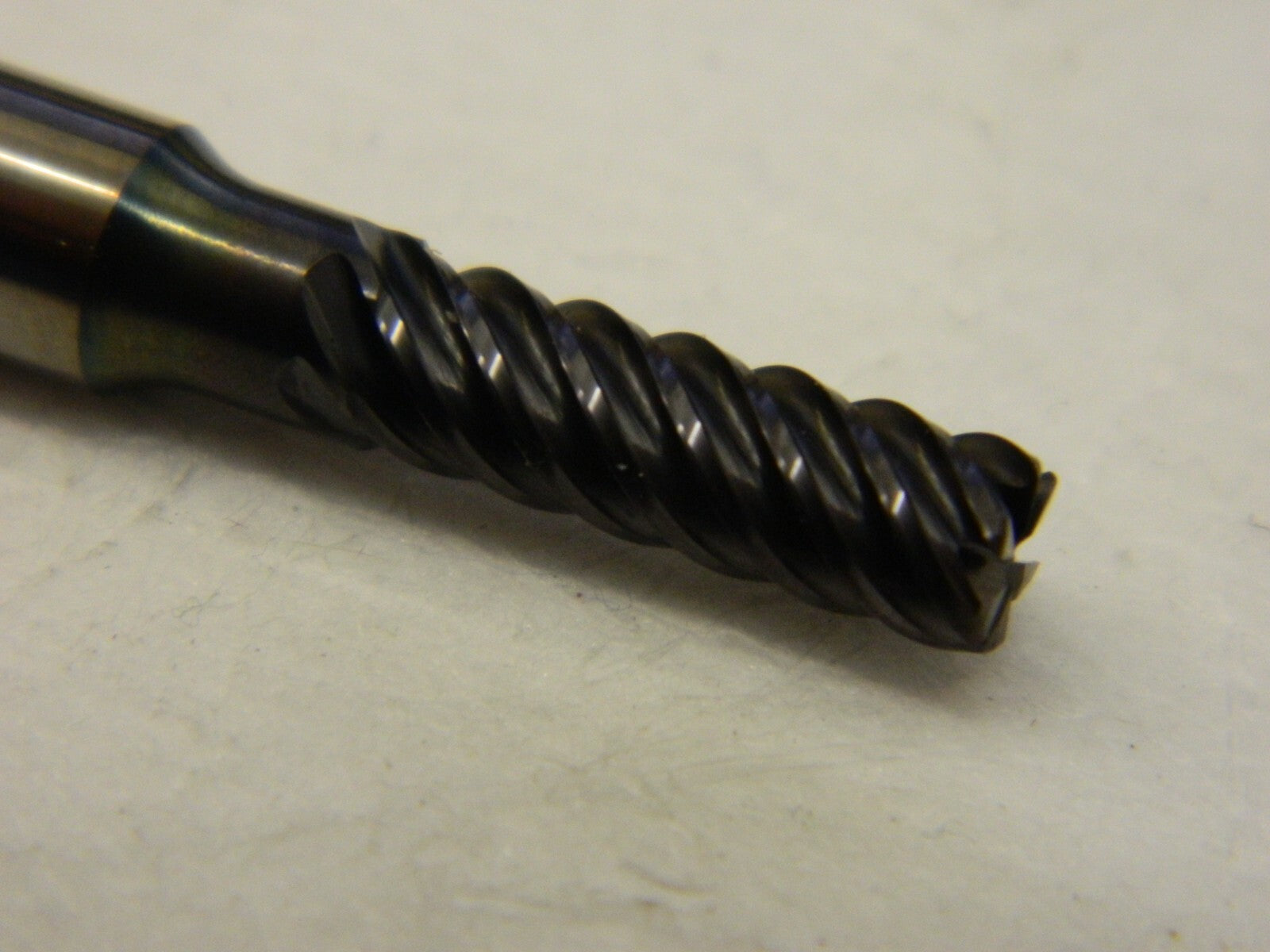

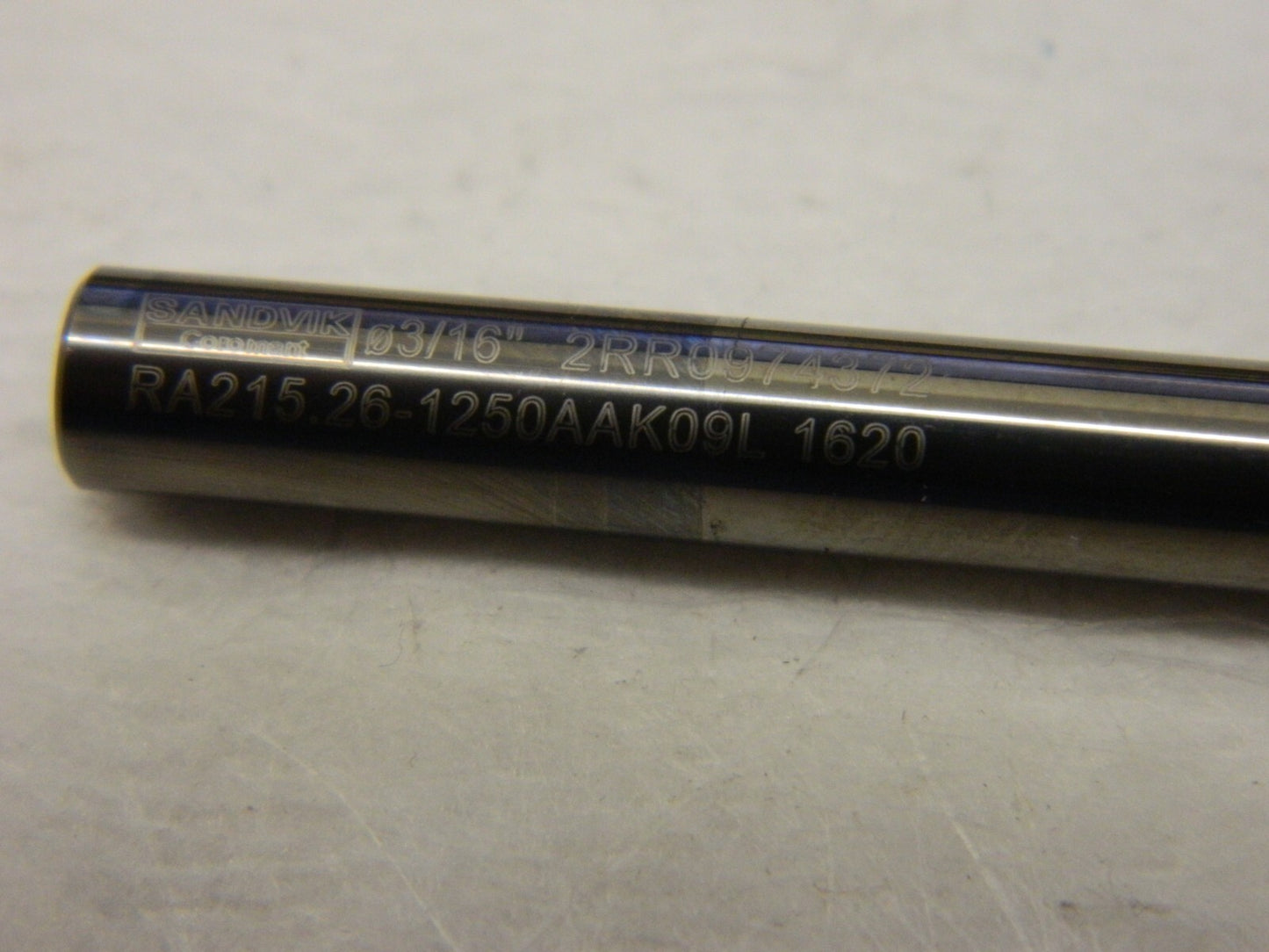

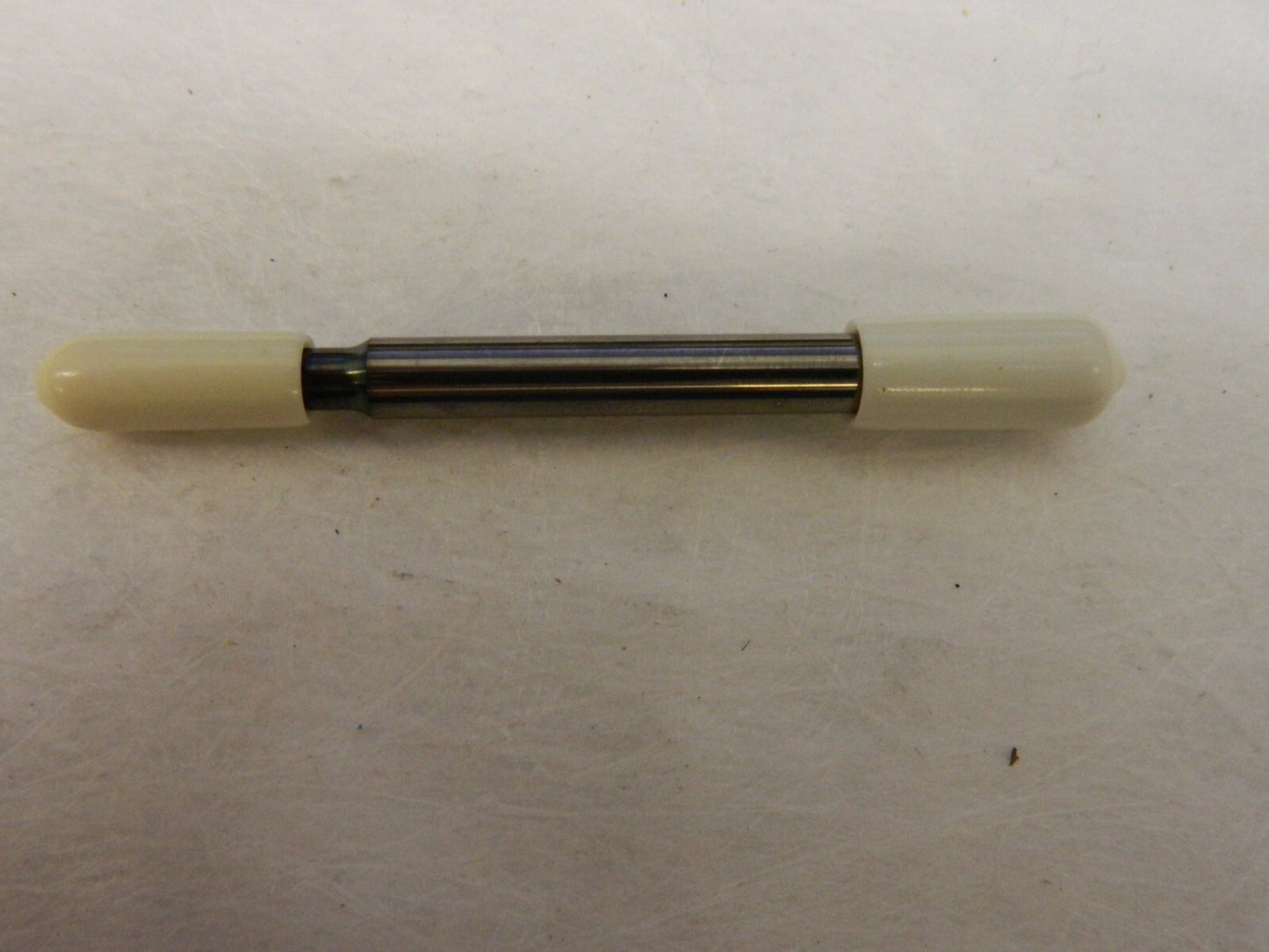

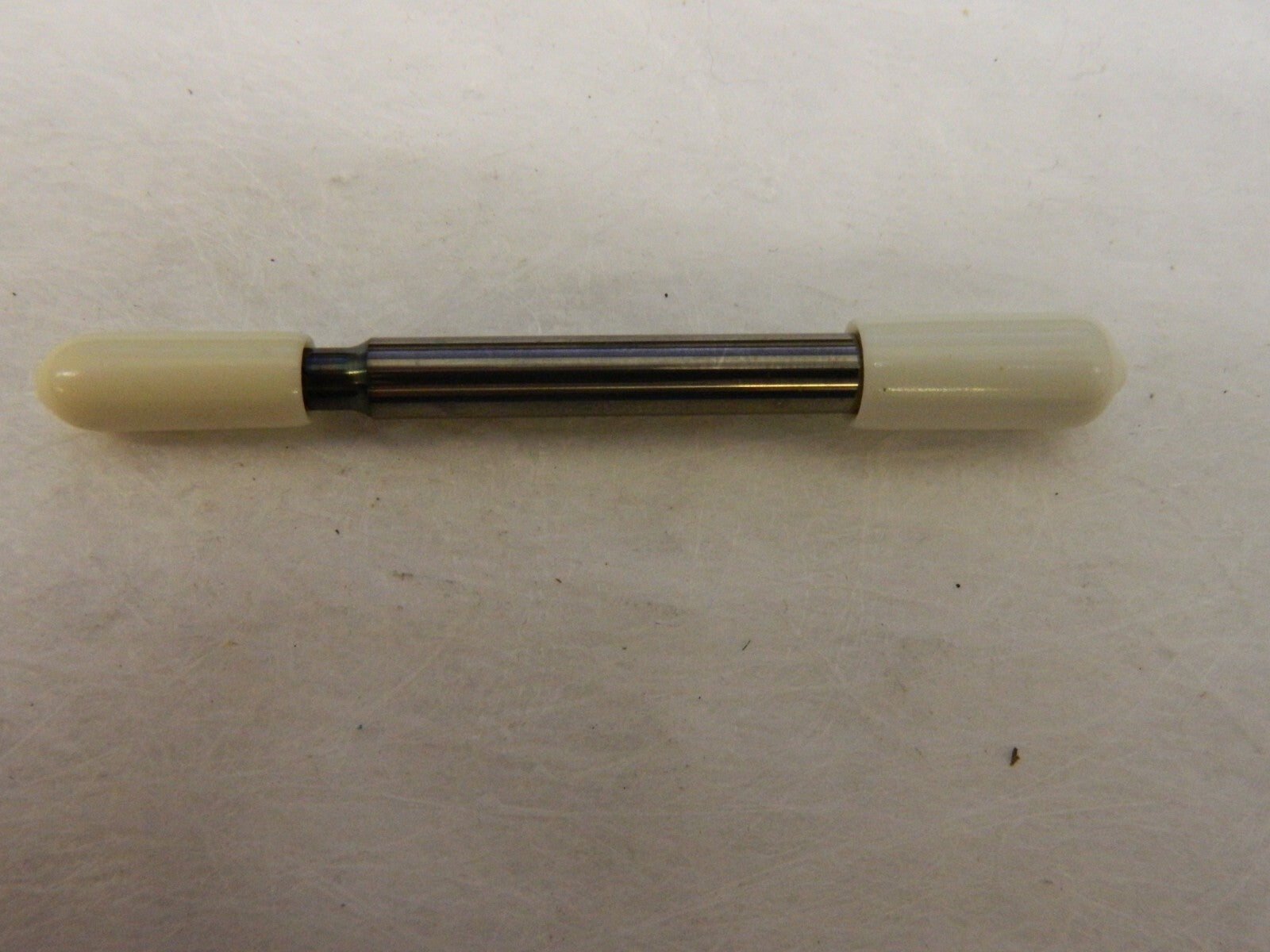

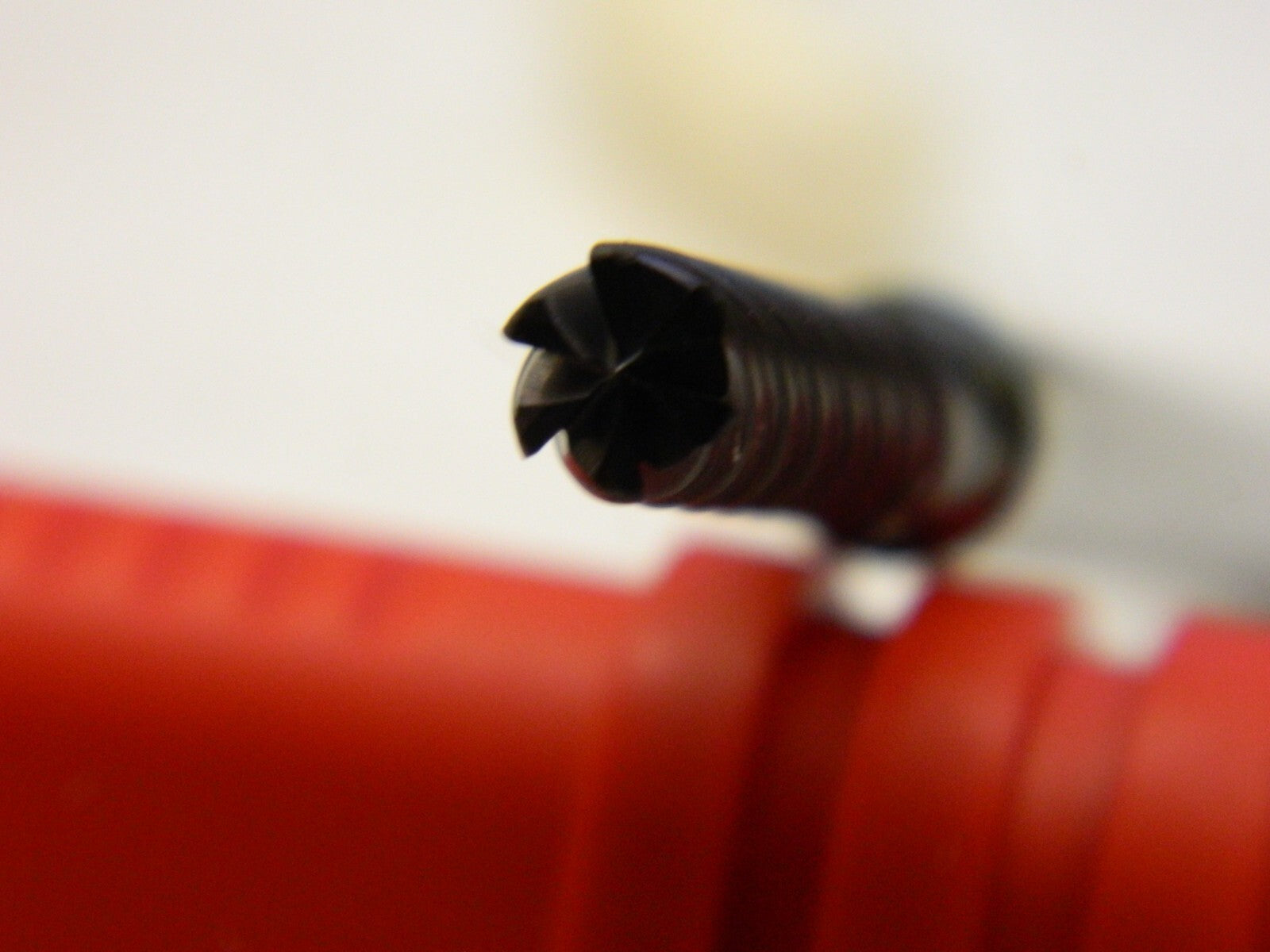

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
