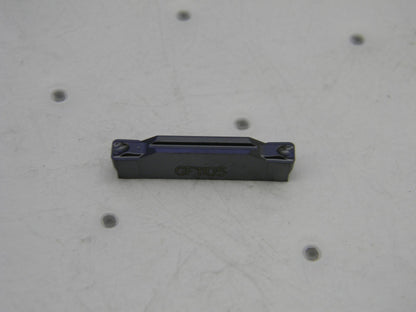

SANDVIK COROMANT Solid Carbide Grooving Inserts N123HGF 1125 QTY 3 5736240

SANDVIK COROMANT
Solid Carbide Grooving Inserts

MSRP: $180

• Insert Style N123
• Insert Size H
• Insert Material Solid Carbide
• Manufacturer Grade 1125
• Cutting Width (Decimal Inch) 0.1559
• Cutting Width (mm) 3.96
• Maximum Depth of Cut (Decimal Inch) 0.9606
• Maximum Depth of Cut (mm) 24.40
• Cutting Height (mm) 4.35
• Insert Hand Neutral
• Maximum Depth Of Cut Range (Decimal Inch) 0.3000 to 1.0000
• Cutting Height (Decimal Inch) 0.1713
• Corner Radius (mm) 0.80
• Corner Radius (Decimal Inch) 0.0315
• Maximum Depth Of Cut Range (mm) 20.00+
• Rake Neutral
• Multi-use Tool Yes
• Series CoroCut 1-2
• Coating Process PVD
• Rake Angle 7.00
• Overall Length (Decimal Inch) 0.9862
• Overall Length (mm) 25.05
• Iso Code N123H2-0396-0008-GF 1125
• Maximum Corner Radius (Decimal Inch) 0.0335
• Minimum Corner Radius (Decimal Inch) 0.0295
• Manufacturers Catalog Number N123H2-0396-0008-GF 1125
• Insert Thickness (Decimal Inch) 0.1713
• Chip Breaker GF
• Insert Seat Size H
• Overall Width 3.96
• Overall Width (Decimal Inch - 4 Decimals) 0.1559
• Coating/Finish TiAlN

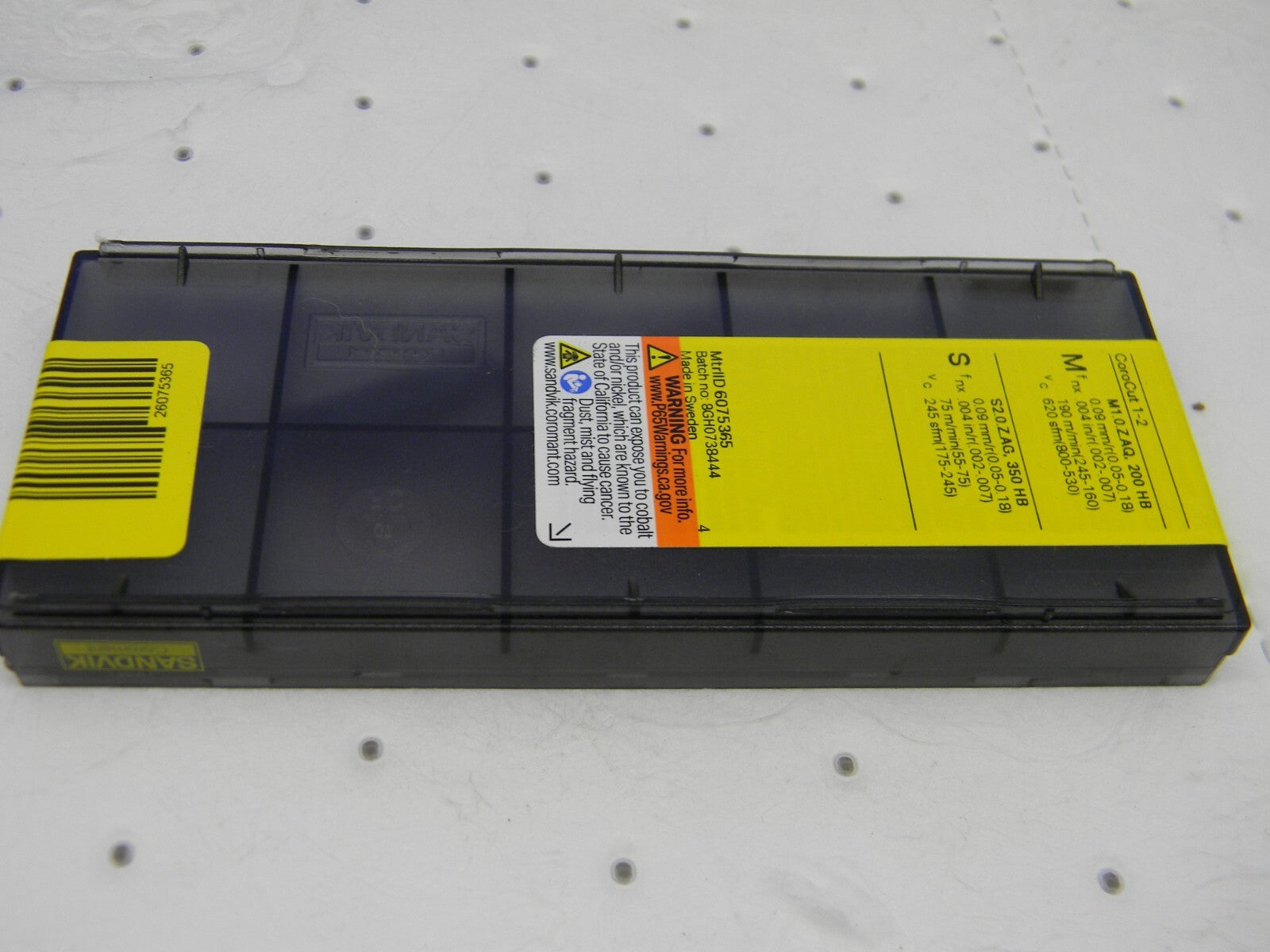

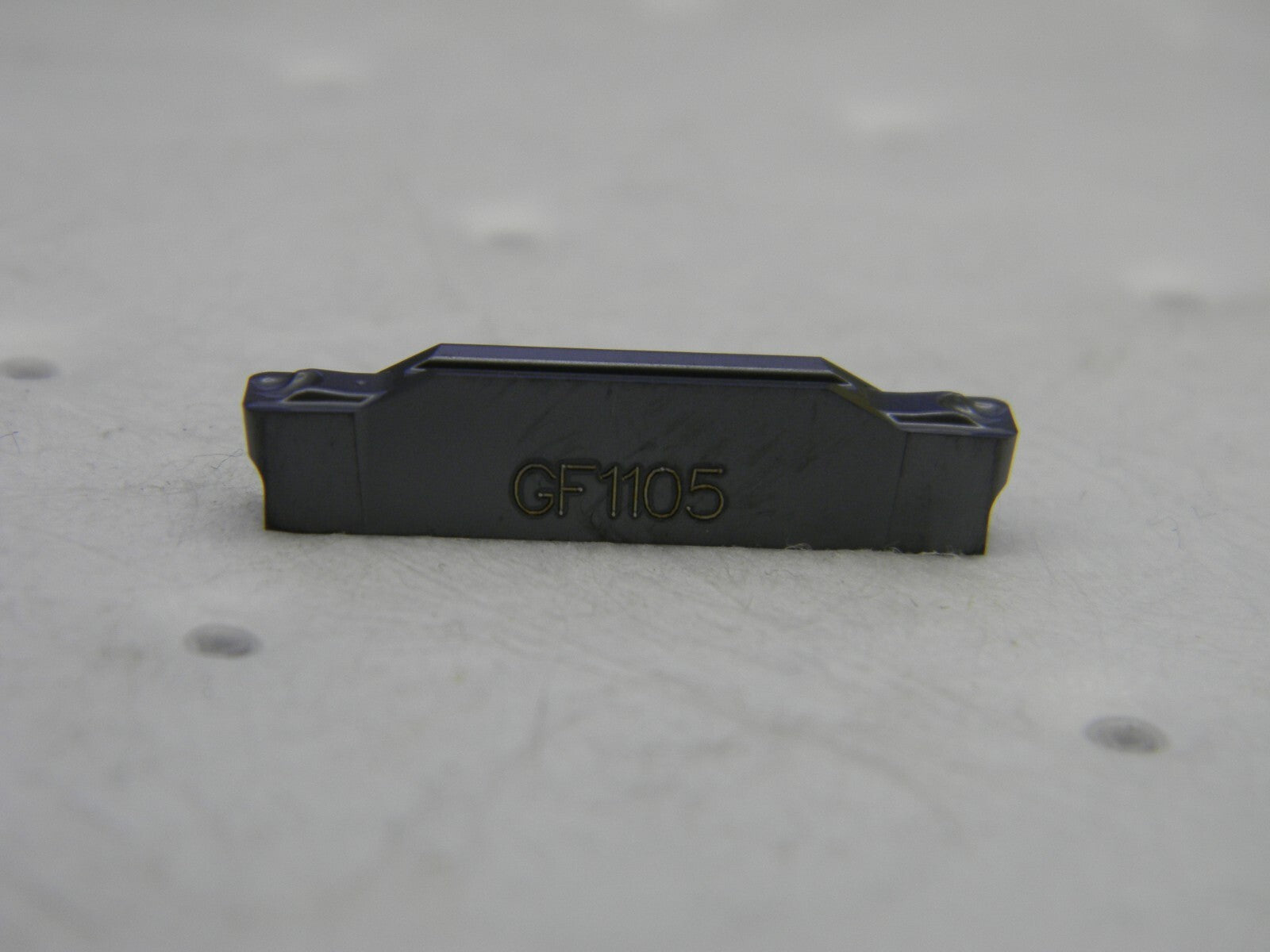

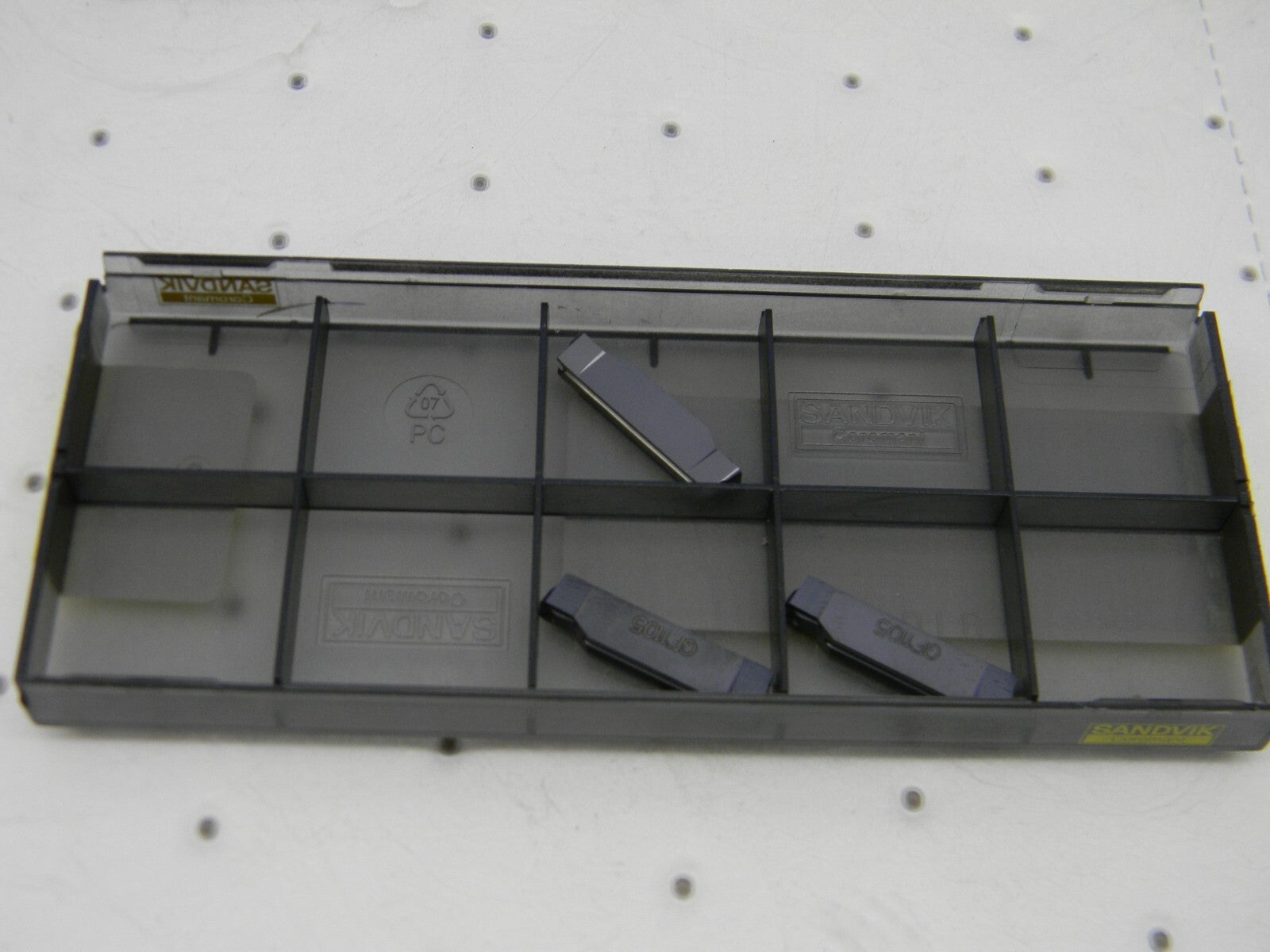

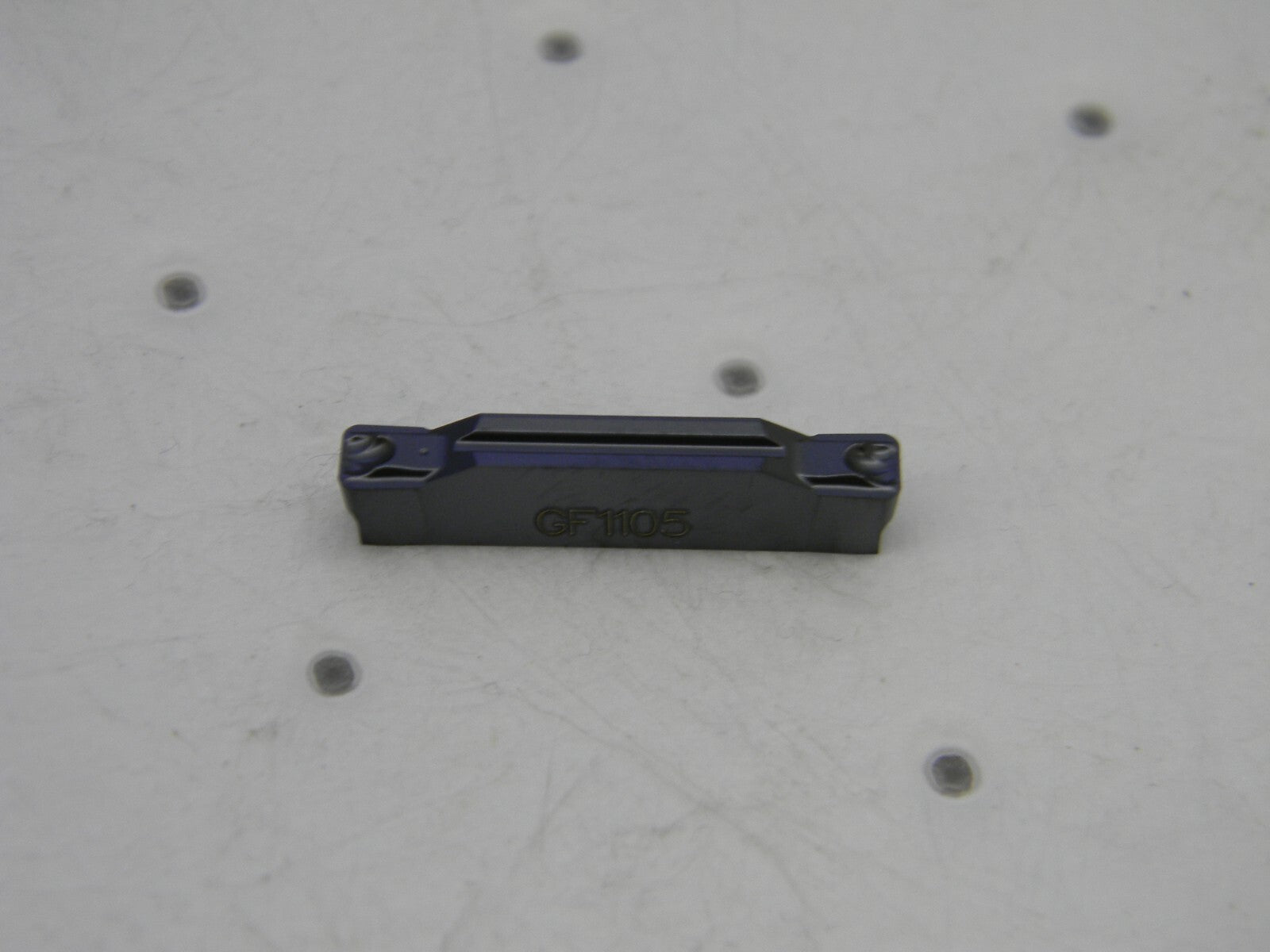

Please review photos, comes as shown.
