SANDVIK COROMANT Modular Turning & Profiling Head: Size C6 RH 5729606

SANDVIK COROMANT

 Modular Turning & Profiling Head: Size C6 RH 5729606
MSRP: $370

• System Size C6
• Maximum Hole Depth (Decimal Inch) 2.5591
• Maximum Hole Depth (mm) 65.00
• Minimum Hole Diameter (Decimal Inch) 4.3307
• Minimum Hole Diameter (mm) 110.00
• Cutting Direction Right Hand
• Compatible Insert Style CNMG 120408
• Internal or External Internal or External
• Insert Holding Method Wedge
• Center to Cutting Edge (mm) 45.00
• Center to Cutting Edge (Decimal Inch) 1.7717
• Series T-Max P
• Neck Diameter (mm) 63.00
• Neck Diameter (Decimal Inch) 2.4803
• Axial Rake Angle -6.00
• Radial Rake Angle (Degrees) -6
• Head Connection Size 20
• Complete Insert Compatibility CNMG 120408
• Coolant Through Yes
• Head Length Projection (Decimal Inch) 2.5591
• Head Length Projection (mm) 65.00

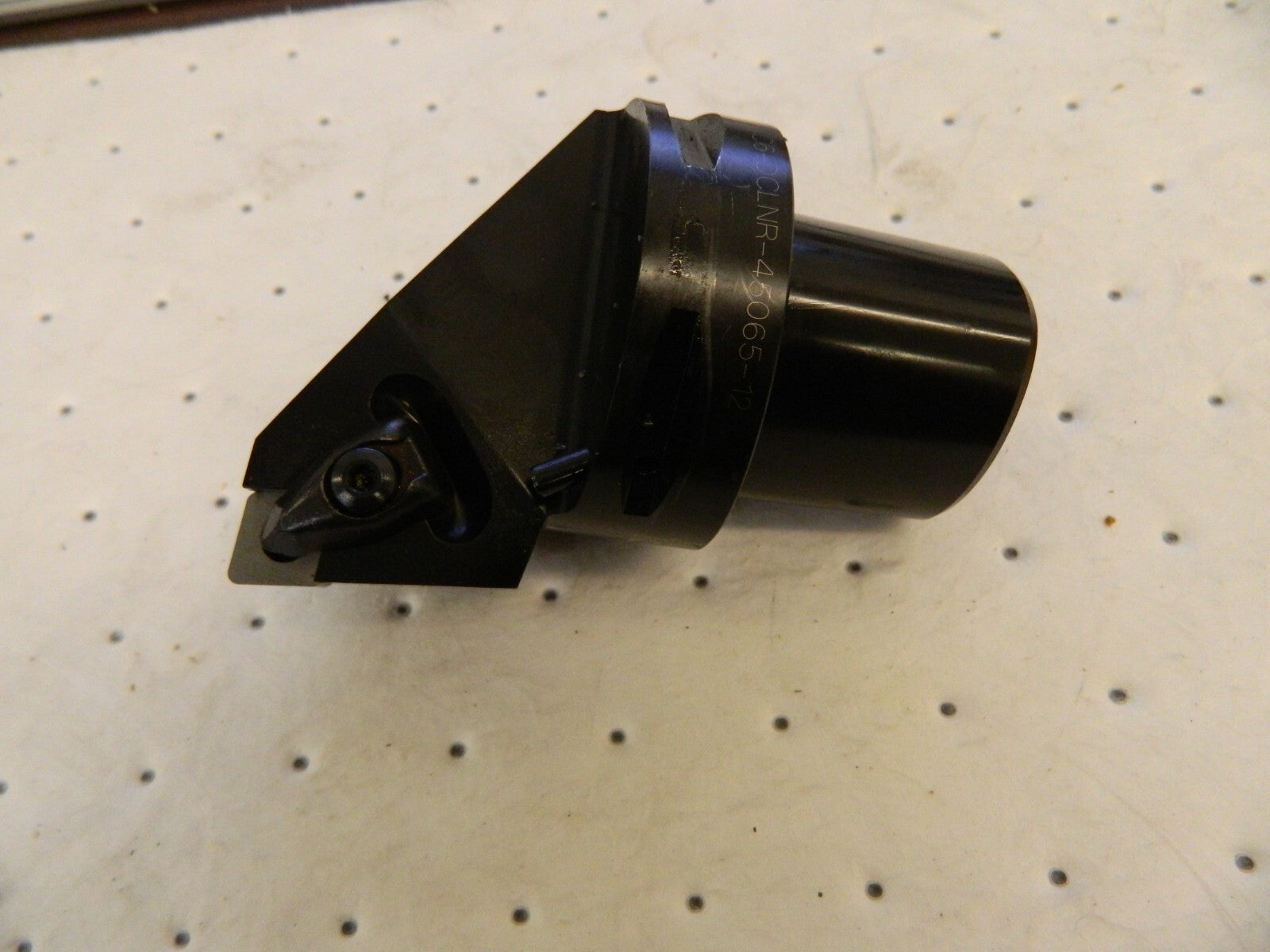

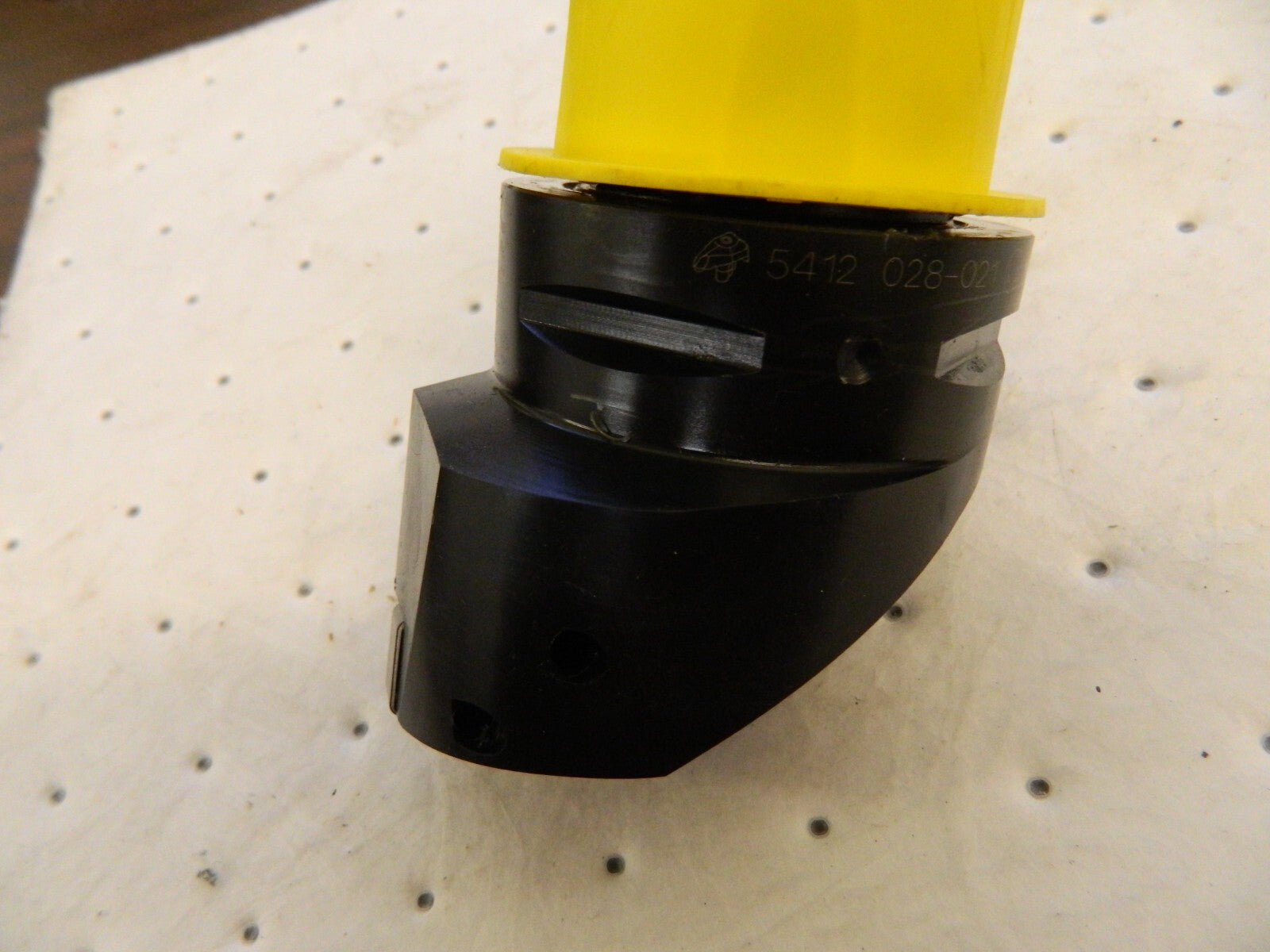

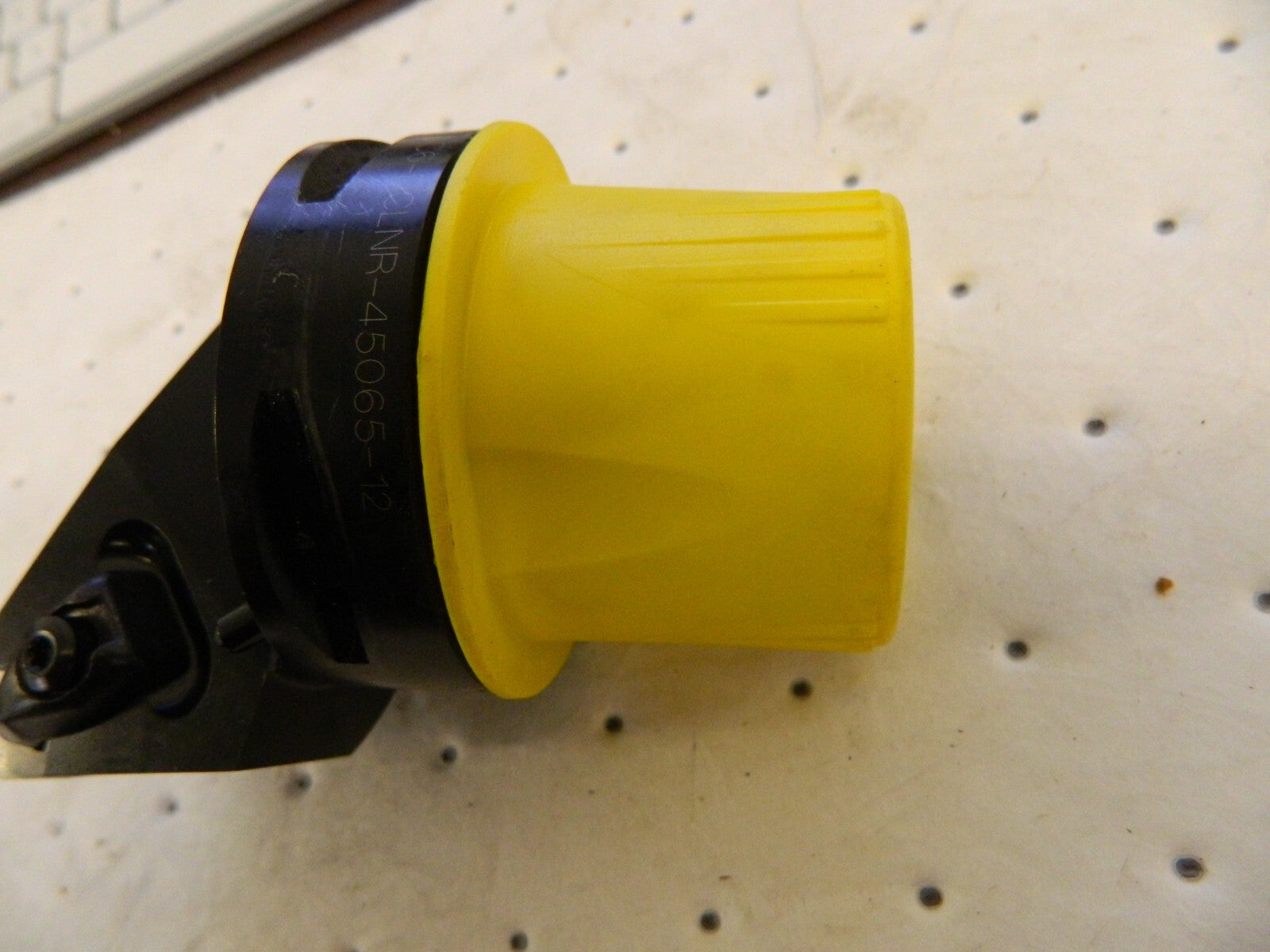

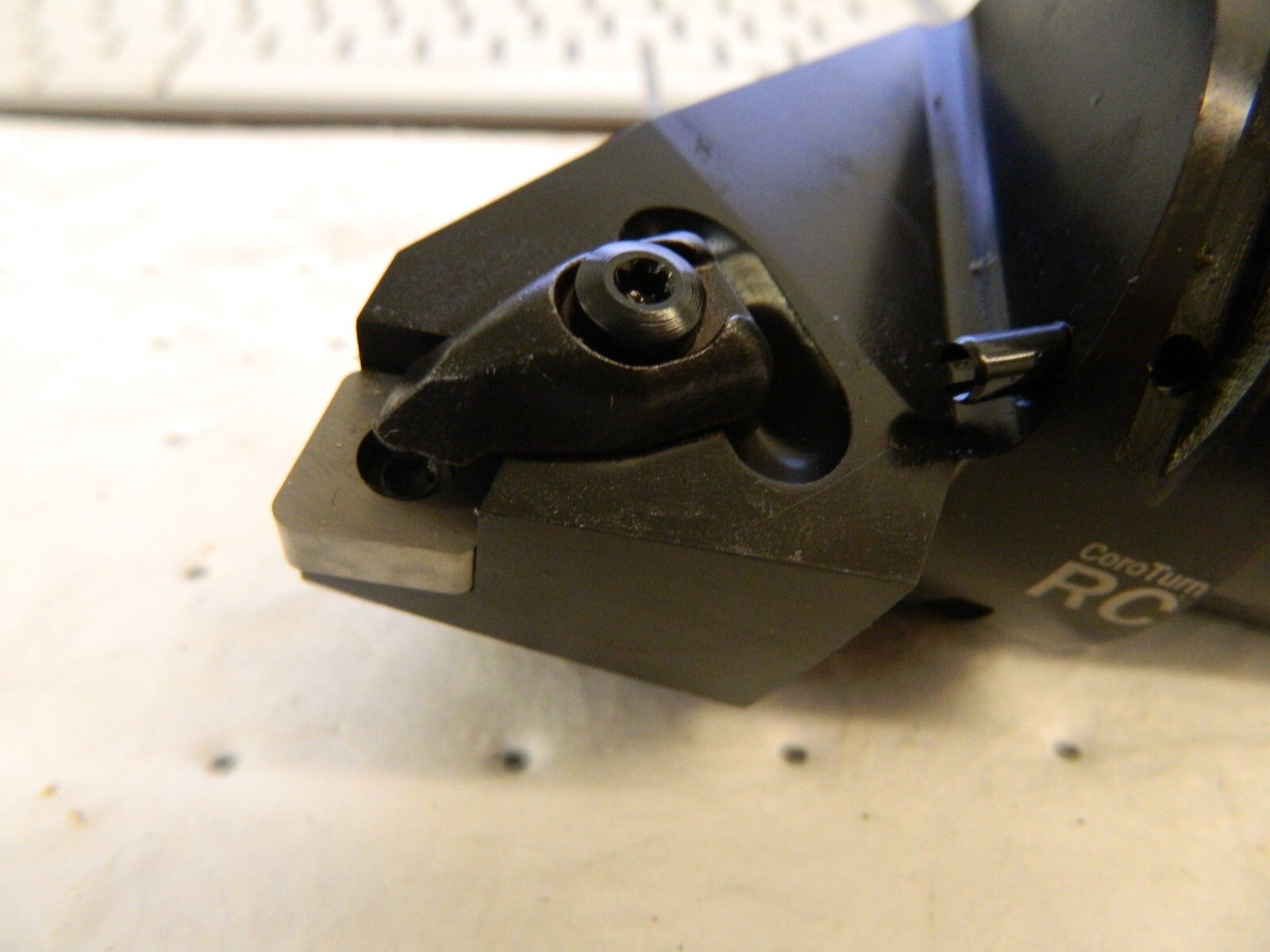

 Please review photos, comes as shown.
