SANDVIK COROMANT

 Milling Inserts qty 10 Solid Carbide 5758768
MSRP: $700

• Insert Style 328
• Insert Size 13
• Insert Material Solid Carbide
• Insert Shape Triangle
• Manufacturer Grade 1025
• Corner Radius (Decimal Inch) 0.0039
• Number Of Cutting Edges 3
• Thickness (Decimal Inch - 4 Decimals) 0.2126
• Coating/Finish TiN; TiAlN
• Relief Angle 6
• Maximum Depth of Cut (Decimal Inch) 0.1969
• Maximum Depth of Cut (mm) 5.00
• Insert Size Code 1313000
• Thickness Range (Decimal Inch) 0.2000 to 0.2200
• Length Range (Decimal Inch) 0.0000 to 0.3200
• Insert Hand Right Hand
• Series 328
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Ansi Code 328R13-130 00-GM 1025
• Iso Code 328R13-130 00-GM 1025
• Standards ISO; ANSI
• Cutting Edge Style Corner Rounded
• Manufacturers Catalog Number 328R13-130 00-GM 1025
• Cutter Series Compatibility 328
• Chip Breaker GM
• Material Application Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 60
• Length 5.40
• Width (Decimal Inch - 4 Decimals) 0.0512
• Width (Mm - 2 Decimals) 1.30
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.2126

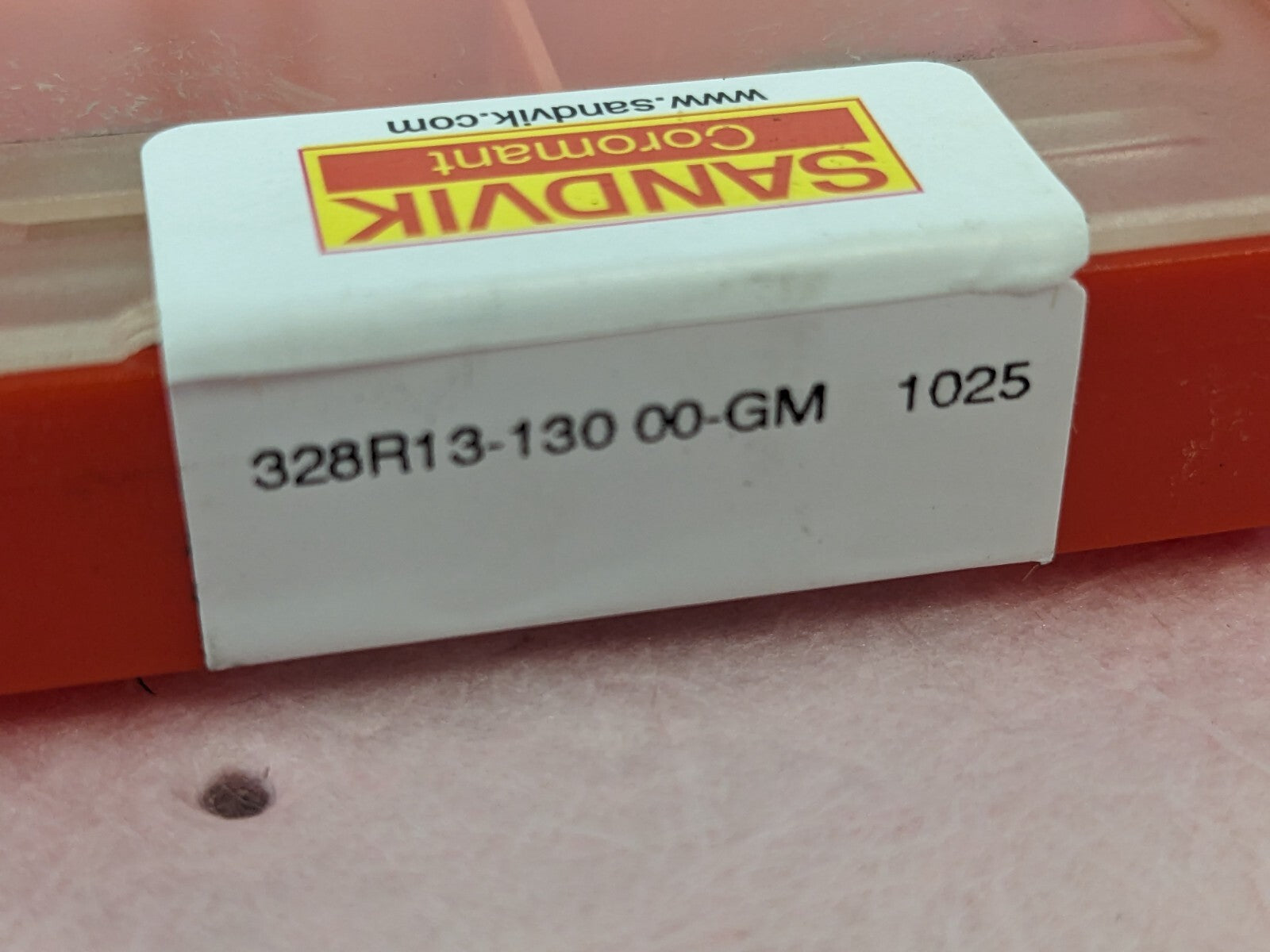

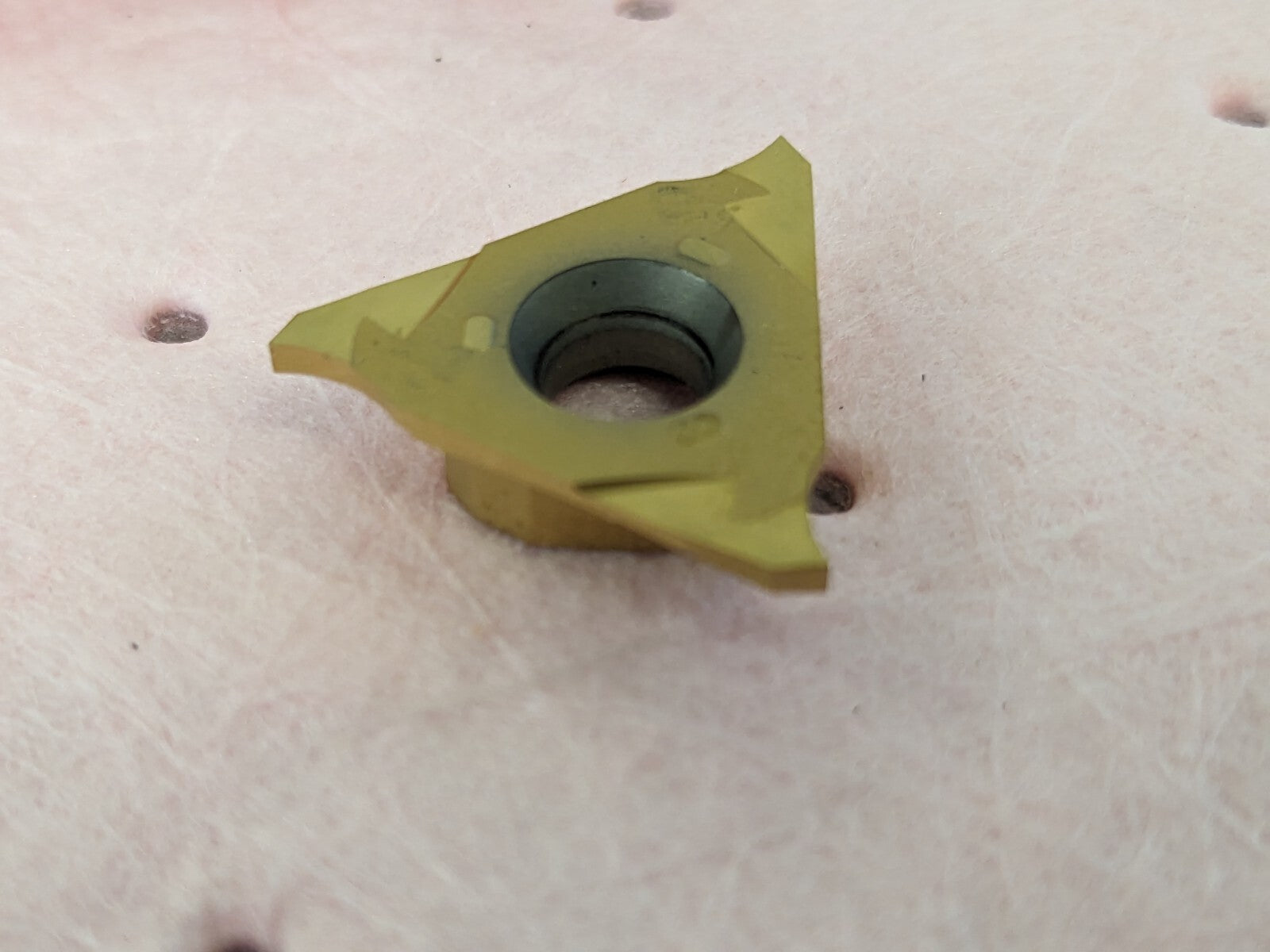

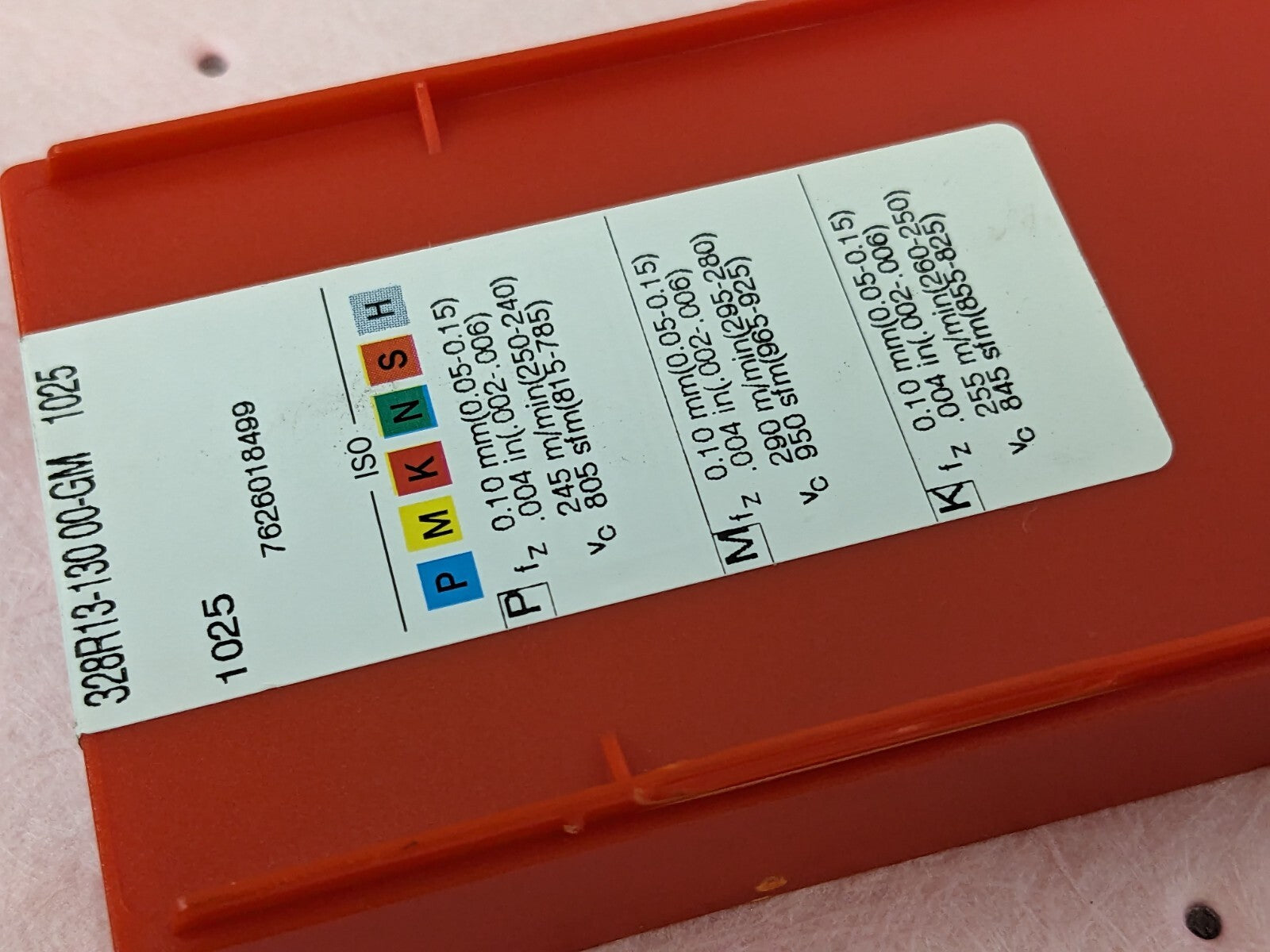

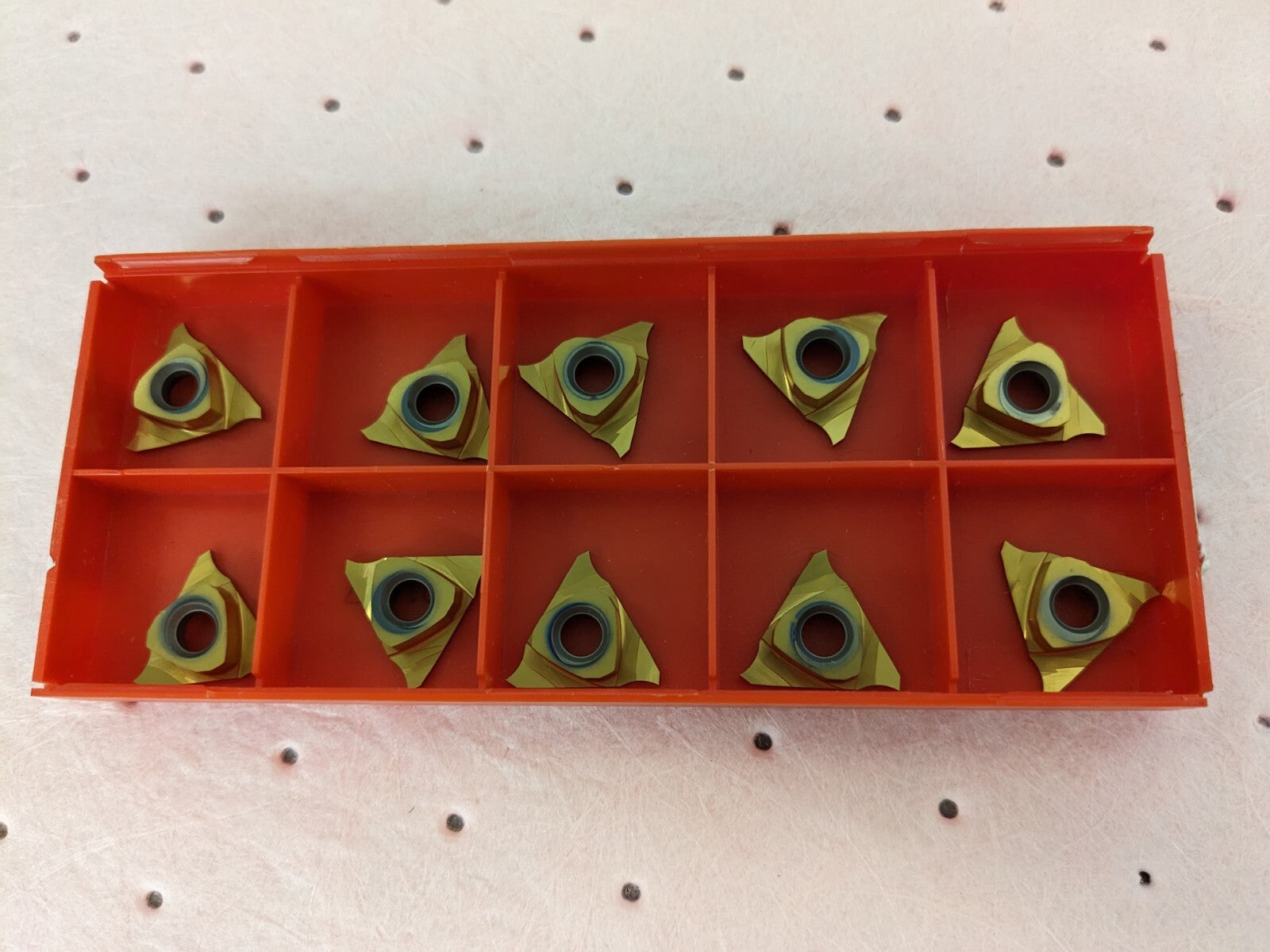

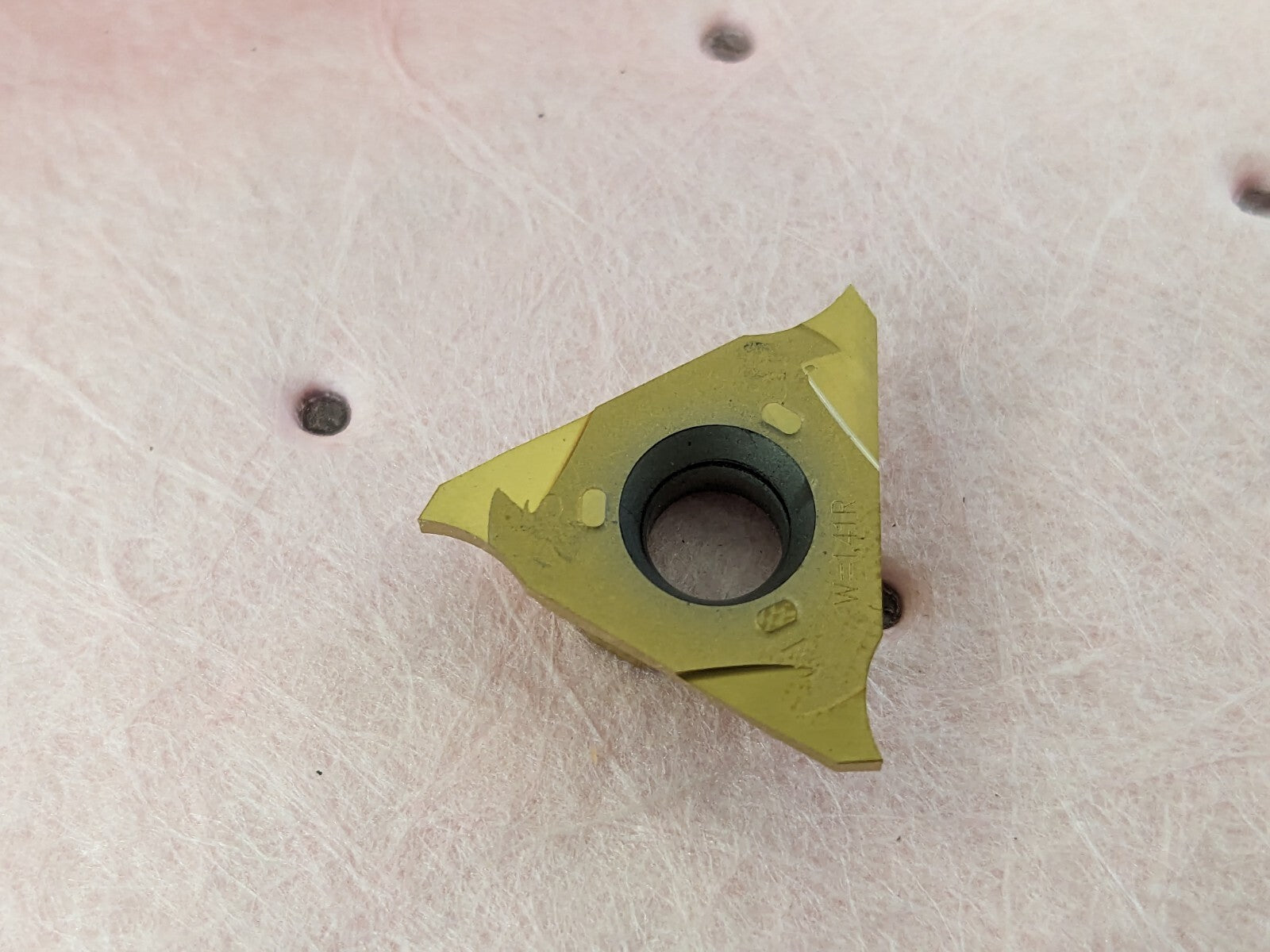

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
