Sandvik Coromant Milling Insert ANSI 328R13-160 00-GM 1025 Solid Carbide
Sandvik Coromant Milling Insert ANSI 328R13-160 00-GM 1025 Solid Carbide
Regular price
$348.88 USD
Regular price
$700.00 USD
Sale price
$348.88 USD
Shipping calculated at checkout.
BRAND Sandvik
Item
MSRP: $700.00
- specs
| Insert Style | 328 |
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | 1025 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2126 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 6.00 |
| Insert Size Code | 1316000 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Series | 328 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | 328R13-160 00-GM 1025 |
| Iso Code | 328R13-160 00-GM 1025 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 328R13-160 00-GM 1025 |
| Cutter Series Compatibility | 328 |
| Chip Breaker | GM |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Length (mm) | 5.40 |
| Width (Decimal Inch - 4 Decimals) | 0.0630 |
| Width (mm - 2 Decimals) | 1.60 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2126 |
| Country of Origin | France |
(Description).

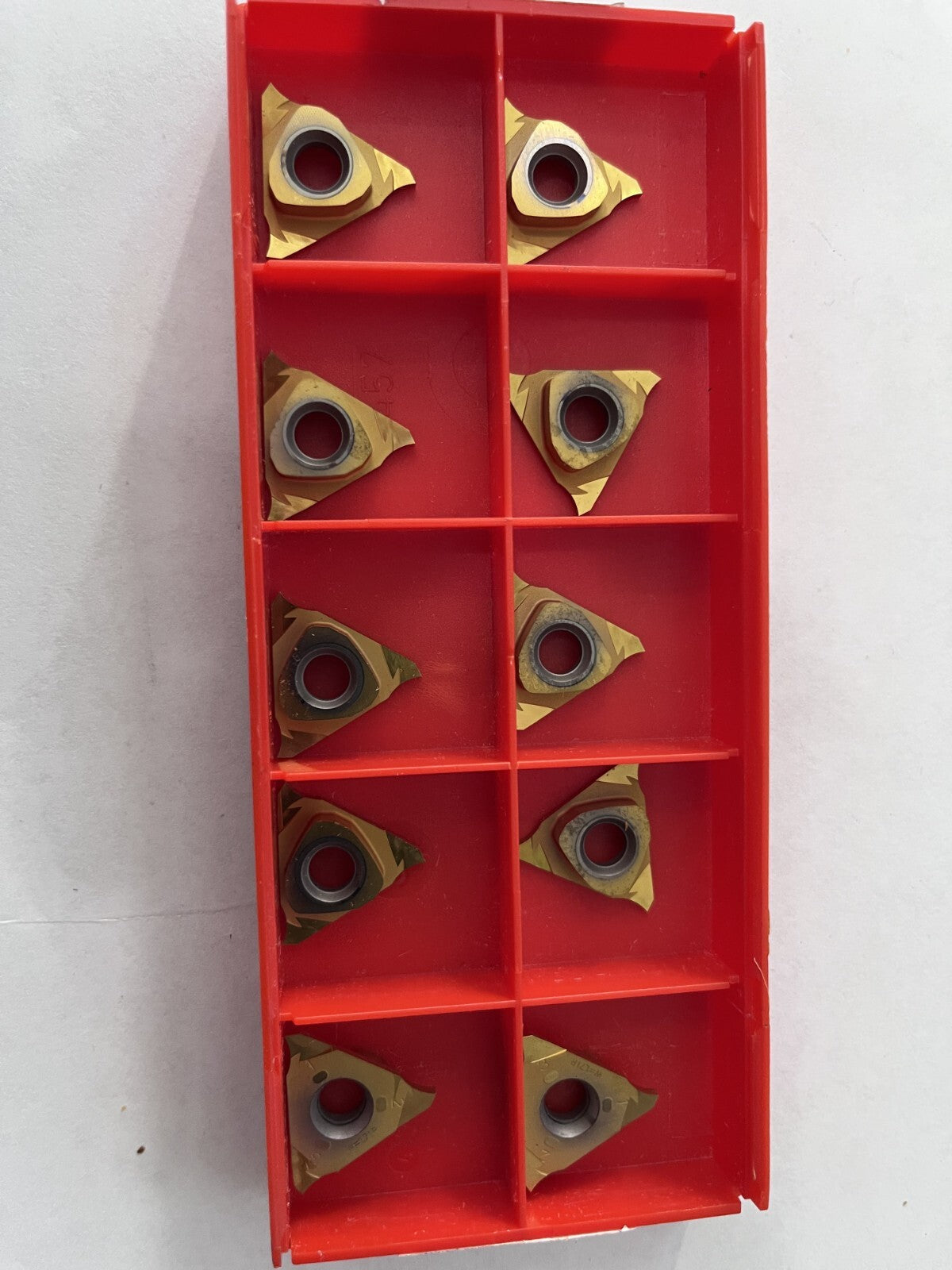

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
