Sandvik Coromant Internal Right Hand Indexable Grooving Toolholder 5738722

Sandvik Coromant
Indexable Grooving Toolholder

MSRP: $300

• Internal or External Internal
• Toolholder Type NonFace Grooving
• Hand of Holder Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.2800
• Maximum Depth of Cut (mm) 7.11
• Minimum Groove Width (Decimal Inch) 0.0728
• Minimum Groove Width (mm) 1.85
• Maximum Groove Width (mm) 2.39
• Maximum Groove Width (Decimal Inch) 0.0941
• Overall Length (mm) 200
• Overall Length (Decimal Inch) 7.8740
• Toolholder Style Internal
• Insert Compatibility N123E2-GM
• Shank Height (Inch) 1
• Shank Width/Diameter (Inch) 1
• Multi-Use Tool Yes
• Multi-Use Application Profiling; Grooving
• Insert Holding Method Clamp
• Insert Seat Size E
• Number of Inserts Used on Toolholder 1
• Minimum Hole Diameter (Decimal Inch) 1.0000
• Maximum Bore Depth (Decimal Inch) 4.0000
• igrvh Maximum Bore Depth (mm) 101.60
• Maximum Workpiece Diameter (Decimal Inch) 1.0000
• Back of Bar to Cutting Edge (Decimal Inch) 7.8740
• Head Length (mm) 35.00
• Head Length (Decimal Inch) 1.3780
• Mount Type Straight Mount
• Full Radius Insert Yes
• Shank Length (mm) 200.00
• Shank Length (Decimal Inch) 7.8740

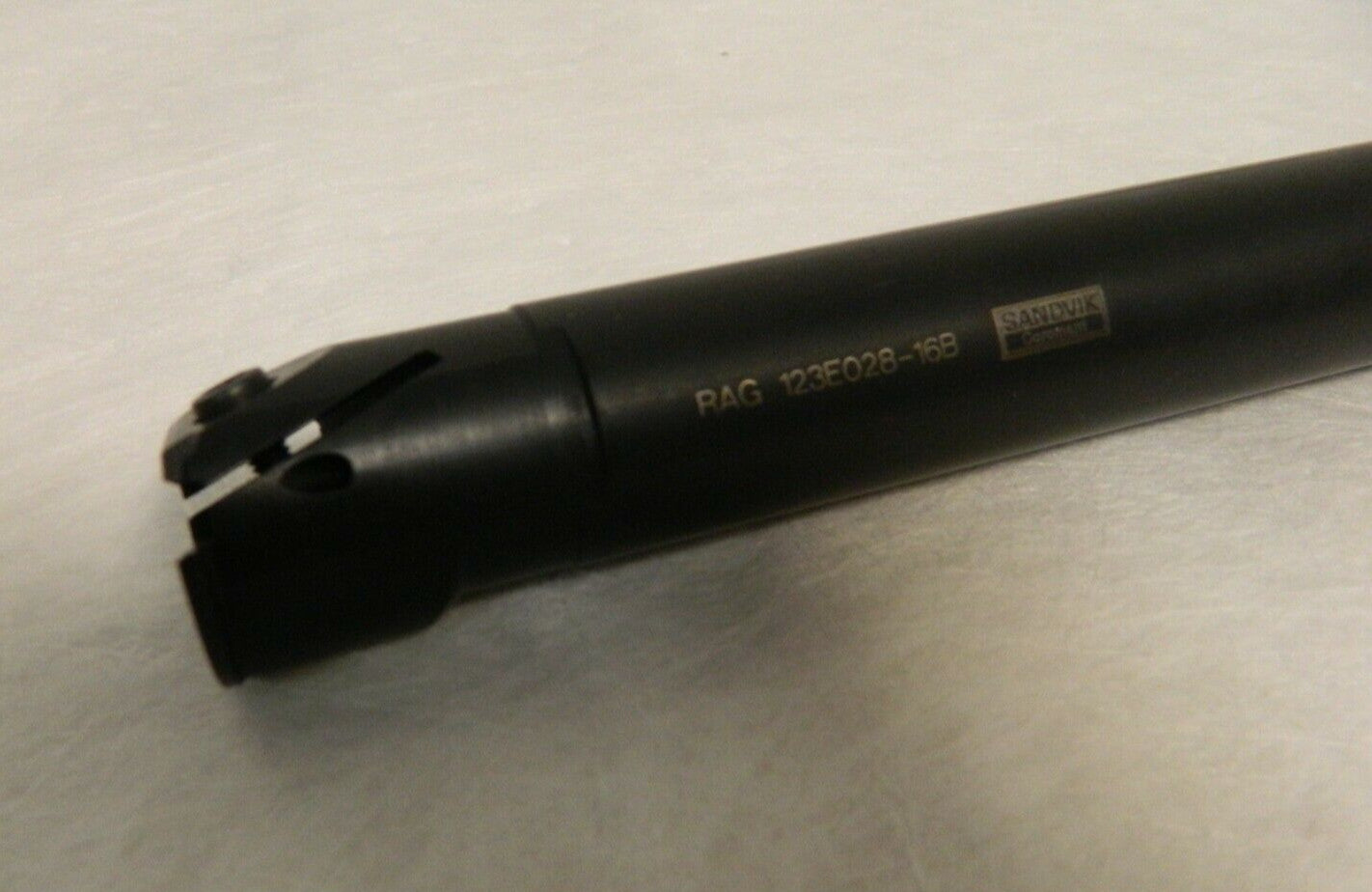

• Manufacturers Catalog Number RAG123E028-16B
• Toolholder Material Steel

Does NOT come with inserts. Sold separately.

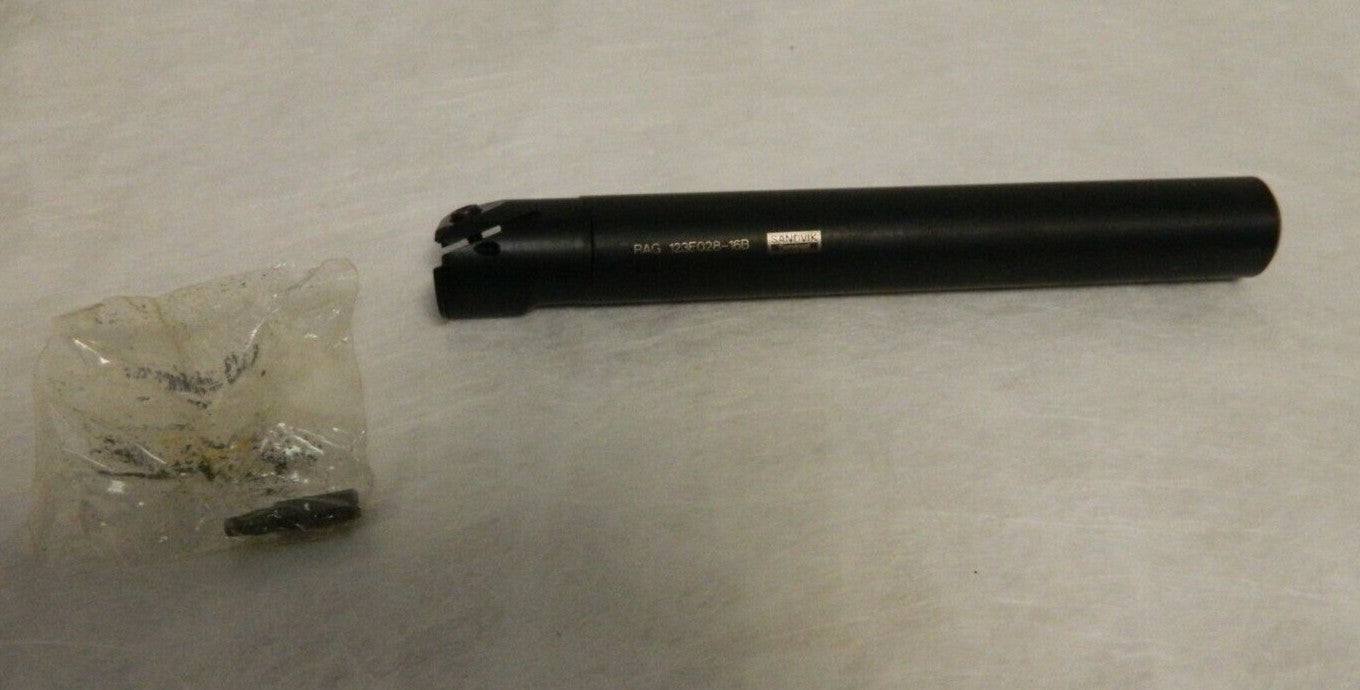

Please review photos, comes as shown.
