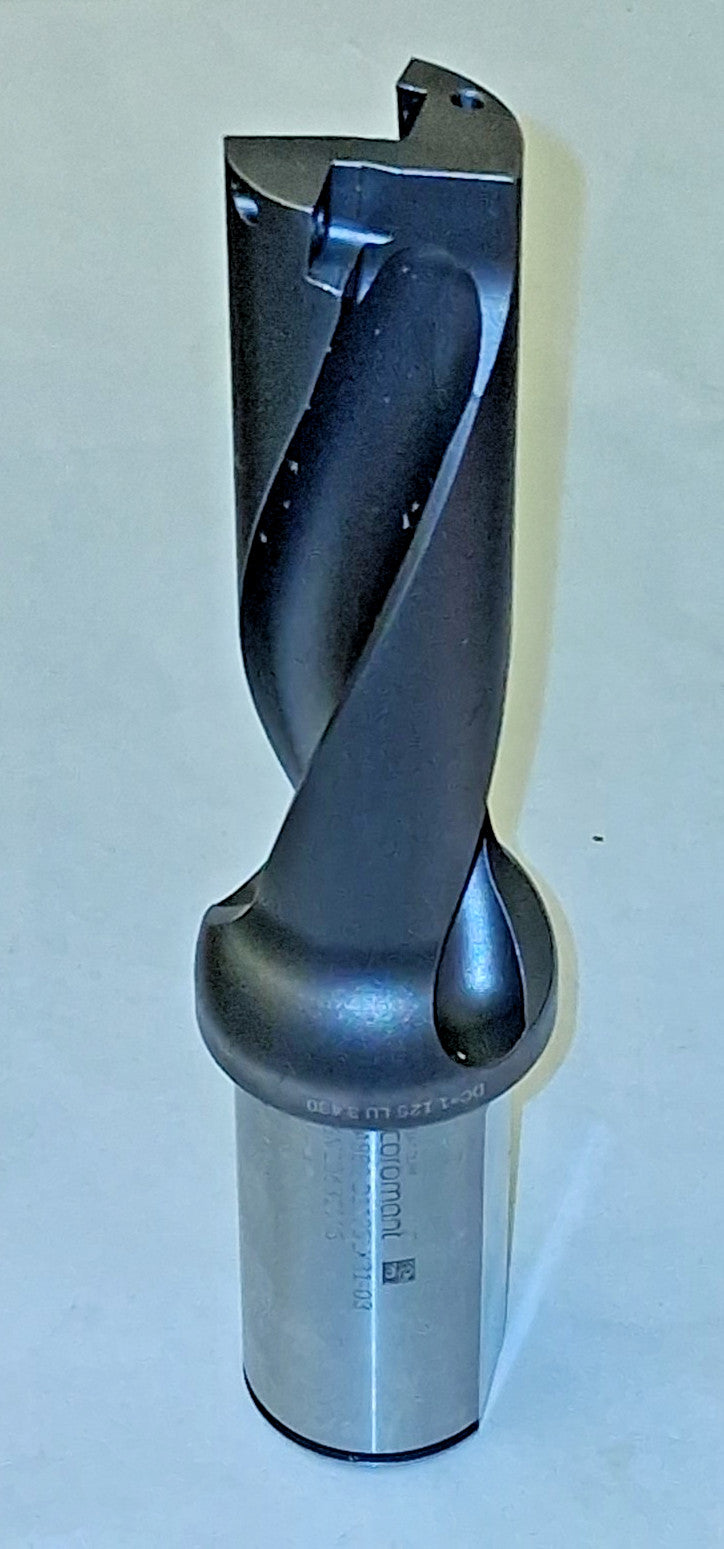

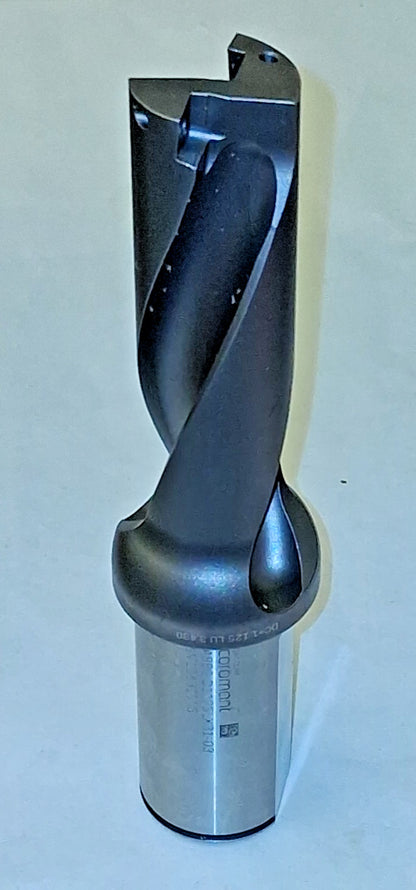

Sandvik Coromant Indexable Insert Drill A880-D1125LX31-03 5723794

Sandvik Coromant
Indexable Insert Drill

MSRP: $920.00

• Compatible Drill Style: A880
• Maximum Drill Diameter (mm): 28.57
• Maximum Drill Diameter (Decimal Inch): 1.1644
• Maximum Drill Depth (Decimal Inch): 3.3964
• Shank Type: Flange; Weldon Flat
• Shank Diameter (Inch): 1-1/4
• Shank Diameter (Decimal Inch): 1.2500
• Number of Drill Inserts: 2
• Cutting Direction: Right Hand
• Maximum Drill Depth Range (Decimal Inch): 3.0000 to 4.0000
• Tool Material: Steel
• Compatible Insert Style: 880
• Compatible Insert Size Code: 050305; 0503W05
• Drill Depth by Diameter Ratio: 3xD
• Coolant Entry Style Code: 1-Axial Concentric Entry
• Overall Length (Decimal Inch): 6.7632
• Series: CoroDrill 880
• Flute Length (Decimal Inch): 3.5440
• Flute Length (mm): 106.76
• Body Length (mm): 90.02
• Body Length (Decimal Inch): 4.3796
• Shank Length (Decimal Inch): 2.3836
• Shank Length (mm): 60.00
• Tool Application: Drilling
• Tool Performance: General Purpose
• Insert Size (Decimal Inch): 0.3310; 0.3500
• Insert Size (mm): 3.00
• UNSPSC Code: 23291503
• Insert Compatibility: 880-050305H-C-GM; 880-0503W05H-P-GM
• Insert Lock Screw: 5513 020-57
• Coolant Through: Yes

Please review photos, comes as shown.
