Sandvik Coromant Indexable Chamfer/Angle Face Mill 4.92" Dia. RA260.3-125M-10
Sandvik Coromant Indexable Chamfer/Angle Face Mill 4.92" Dia. RA260.3-125M-10
Regular price
$188.68 USD
Regular price
$400.00 USD
Sale price
$188.68 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Sandvik
MSRP: $400.00
Model: RA260.3-125M-10
Description:
Cutting Diameter (Decimal Inch) 4.9210
Arbor Hole Diameter (Inch) 1-1/2
Arbor Hole Diameter (Decimal Inch) 1.5000
Lead Angle 45
Overall Height (Inch) 2-3/8
Overall Height (Decimal Inch) 2.3750
Insert Compatibility TNEF 1204AN
Series Auto Roughing
Through Coolant No
Maximum Depth of Cut (Decimal Inch) 0.2360
Number of Cutter Inserts 20
Insert Holding Method Clamp
Cutter Style R/LA260.3
Keyway Width (Decimal Inch) 0.6331
Maximum Body Diameter (Decimal Inch) 5.7160
Maximum RPM 1400
Cutting Direction Right Hand
Complete Insert Compatibility TNEF 1204AN
Toolholder Material Steel

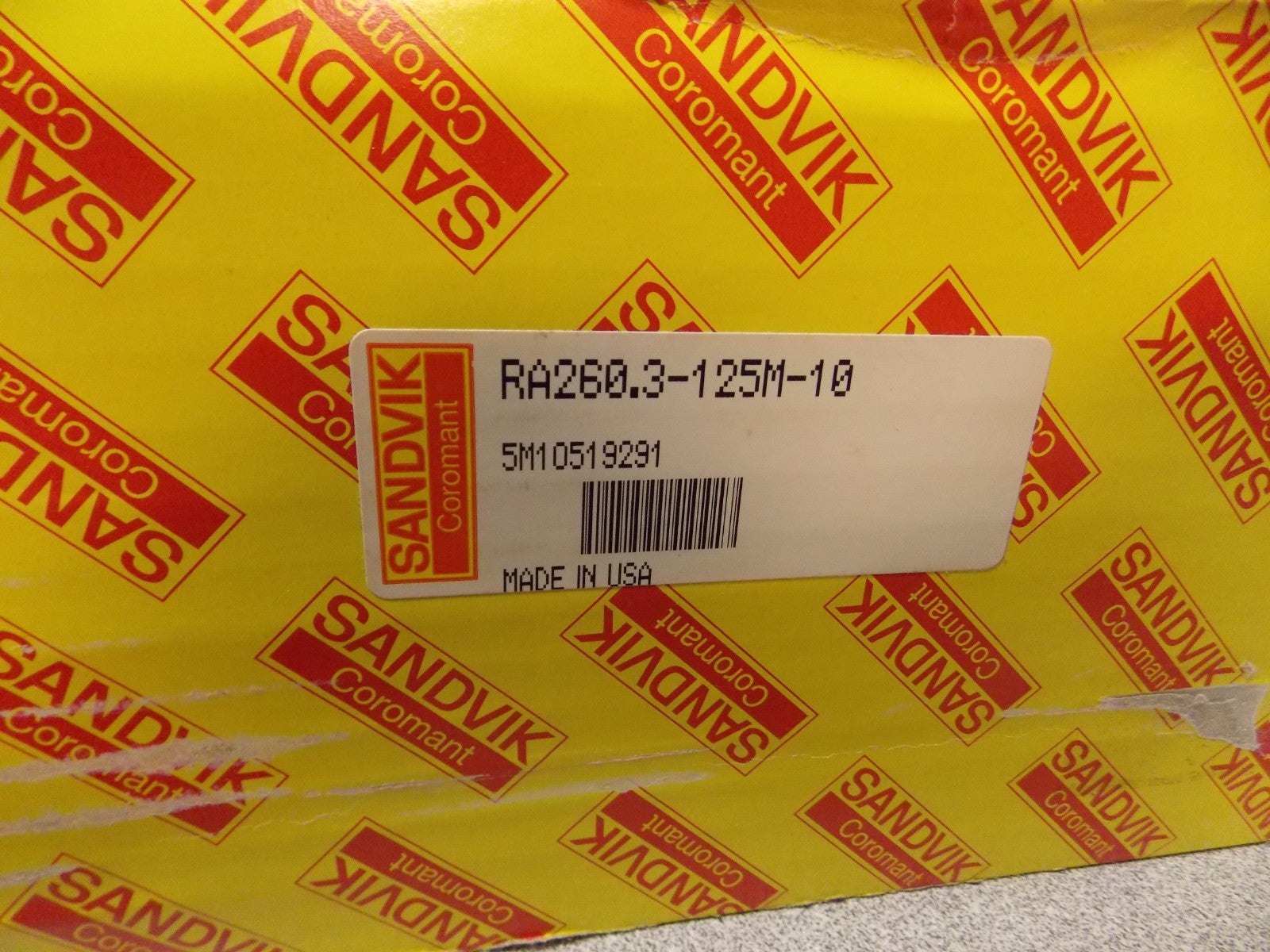

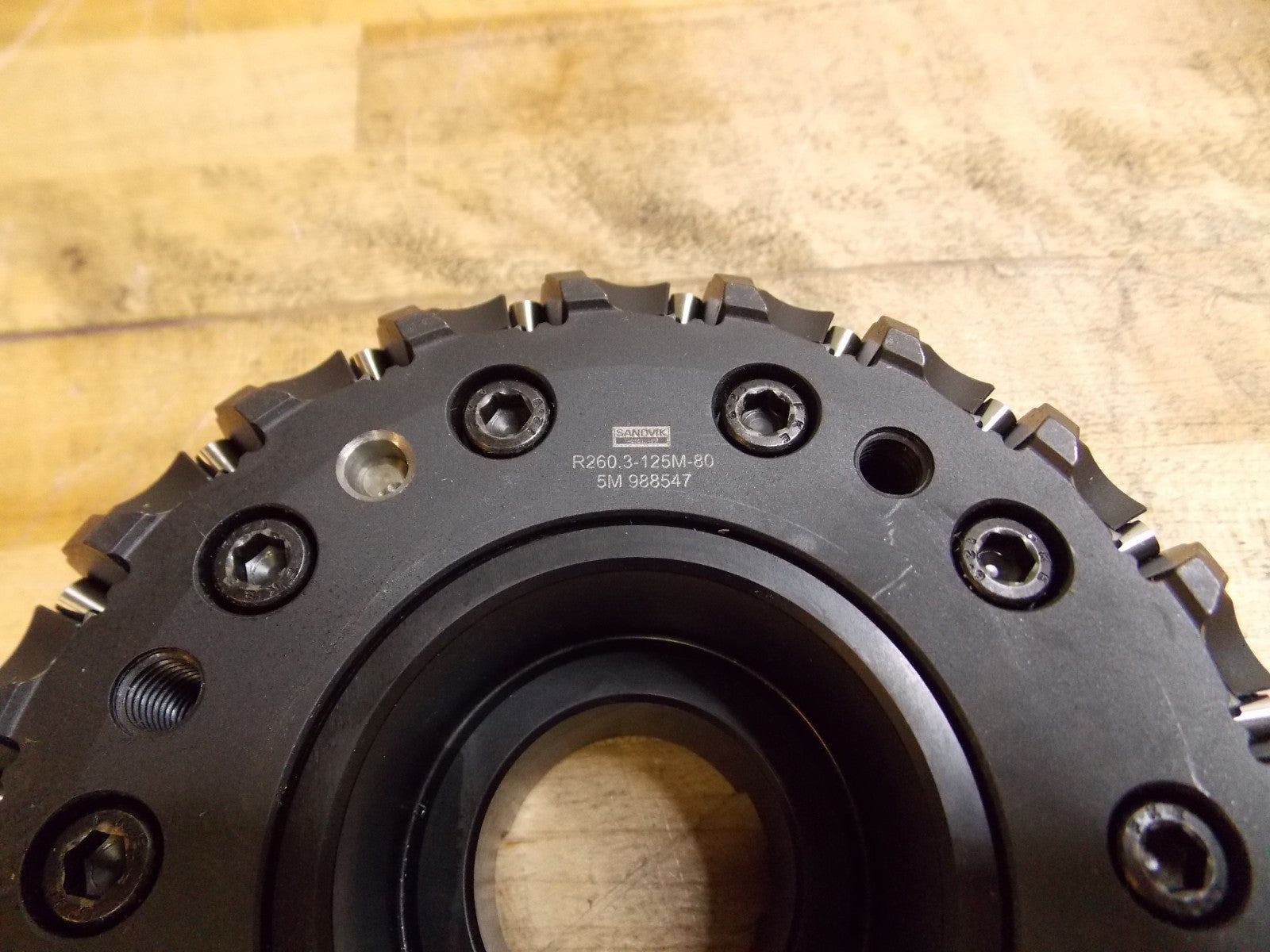

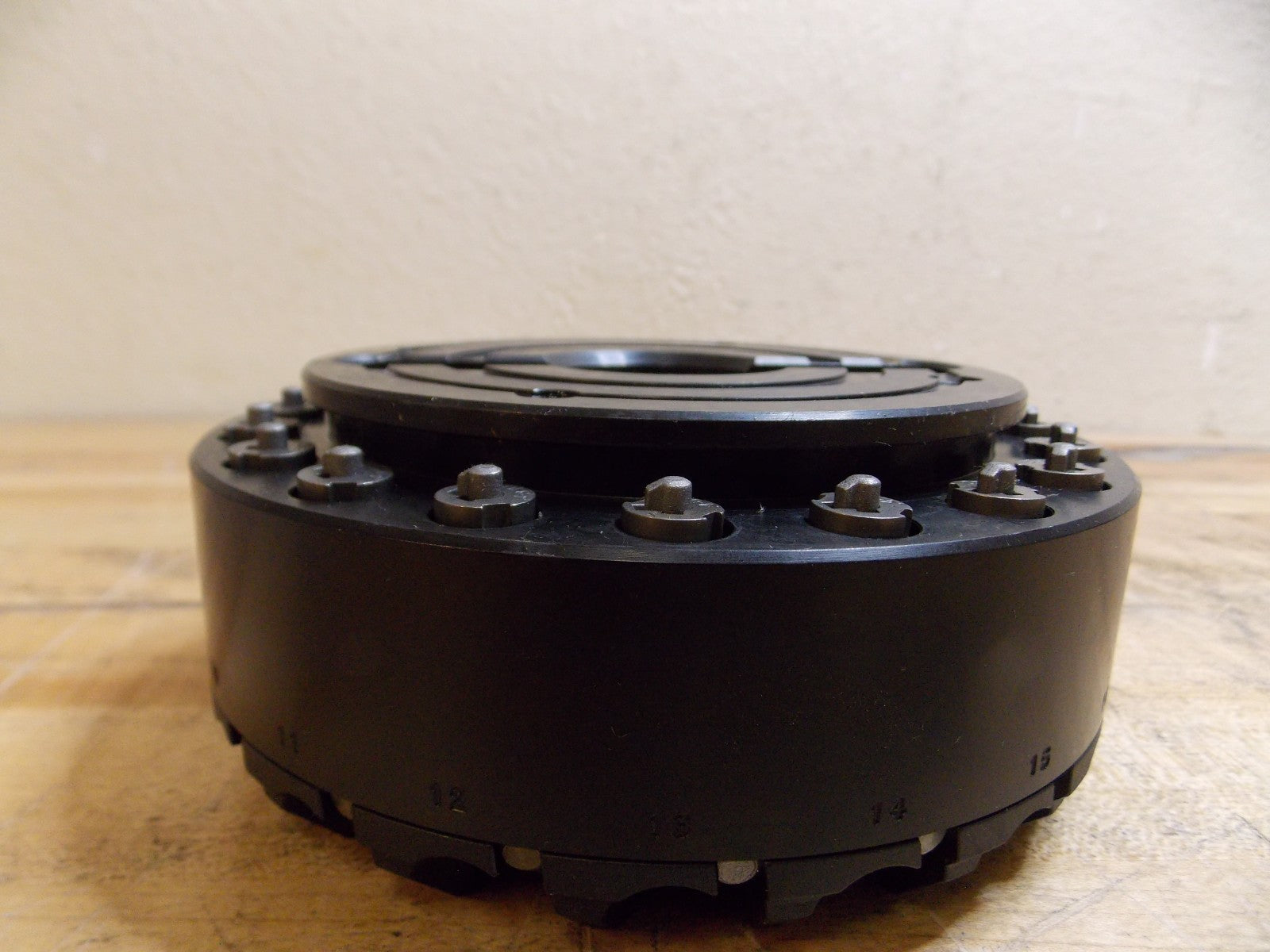

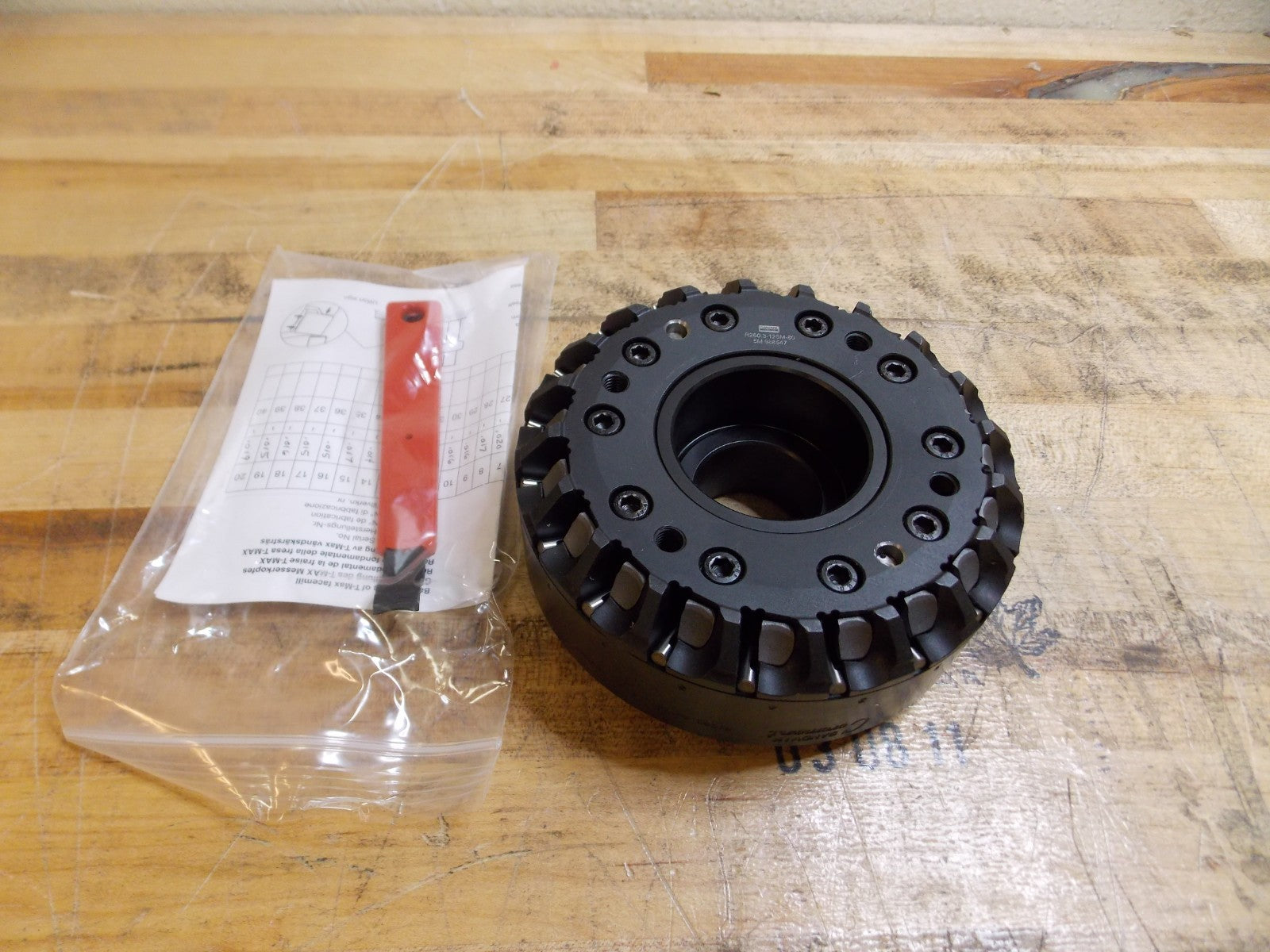

This listing is for One FaceMill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
