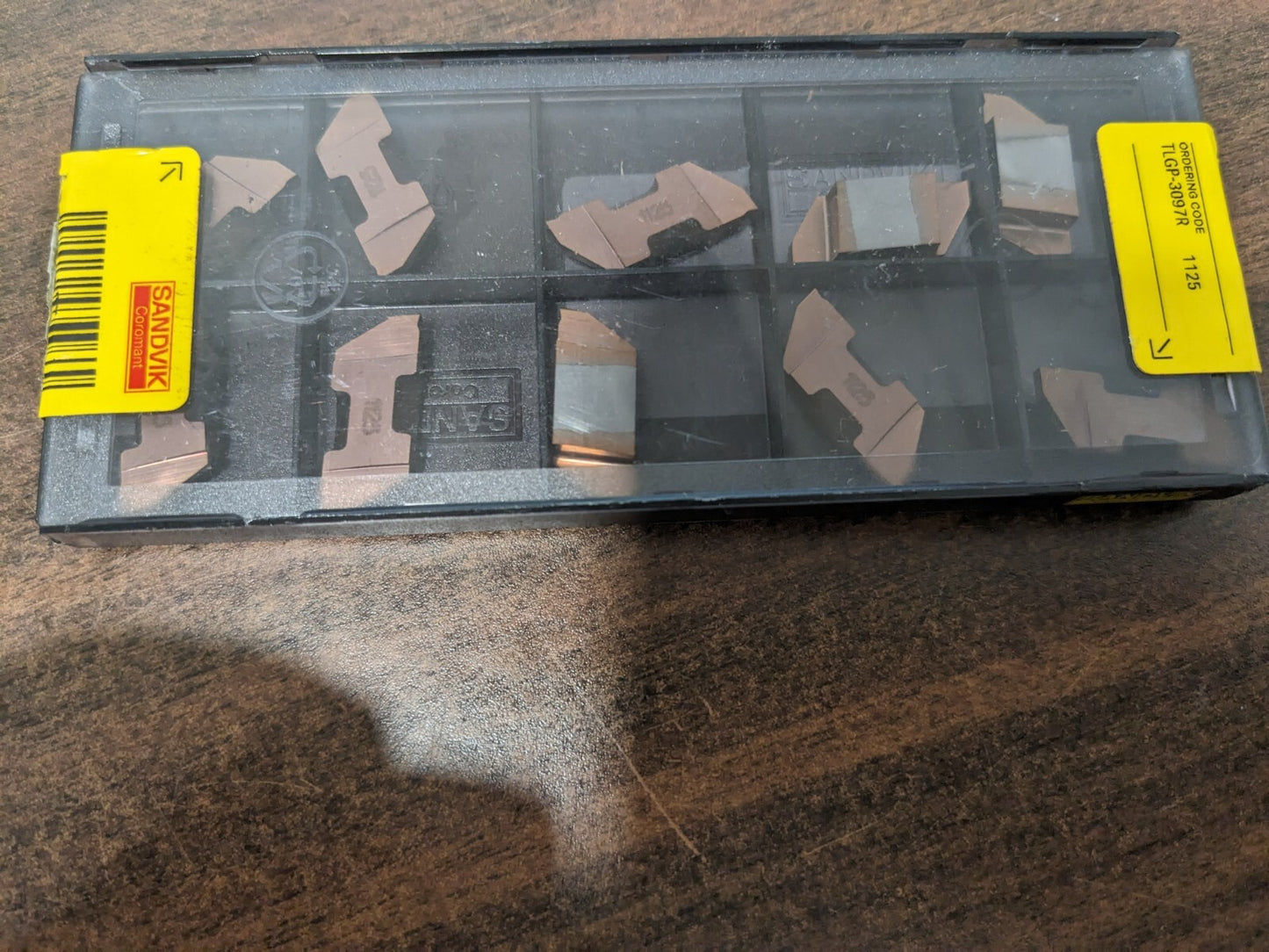

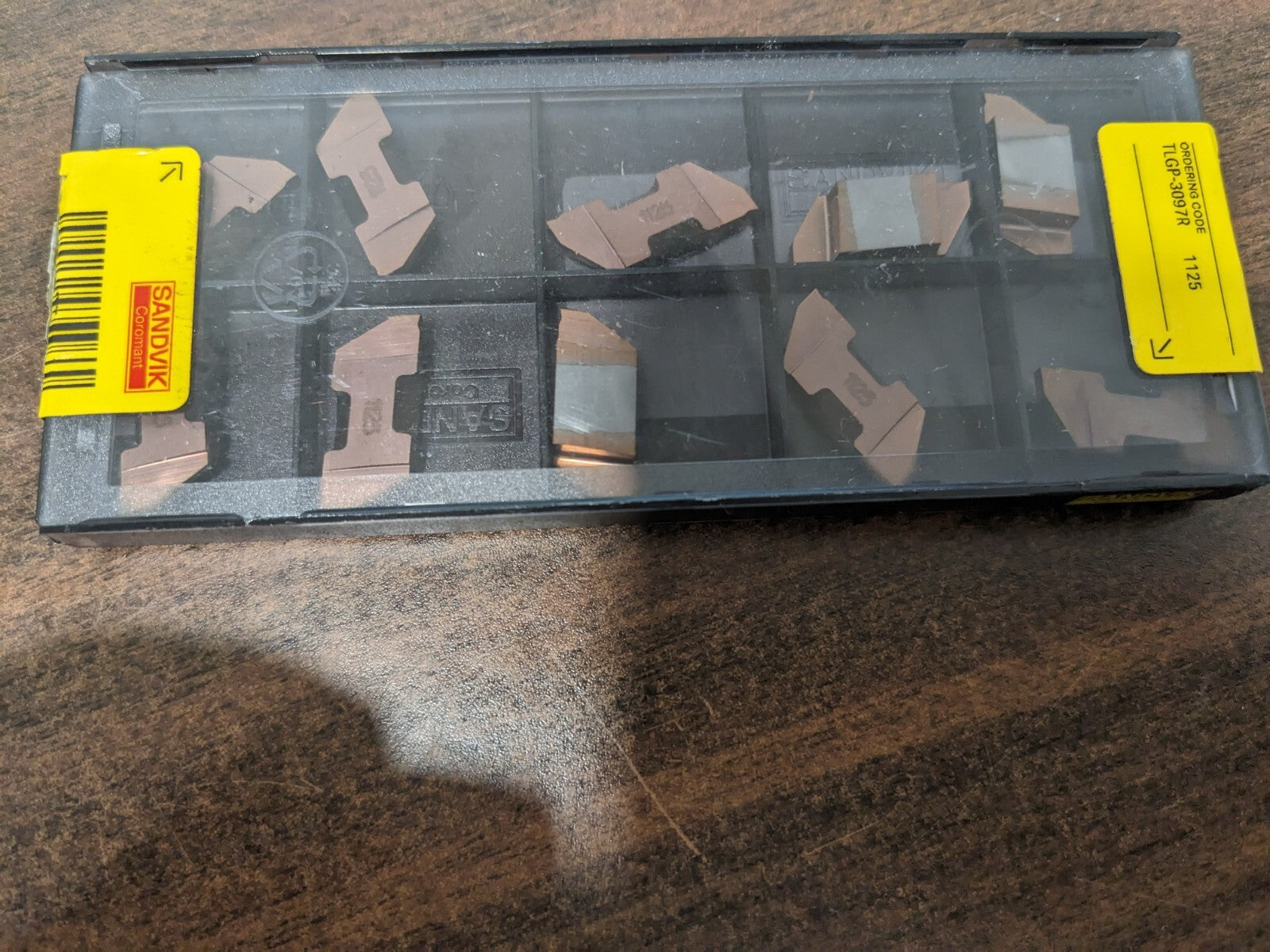

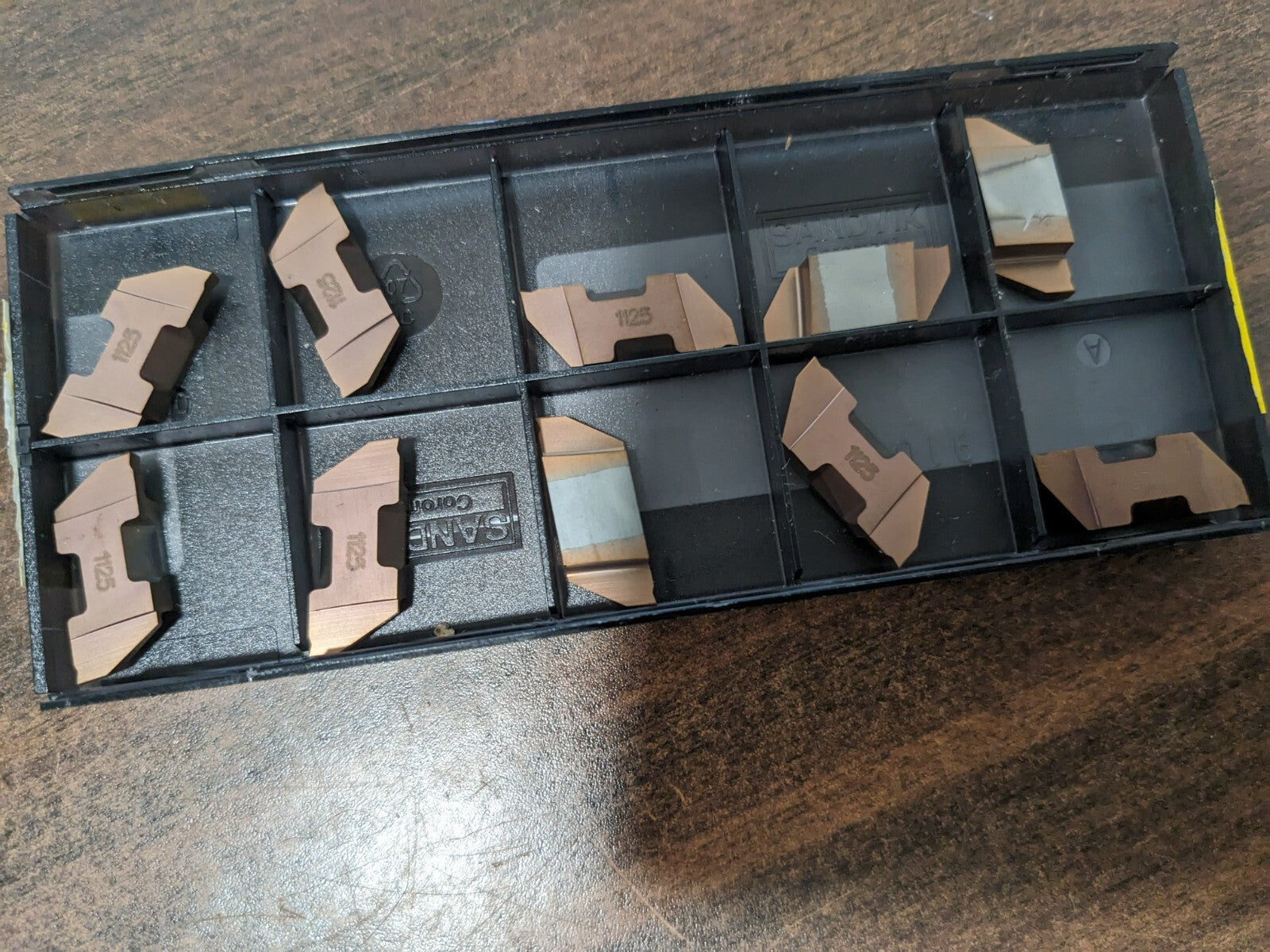

SANDVIK COROMANT Grooving Inserts 10pk: TLGP3 1125, Solid Carbide 5753757

SANDVIK COROMANT Grooving Inserts 10pk: TLGP3 1125, Solid Carbide 5753757

MSRP: $400

• Insert Style TLGP
• Cutting Width (Decimal Inch) 0.097
• Cutting Width (mm) 2.46
• Insert Hand Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.1500
• Maximum Depth of Cut (mm) 3.81
• Insert Material Carbide
• Manufacturer Grade 1125
• Corner Radius (Decimal Inch) 0.0125
• Corner Radius (mm) 0.32
• Rake Neutral
• Insert Size 3
• Cutting Height (mm) 8.74
• Maximum Depth Of Cut Range (Decimal Inch) 0.1500 to 0.2000
• Cutting Height (Decimal Inch) 0.3440
• Maximum Depth Of Cut Range (mm) 3.00 to 4.00
• Multi-use Tool Yes
• Series Top Lok
• Coating Process PVD
• Rake Angle 10
• Overall Length (Decimal Inch) 0.6339
• Iso Code TLGP-3097R 1125
• Manufacturers Catalog Number TLGP-3097R 1125
• Insert Thickness (Decimal Inch) 0.3440
• UNSPSC Code 23242105
• Overall Width (mm) 2.46
• Overall Width (Decimal Inch - 4 Decimals) 0.097
• Coating/Finish TiCrAlN; TiAlN

Please review photos, comes as shown.
