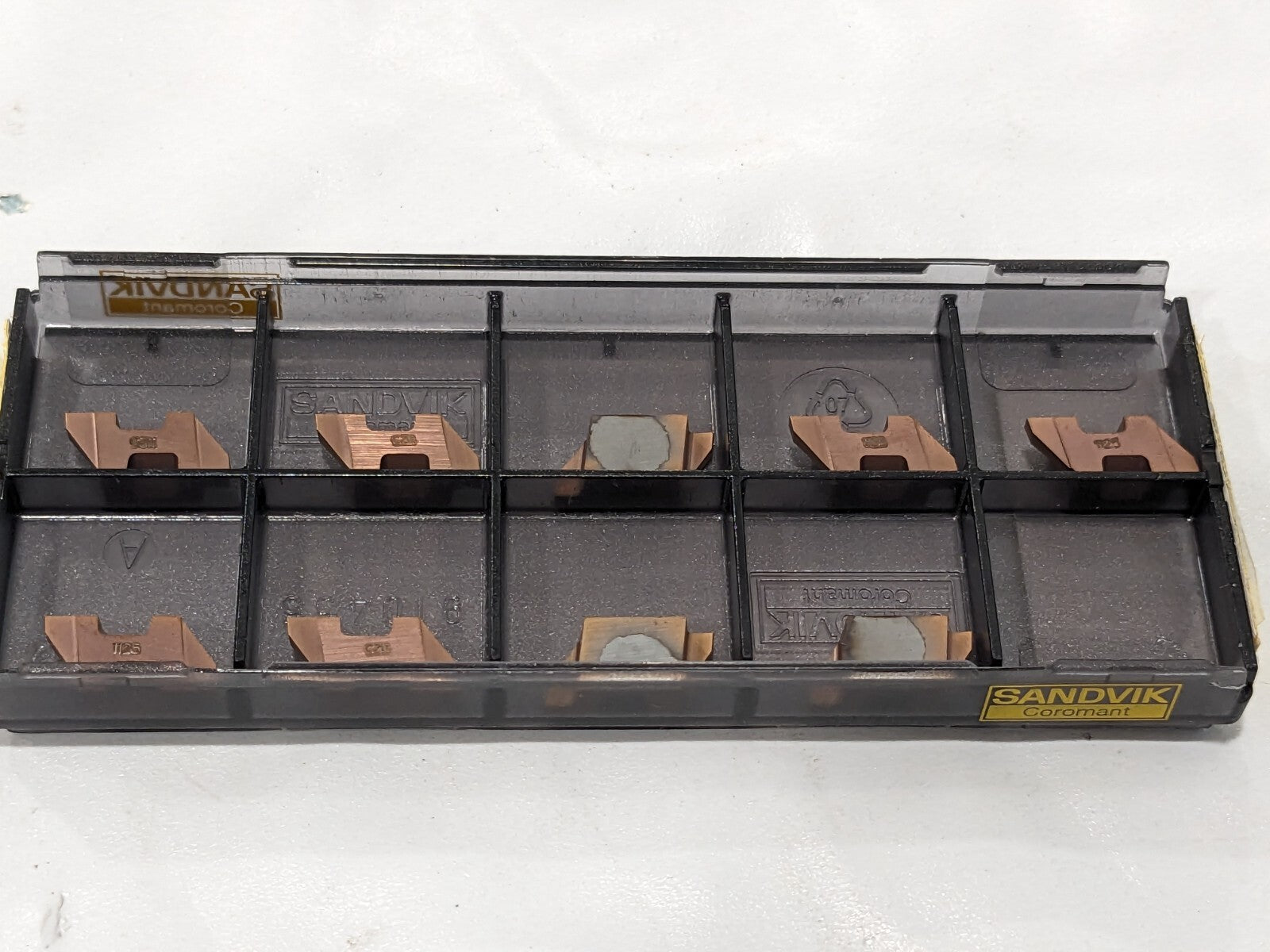

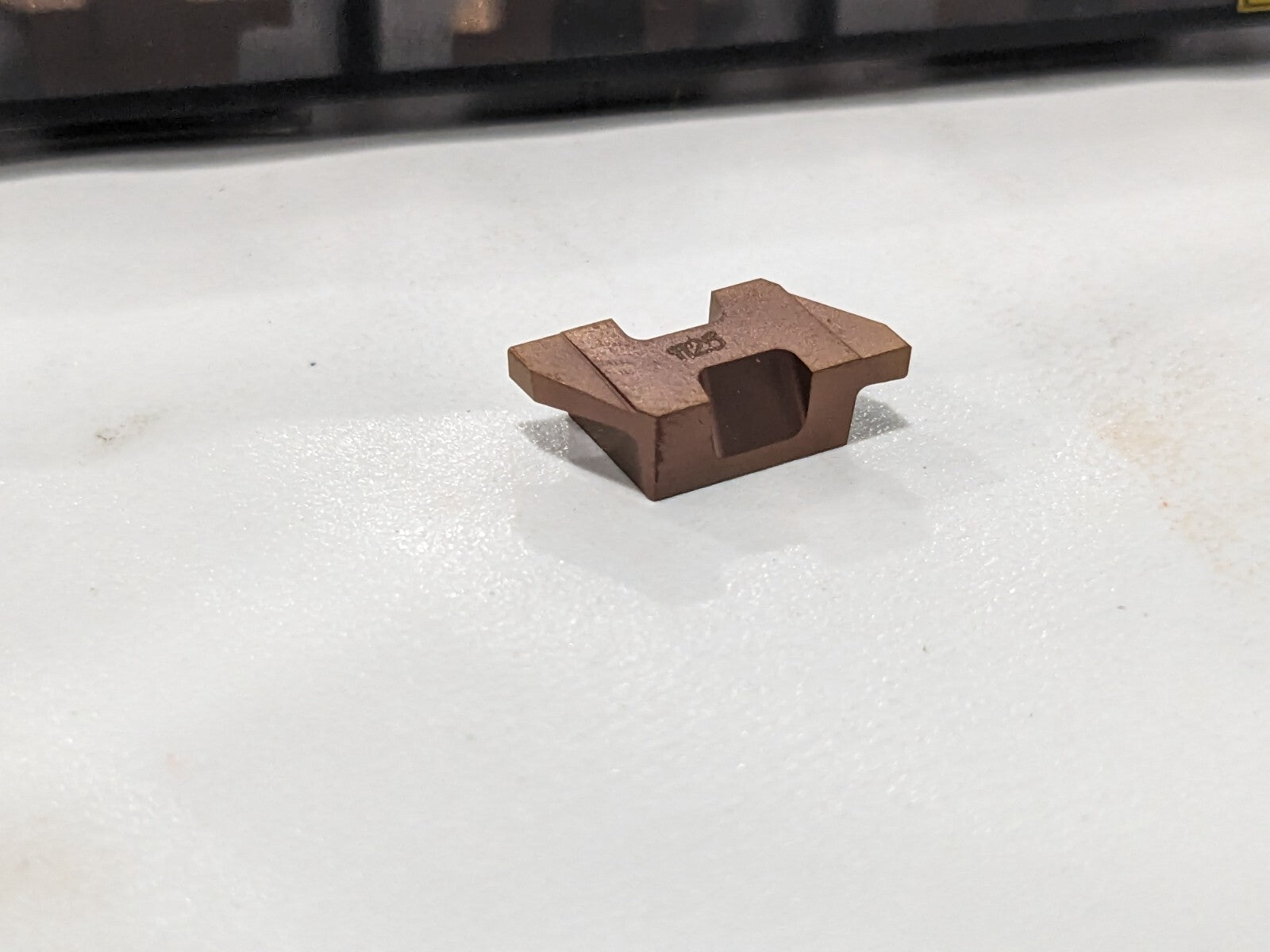

SANDVIK COROMANT Grooving Insert: TLG2 1125 Carbide 9pk 5753001

SANDVIK COROMANT Grooving Insert: TLG2 1125 Carbide 9pk 5753001

MSRP: $200

• Insert Style TLG
• Cutting Width (Decimal Inch) 0.0580 in
• Cutting Width (mm) 1.47
• Insert Hand Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.0500
• Maximum Depth of Cut (mm) 1.27
• Insert Material Carbide
• Manufacturer Grade 1125
• Corner Radius (Decimal Inch) 0.0075
• Corner Radius (mm) 0.19
• Rake Neutral
• Insert Size 2
• Cutting Height (mm) 5.56
• Maximum Depth Of Cut Range (Decimal Inch) 0.0000 to 0.0750
• Cutting Height (Decimal Inch) 0.2190
• Maximum Depth Of Cut Range (mm) 0.00 to 2.00
• Multi-use Tool Yes
• Series Top Lok
• Coating Process PVD
• Rake Angle 10.00 °
• Overall Length (Decimal Inch) 0.3441 in

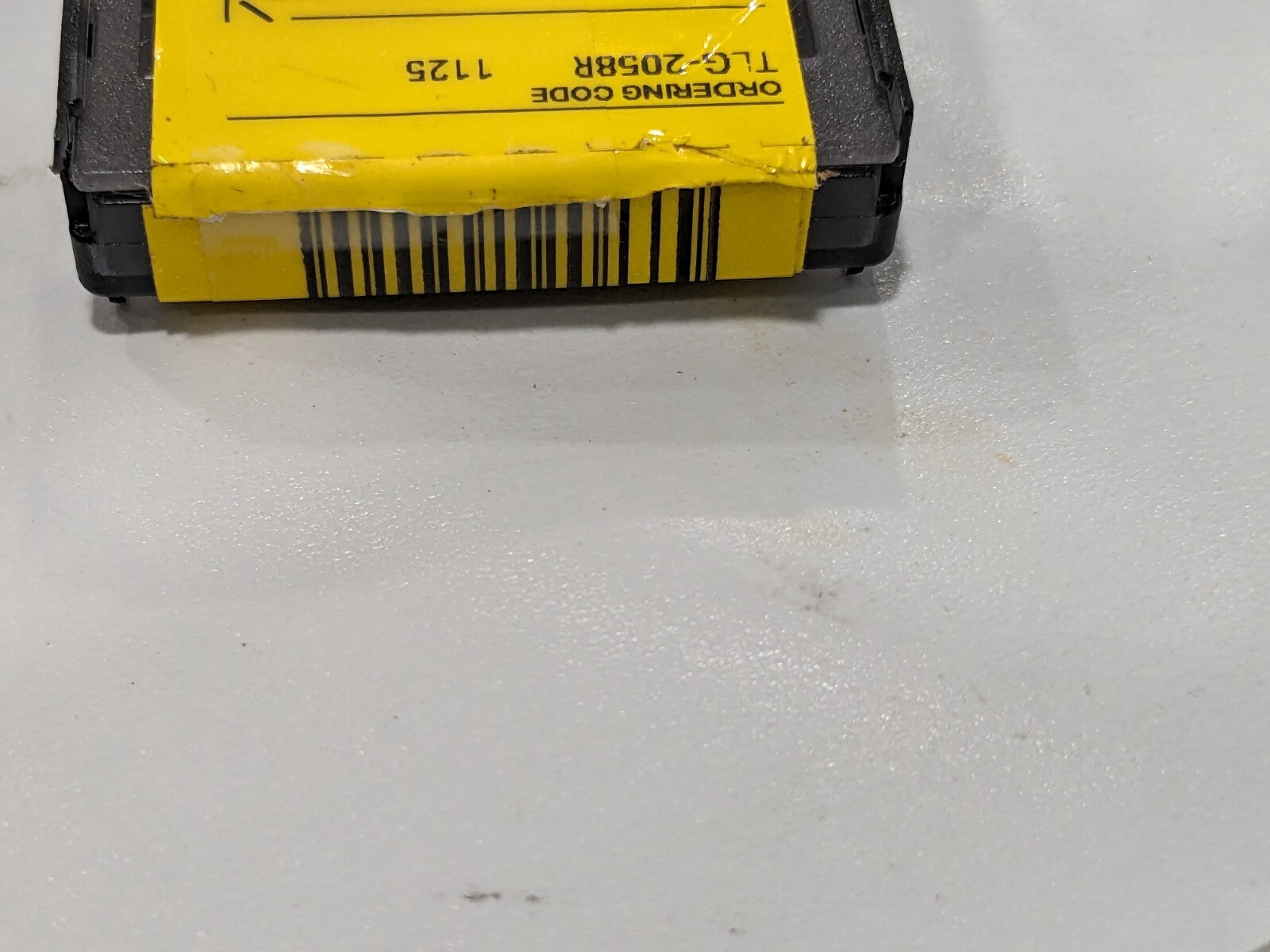

• Iso Code TLG-2058R 1125
• Manufacturers Catalog Number TLG-2058R 1125
• Insert Thickness (Decimal Inch) 0.2190
• UNSPSC Code 23242105
• Overall Width (mm) 1.47
• Overall Width (Decimal Inch - 4 Decimals) 0.0580 in
• Coating/Finish TiCrAlN; TiAlN

Please review photos, comes as shown.
