Sandvik Coromant CoroMill Plura Carbide End Mill 2N342-0794-PC 1730 26732516

Sandvik Coromant
CoroMill Plura Carbide End Mill

MSRP: $180

• Mill Diameter (Inch) 5/16
• Mill Diameter (Decimal Inch) 0.3125
• Number Of Flutes 5
• Length of Cut (Inch) 3/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlCrN
• Overall Length (Inch) 2-1/2
• Centercutting No
• Flute Direction Right Hand
• Chamfer Width (Decimal Inch) 0.0040
• Variable Index No
• Helix Angle 38
• Cutting Direction Right Hand
• Chamfer Width (mm) 0.10
• Coolant Through No
• Pitch Close
• Overall Length (Decimal Inch) 2.5000
• Chamfer Angle 45
• Length Of Cut (Decimal Inch - 4 Decimals) 0.7520
• Length Type Extended
• Flute Type Helical
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing
• Shank Diameter (Decimal Inch) 0.3125
• Shank Diameter (Inch) 5/16
• Neck Diameter (mm) 7.55
• Neck Diameter (Decimal Inch) 0.2972
• Reach Length (Decimal Inch) 1.0625
• Reach Length (Inch) 1-1/16
• Mill Diameter Tolerance h10
• Shank Diameter Tolerance h6
• Primary Workpiece Material Cast Iron; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; K
• Material Grade 1730
• Series 2N342
• Coating Classification PVD
• Chamfer Length (Decimal Inch) 0.0040
• Helix Style Medium
• Manufacturers Catalog Number 2N342-0794-PC

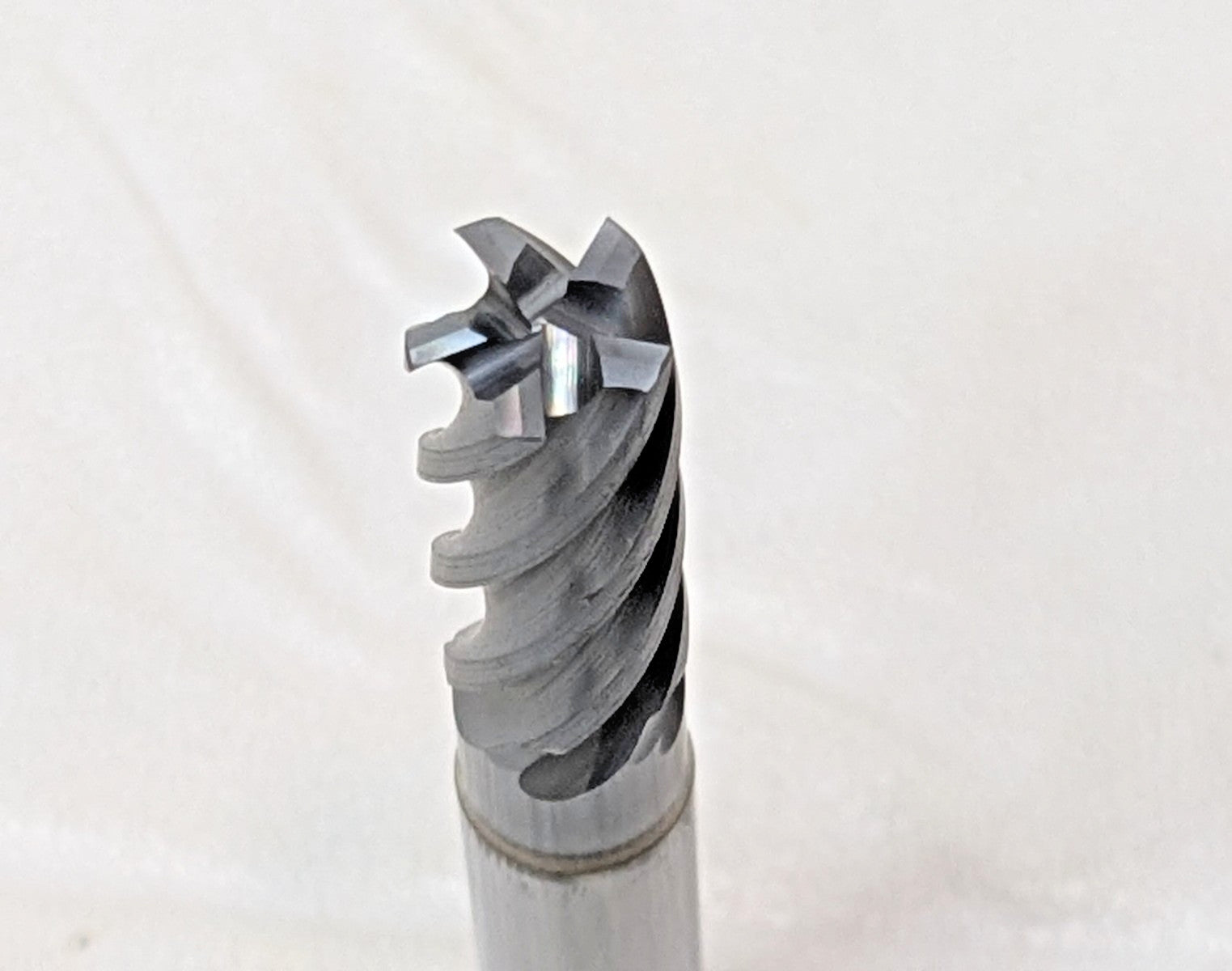

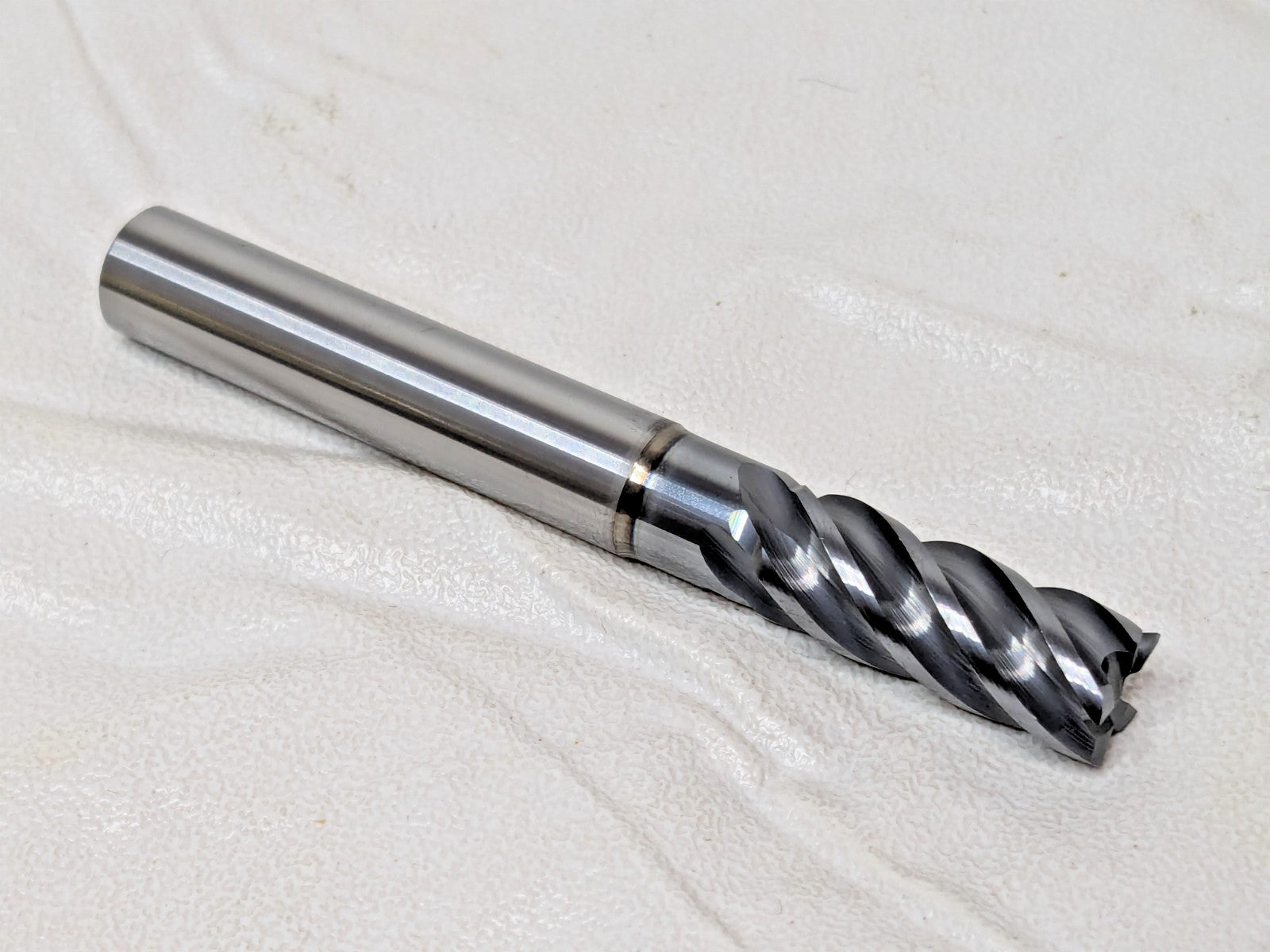

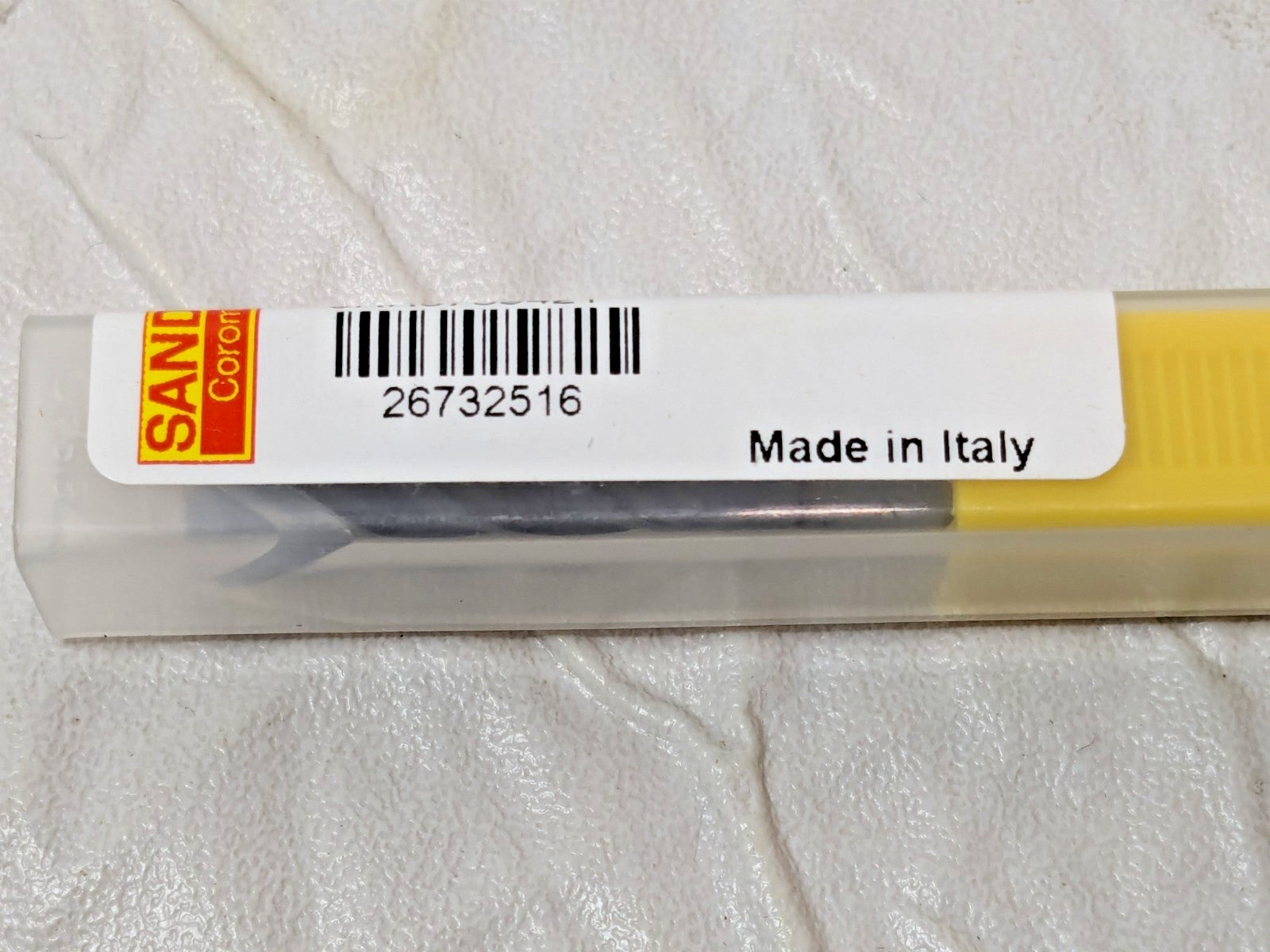

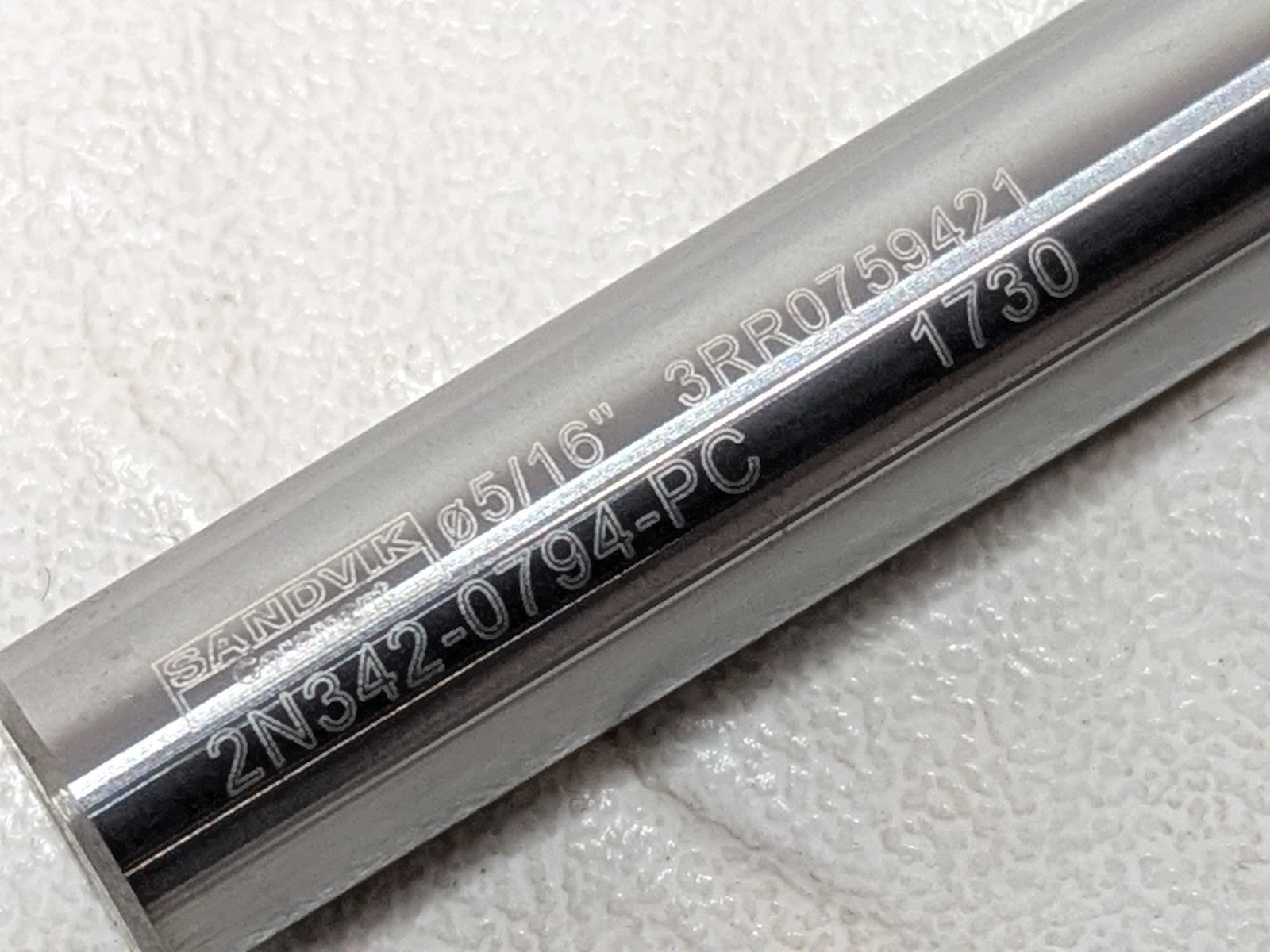

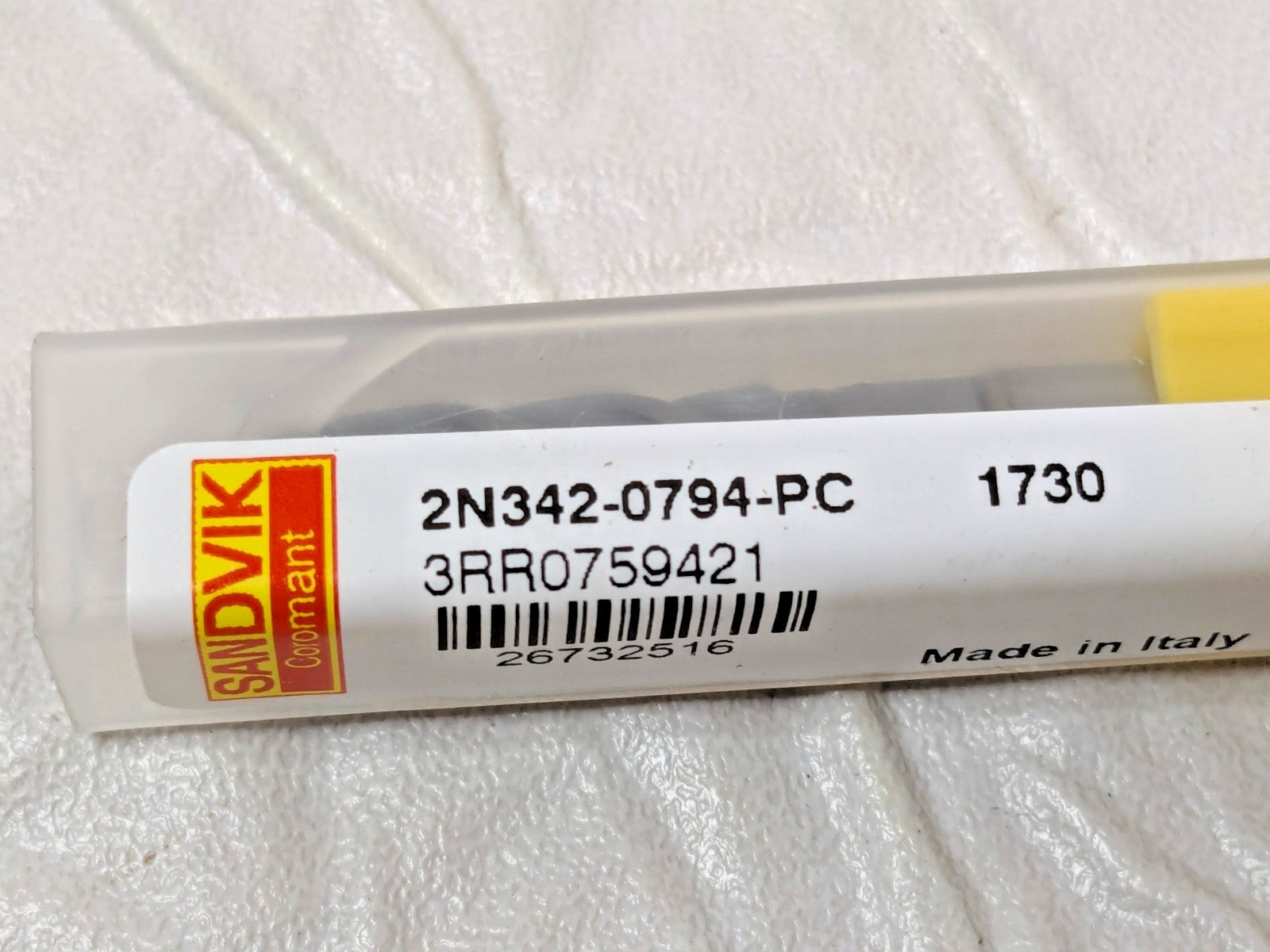

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
