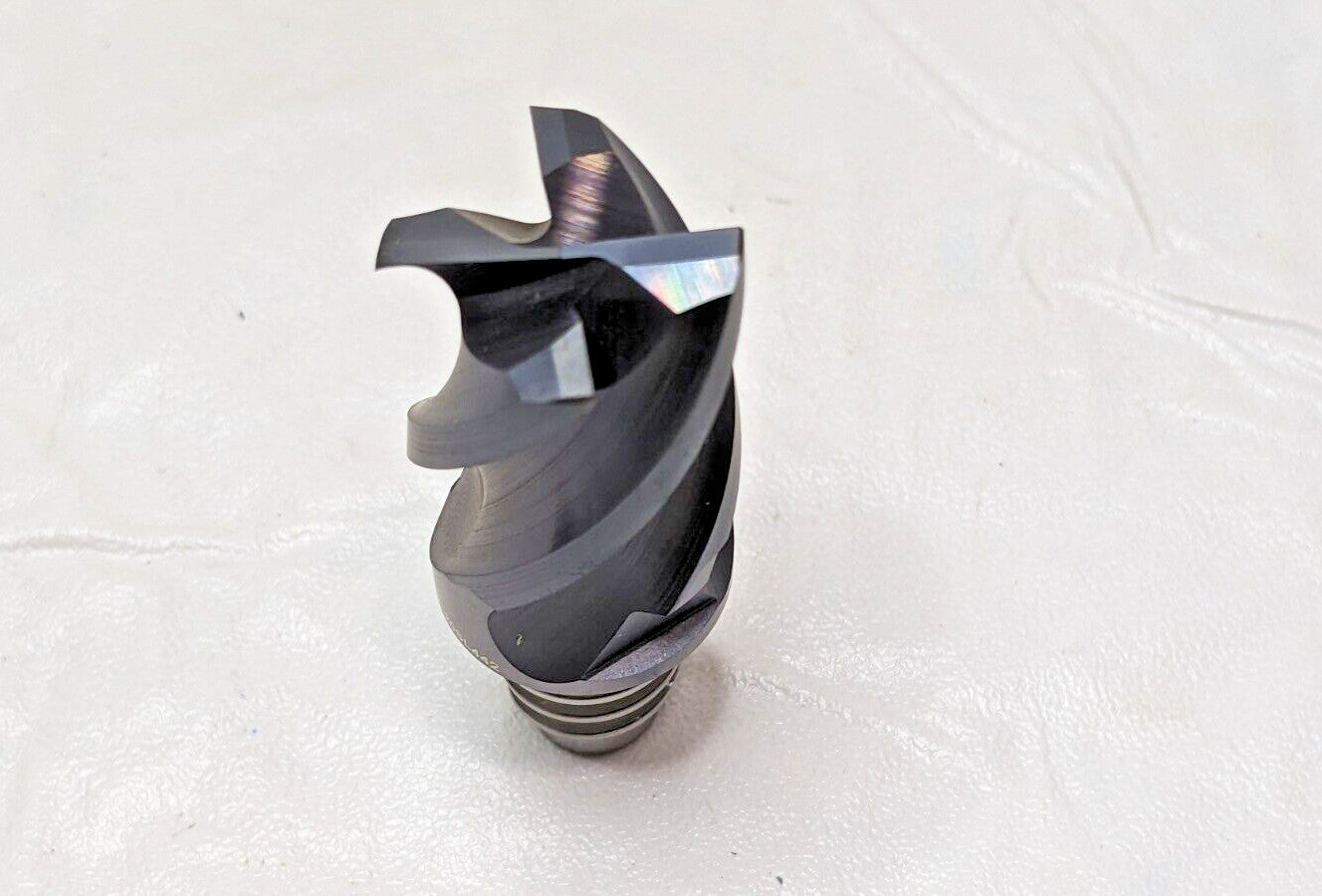

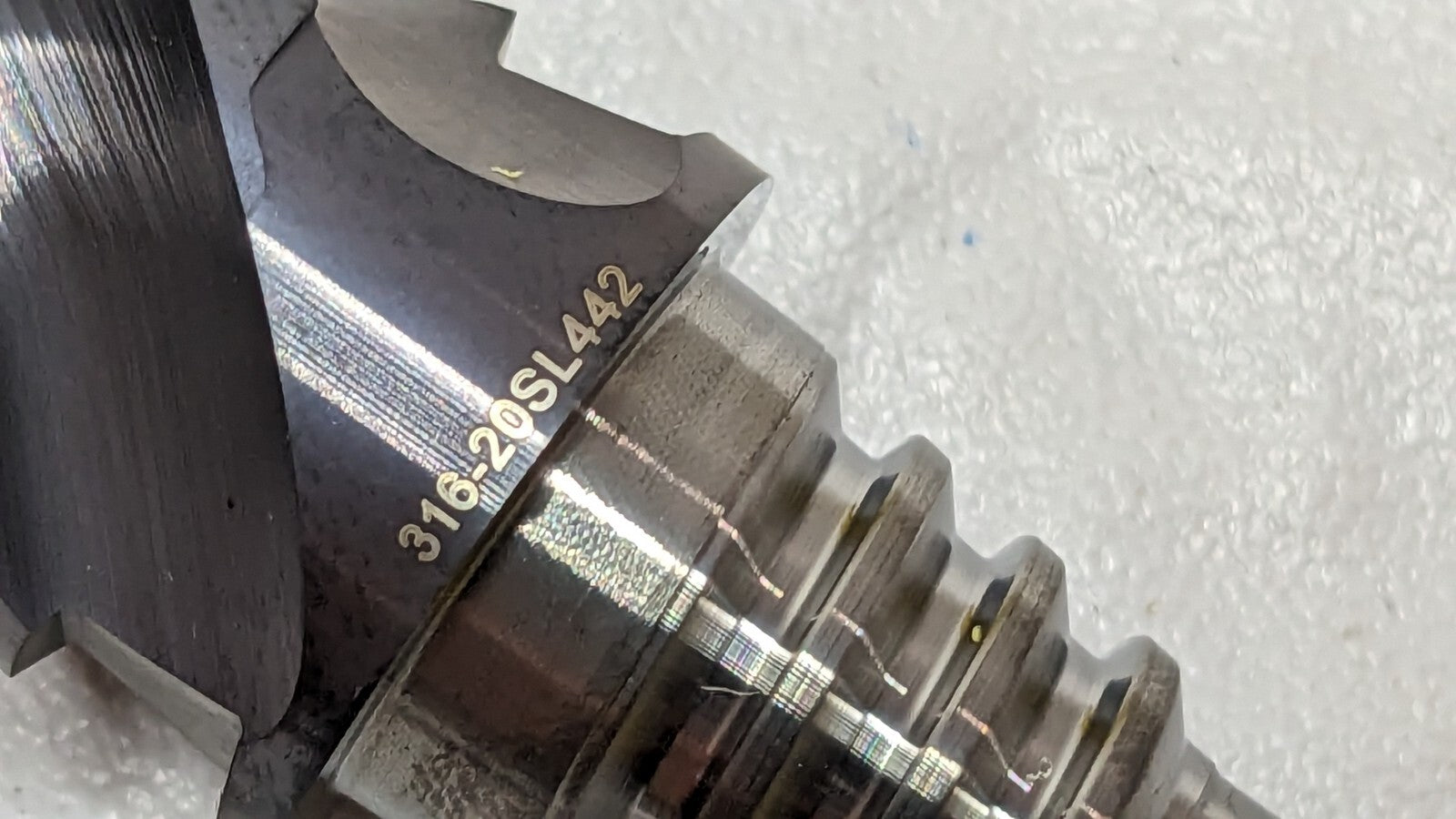

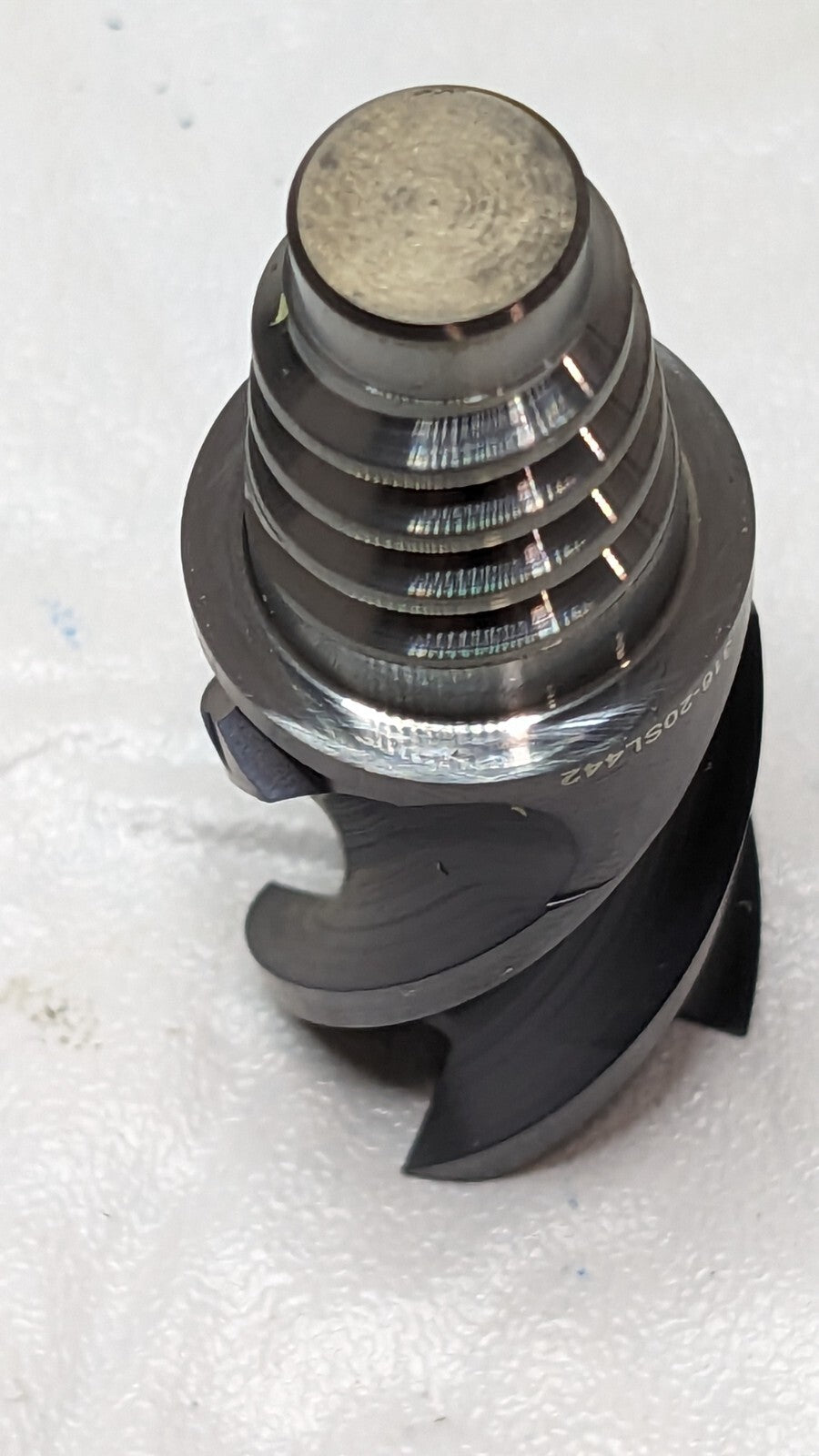

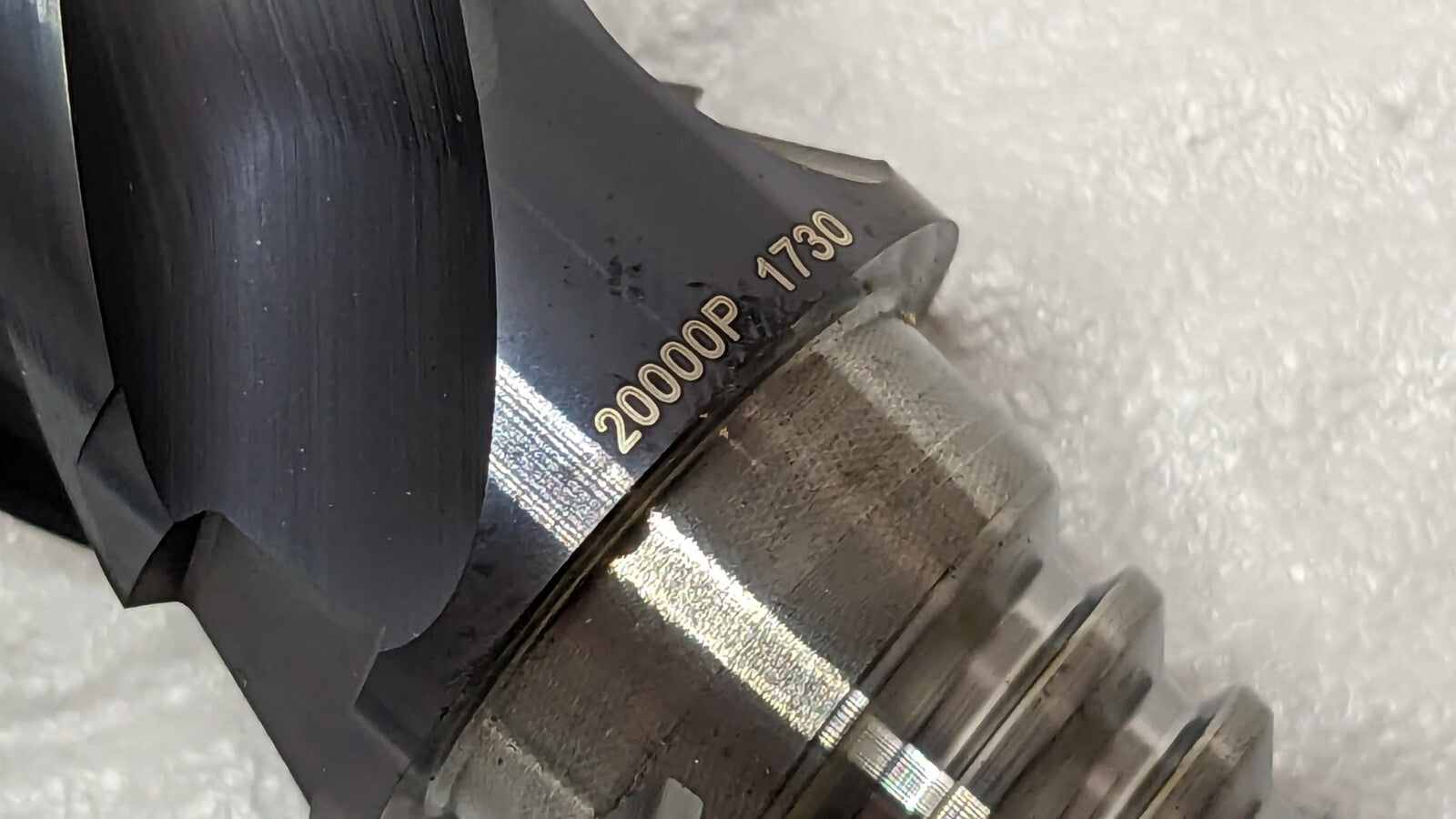

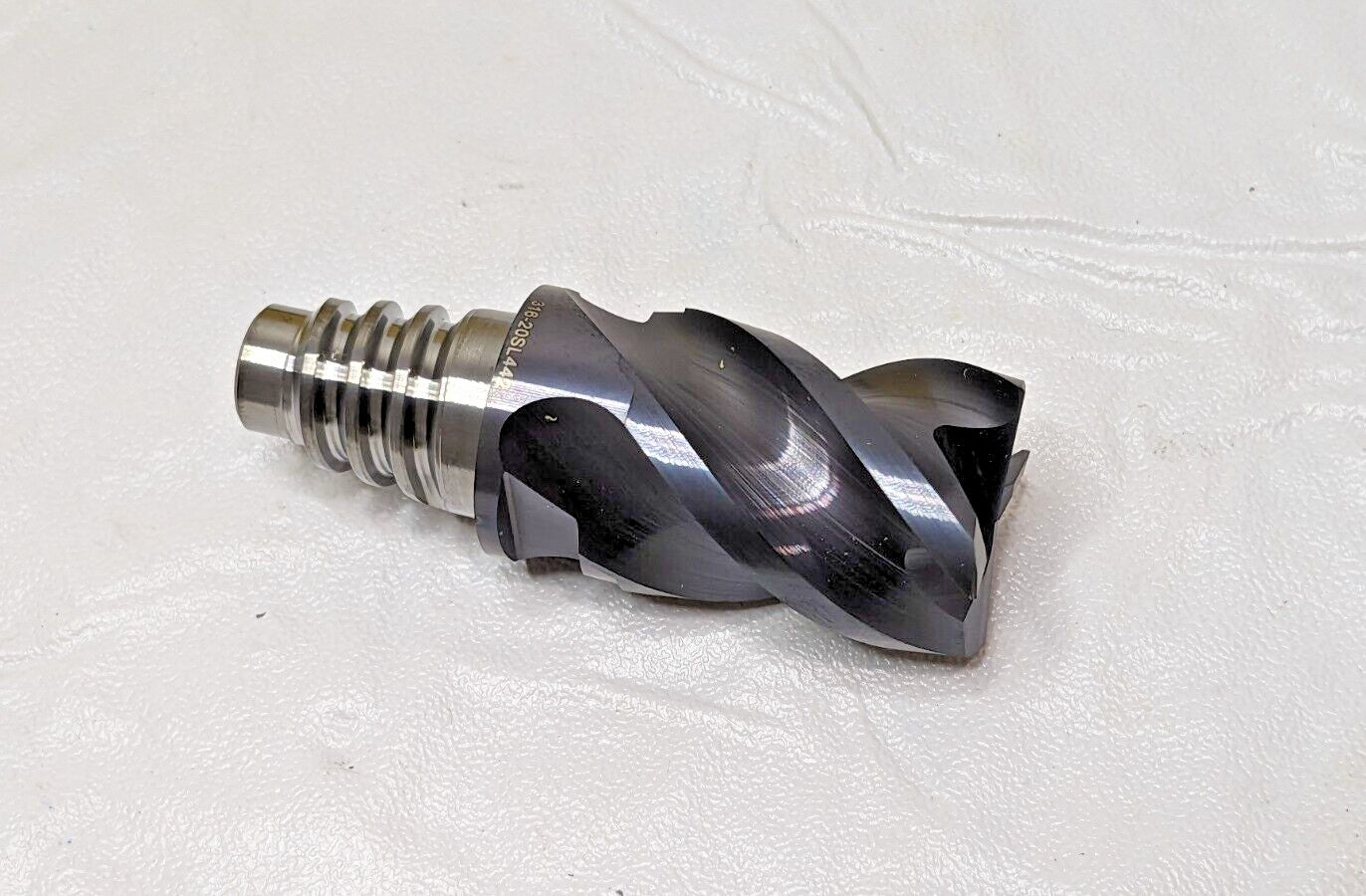

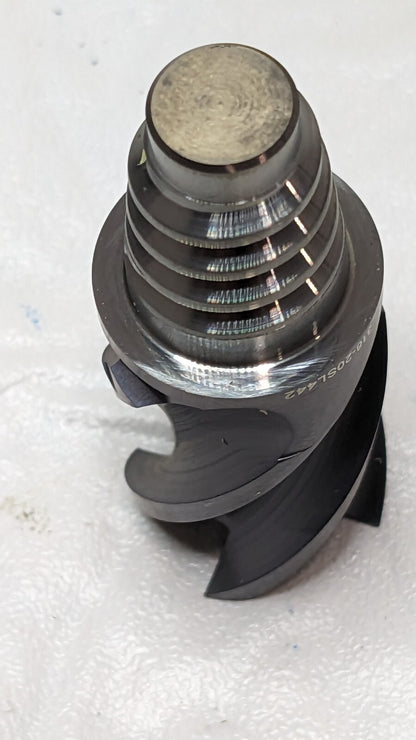

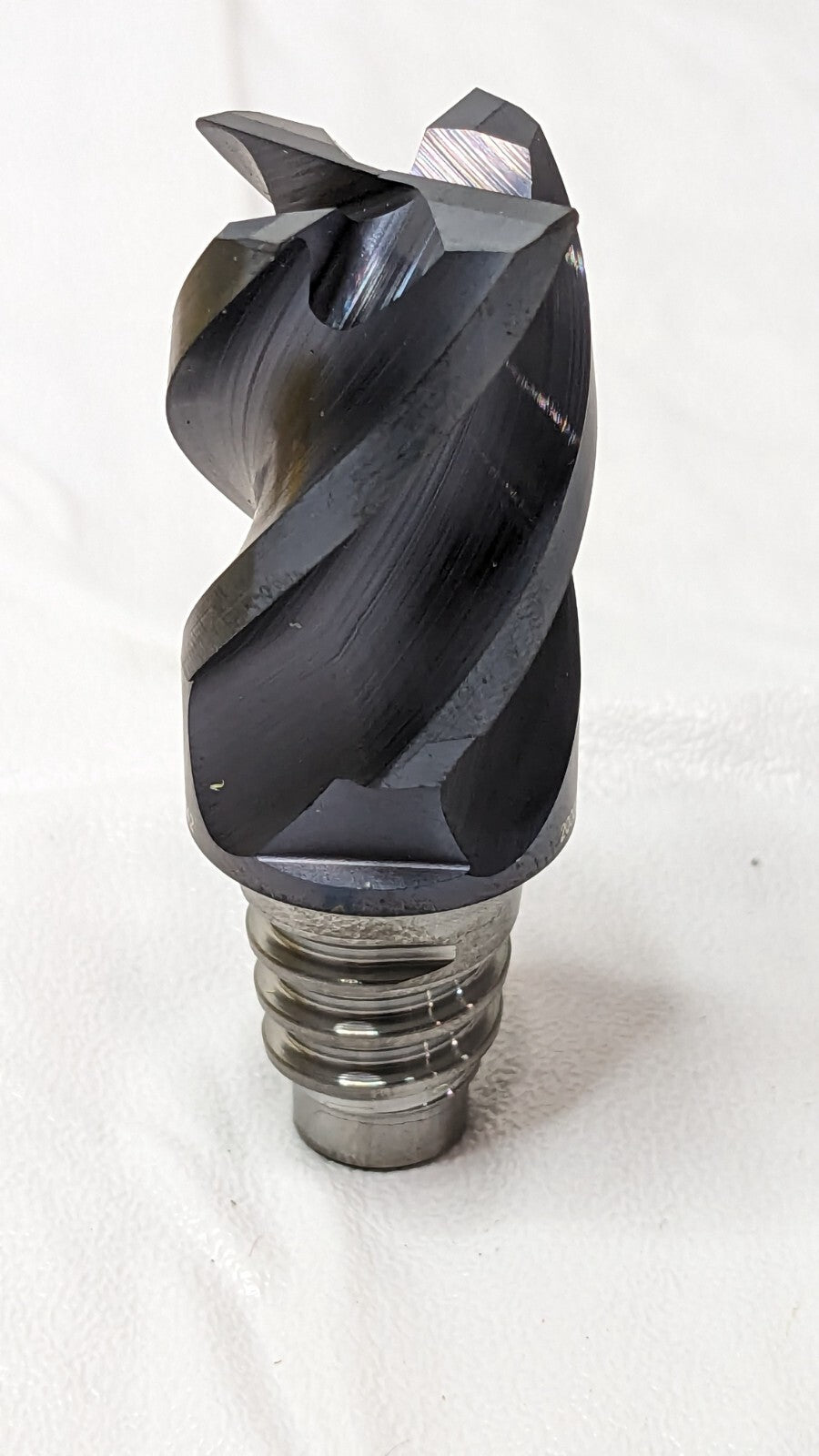

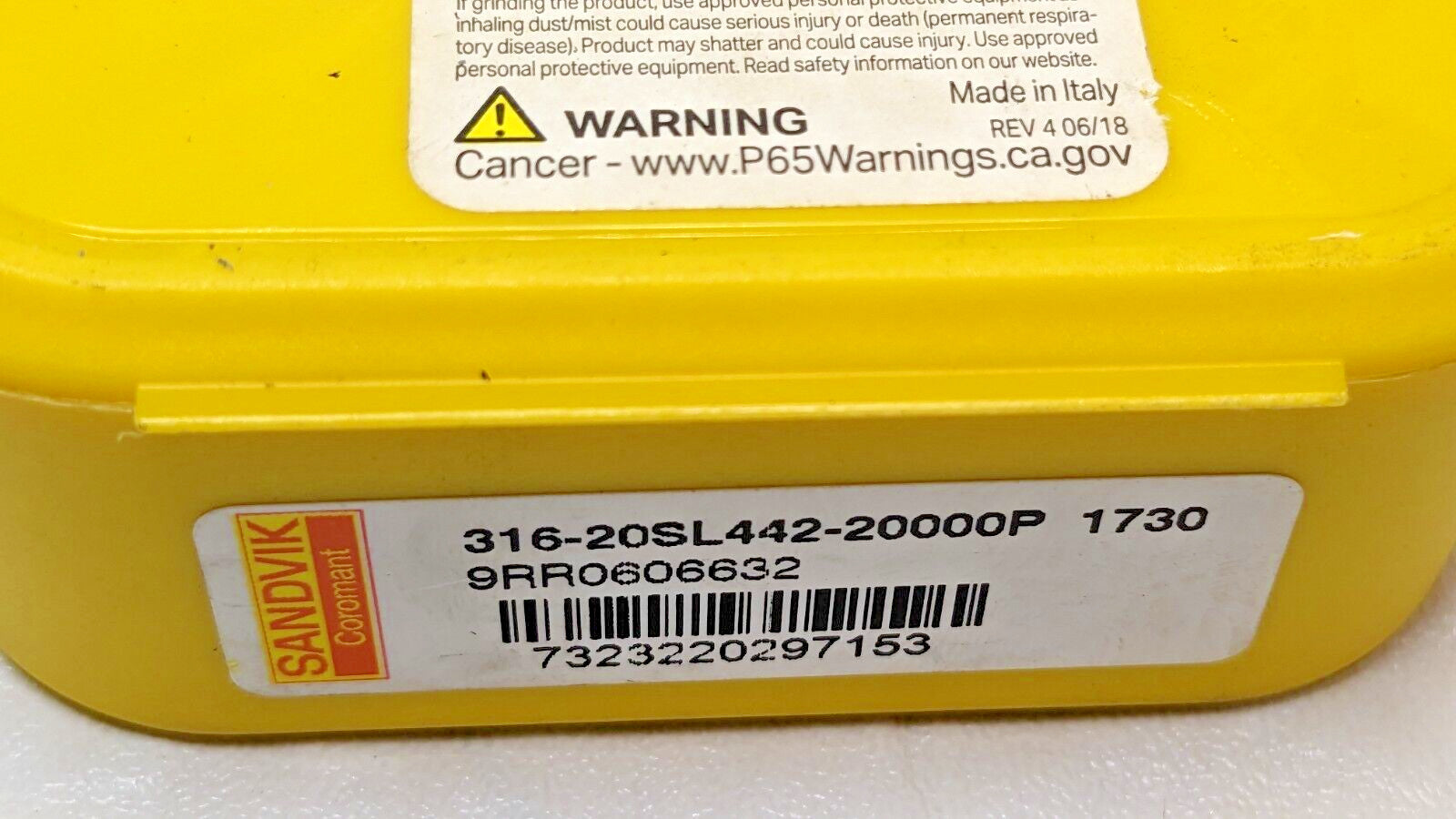

Sandvik Coromant Coromill 316 Carbide Head 4FL 316-20SL442-20000P 1730 6874210

Sandvik Coromant
Coromill 316 Carbide Head

MSRP: $250

• Workpiece material(s)(TMC1ISO) PMKS

• Cutting diameter (DC) 0.7874 inch
• Tool cutting edge angle (KAPR) 90 deg
• Tolerance class cutting diameter(TCDC) h10
• Cutting diameter face contact(DCF) 0.7677 inch
• Corner chamfer(KCH) 45 deg
• Corner chamfer width(CHW) 0.0098 inch
• Depth of cut maximum (APMX) 0.9449 inch
• Depth of cut maximum(APMXFFW) 0.9449 inch
• Depth of cut maximum(APMXPFW) 0.9449 inch
• Center cutting capability(CCC) Yes
• Peripheral effective cutting edge count(ZEFP) 4
• Maximum ramping angle (RMPX) 5 deg
• Connection - machine side(ADINTMS) Coromant EH -metric - E20
• Grade (GRADE) 1730
• Substrate(SUBSTRATE) HC
• Coating(COATING) PVD AlTiN
• Shank standard group(BSG) COROMANT
• Coolant entry style(CNSC) 0: without coolant
• Connection diameter(DCONMS) 0.7598 inch
• Functional diameter(DFC) 0.5752 inch
• Functional length(LF) 1.3465 inch
• Neck diameter(DN) 0.7598 inch
• Flute helix angle(FHA) 42 deg
• Radial rake angle(GAMF) 10.5 deg
• Axial rake angle(GAMP) 10.5 deg
• Maximum regrinds(NORGMX) 4
• Rotational speed maximum(RPMX) 50,000 1/min

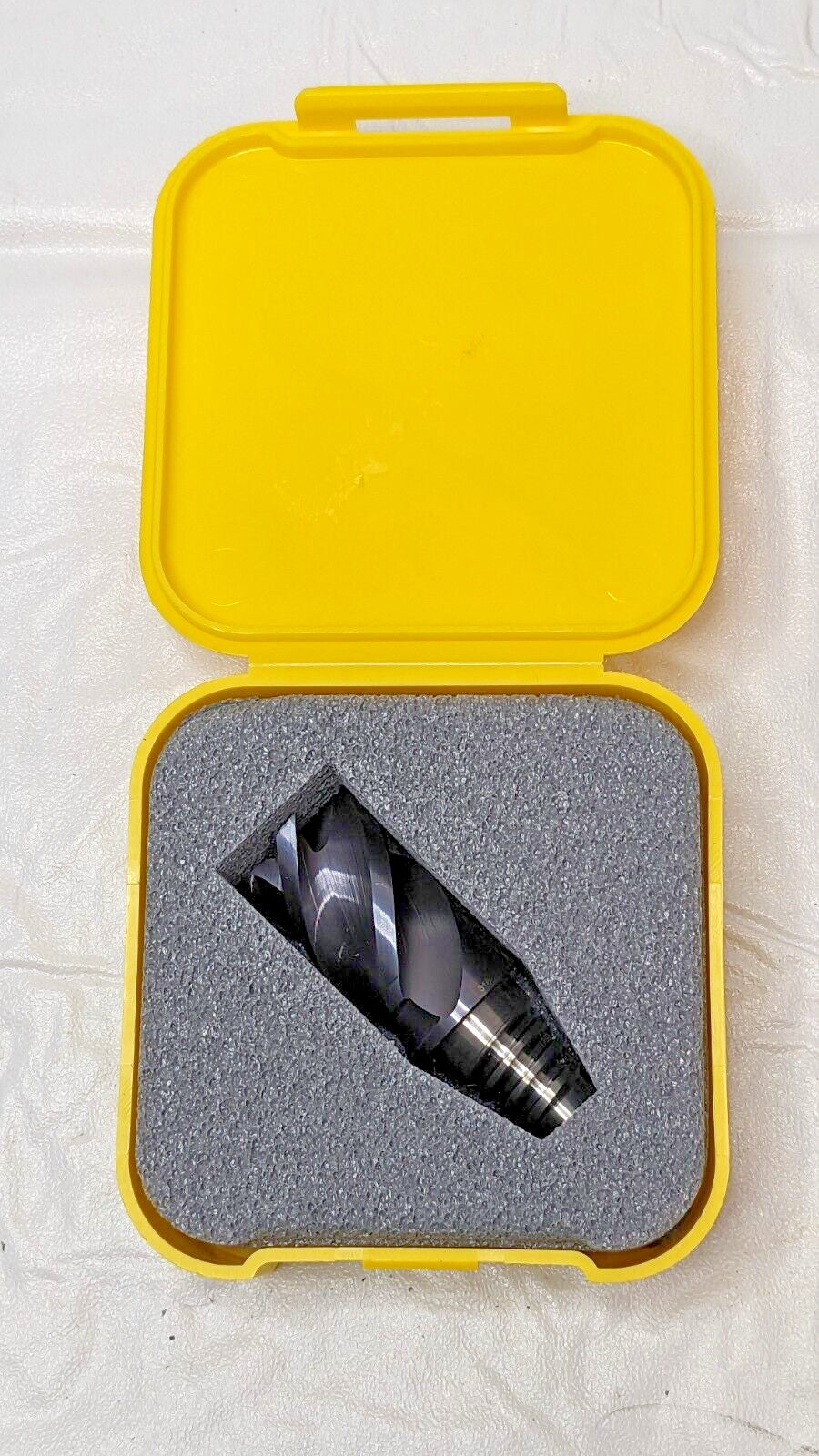

*Open package for inspection & photos only*

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
