Sandvik Coromant CoroDrill 860 Carbide Drill 860.1-0650-024A1-PM 4234 6040129

Sandvik Coromant
CoroDrill 860 Carbide Drill

MSRP: $120

• Cutting diameter (DC) 0.2559 inch
• Connection diameter machine side(DCONMS) 0.315 inch
• Usable length (LU) 0.811 inch
• Achievable hole tolerance(TCHA) H8
• Usable length diameter ratio (ULDR) 3.1692
• Orthogonal rake angle(GAMO) 17.02 °
• Face effective cutt edge count(ZEFF) 2
• Connection - machine side(ADINTMS)
• Cylindrical shank (DIN6535-HA) -metric: 8
• Connection diameter tolerance(TCDCON) h6
• Grade (GRADE) 4234
• Substrate(SUBSTRATE) HC
• Coating(COATING) PVD TiAlN
• Shank standard group(BSG) DIN 6537 K
• Chip breaker(CBMD) PM
• Coolant entry style(CNSC) axial concentric entry on circle
• Coolant pressure(CP) 290 PSI
• Point angle(SIG) 147 °
• Point length(PL) 0.0433 inch
• Overall length(OAL) 3.1102 inch
• Functional length(LF) 3.0669 inch
• Chip flute length(LCF) 1.3386 inch
• Rotational speed maximum(RPMX) 12,243 1/min

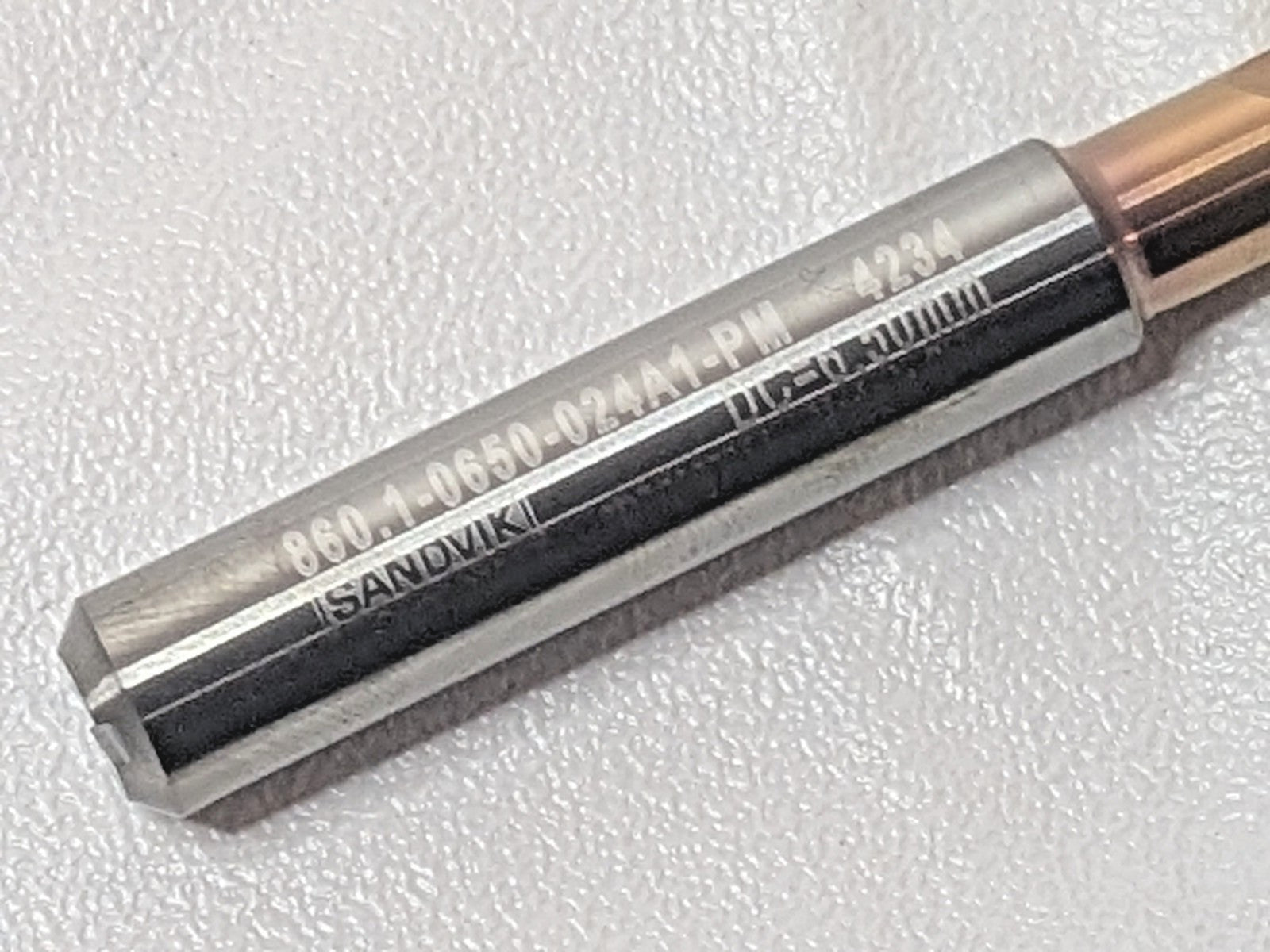

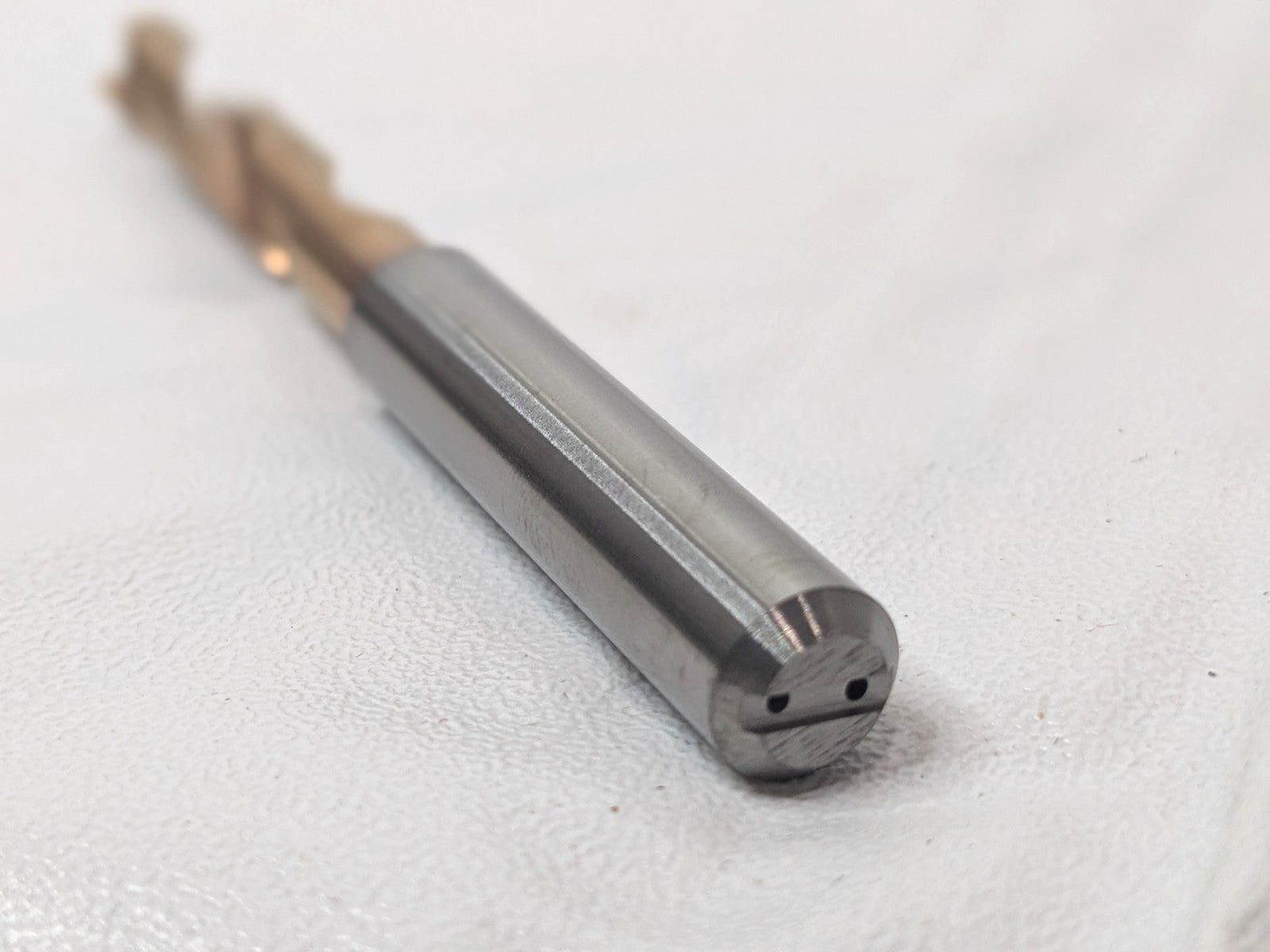

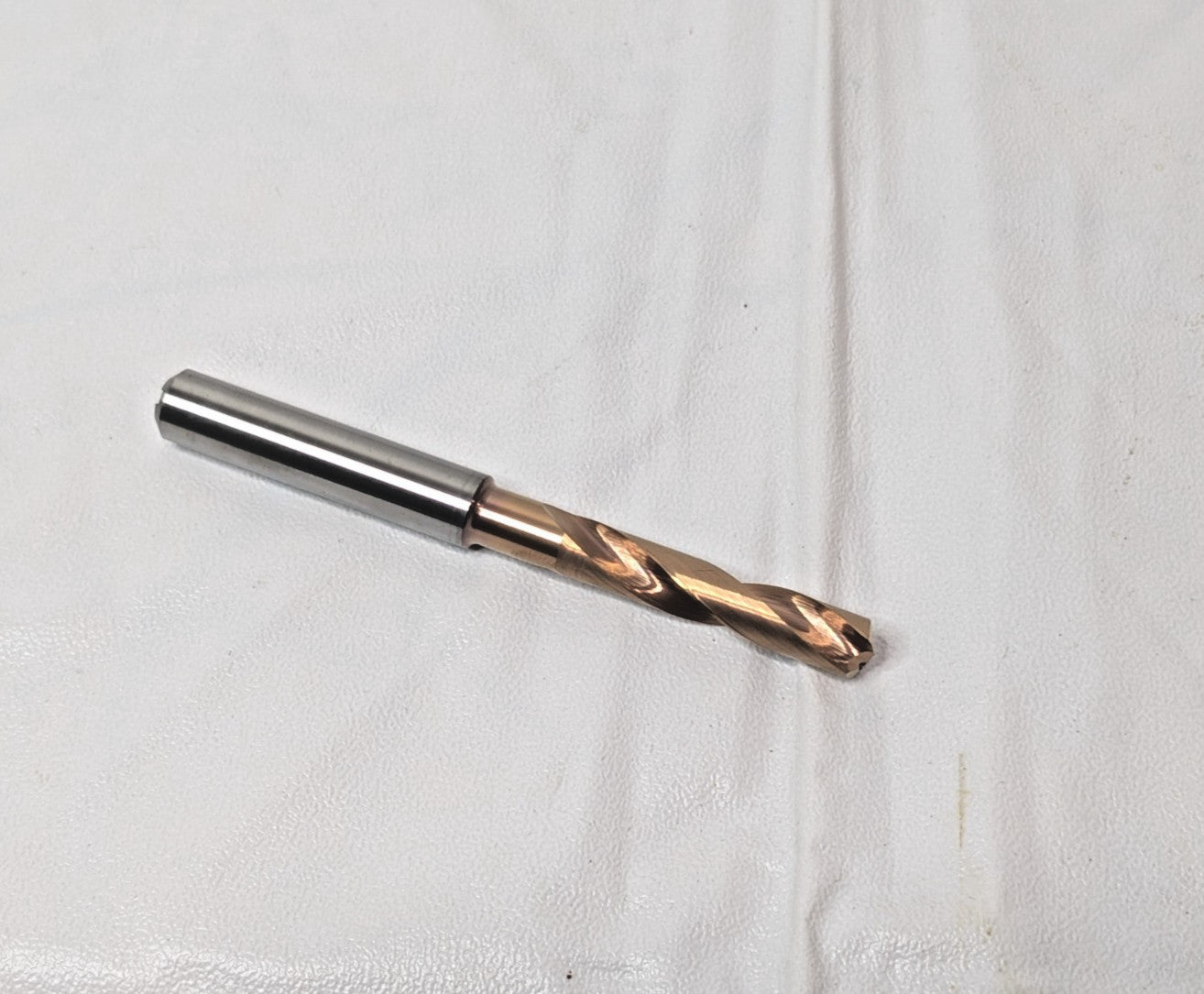

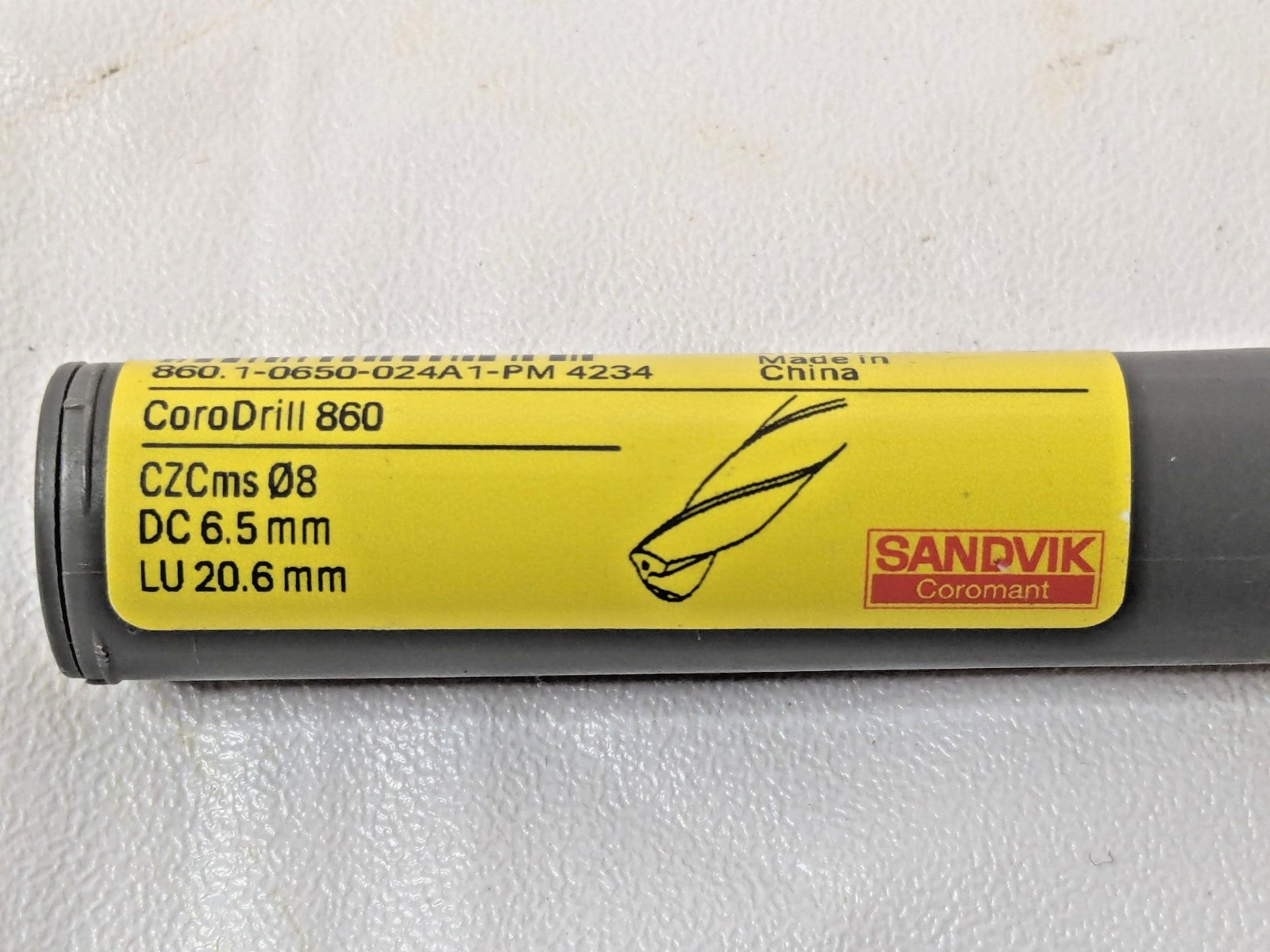

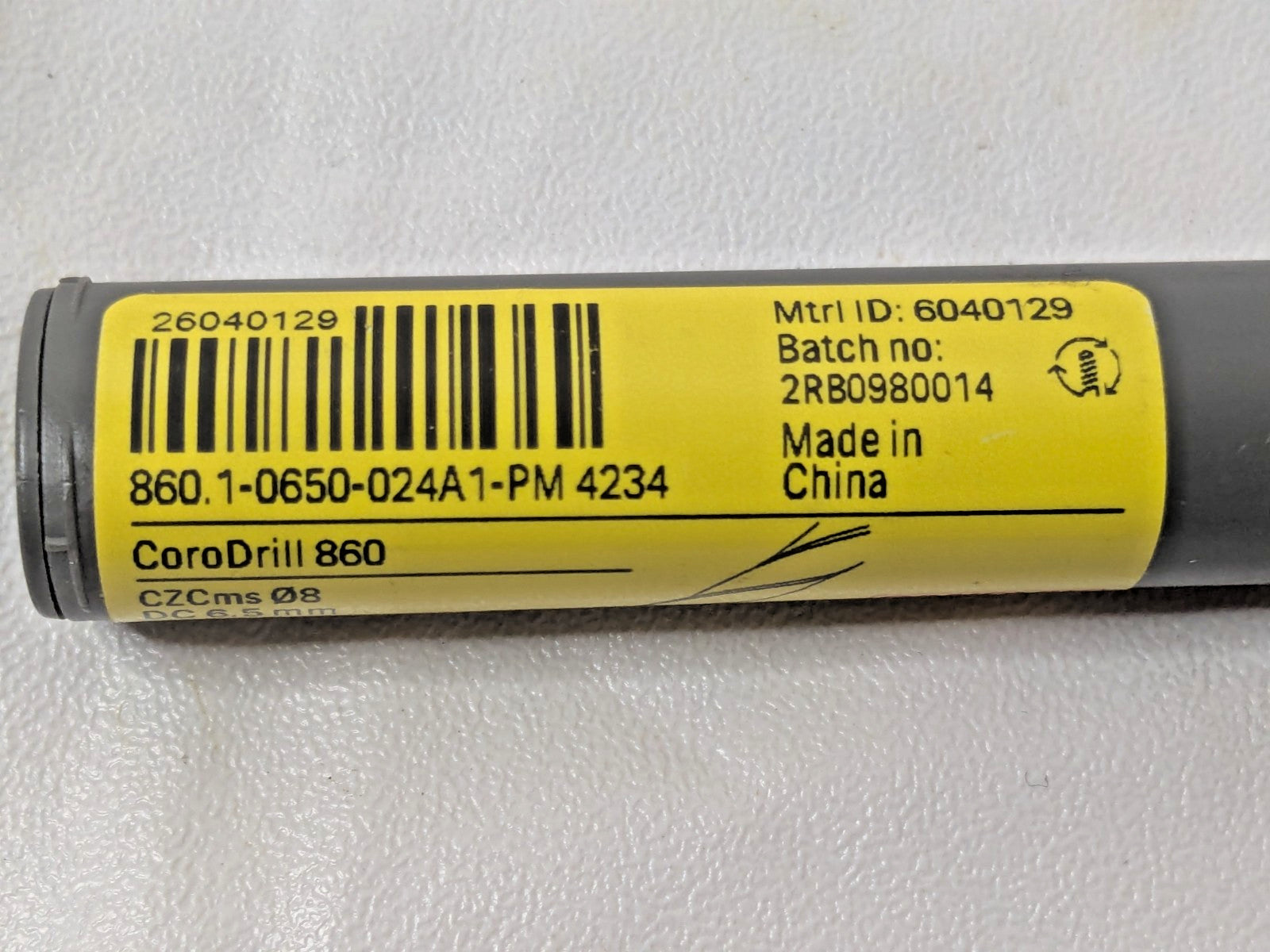

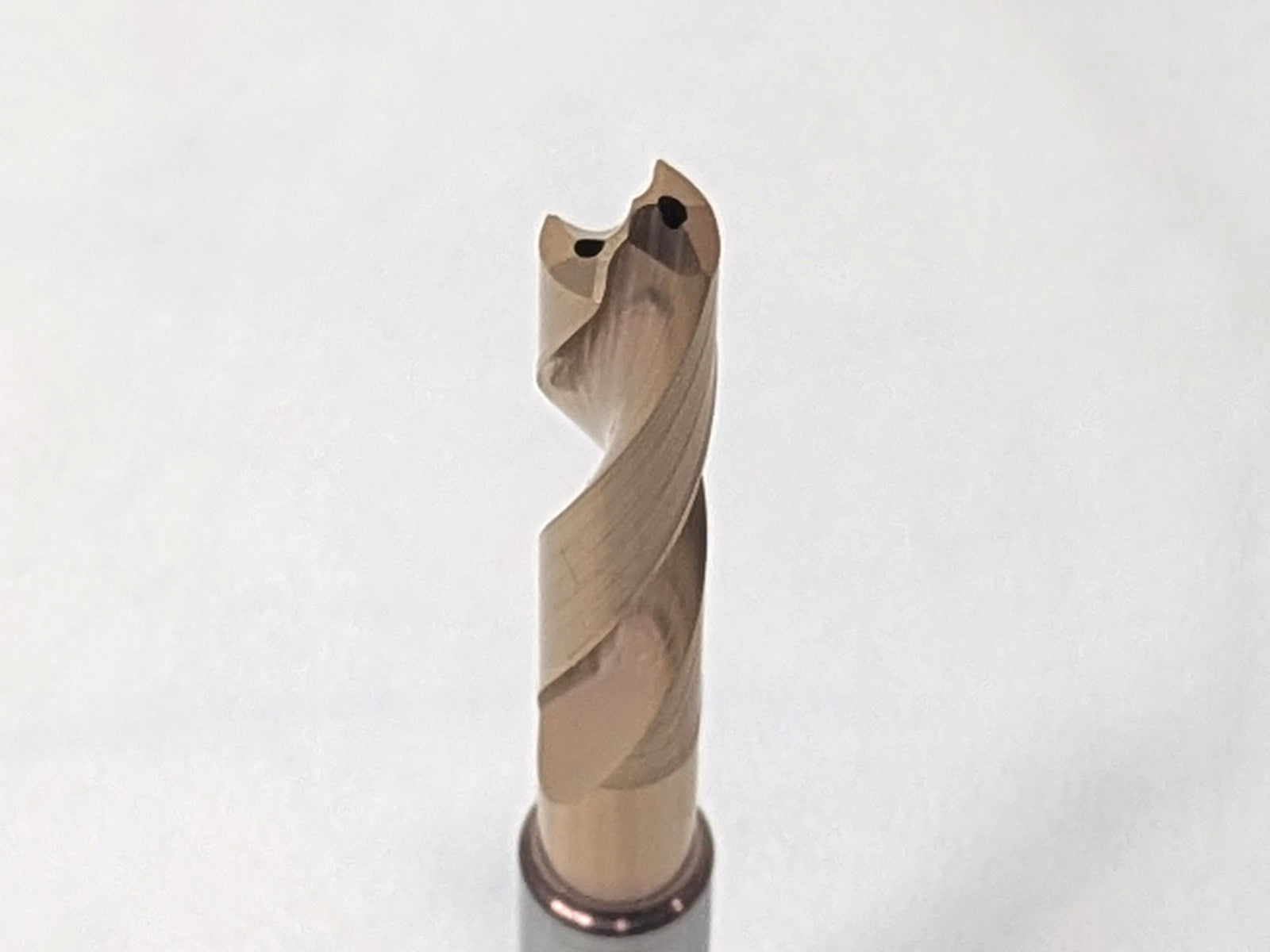

Please review photos, comes as shown.
