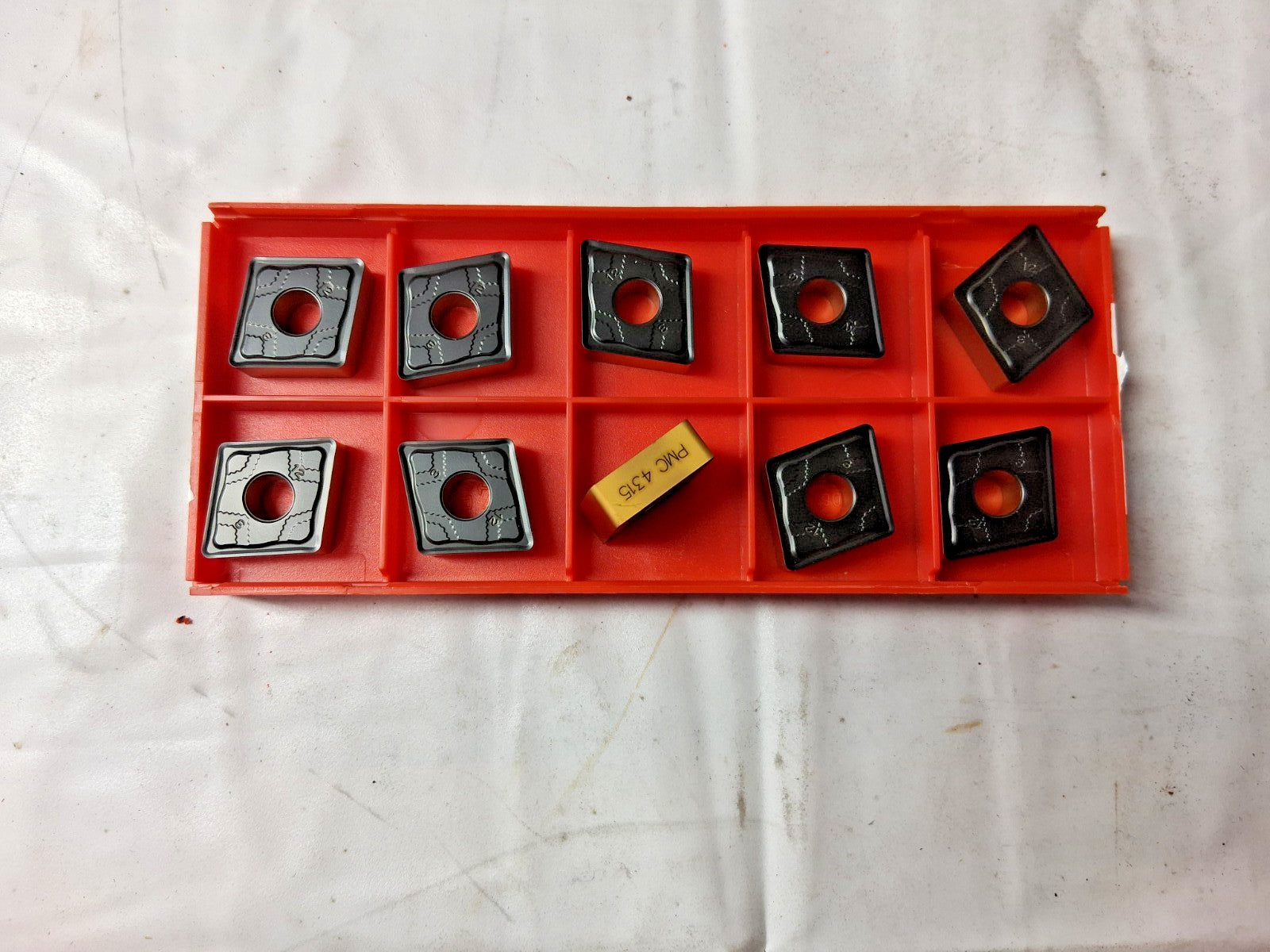

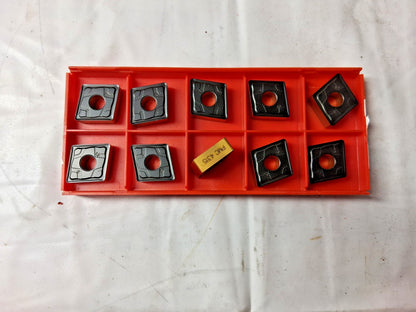

Sandvik Coromant Carbide Turning Interts QTY10 35014711

Sandvik Coromant
Carbide Turning Interts 10 pack

MSRP: $325

• Manufacturer Sandvik Coromant
• Mfr Part # 6612647
• Insert Style CNMG
• ANSI Size Code 543
• ISO Size Code 160612
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80.00
• Inscribed Circle (Decimal Inch) 0.6250
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (mm) 15.88
• Corner Radius (Inch) 3/64
• Corner Radius (mm) 1.19
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade 4315
• Coating/Finish TiCN; TiN; AI2O3
• Relief Angle 0.000
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Insert Thickness 6.35
• Insert Hand Neutral
• Series T-Max P
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2500
• Hole Diameter (mm) 6.35
• Maximum Depth of Cut (mm) 14.92
• ANSI Insert Code CNMG543
• ISO Insert Code CNMG160612
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Iso Code CNMG 16 06 12-PMC 4315
• Chip Breaker G
• Cutting Edge Style Rounded
• UNSPSC Code 23242105
• Insert Size Code 543

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.
