Sandvik Coromant Carbide Turning Inserts QTY5 CNMG543-PR 4425 7860725

Sandvik Coromant
Carbide Turning Inserts 1 Pack of 5

MSRP: $180

• Insert Style CNMG
• ANSI Size Code 543
• ISO Size Code 160612
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.6250
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (mm) 15.88
• Corner Radius (mm) 1.19
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade 4425
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Insert Thickness 6.35
• Insert Hand Neutral
• Series T-Max P
• Chip Breaker Operation Medium Machining; Roughing
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2500
• Hole Diameter (mm) 6.35
• ANSI Insert Code CNMG543
• ISO Insert Code CNMG160612
• Insert Holding Method Screw; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code CNMG 16 06 12-PR 4425
• Manufacturers Catalog Number CNMG 543-PR 4425
• Chip Breaker PR
• UNSPSC Code 23242105
• Insert Size Code 1606

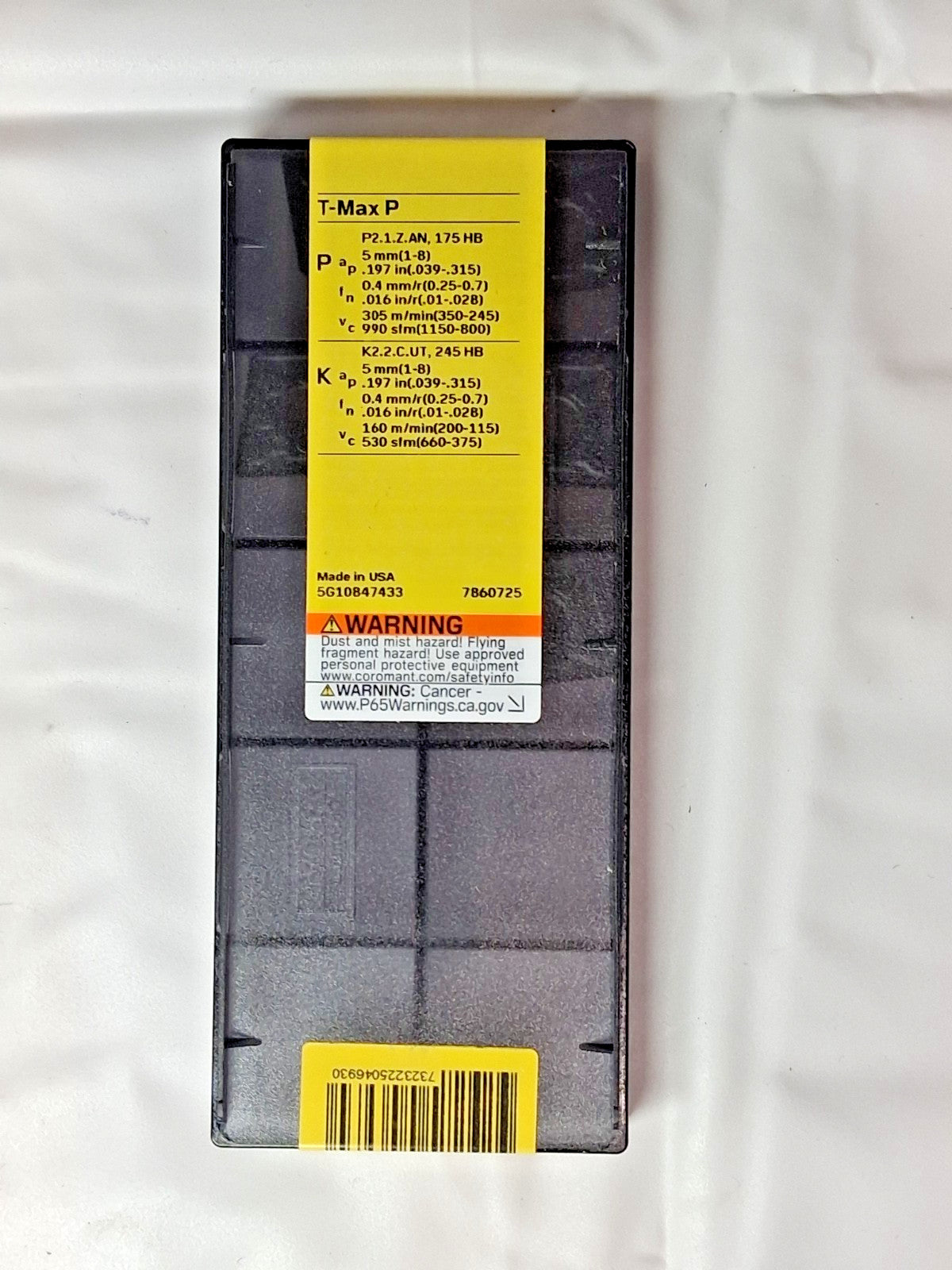

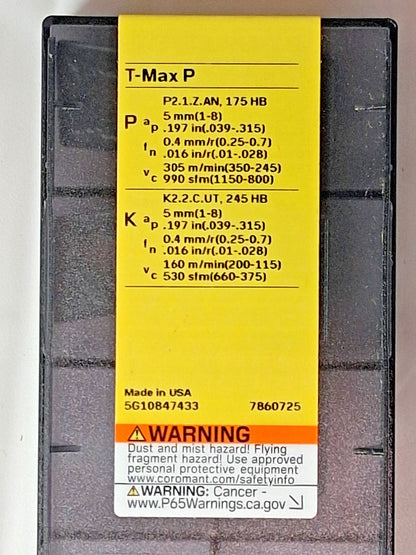

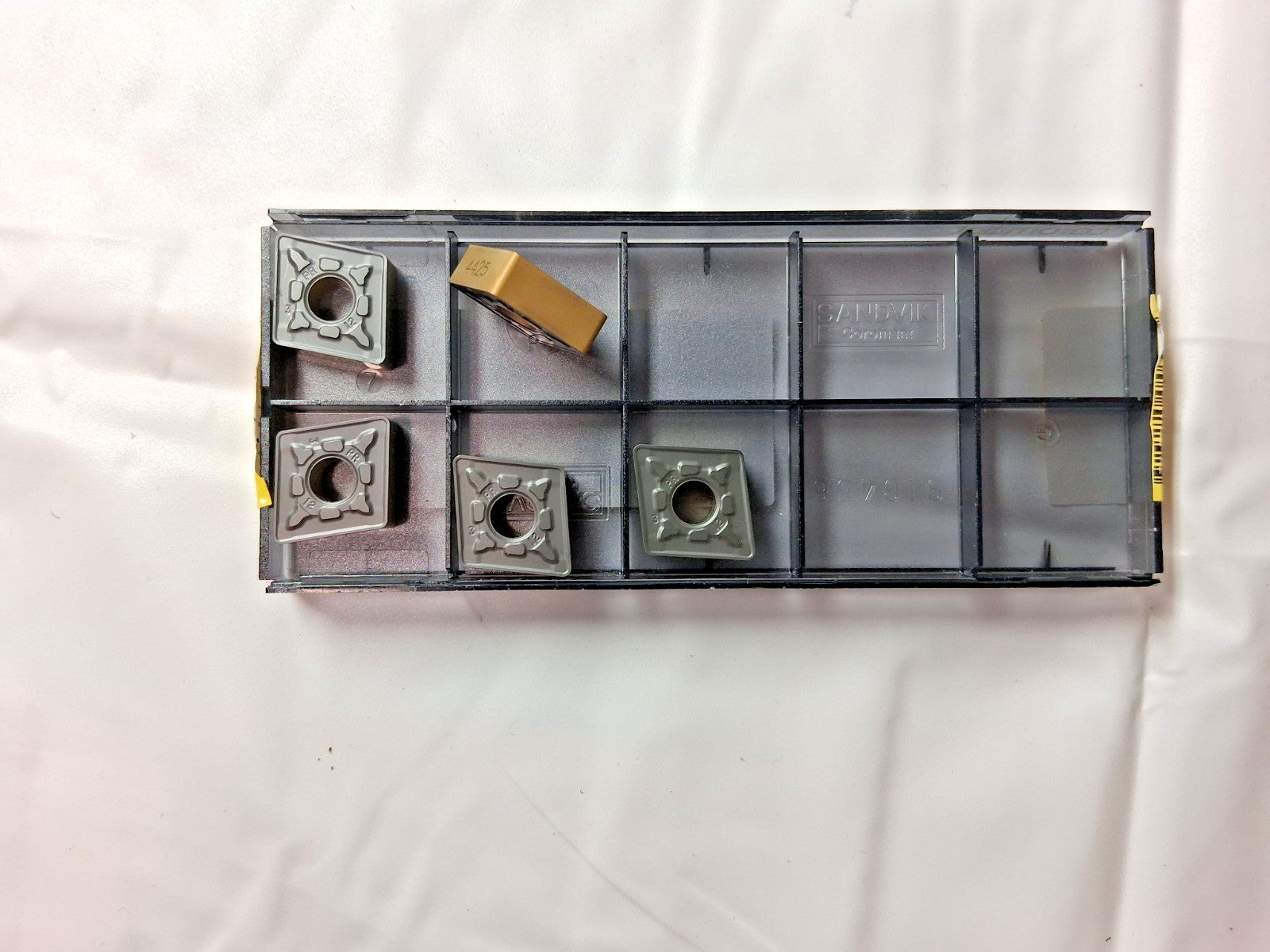

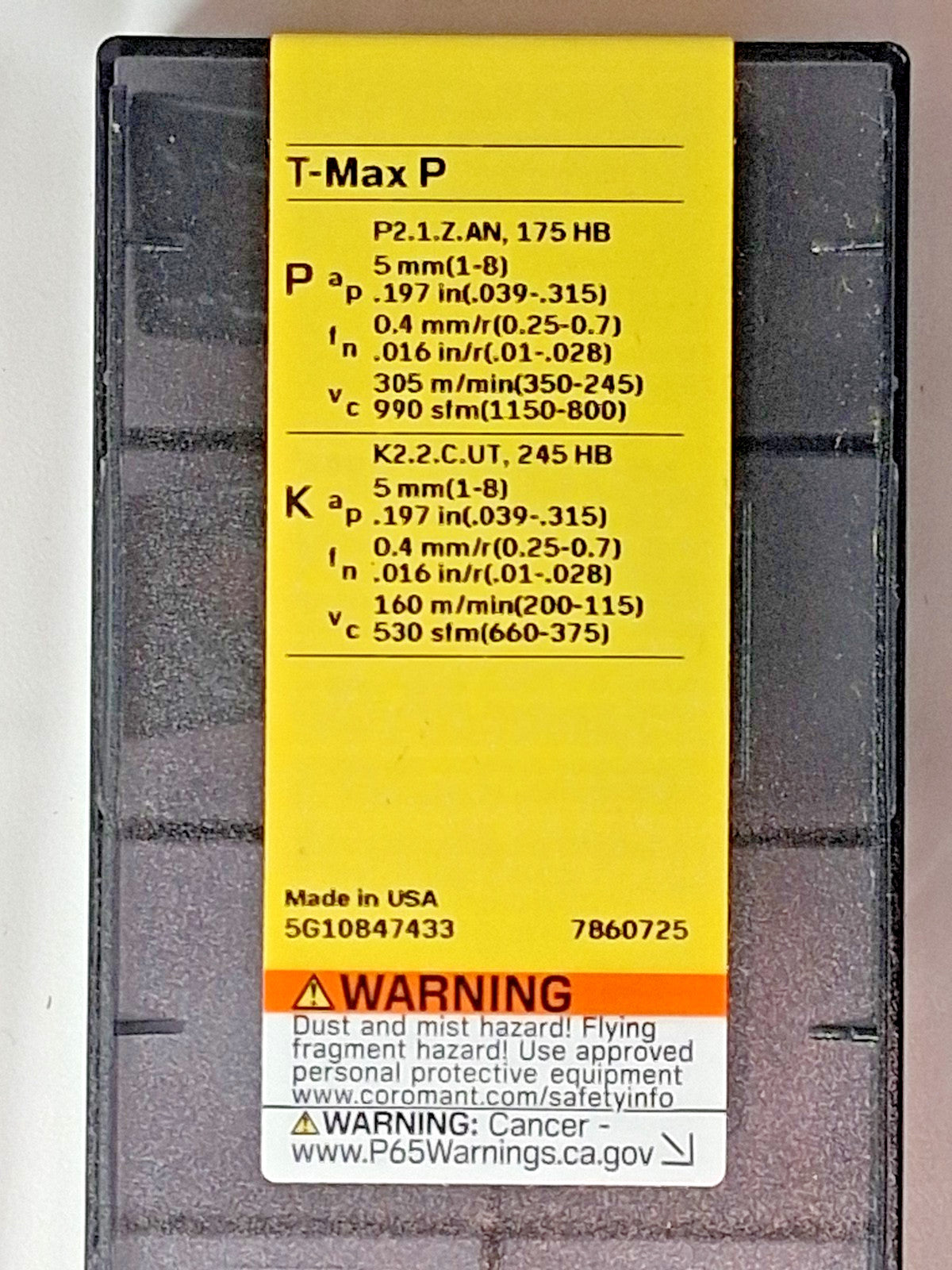

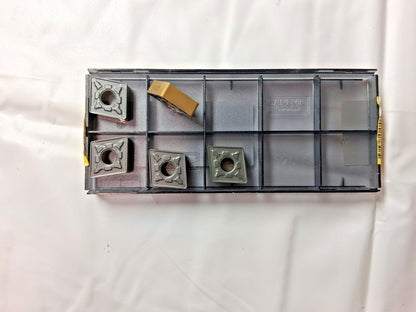

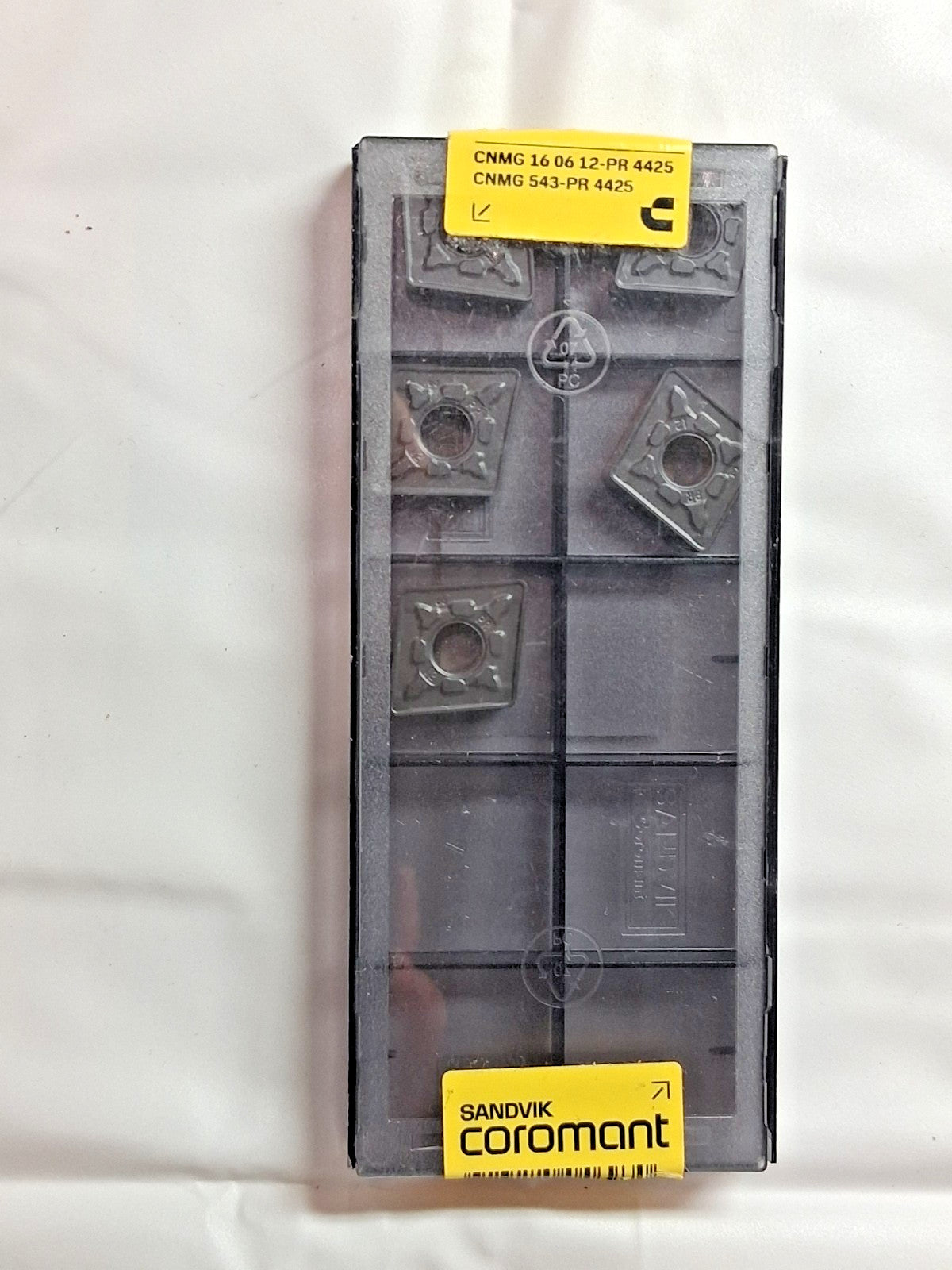

Please review photos, comes as shown.
