Sandvik Coromant Carbide Turning Inserts QTY10 DCMT32.51-PF 5015 5730959

Sandvik Coromant
Carbide Turning Inserts 1 pack of 10

MSRP: $210

• Insert Style DCMT
• ANSI Size Code 32.51
• ISO Size Code 11T304
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Carbide
• Manufacturer Grade 5015
• Coating/Finish Bright/Uncoated
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Insert Thickness 3.97
• Insert Hand Neutral
• Series CoroTurn 107
• Chip Breaker Operation Finishing
• Grade Characteristics Hardened Materials (H) - High Wear-Resistance; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.1732
• Hole Diameter (mm) 4.40
• ANSI Insert Code DCMT32.51
• ISO Insert Code DCMT11T304
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code M
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Insert Length (Decimal Inch) 0.4420
• Insert Length (mm) 11.23
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P; H
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code DCMT 11 T3 04-PF 5015
• Chip Breaker PF
• UNSPSC Code 23242105
• Insert Size Code 32.51

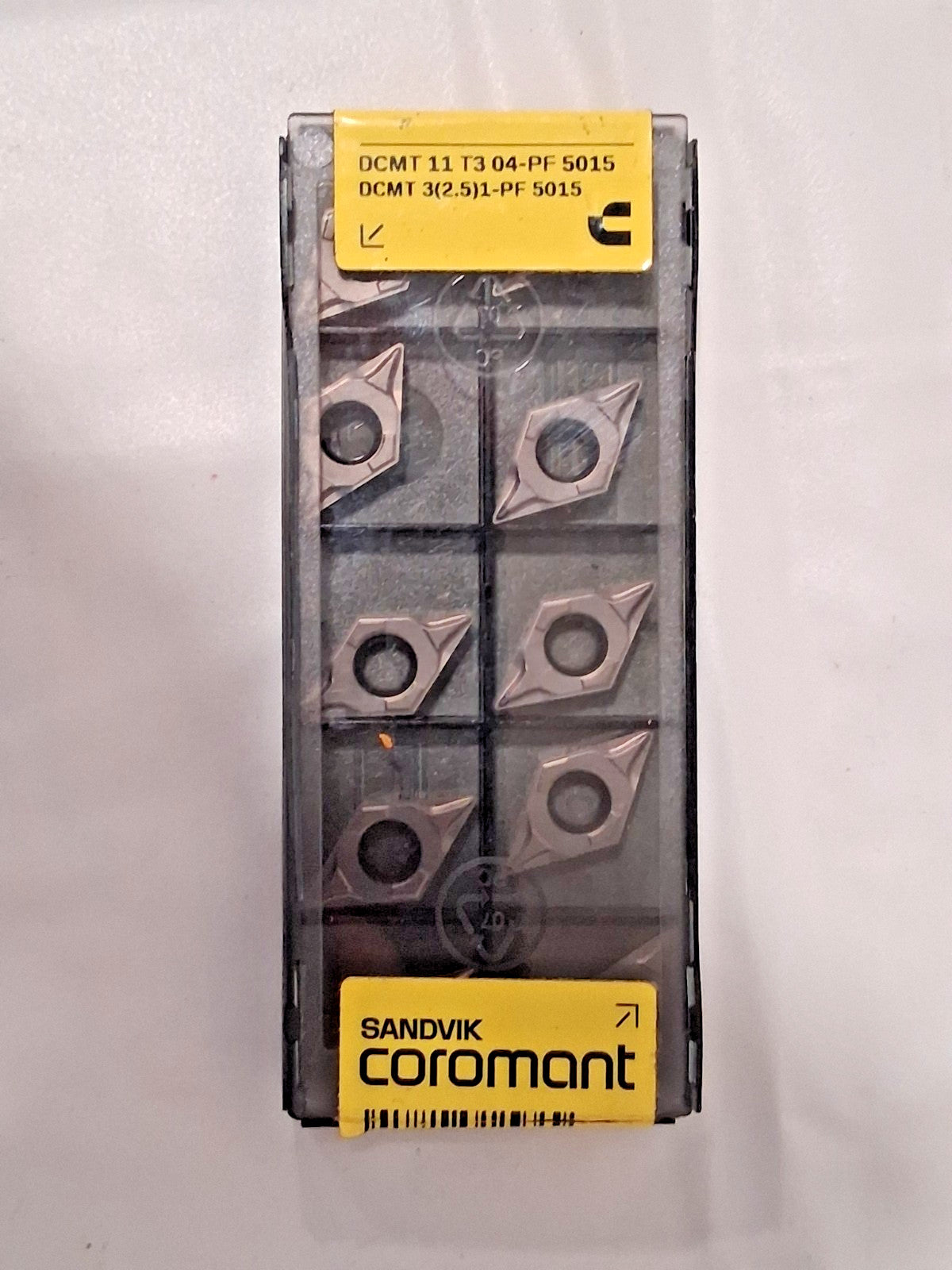

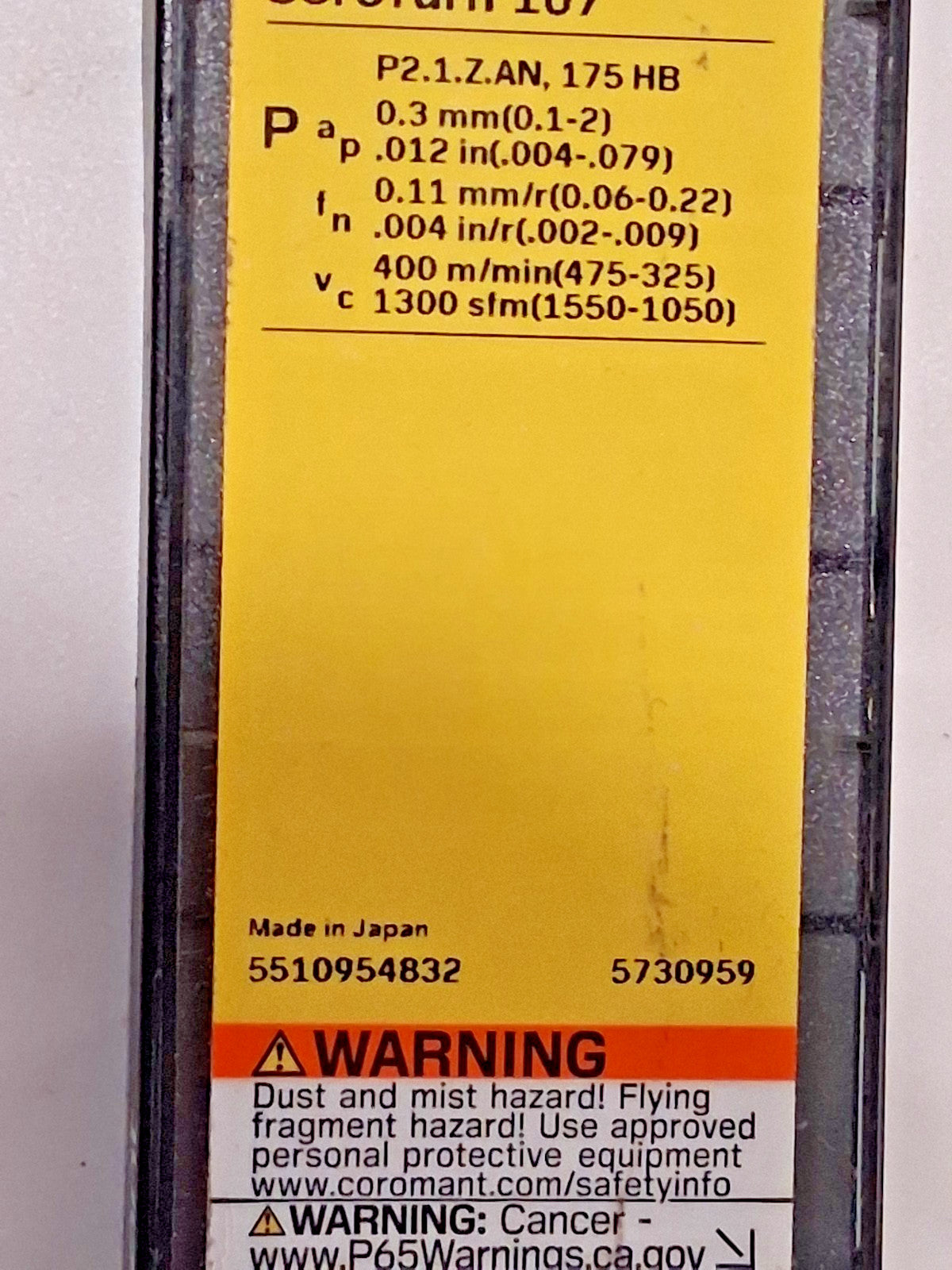

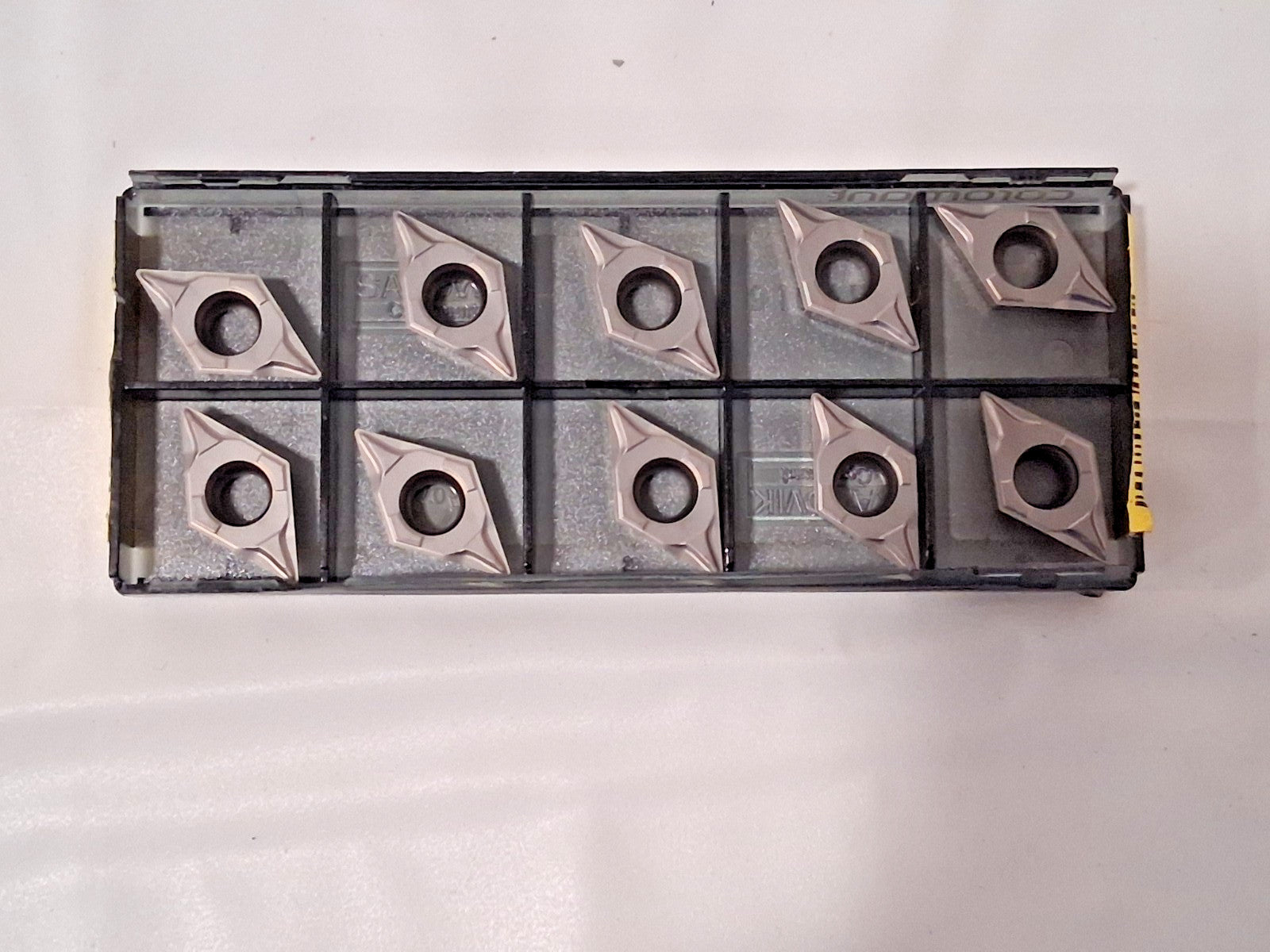

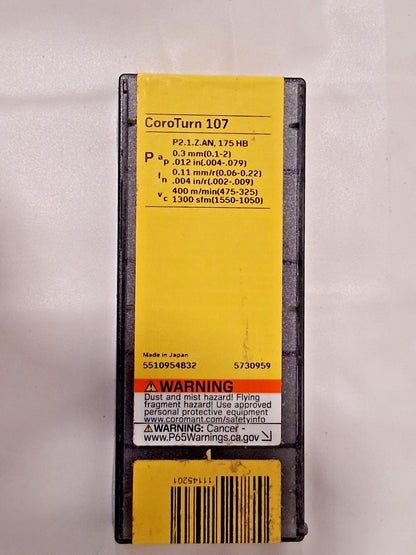

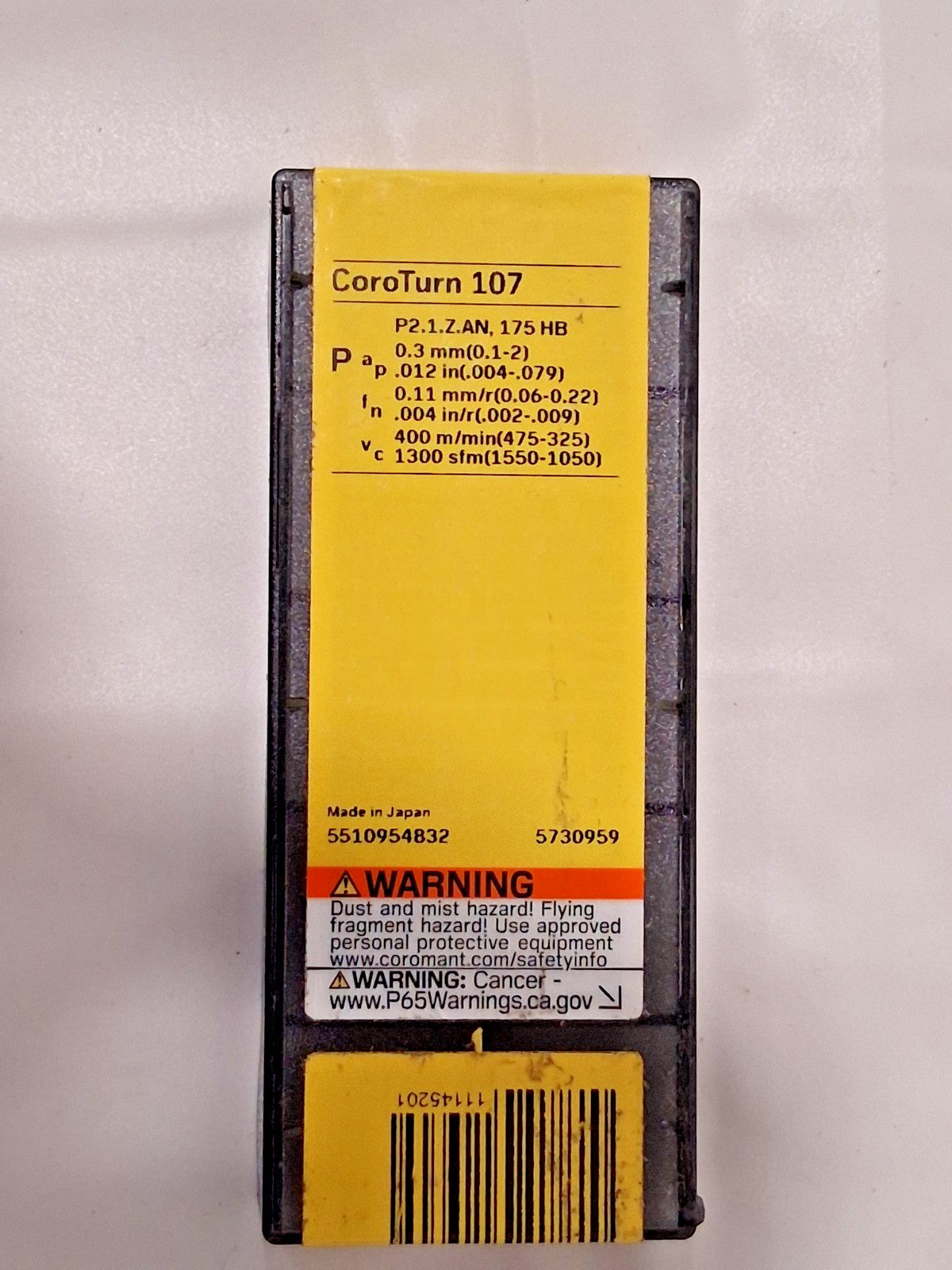

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
