Sandvik Coromant Carbide Turning Inserts QTY10 6699181

Sandvik Coromant
Carbide Turning Inserts 10pack

MSRP: $300

• Insert Style DNMX
• ANSI Size Code 433
• ISO Size Code 150412
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Included Angle 55.00
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Corner Radius (Inch) 3/64
• Corner Radius (mm) 1.19
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade 4315
• Coating/Finish TiCN; TiN; AI2O3
• Relief Angle 0.000
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Insert Thickness 4.76
• Insert Hand Neutral
• Series T-Max P
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness Steel (P)
• Side Clearance Negative
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2030
• Hole Diameter (mm) 5.16
• Maximum Depth of Cut (mm) 14.30
• ANSI Insert Code DNMX433
• ISO Insert Code DNMX150412
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Iso Code DNMX 15 04 12-WM 4315
• Lead Angle 93.000
• Chip Breaker X
• Cutting Edge Style Rounded
• UNSPSC Code 23242105
• Insert Size Code 433

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

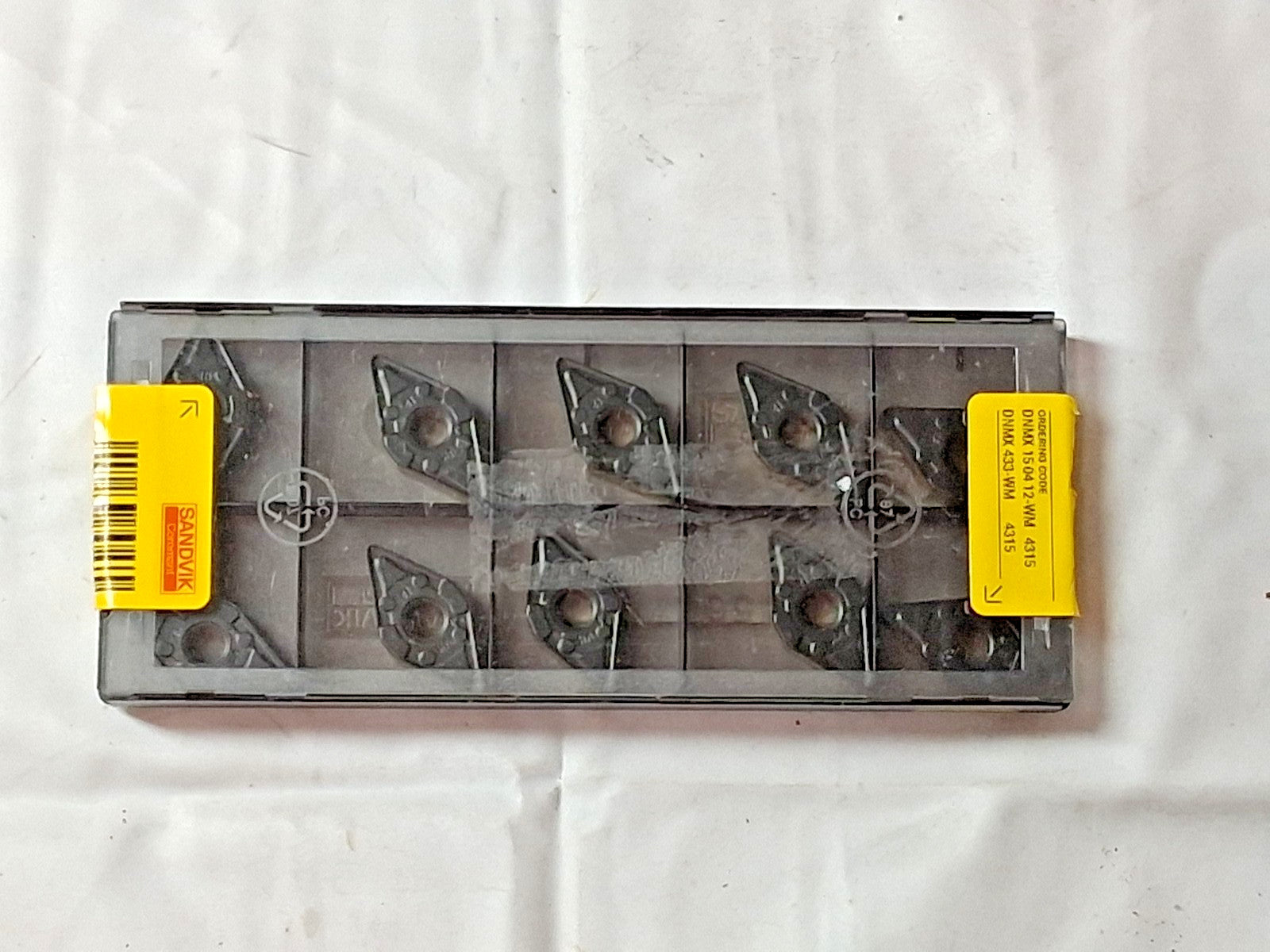

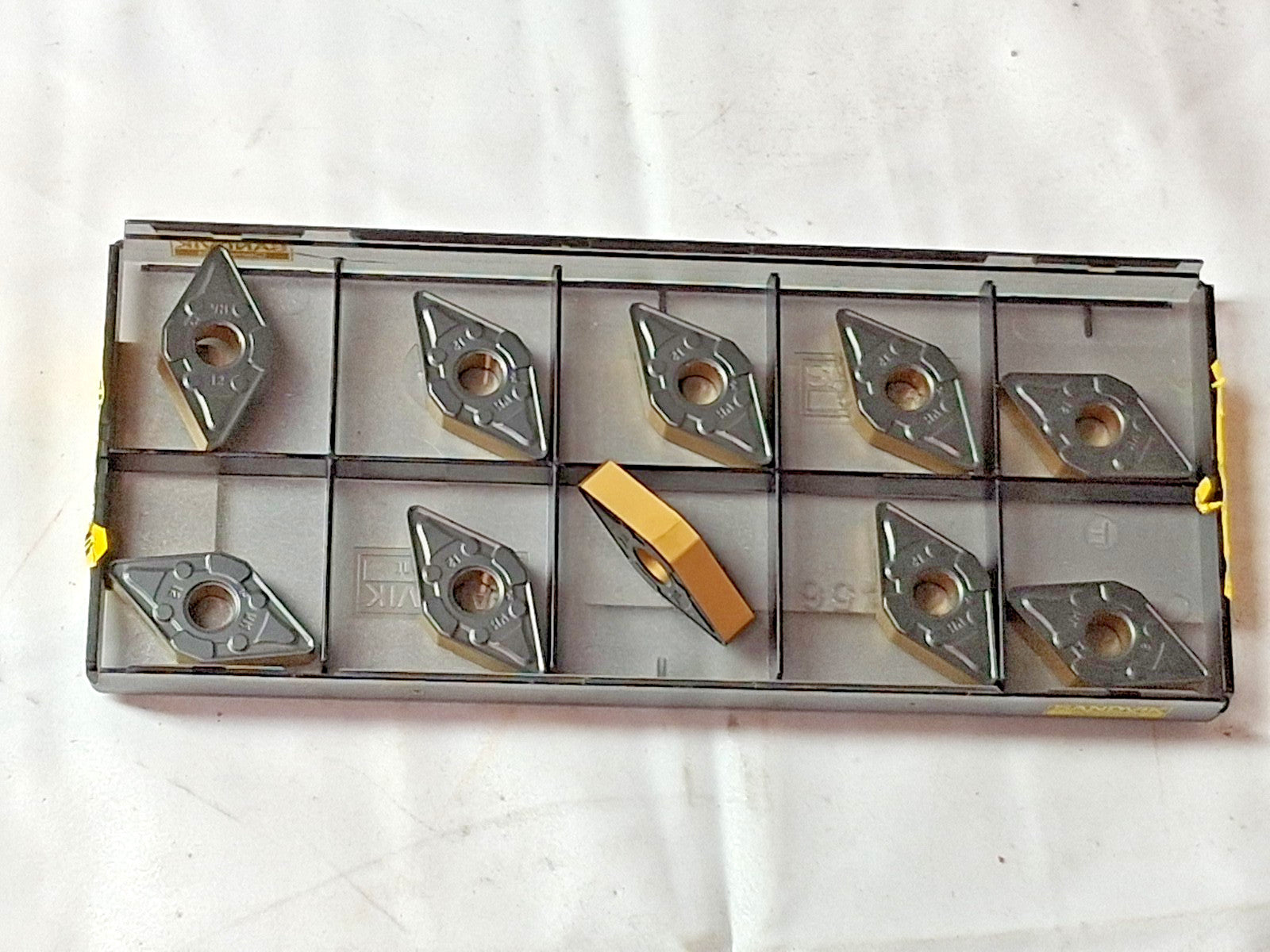

Please review photos, comes as shown.
