SANDVIK COROMANT

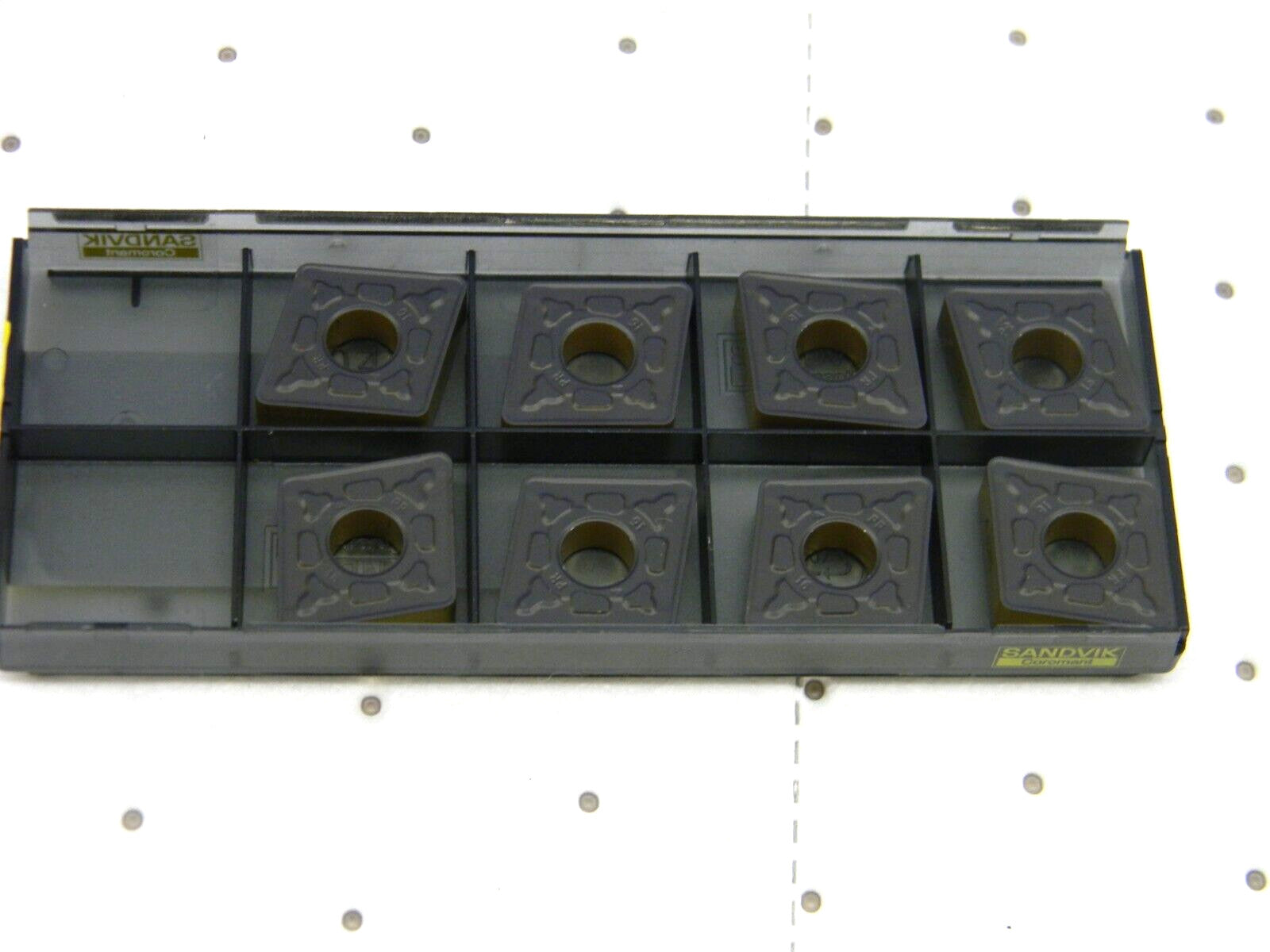

Carbide Turning Inserts CNMG644-PR 4325 QTY 8 6265930

MSRP: $400

• Insert Style CNMG
• Insert Shape Code C
• Insert Size Code 644
• Insert Shape Diamond
• Clearance Code N
• Tolerance Code M
• Insert Material Solid Carbide
• Manufacturer Grade 4325
• Hole Diameter (Mm) ( - 0 Decimals) 7.93
• Hole Diameter (Decimal Inch) 0.3120
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (mm) 19.05
• Inscribed Circle (Decimal Inch) 0.7500
• Insert Holding Method Clamp; Pin
• Insert Thickness (Inch) 1/4
• Insert Thickness 6.35
• Insert Thickness (Decimal Inch) 0.2500
• Corner Radius (Inch) 1/16
• Corner Radius (mm) 1.59
• Corner Radius (Decimal Inch) 0.0625
• Included Angle 80.0
• Relief Angle 0
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Insert Length (Decimal Inch) 0.6986

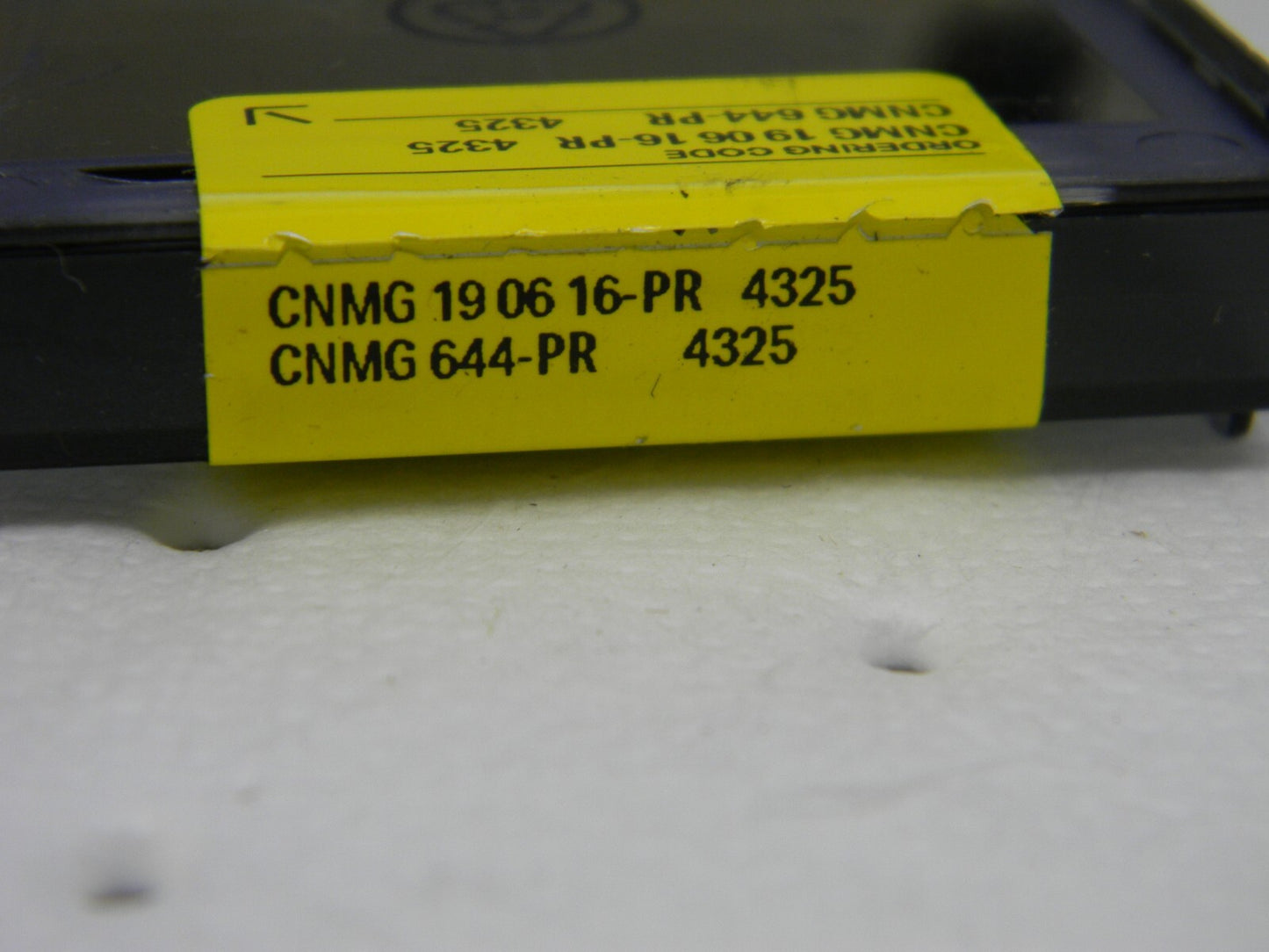

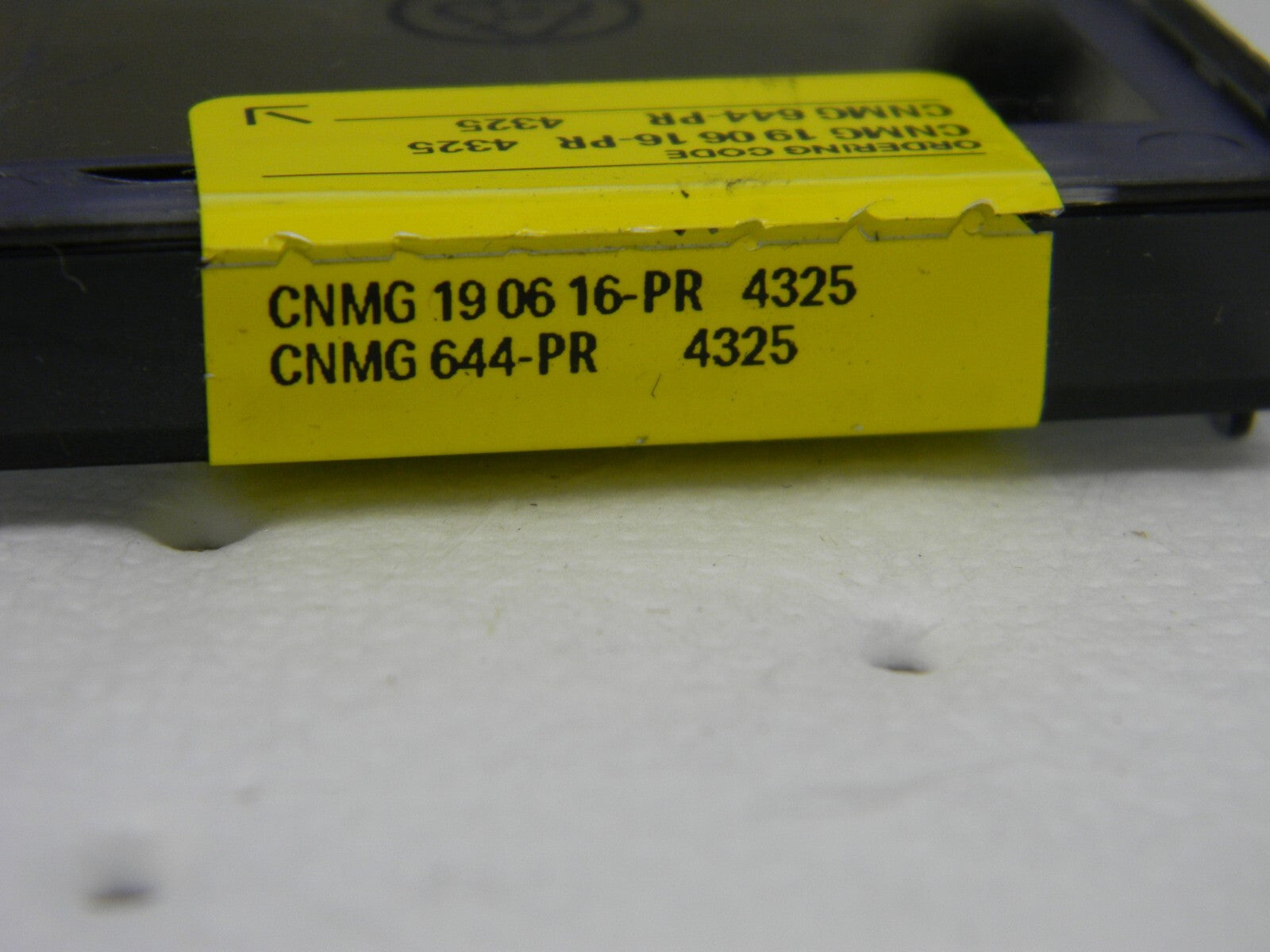

• Iso Code CNMG 19 06 16-PR 4325
• Chip Breaker G
• Coating/Finish TiCN; Al2O3; TiN

Please review photos, comes as shown.
