Sandvik Coromant Carbide Turning Inserts CNMG542 Grade 4205 Qty 5 5725295
Sandvik Coromant Carbide Turning Inserts CNMG542 Grade 4205 Qty 5 5725295
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Sandvik
MSRP: $100.00
Model: 5725295
Description:
Insert Style: CNMG
Insert Size: 542
Material: Carbide
Length (mm) : 15.32
Length (Decimal Inch) : 0.6032
Inscribed Circle (mm) : 15.88
Inscribed Circle (Decimal Inch) : 0.6250
Inscribed Circle (Inch) : 5/8
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.2500
Thickness (mm) : 6.35
Corner Radius (Inch) : 1/32
Corner Radius (mm) : 0.7938
Corner Radius (Decimal Inch) : 0.0313
Manufacturer's Grade: 4205
Coating: TiCN/AI2O3/TiN
Insert Length (Decimal Inch): 0.6032
OverallLength (mm): 16.12
Overall Length (Decimal Inch): 0.6346
Hole Diameter (mm): 6.35
Hole Diameter (Decimal Inch): 0.2500

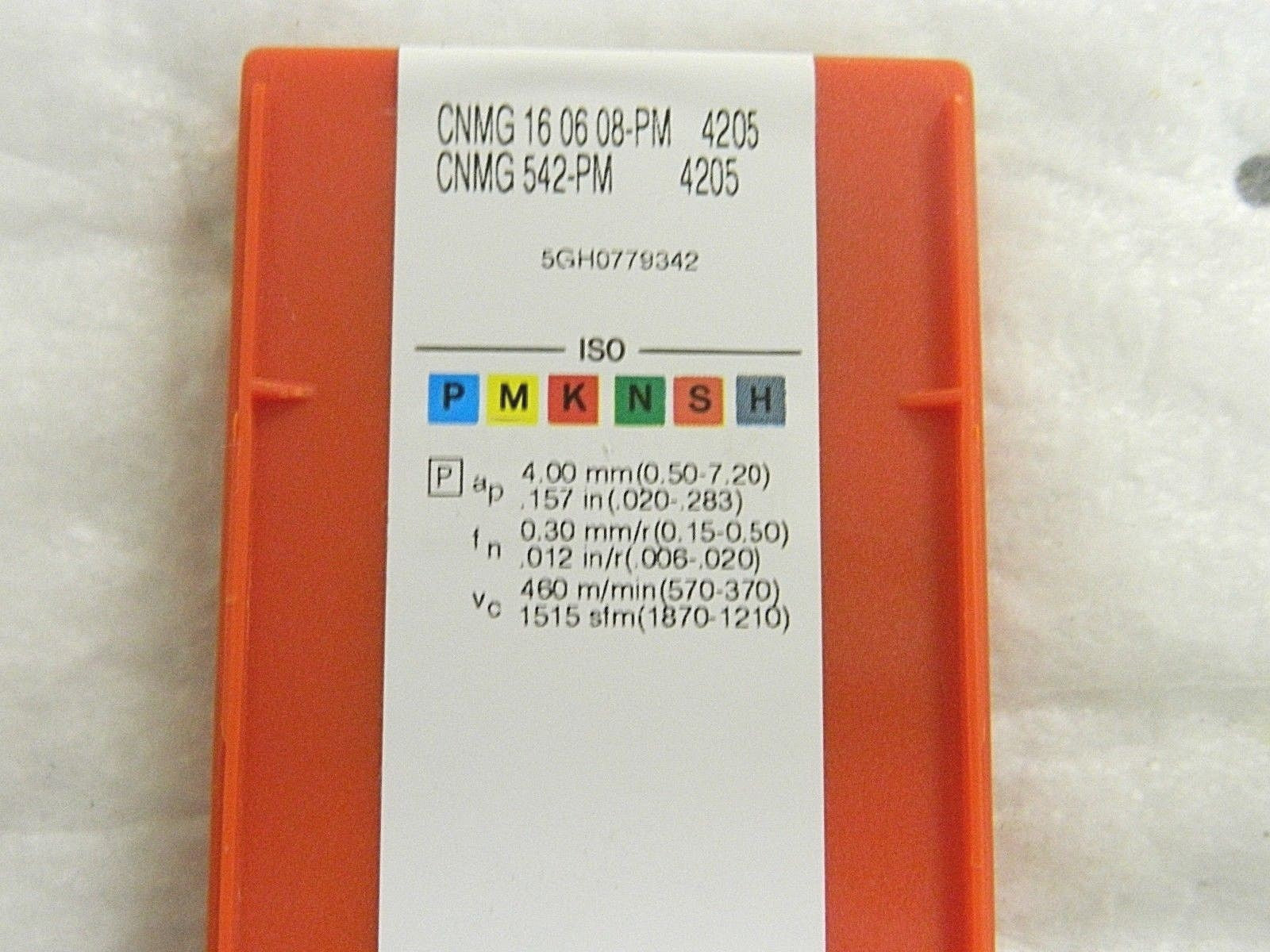

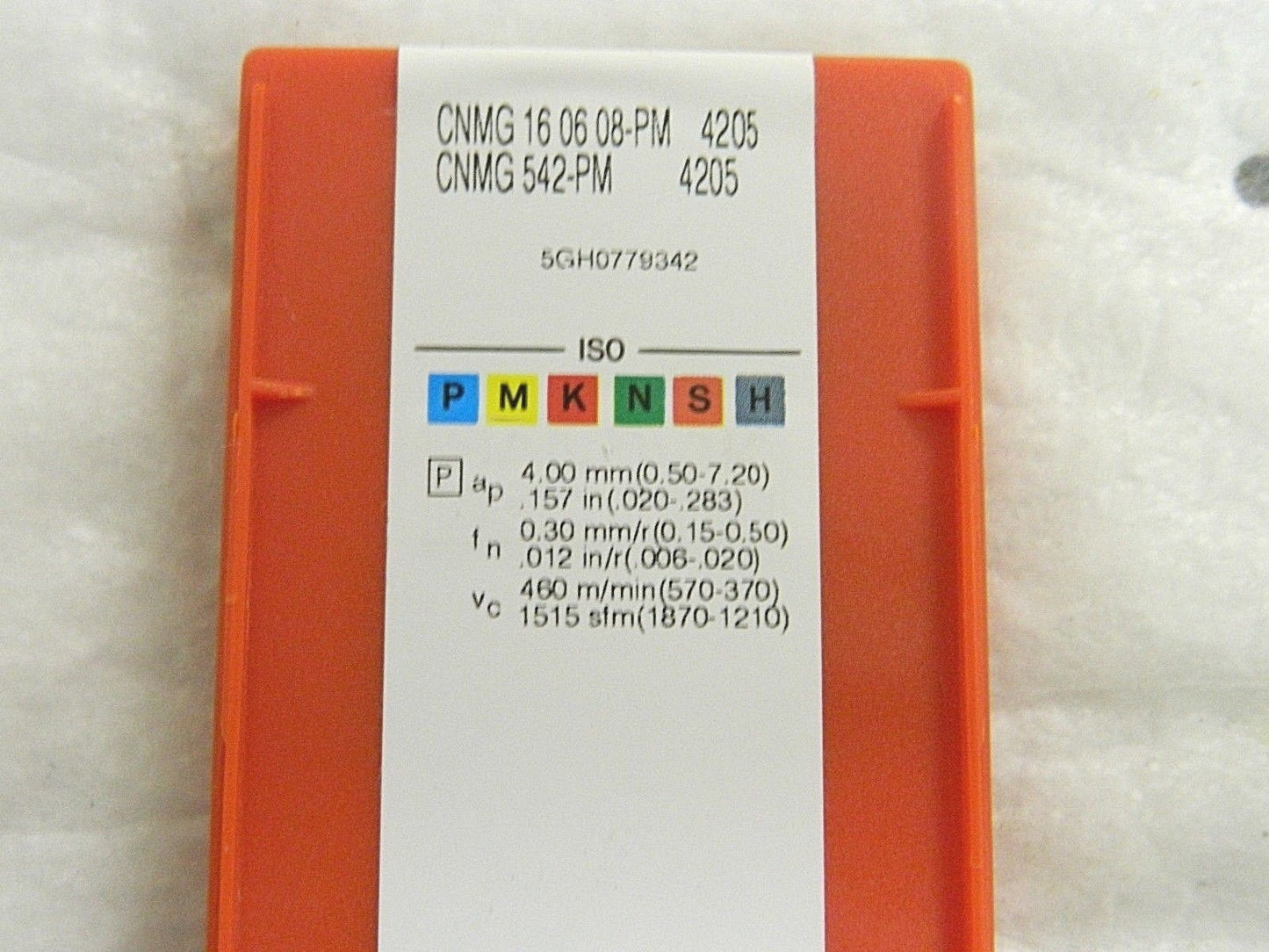

ISO Number: CNMG 16 06 08-PM 4205
Included Angle: 80
Insert Holding Method: Pin & Clamp
Shape: Diamond

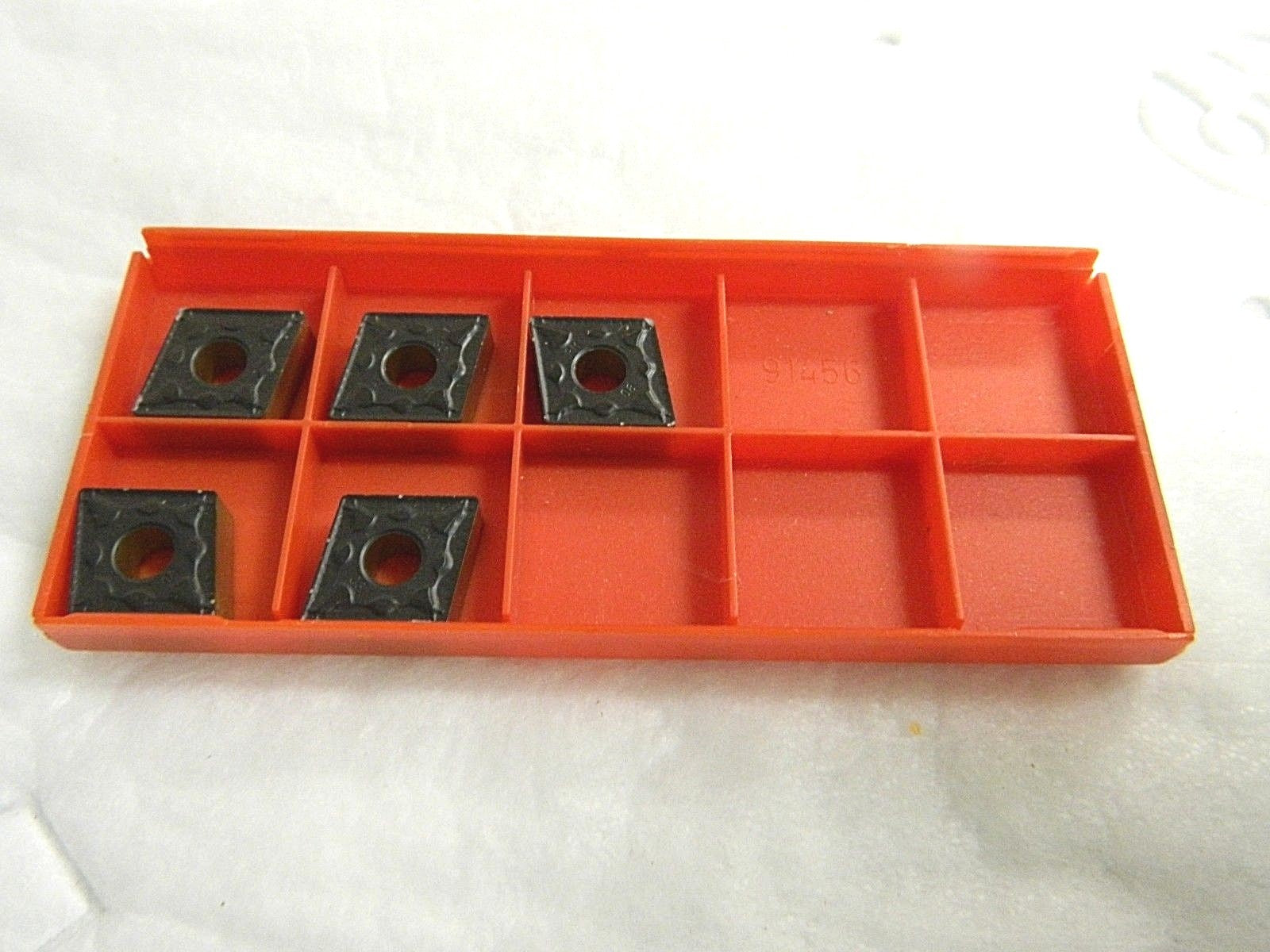

This listing is for One Lot of 5 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
