Sandvik Coromant Carbide Turning Insert SCMT432UR 4325 10 Pcs 6434170

Sandvik Coromant
10 Piece Carbide Turning Insert

MSRP: $250.00

• Manufacturer Sandvik Coromant
• Mfr Part # 6434170
• Insert Style SCMT
• ANSI Size Code 432
• ISO Size Code 120408
• Insert Shape S - Square
• Included Angle 90.00
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Corner Radius (Inch) 1/32
• Corner Radius (mm) 0.80
• Corner Radius (Decimal Inch) 0.0315
• Insert Material Carbide
• Manufacturer Grade 4325
• Relief Angle 7.000
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1874
• Insert Thickness 4.76
• Insert Hand Neutral
• Series CoroTurn 107
• Grade Characteristics Steel (P) - High Wear-Resistance to High Toughness
• Side Clearance Positive
• Hole Diameter (Decimal Inch) 0.2165
• Hole Diameter (mm) 5.50
• Maximum Depth of Cut (mm) 11.90
• Maximum Depth of Cut (Decimal Inch) 0.4685
• ANSI Insert Code SCMT432
• ISO Insert Code SCMT120408
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code M
• Coating Process MTCVD
• Primary Workpiece Material Code P
• Iso Code SCMT120408UR4325
• Manufacturers Catalog Number 6434170
• Chip Breaker T
• UNSPSC Code 23242105

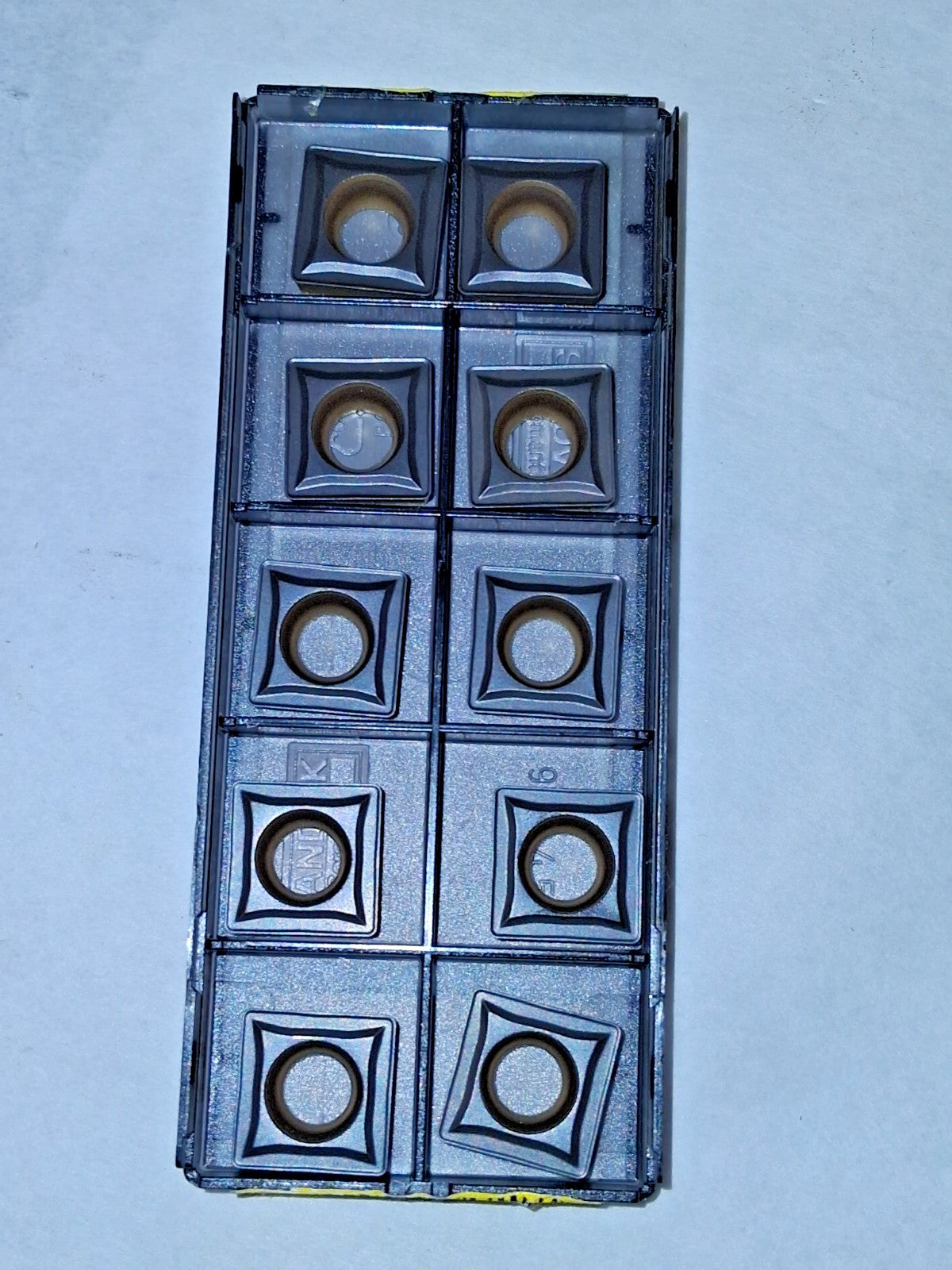

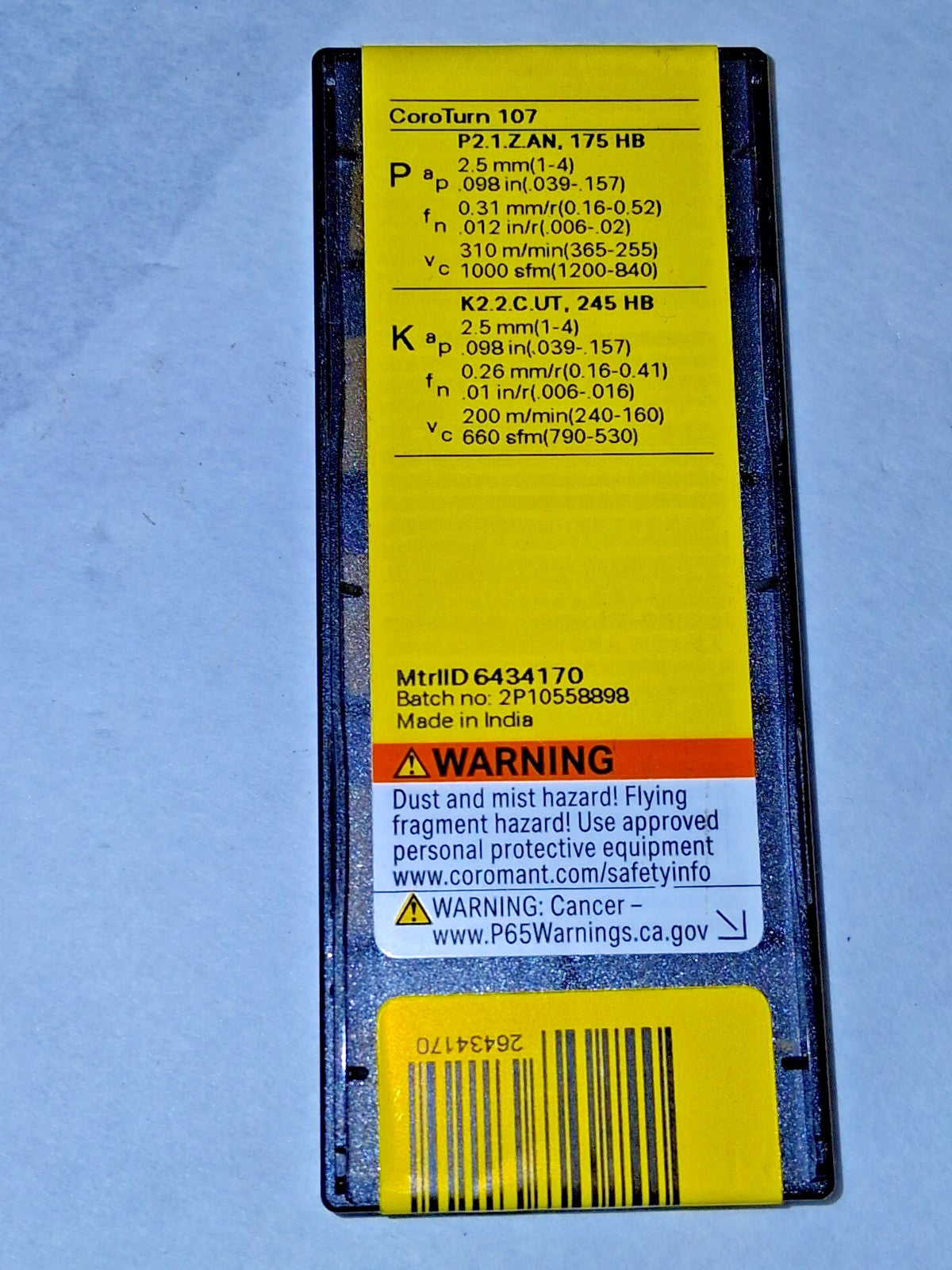

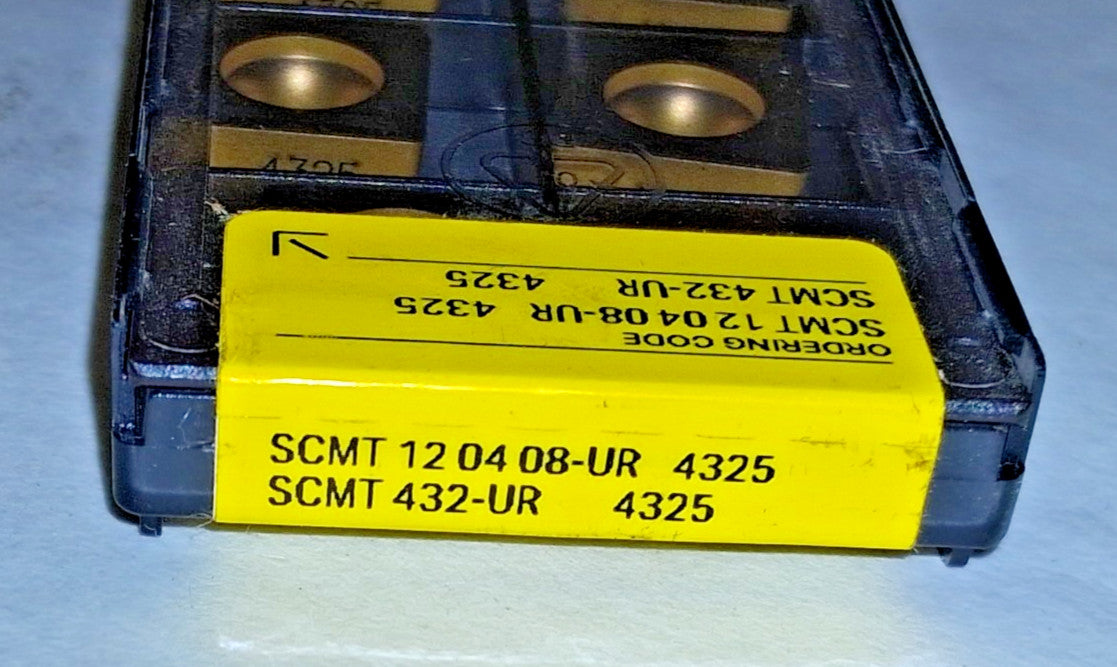

Please review photos, comes as shown.
