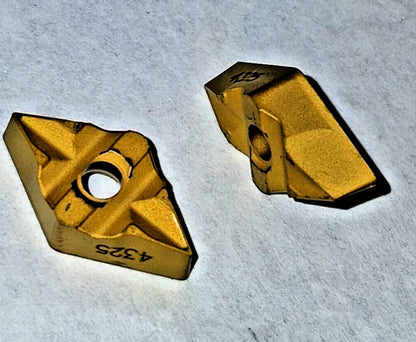

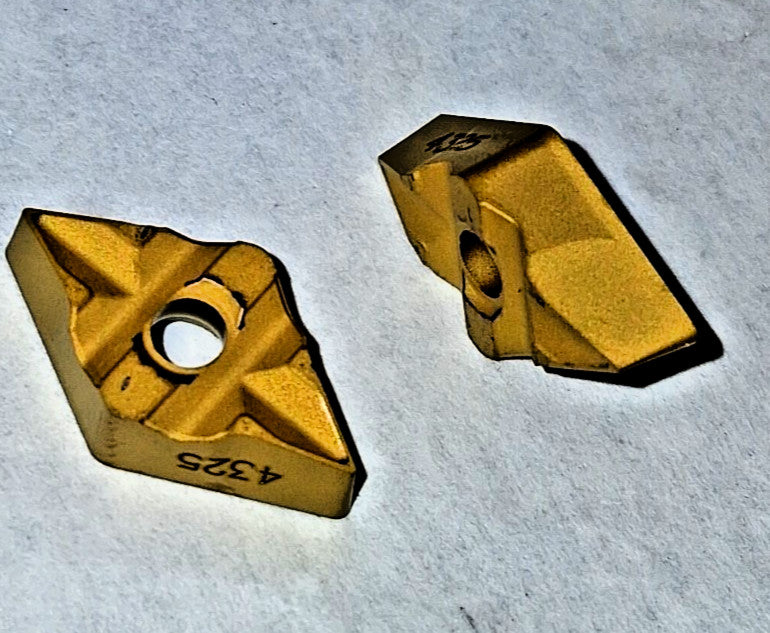

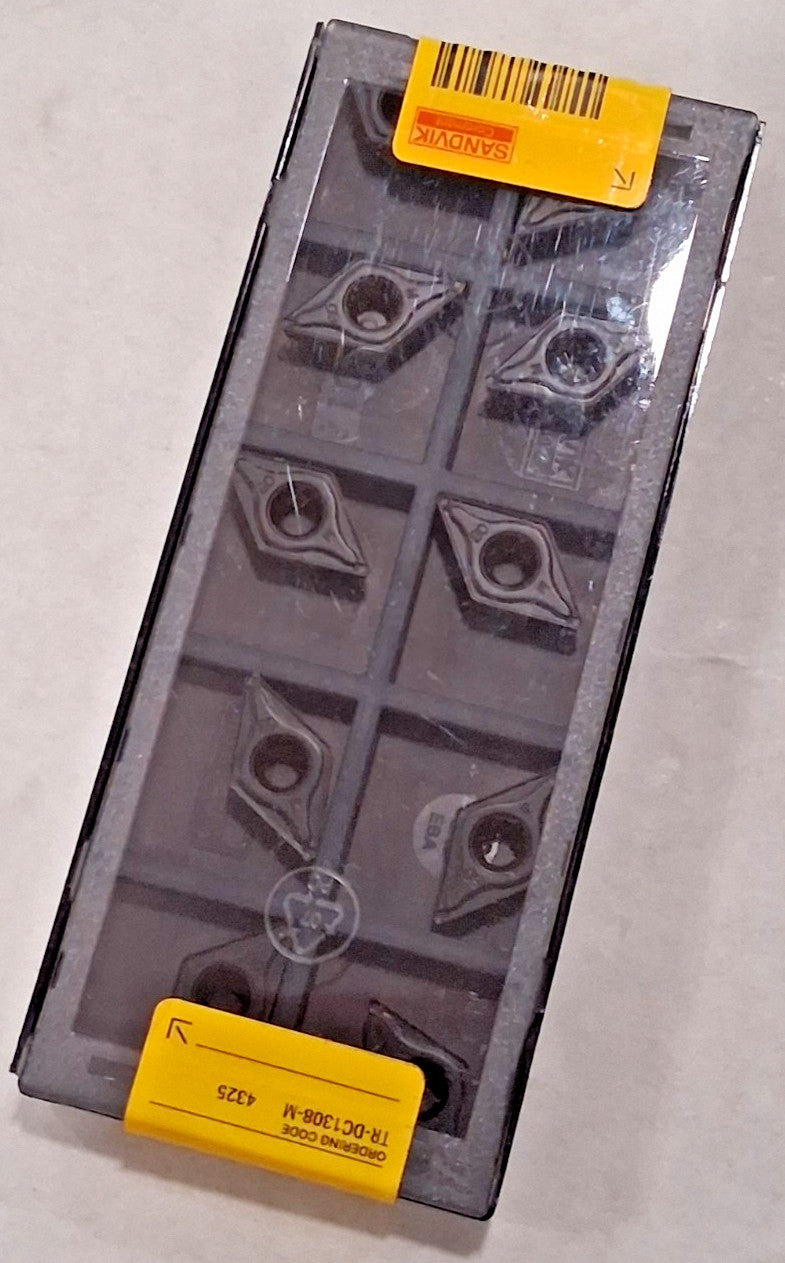

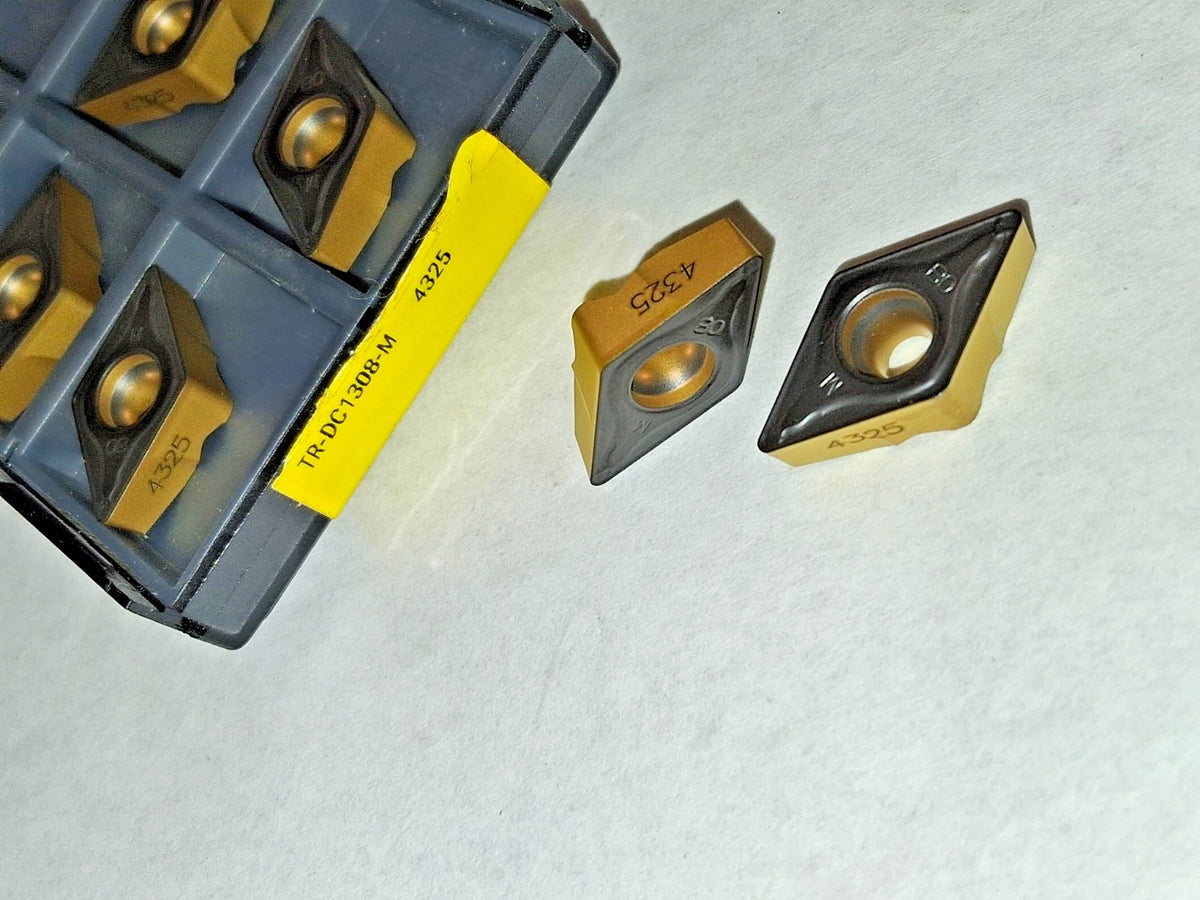

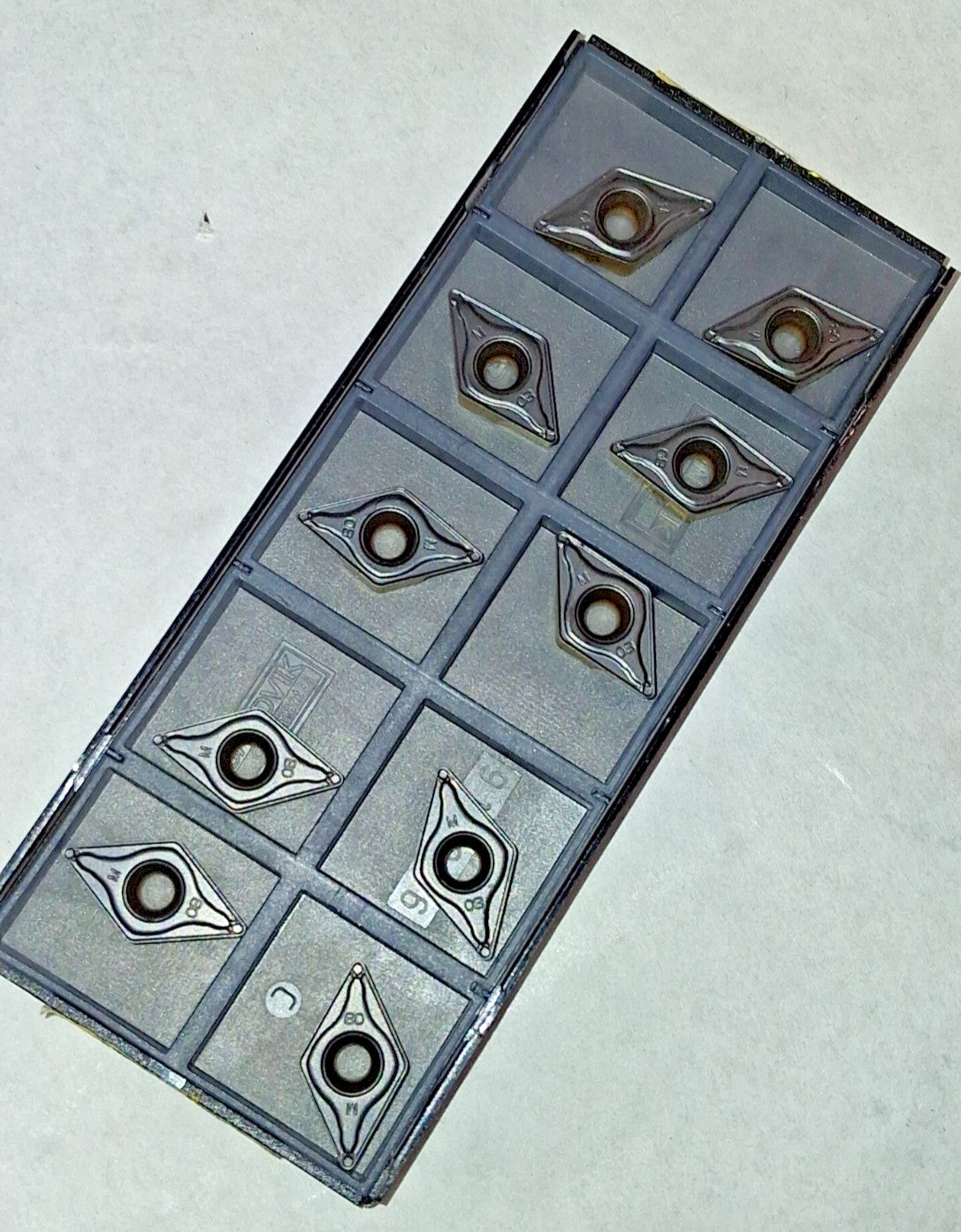

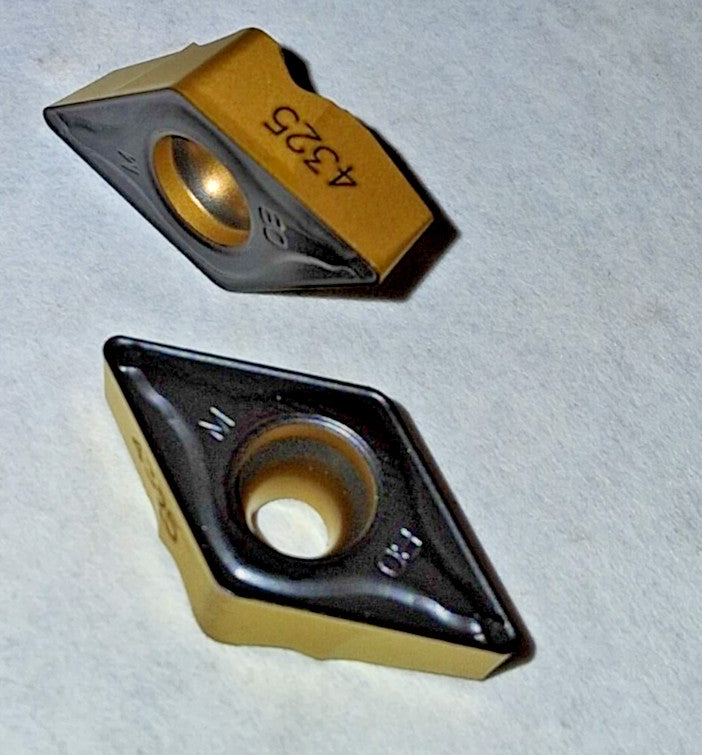

Sandvik Coromant Carbide Turning Insert 10 Pcs TR-DC1308-M 4325 6433941

Sandvik Coromant
10 Piece Carbide Turning Insert

MSRP: $250.00

• Manufacturer Sandvik Coromant
• Mfr Part # 6433941
• Insert Style TRDC
• ISO Size Code 1308
• Insert Shape Non-ISO Specialty Shapes
• Included Angle 55.00
• Inscribed Circle (Decimal Inch) 0.4331
• Inscribed Circle (mm) 11.00
• Corner Radius (Inch) 1/32
• Corner Radius (mm) 0.79
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade 4325
• Relief Angle 7.000
• Insert Thickness (Decimal Inch) 0.2175
• Insert Thickness 5.53
• Grade Characteristics Steel (P) - High Wear-Resistance to High Toughness
• Side Clearance Positive Positive
• Hole Diameter (Decimal Inch) 0.1457
• Hole Diameter (mm) 3.70
• ANSI Insert Code TRDC
• ISO Insert Code TRDC1308
• Insert Holding Method Screw
• Insert Length (Decimal Inch) 0.4803
• Insert Length (mm) 12.20

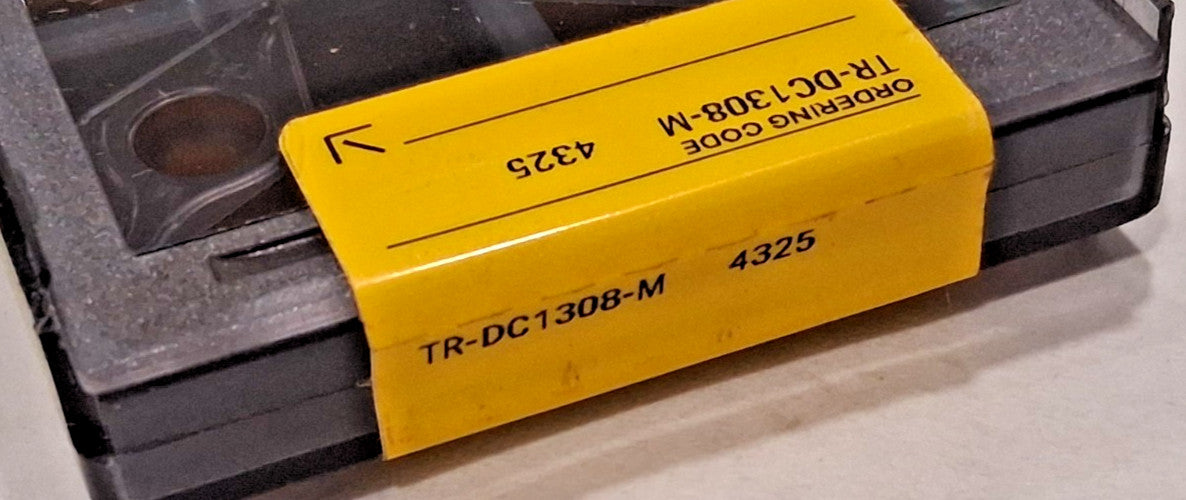

• Iso Code TR-DC1308-M 4325
• UNSPSC Code 23242105

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
