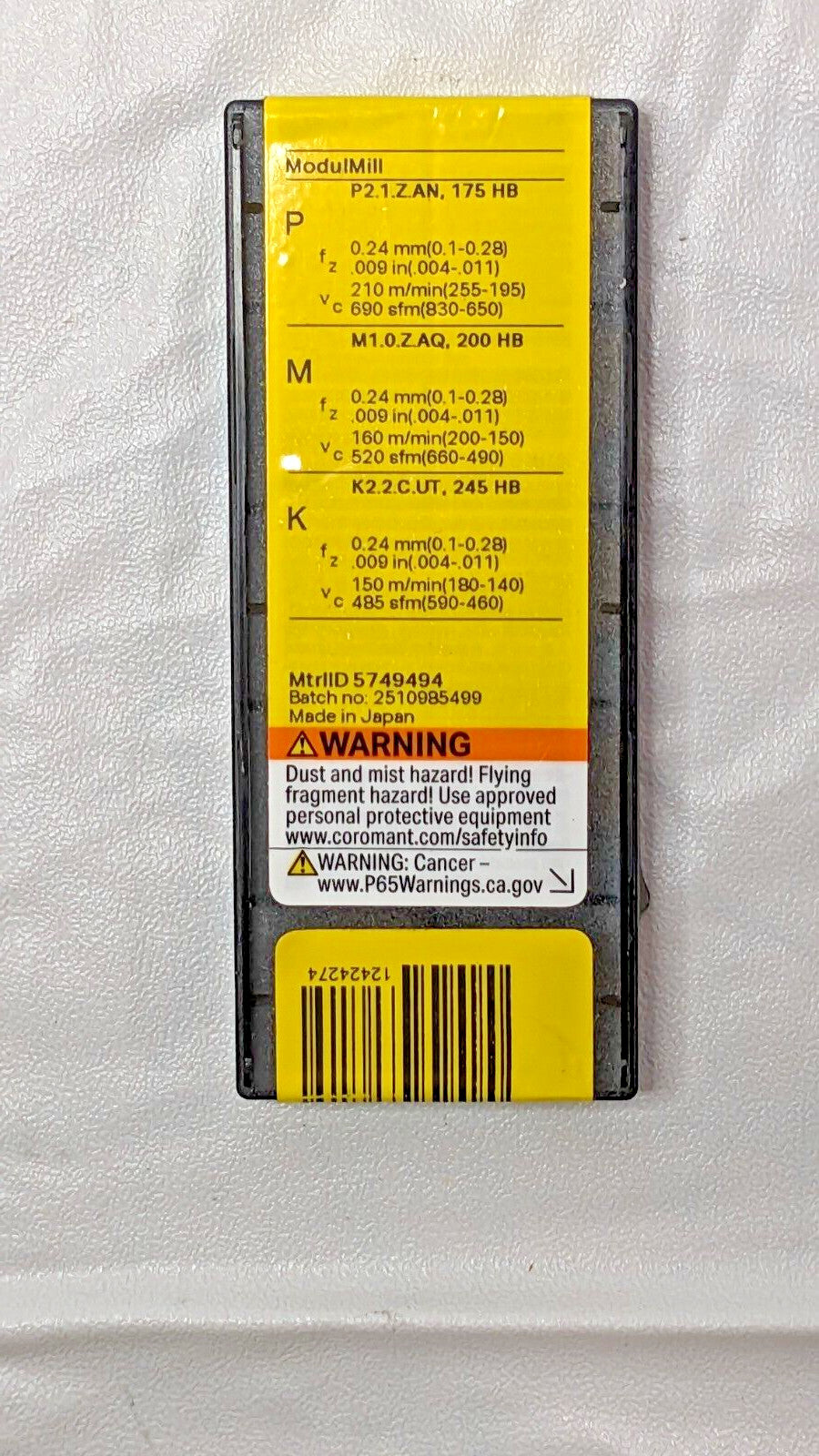

Sandvik Coromant Carbide Milling Inserts SEKN 12 03 AZ 4240 QTY 10 5749494

Sandvik Coromant

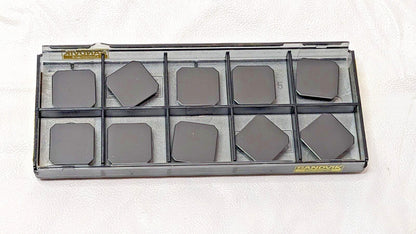

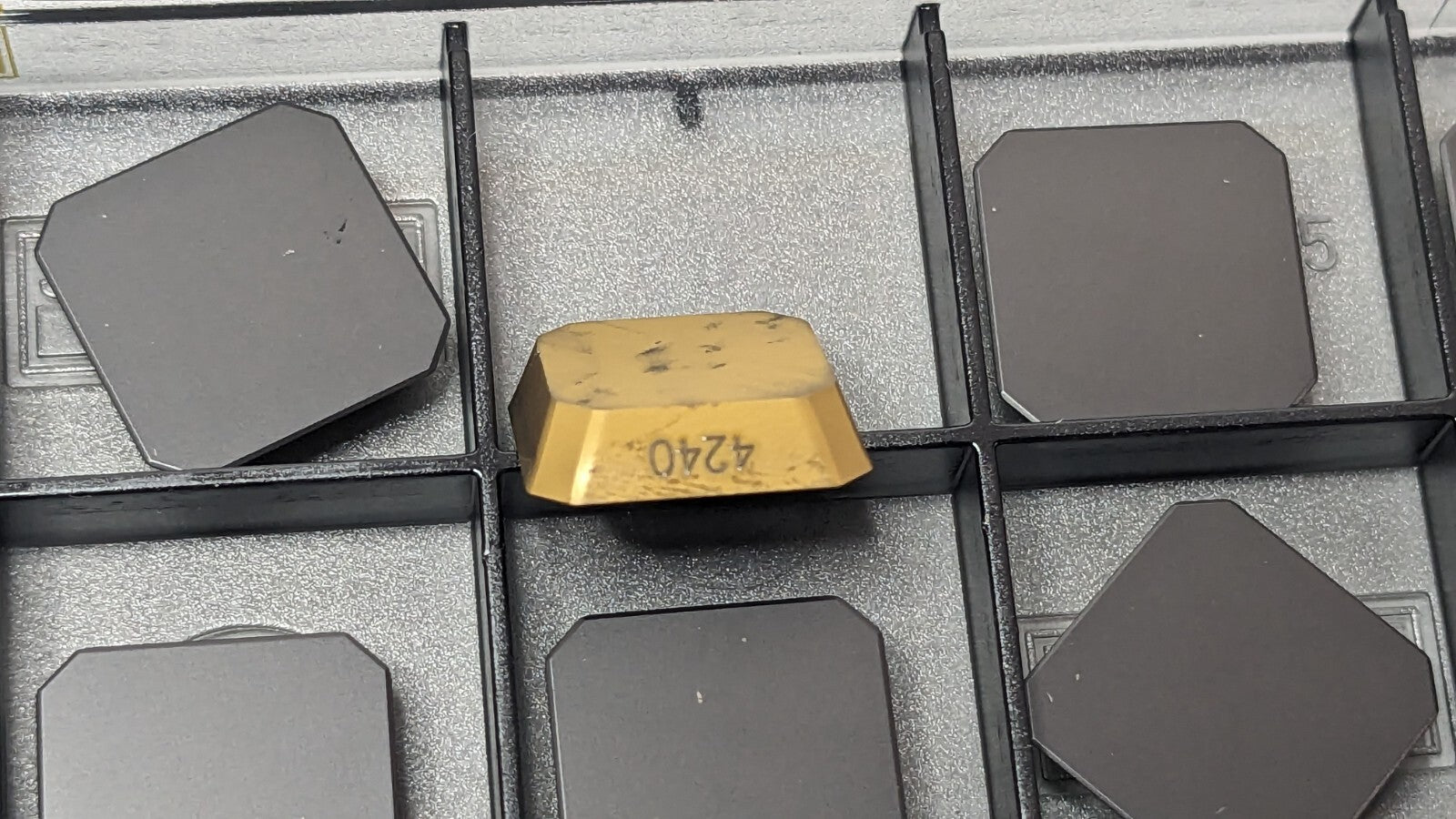

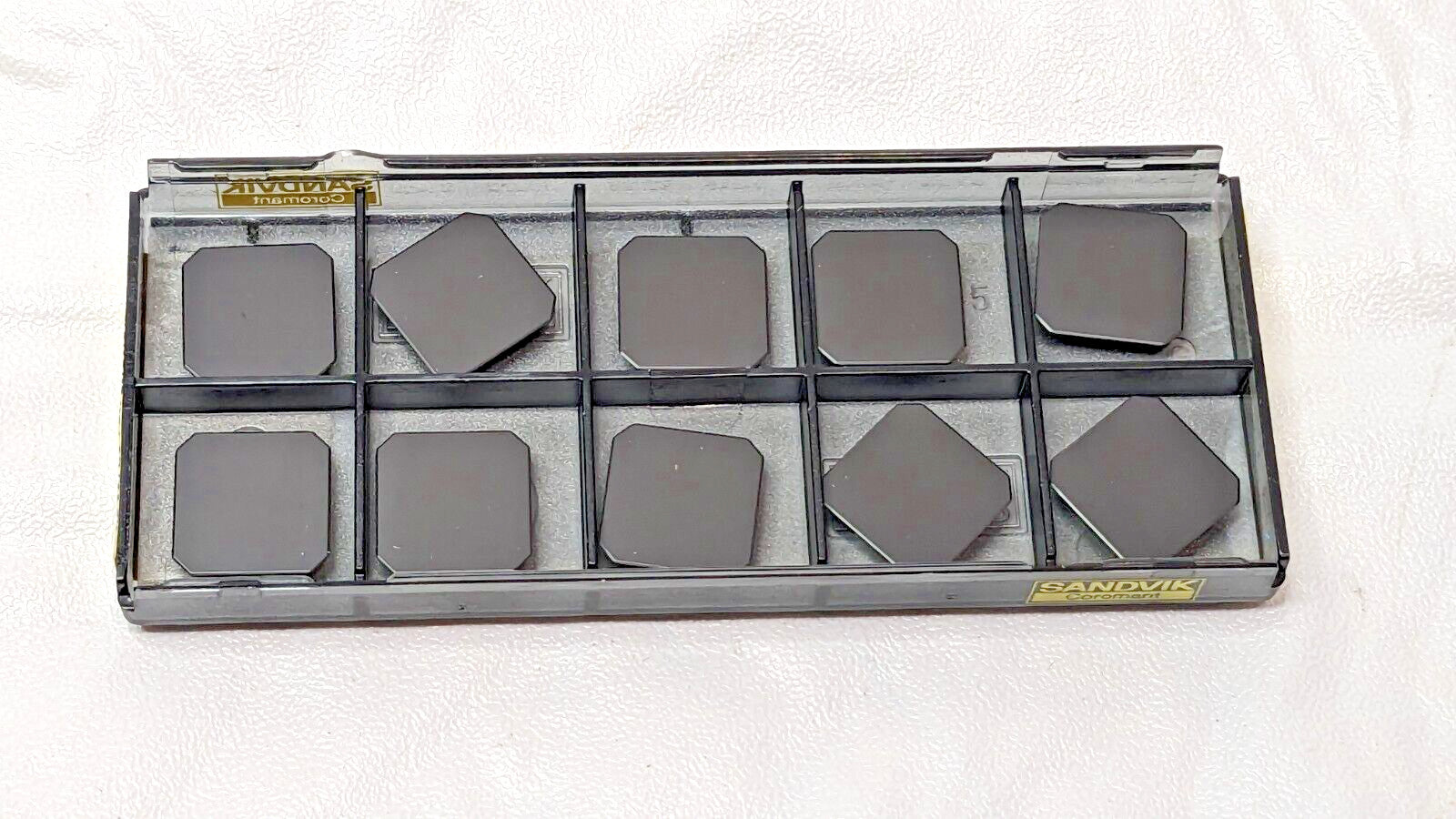

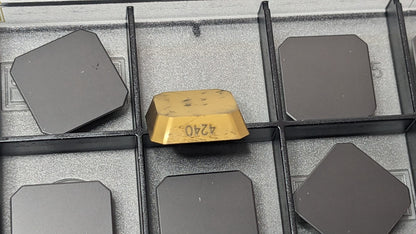

1 Pack of 10 Carbide Milling Inserts

MSRP: $250

• Insert Style SEK

• Insert Size 4
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade 4240
• Corner Radius (Decimal Inch) 0.0472
• Corner Radius (mm) 1.20
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.1250
• Thickness (mm) 3.17
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 20.00
• Insert Size Code 42
• Width (Inch) 1/2
• Length (Inch) 1/2
• Thickness (Inch) 1/8
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (mm) 12.70
• Thickness Range (Decimal Inch) 0.1250 to 0.1500
• Corner Radius (Inch) 3/64
• Inscribed Circle Range (Decimal Inch) 0.5000 to 0.5100
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.2520
• Maximum Depth of Cut (mm) 6.40
• Series SEK
• Coating Process CVD
• Rake Positive
• Primary Workpiece Material Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; K; M
• Ansi Code SEK 42A 4240

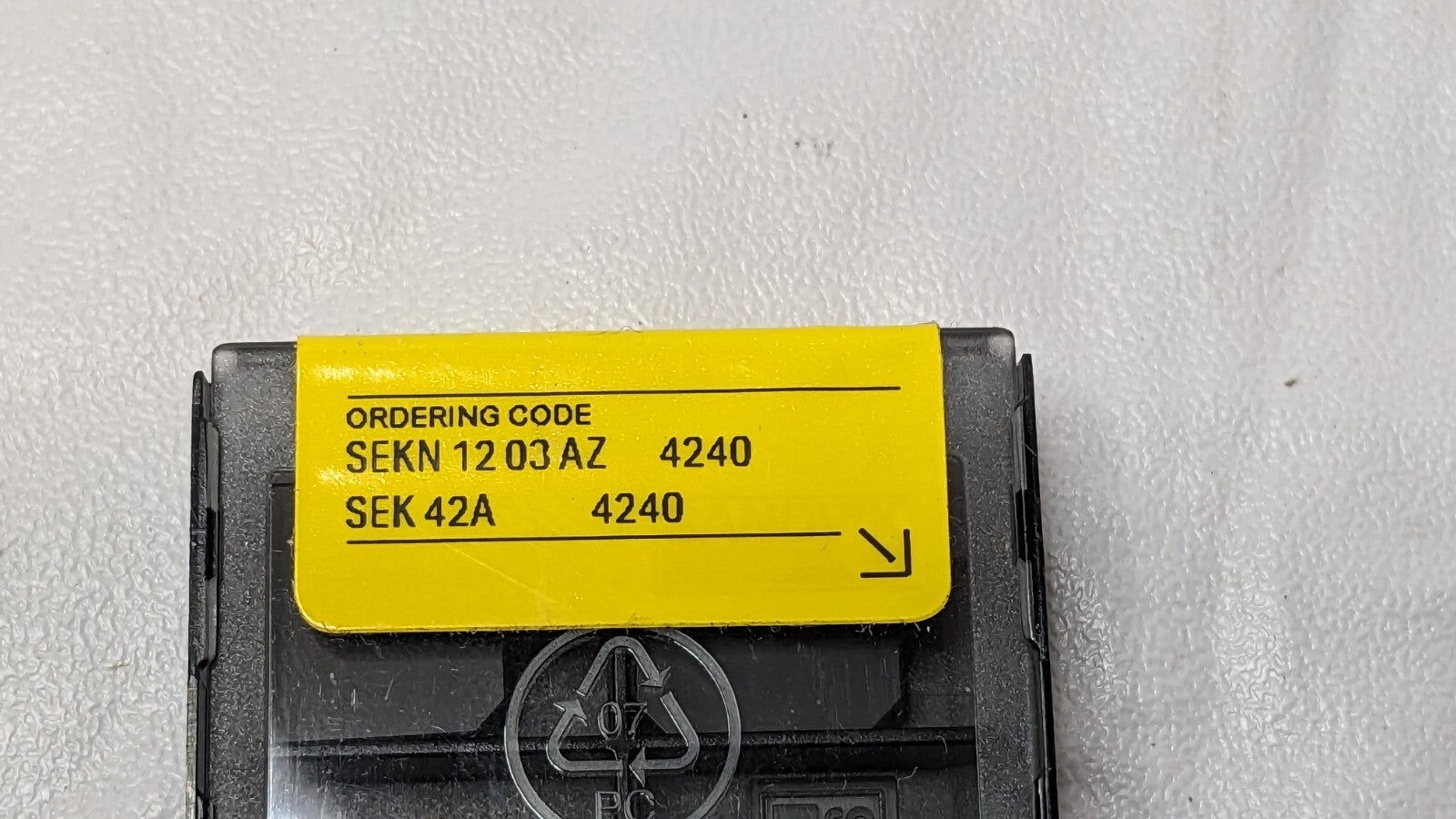

• Iso Code SEKN 12 03 AZ 4240
• Standards ISO; ANSI
• Rake Angle 0
• Cutting Edge Style Corner Rounded
• Manufacturers Catalog Number SEK 42A 4240
• Chip Breaker Flat Top
• UNSPSC Code 23291601
• Material Application Stainless Steel; Cast Iron; Steel
• Insert Holding Method Clamp
• Coating Classification CVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Length (mm) 9.60
• Width (Decimal Inch - 4 Decimals) 0.5000
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5000

*Open package for inspection & photos only*

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
