Sandvik Coromant Carbide Milling Inserts RCHT 19 06 00-ML 2040 QTY 10 5740003

Sandvik Coromant
Carbide Milling Inserts

MSRP: $450

• Insert Style RCHT
• Insert Size 19
• Insert Material Solid Carbide
• Insert Shape Round
• Manufacturer Grade 2040
• Corner Radius (Decimal Inch) 0.3750
• Corner Radius (mm) 9.53
• Number Of Cutting Edges 8
• Thickness (Decimal Inch - 4 Decimals) 0.2500
• Thickness (mm) 6.35
• Coating/Finish TiN; TiCrN; Al2O3
• Relief Angle 7.00
• Insert Size Code 190600
• Material Grade P45; S30; M40
• Width (Inch) 3/4
• Length (Inch) 3/4
• Thickness (Inch) 1/4
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (Decimal Inch) 0.7500
• Inscribed Circle (mm) 19.05
• Thickness Range (Decimal Inch) 0.2500 to 0.3500
• Corner Radius (Inch) 3/8
• Inscribed Circle Range (Decimal Inch) 0.7000 to 1.0000
• Length Range (Decimal Inch) 0.7000 to 0.9000
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.1098
• Maximum Depth of Cut (mm) 2.79
• Series RCHT
• Coating Process CVD
• Hole Diameter (Mm) ( - 0 Decimals) 0.26
• Hole Diameter (Decimal Inch) 0.2559
• Rake Positive
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Ansi Code RCHT 19 06 00-ML 2040
• Iso Code RCHT 19 06 00-ML 2040
• Standards ISO; ANSI
• Convex Radius (Decimal Inch) 0.3750
• Cutting Edge Style Rounded
• Manufacturers Catalog Number RCHT 19 06 00-ML 2040
• Cutter Series Compatibility RA200
• Chip Breaker ML
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Single
• Included Angle Degree 360
• Width (Decimal Inch - 4 Decimals) 0.7500
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.7500

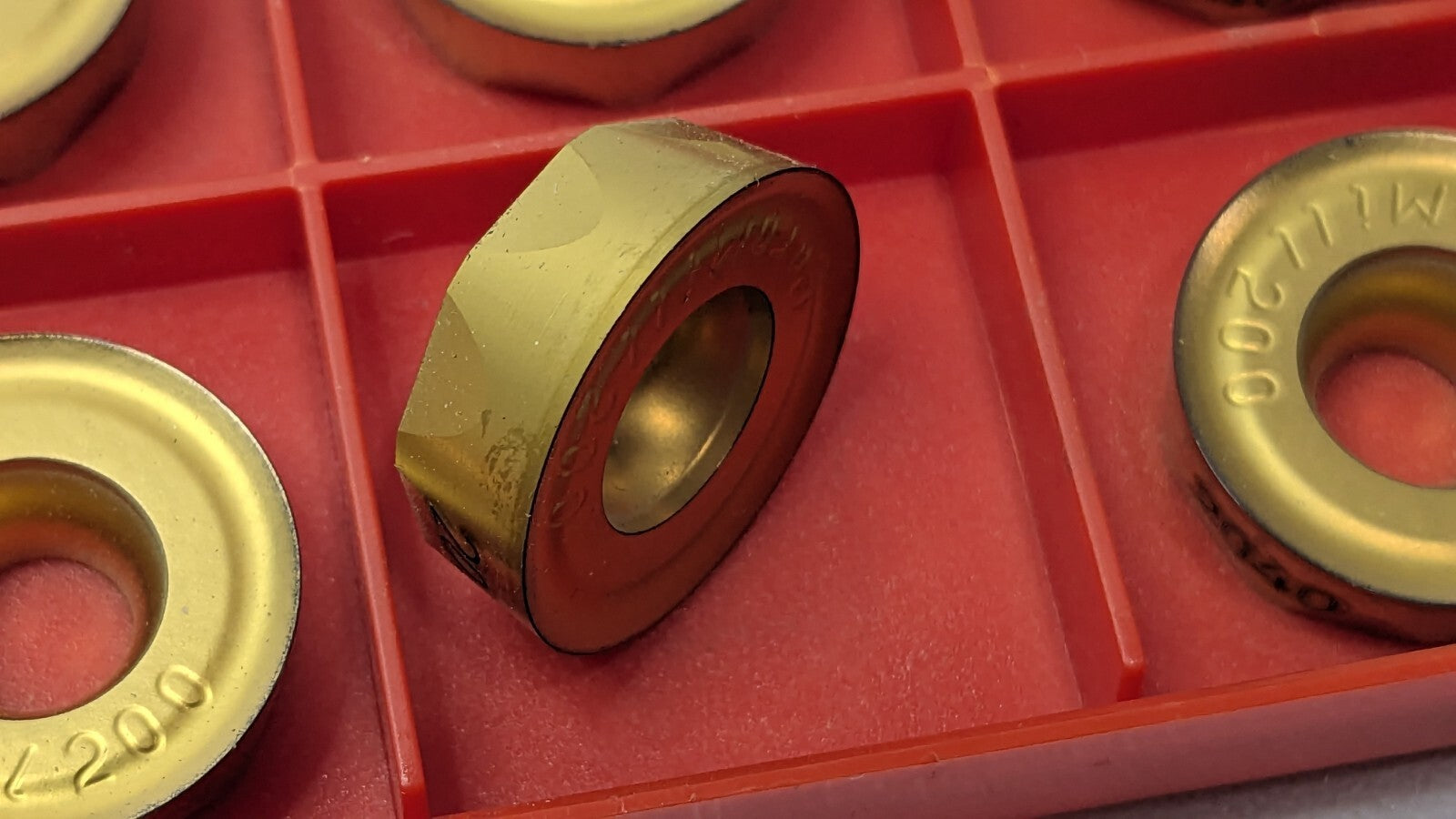

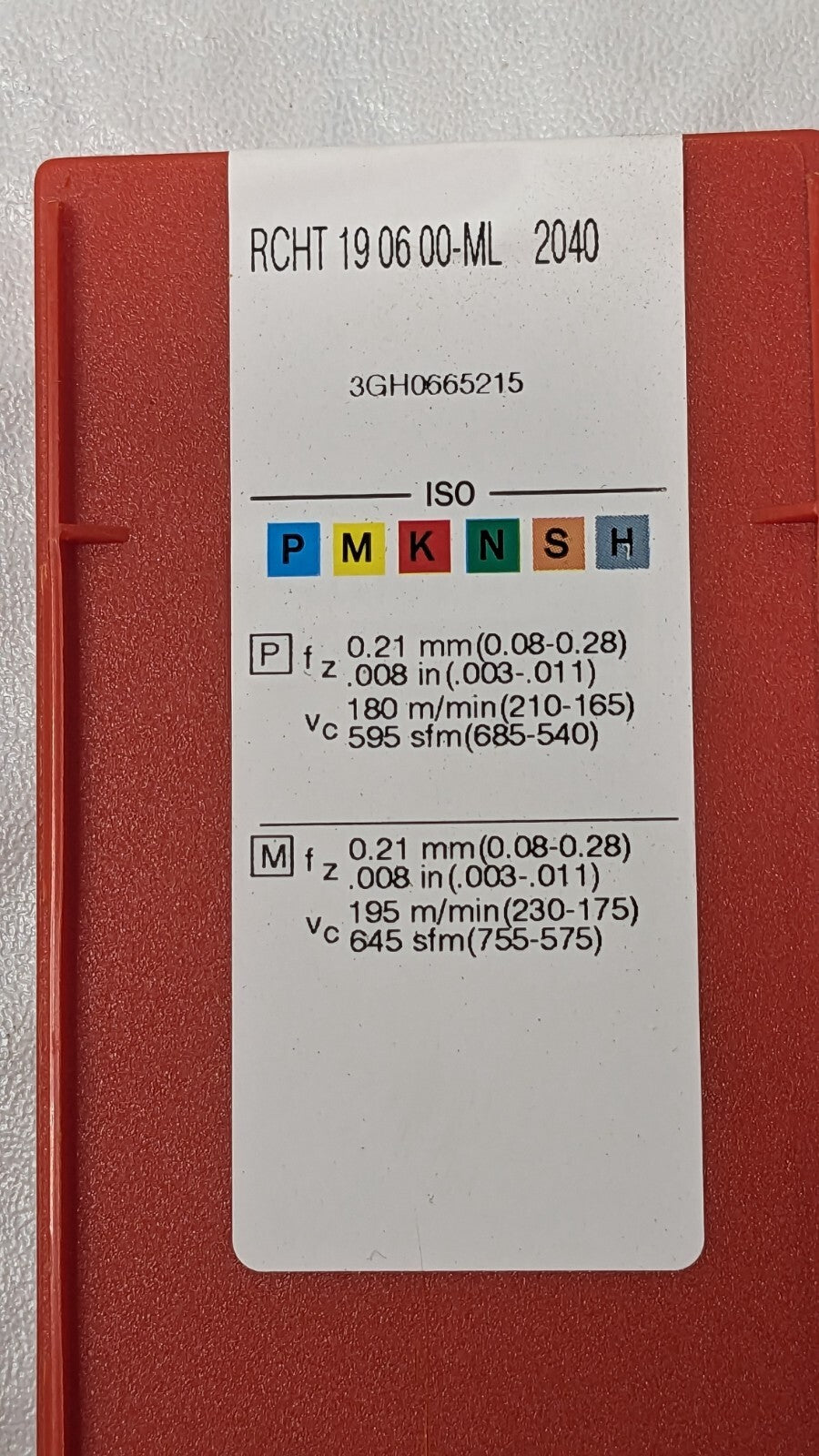

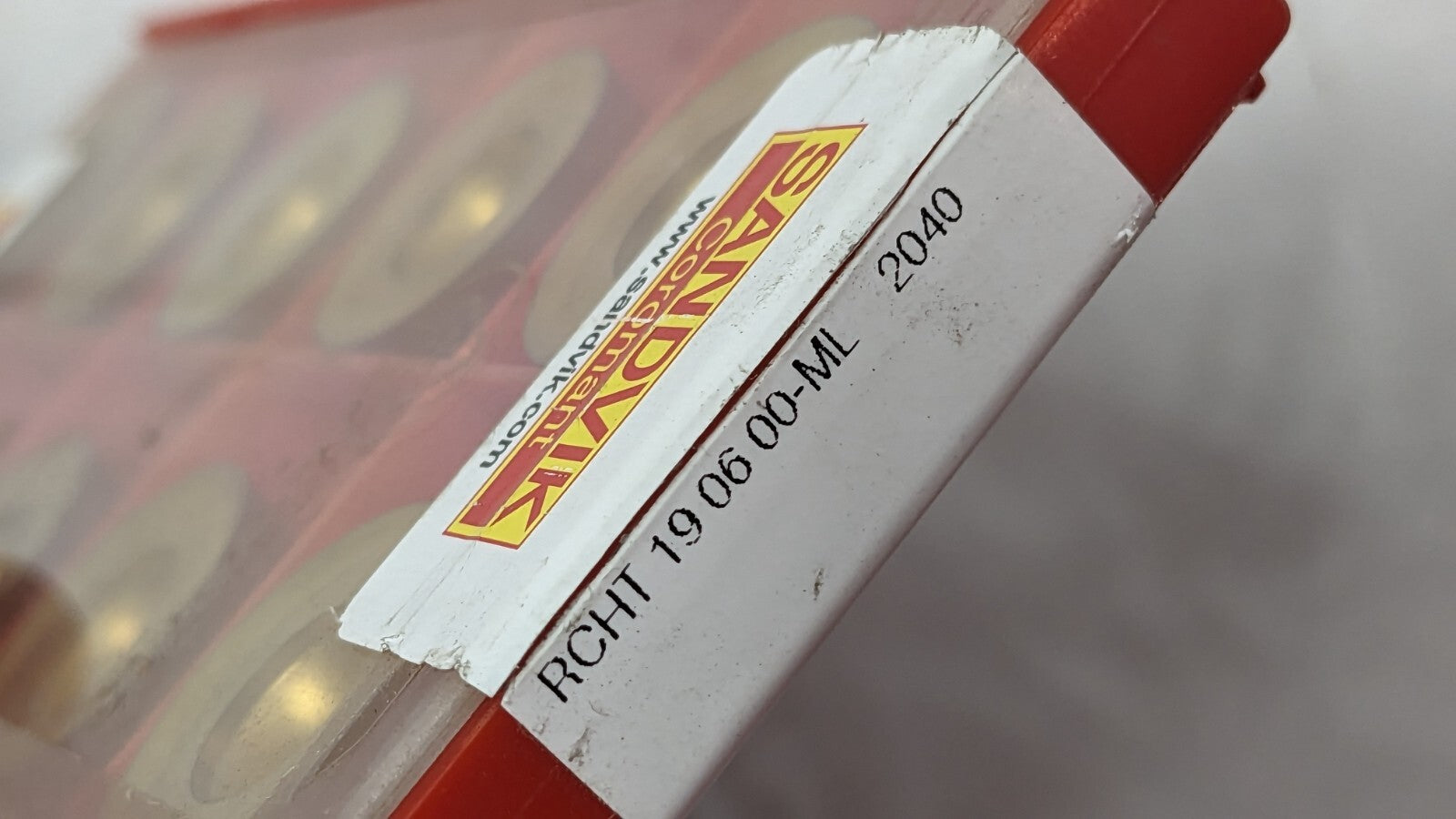

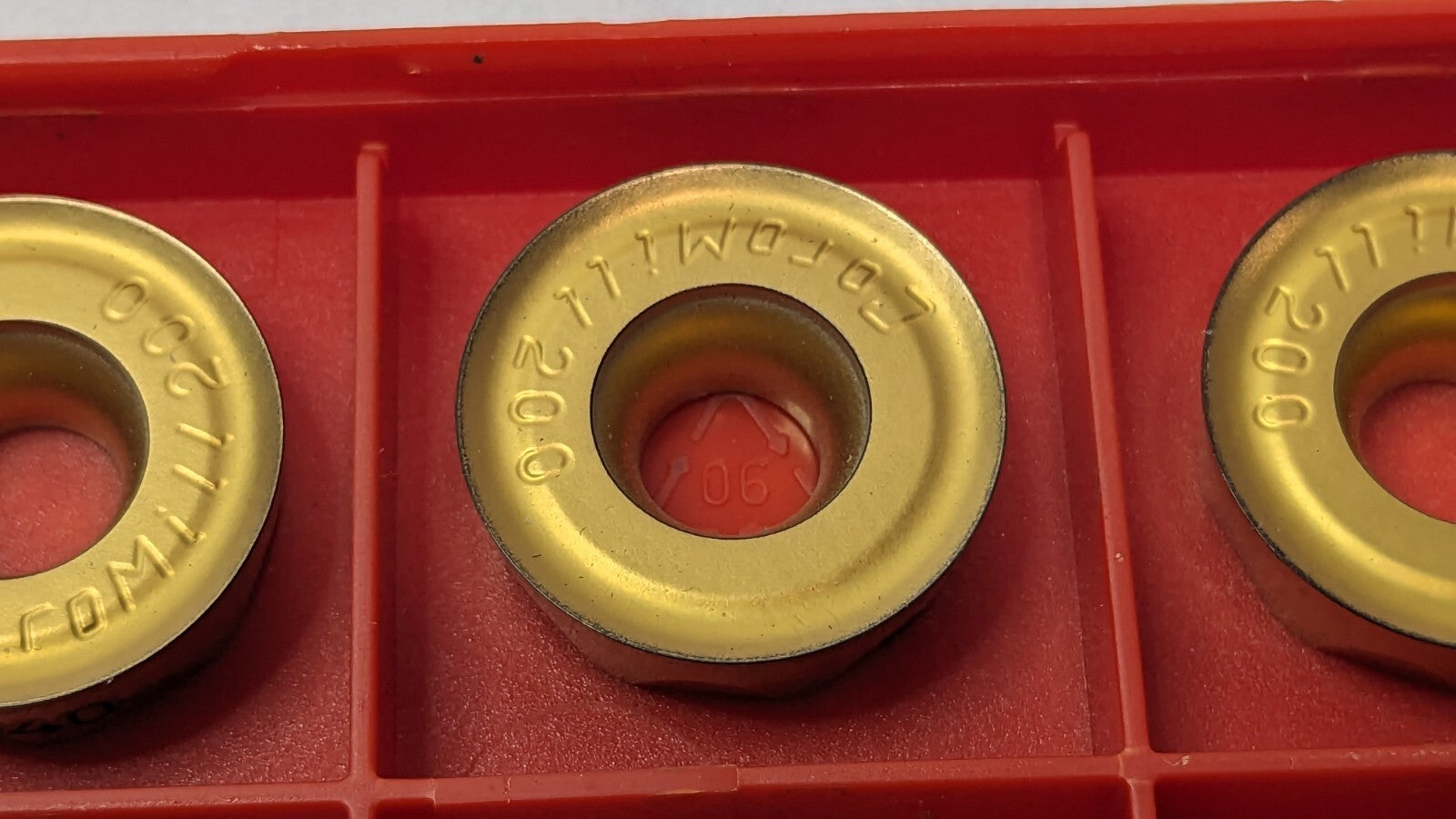

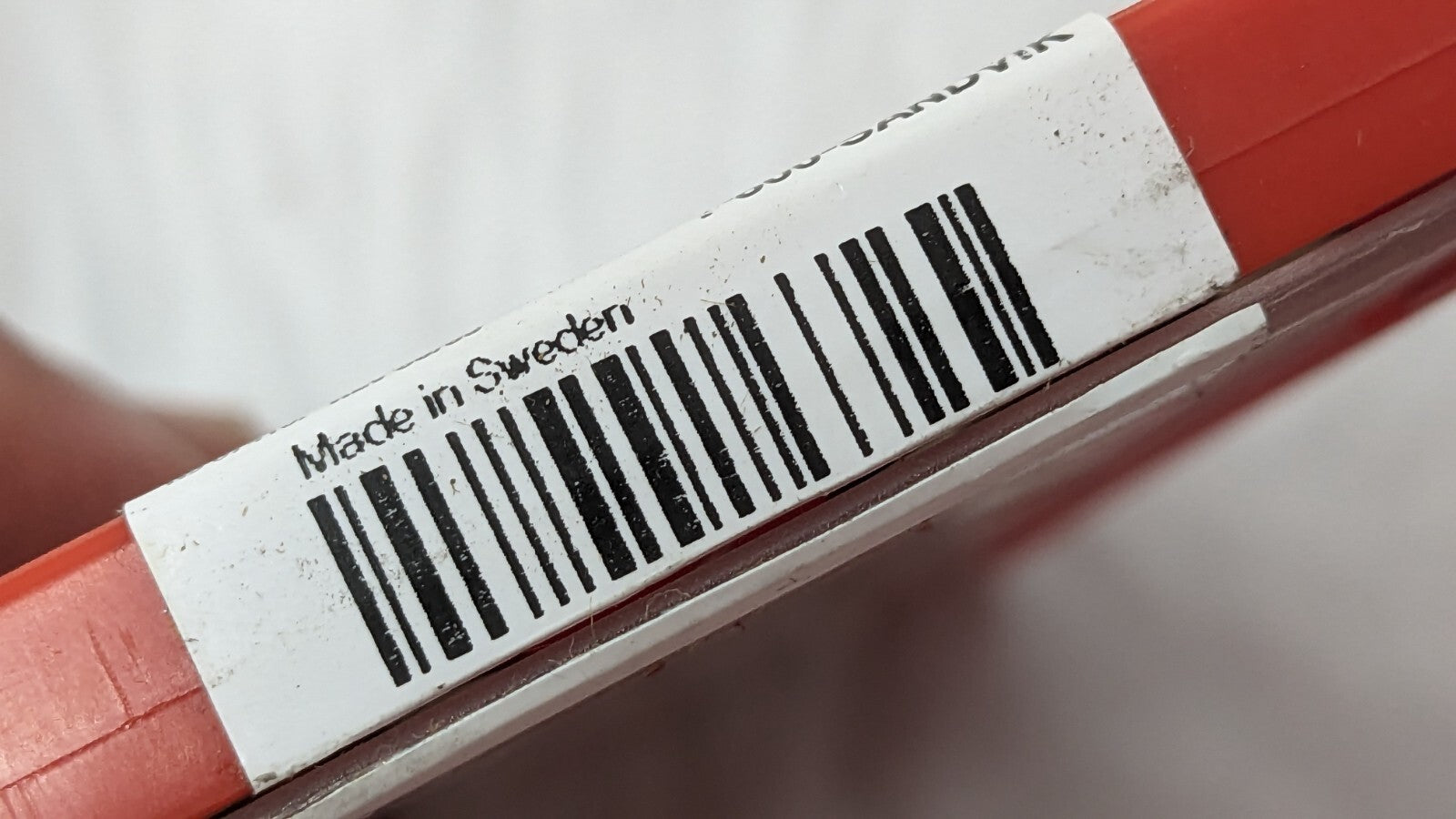

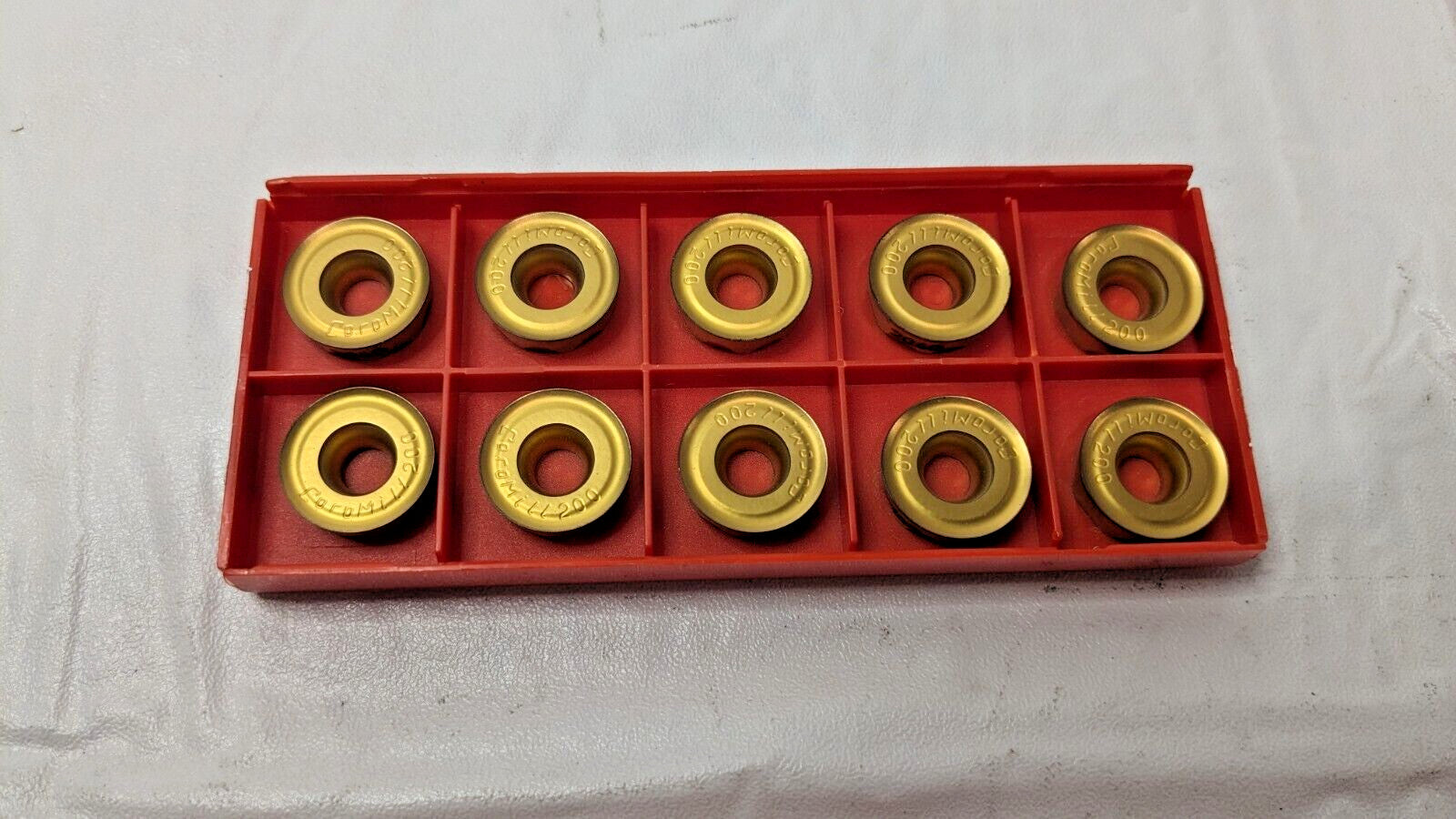

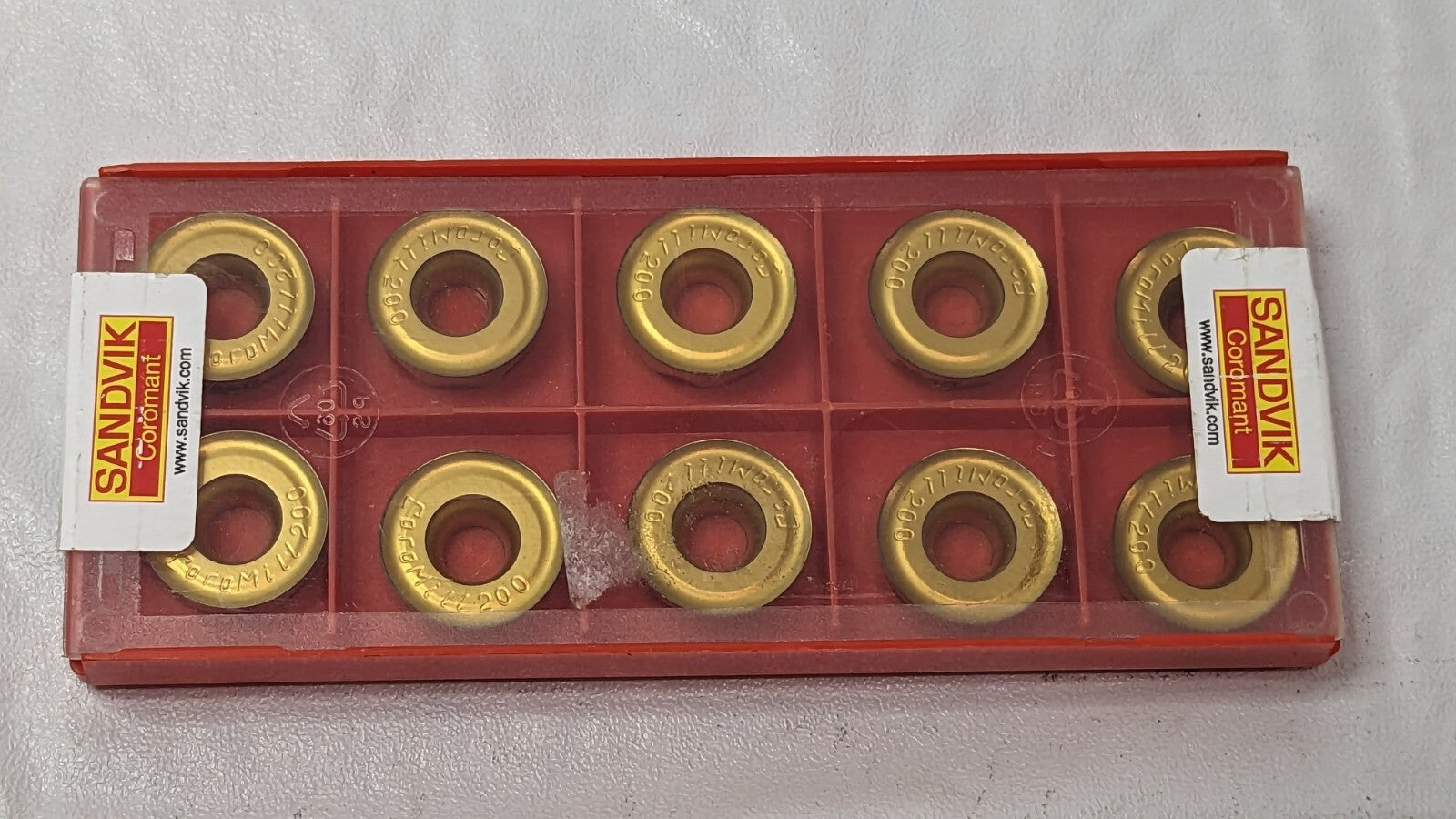

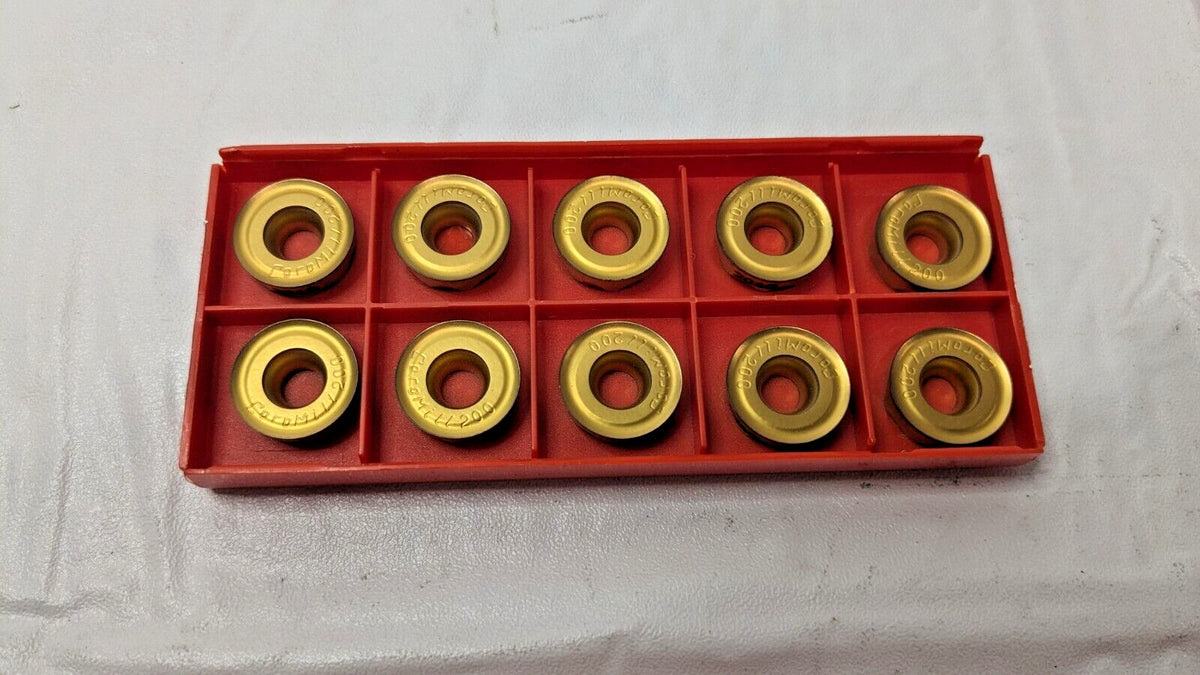

Please review photos, comes as shown.
