Sandvik Coromant
1 pack of 10 Carbide Milling Inserts

MSRP: $385.00

• nsert Style: R390
• Insert Size: 18
• Insert Material: Solid Carbide Insert Shape: Parallelogram
• Manufacturer Grade: 2040
• Corner Radius (Decimal Inch): 0.0472
• Corner Radius (mm): 1.20
• Number Of Cutting Edges: 2
• Thickness (Decimal Inch - 4 Decimals): 0.2492
• Thickness (mm): 6.33
• Coating/Finish: TiN; TiCrN; Al2O3
• Insert Size Code: 180612
• Material Grade: P45; S30; M40
• Inscribed Circle (Decimal Inch): 0.4331
• Inscribed Circle (mm): 11.00
• Thickness Range (Decimal Inch): 0.2350 to 0.2500
• Corner Radius (Inch): 3/64
• Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000
• Length Range (Decimal Inch): 0.6000 to 0.6500
• Insert Hand: Right Hand
• Maximum Depth of Cut (mm): 16.00
• Maximum Depth of Cut (Decimal Inch): 0.6299
• Series: R390 Coating Process: CVD
• Hole Diameter (mm): 0.16
• Hole Diameter (Decimal Inch): 0.1634
• Rake: Positive
• Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code: P; S; M
• Ansi Code: R390-18 06 12M-MM 2040
• Iso Code: R390-18 06 12M-MM 2040
• Standards: ISO; ANSI
• Rake Angle: 5.000
• Cutting Edge Style: Corner Rounded
• Manufacturers Catalog Number: R390-18 06 12M-MM 2040
• Cutter Series Compatibility: R390; M-40
• Chip Breaker: MM
• UNSPSC Code: 23291601
• Material Application: Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method: Screw
• Coating Classification: CVD
• Single or Double Sided Insert: Single
• Included Angle Degree: 90
• Length (mm): 15.40
• Width (Decimal Inch - 4 Decimals): 0.4331
• Width (mm - 2 Decimals): 11.00
• Multi-Use Tool: Yes
• Length (Decimal Inch - 4 Decimals): 0.6063

*Does not come in original packaging.*

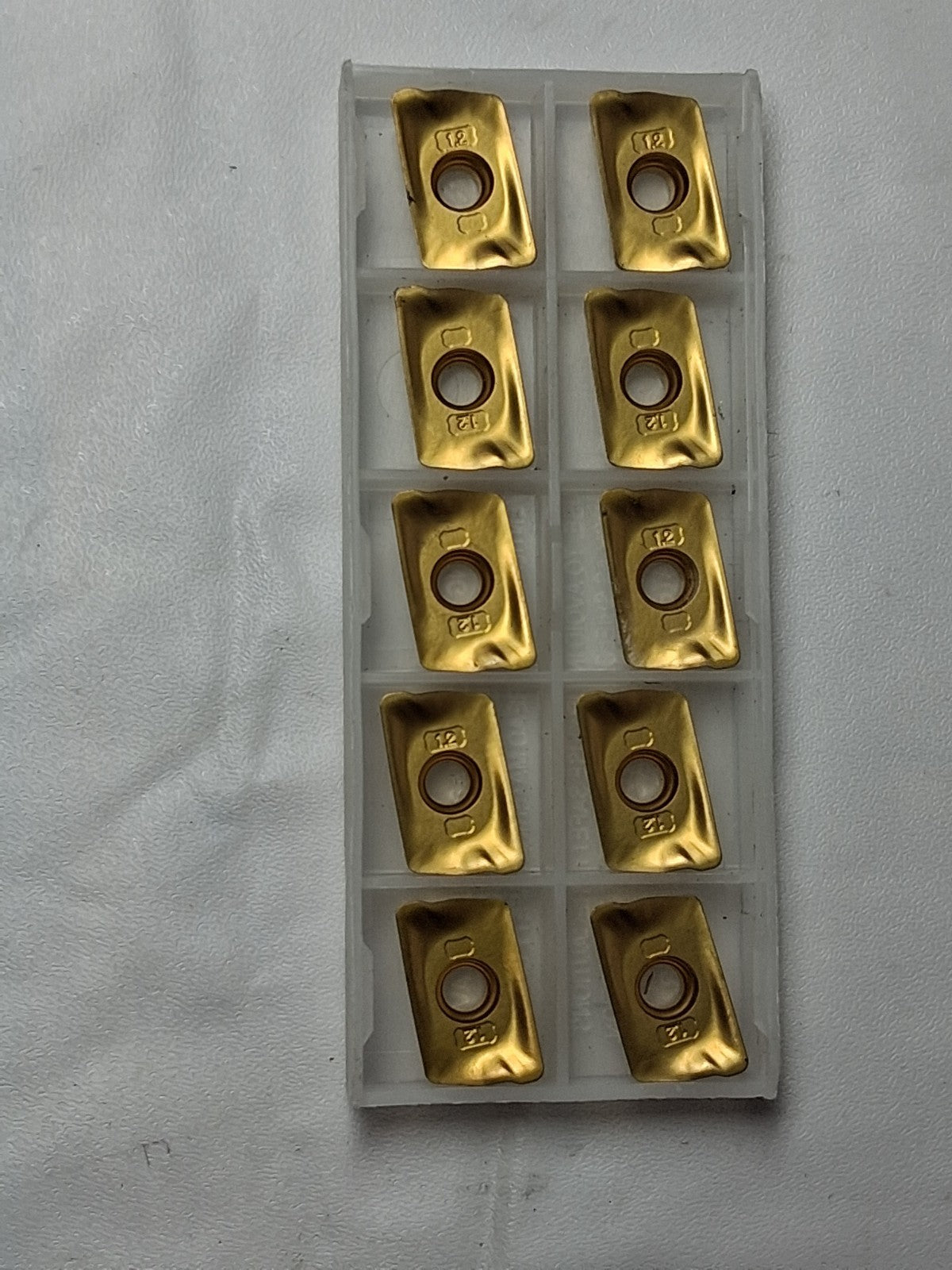

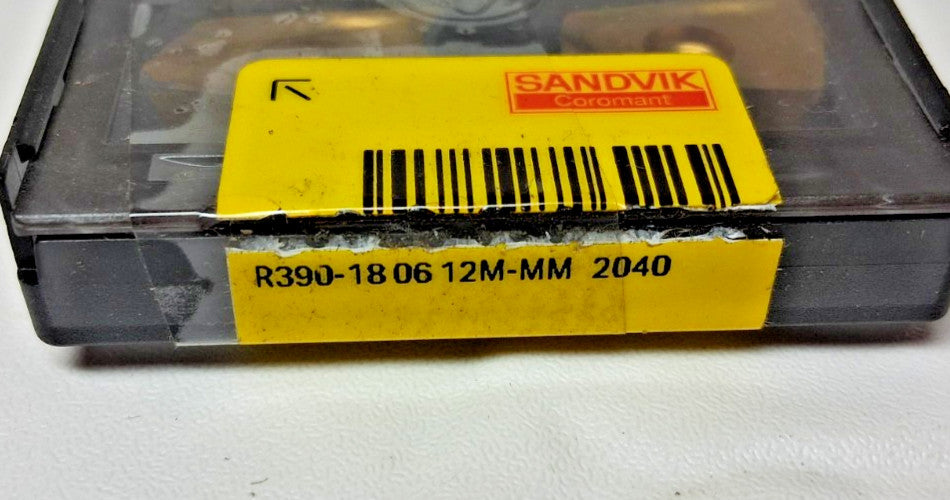

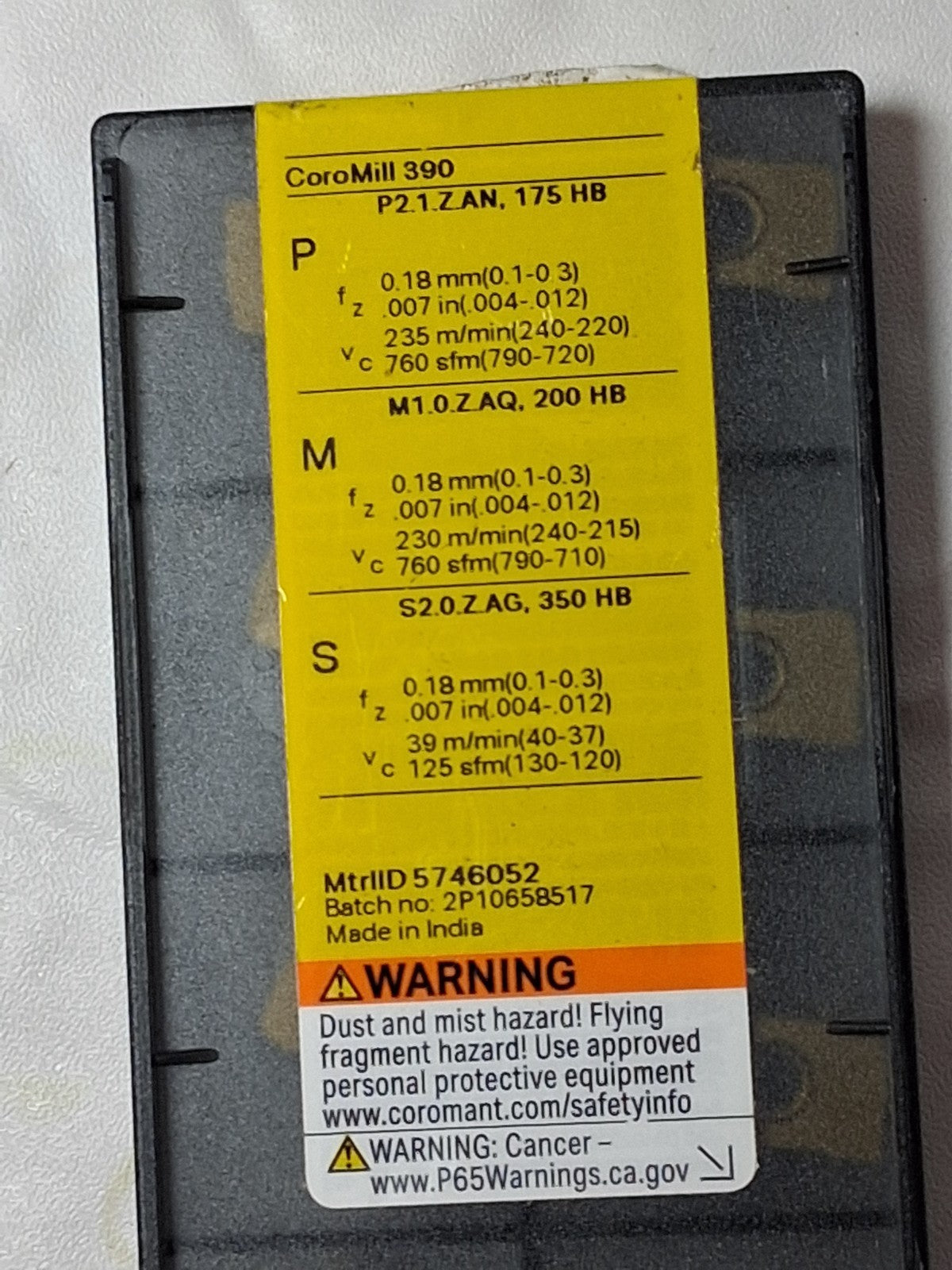

Please review photos, comes as shown.
