Sandvik Coromant Carbide Milling Inserts Parallelogram Size 17 R390 7564390

Sandvik Coromant
10pc Carbide Milling Inserts

MSRP: $470.00

• Insert Style: R390
• Insert Size: 17
• Insert Material: Solid Carbide
• Insert Shape: Parallelogram
• Manufacturer Grade: 4340
• Corner Radius (Decimal Inch): 0.1220
• Corner Radius (mm): 3.10
• Number Of Cutting Edges: 2
• Thickness (Decimal Inch - 4 Decimals): 0.1875
• Coating/Finish: TiCN; TiN; Al2O3
• Insert Size Code: 170431
• Material Grade: K40; M40; P40
• Thickness (Inch): 3/16
• Inscribed Circle (Decimal Inch): 0.3780
• Thickness Range (Decimal Inch): 0.1850 to 0.2000
• Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000
• Length Range (Decimal Inch): 0.6000 to 0.6500
• Insert Hand: Right Hand
• Maximum Depth of Cut (Decimal Inch): 0.6181
• Series: CoroMill 390
• Coating Process: CVD
• Hole Diameter (Decimal Inch): 0.1614
• Rake: Positive
• Primary Workpiece Material: Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code: P; K; M
• Ansi Code: R390-17 04 31E-PM 4340
• Iso Code: R390-17 04 31E-PM 4340
• Standards: ISO; ANSI
• Rake Angle: 22.000
• Cutting Edge Style: Corner Rounded
• Manufacturers Catalog Number: R390-17 04 31E-PM 4340
• Chip Breaker: PM
• UNSPSC Code: 23291601
• Material Application: Stainless Steel; Cast Iron; Steel
• Insert Holding Method: Screw
• Coating Classification: CVD
• Single or Double Sided Insert: Single
• Included Angle Degree: 90
• Width (Decimal Inch - 4 Decimals): 0.3780
• Width (mm - 2 Decimals): 9.60
• Multi-Use Tool: Yes
• Length (Decimal Inch - 4 Decimals): 0.6181

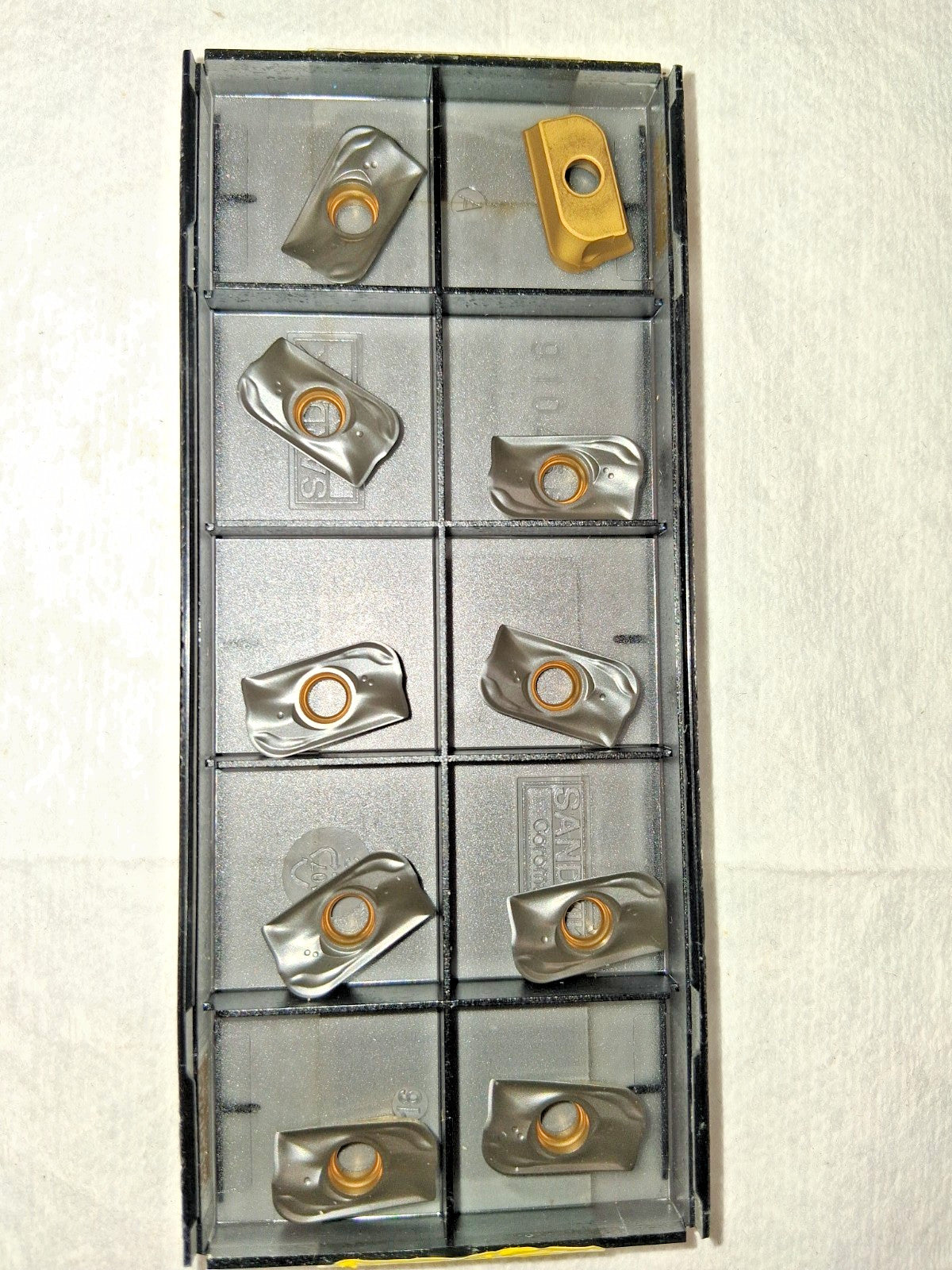

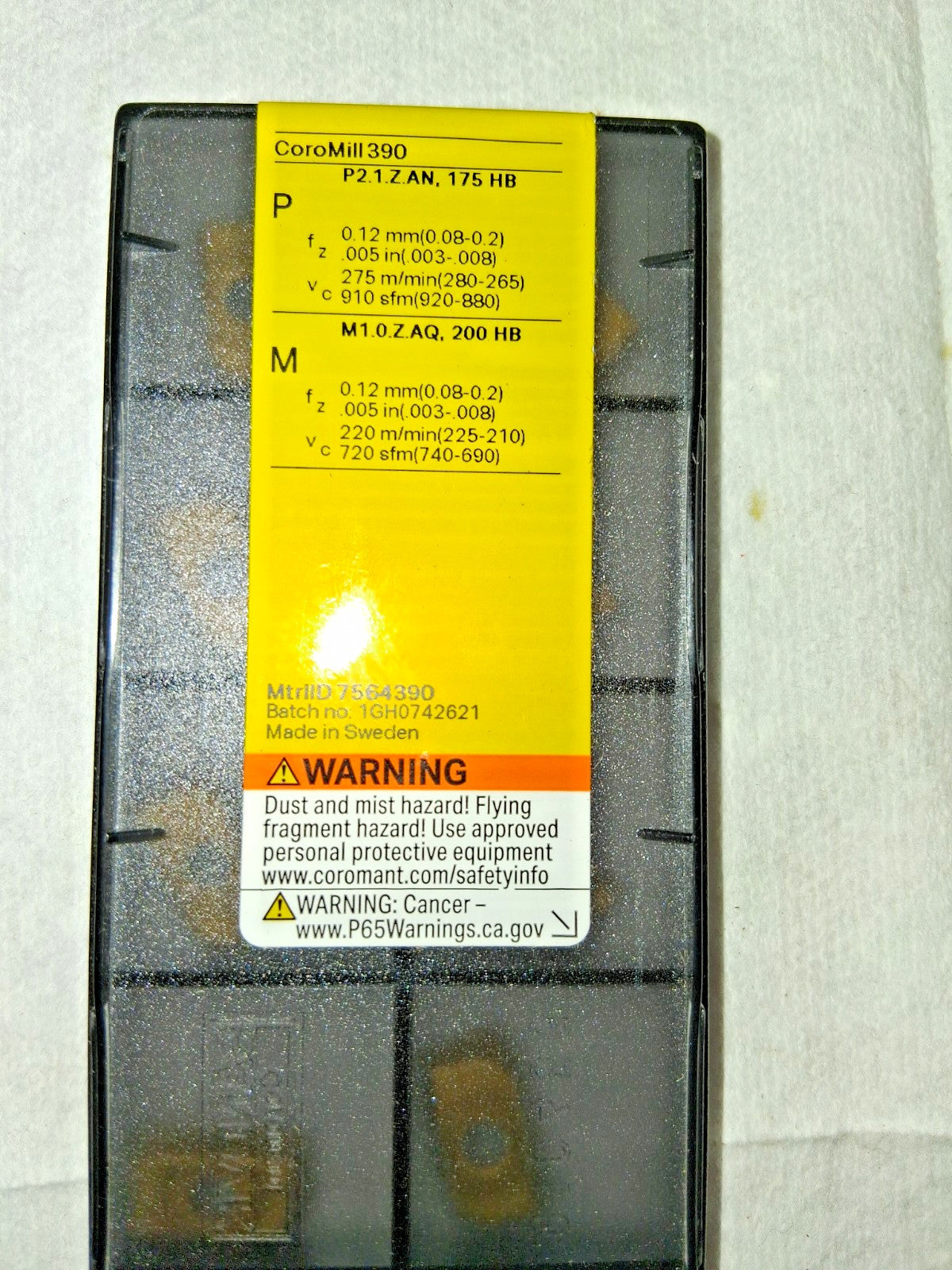

Please review photos, comes as shown.
