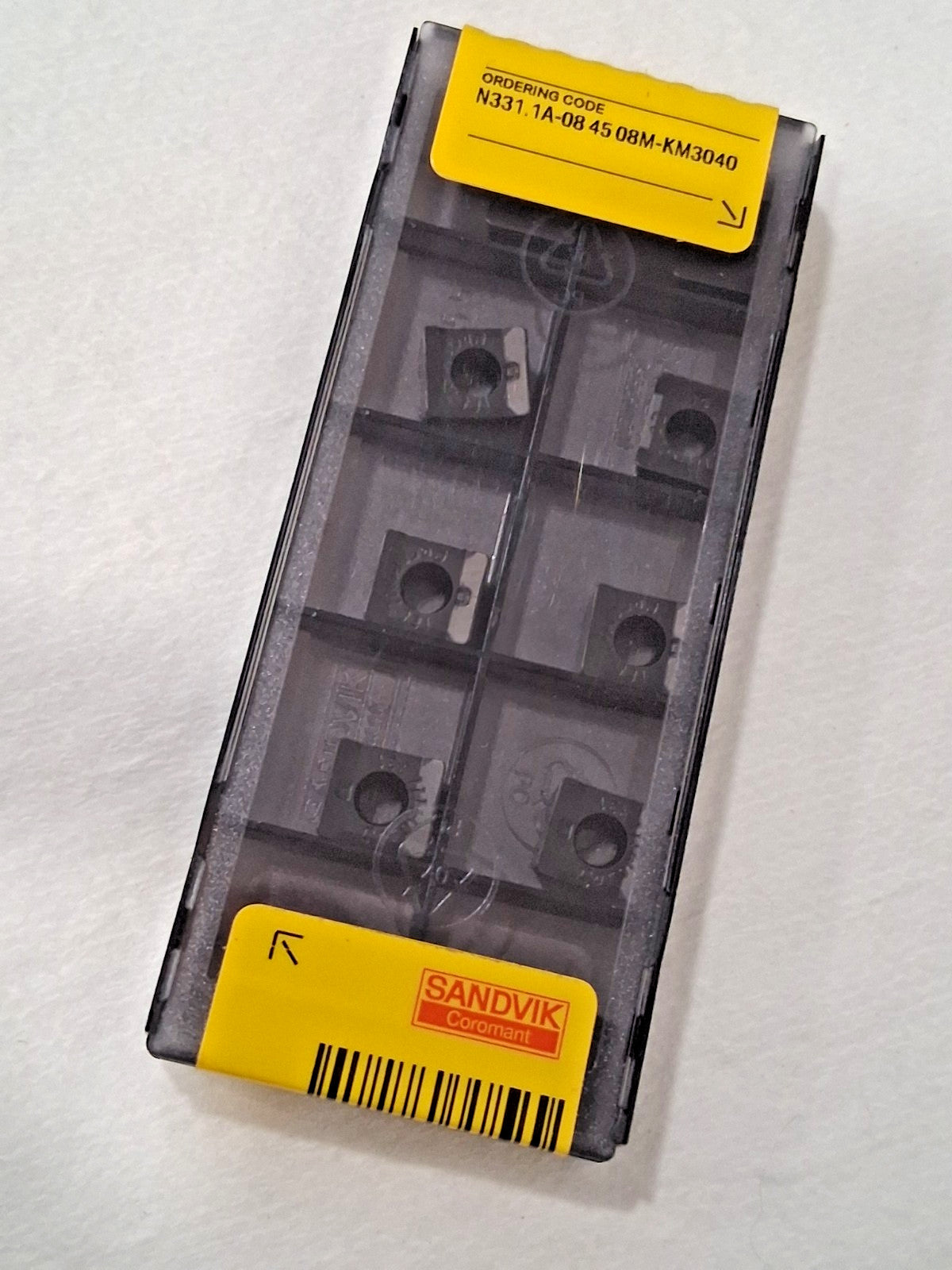

Sandvik Coromant Carbide Milling Inserts N331.1A Qty10 5737969

Sandvik Coromant
10pc Carbide Milling Inserts

MSRP: $230.00

• Insert Style: N331.1A
• Insert Size: 08
• Insert Material: Solid Carbide
• Insert Shape: Rectangle
• Manufacturer Grade: 3040
• Corner Radius (Decimal Inch): 0.0315
• Corner Radius (mm): 0.80
• Number Of Cutting Edges: 4
• Thickness (Decimal Inch - 4 Decimals): 0.1752
• Thickness (mm): 4.45
• Coating/Finish: TiCN; Al2O3
• Relief Angle: 0.000
• Insert Size Code: 084508
• Material Grade: K30; H25; P20
• Inscribed Circle (Decimal Inch): 0.3350
• Thickness Range (Decimal Inch): 0.1750 to 0.1850
• Corner Radius (Inch): 1/32
• Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500
• Length Range (Decimal Inch): 0.0000 to 0.3200
• Insert Hand: Neutral
• Maximum Depth of Cut (mm): 7.70
• Maximum Depth of Cut
• (Decimal Inch): 0.3031
• Series: N331.1A
• Coating Process: CVD
• Hole Diameter (mm): 0.14
• Hole Diameter (Decimal Inch): 0.1417
• Rake: Positive
• Primary Workpiece Material: Hard Material; Cast Iron; Steel
• Primary Workpiece Material Code: P; H; K
• Ansi Code: N331.1A-08 45 08M-KM3040
• Iso Code: N331.1A-08 45 08M-KM3040
• Standards: ISO; ANSI
• Cutting Edge Style: Corner Rounded
• Manufacturers Catalog Number: N331.1A-08 45 08M-KM3040
• Cutter Series Compatibility: L331.52C
• Chip Breaker: KM
• UNSPSC Code: 23291601
• Material Application: Hard Material; Cast Iron; Steel
• Insert Holding Method: Screw
• Coating Classification: CVD
• Single or Double Sided Insert: Single
• Included Angle Degree: 90
• Length (mm): 7.70
• Width (Decimal Inch - 4 Decimals): 0.3740
• Width (mm - 2 Decimals): 9.50
• Multi-Use Tool: Yes
• Length (Decimal Inch - 4 Decimals): 0.3031

Please review photos, comes as shown.
