Sandvik Coromant Carbide Milling Insert R390 Qty10 5888548

Sandvik Coromant
10pc Carbide Milling Insert

MSRP: $470.00

• Insert Style: R390
• Insert Size: 17
• Insert Material: Solid Carbide
• Insert Shape: Parallelogram
• Manufacturer Grade: 1040
• Corner Radius (Decimal Inch): 0.0630
• Corner Radius (mm): 1.60
• Number Of Cutting Edges: 2
• Thickness (Decimal Inch - 4 Decimals): 0.1875
• Thickness (mm): 4.76
• Coating/Finish: TiAlN
• Insert Size Code: 170416
• Material Grade: M30
• Thickness (Inch): 3/16
• Inscribed Circle (Decimal Inch): 0.3780
• Inscribed Circle (mm): 9.60
• Thickness Range (Decimal Inch): 0.1850 to 0.2000
• Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000
• Length Range (Decimal Inch): 0.6000 to 0.6500
• Insert Hand: Right Hand
• Maximum Depth of Cut (mm): 15.70
• Maximum Depth of Cut (Decimal Inch): 0.6181
• Series: CoroMill 390
• Coating Process: PVD
• Hole Diameter (mm): 0.16
• Hole Diameter (Decimal Inch): 0.1614
• Rake: Positive
• Primary Workpiece Material: Stainless Steel; Steel
• Primary Workpiece Material Code: P; M

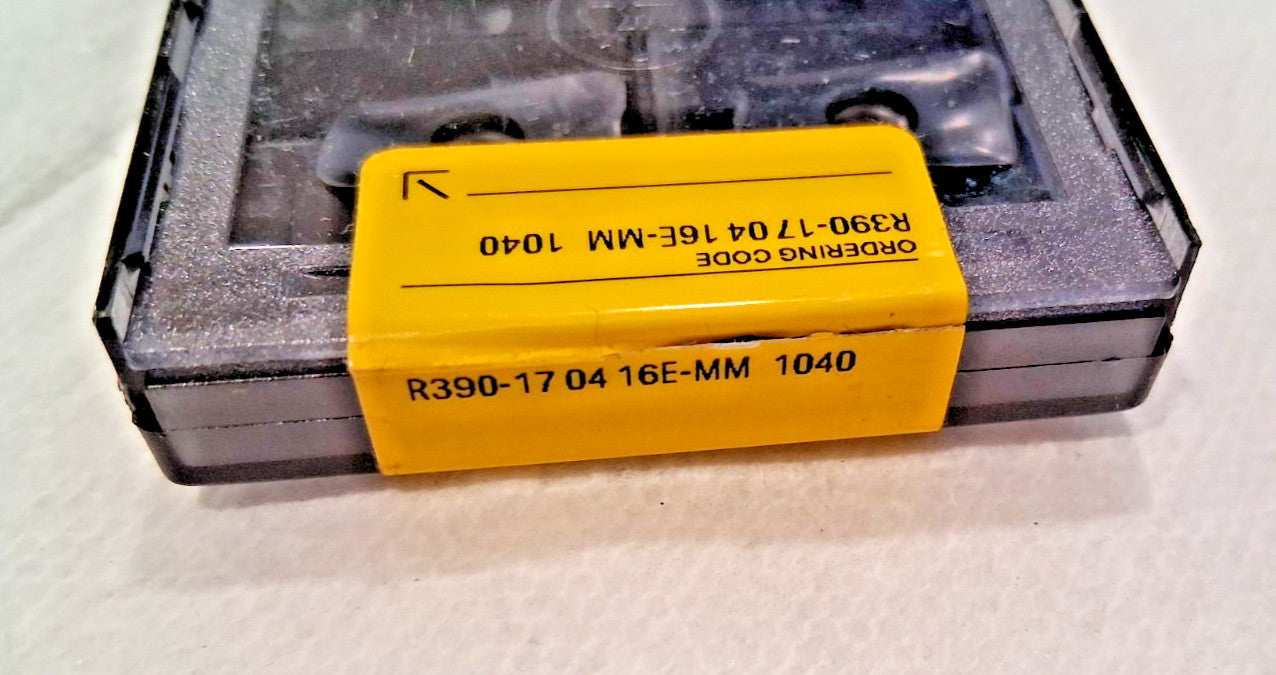

• Ansi Code: R390-17 04 16E-MM 1040
• Iso Code: R390-17 04 16E-MM 1040
• Standards: ISO; ANSI
• Rake Angle: 22.000
• Cutting Edge Style: Corner Rounded
• Manufacturers Catalog Number: R390-17 04 16E-MM 1040
• Chip Breaker: MM
• UNSPSC Code: 23291601
• Material Application: Stainless Steel; Steel
• Insert Holding Method: Screw
• Coating Classification: PVD
• Single or Double Sided Insert: Single
• Included Angle Degree: 90
• Length (mm): 15.70
• Width (Decimal Inch - 4 Decimals): 0.3780
• Width (mm - 2 Decimals): 9.60
• Multi-Use Tool: Yes
• Length (Decimal Inch - 4 Decimals): 0.6181

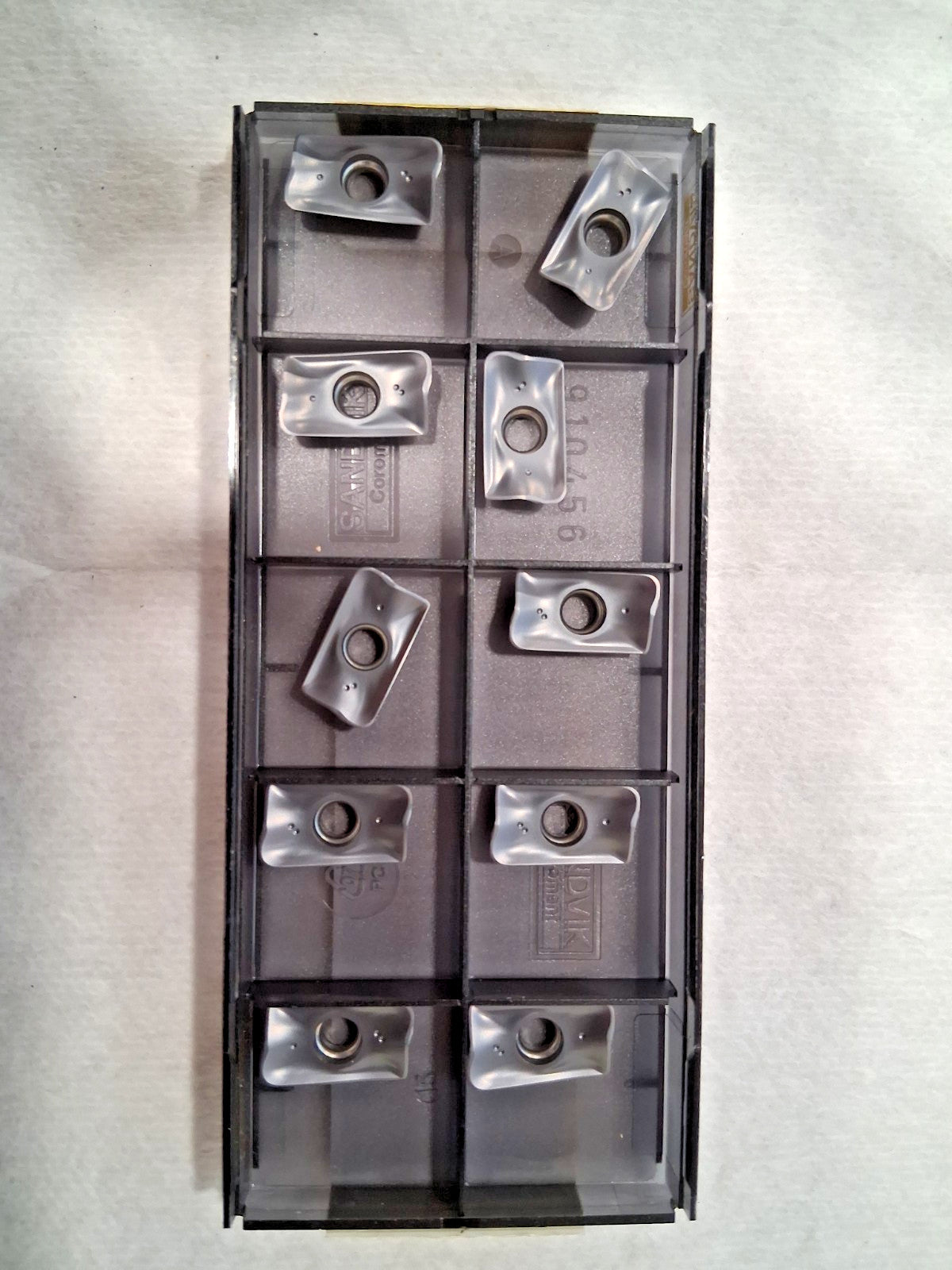

Please review photos, comes as shown.
