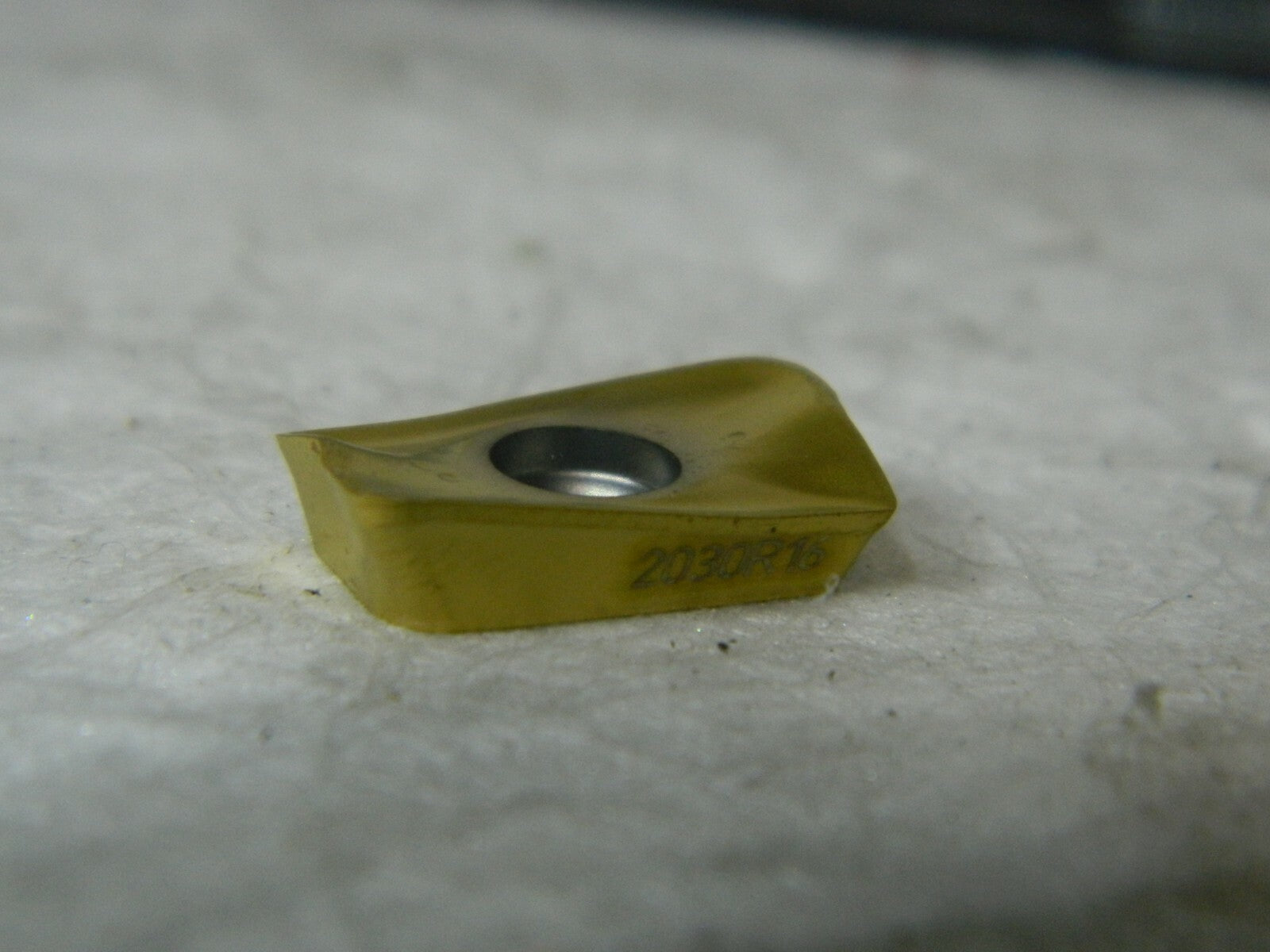

Sandvik Coromant Carbide Milling Insert R390-170416E-MM 2030 Qty 4 5746138

Sandvik Coromant

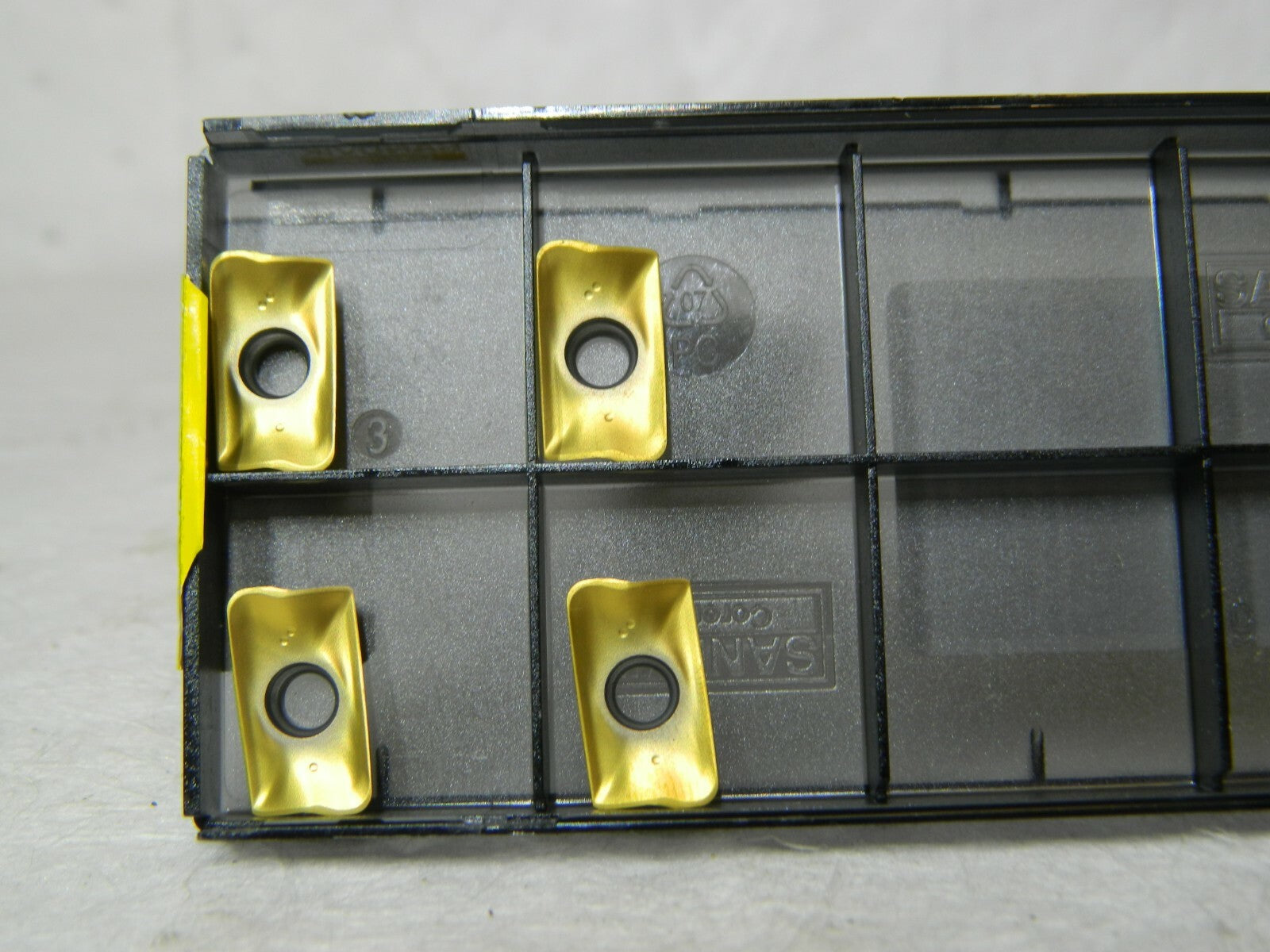

1 Lot of 4 Inserts

• Insert Style R390
• Insert Size 170416
• Material Carbide
• Manufacturer's Grade 2030
• Coating TiAlN/TiN
• Width (mm) 9.60
• Width (Decimal Inch) 0.3780
• Length (mm) 15.70
• Length (Decimal Inch) 0.6181
• Inscribed Circle (mm) 9.60
• Inscribed Circle (Decimal Inch) 0.3780
• Thickness (Inch) 3/16
• Thickness (Decimal Inch) 0.1875
• Corner Radius (Decimal Inch) 0.0630
• Corner Radius (mm) 1.60
• Hole Diameter (mm) 4.10
• Hole Diameter (Decimal Inch) 0.1614
• Coating Process PVD
• Shape Rectangle
• Insert Hand Right Hand
• Chipbreaker MM
• Maximum Depth of Cut (mm) 15.70
• Maximum Depth of Cut (Decimal Inch) 0.6181

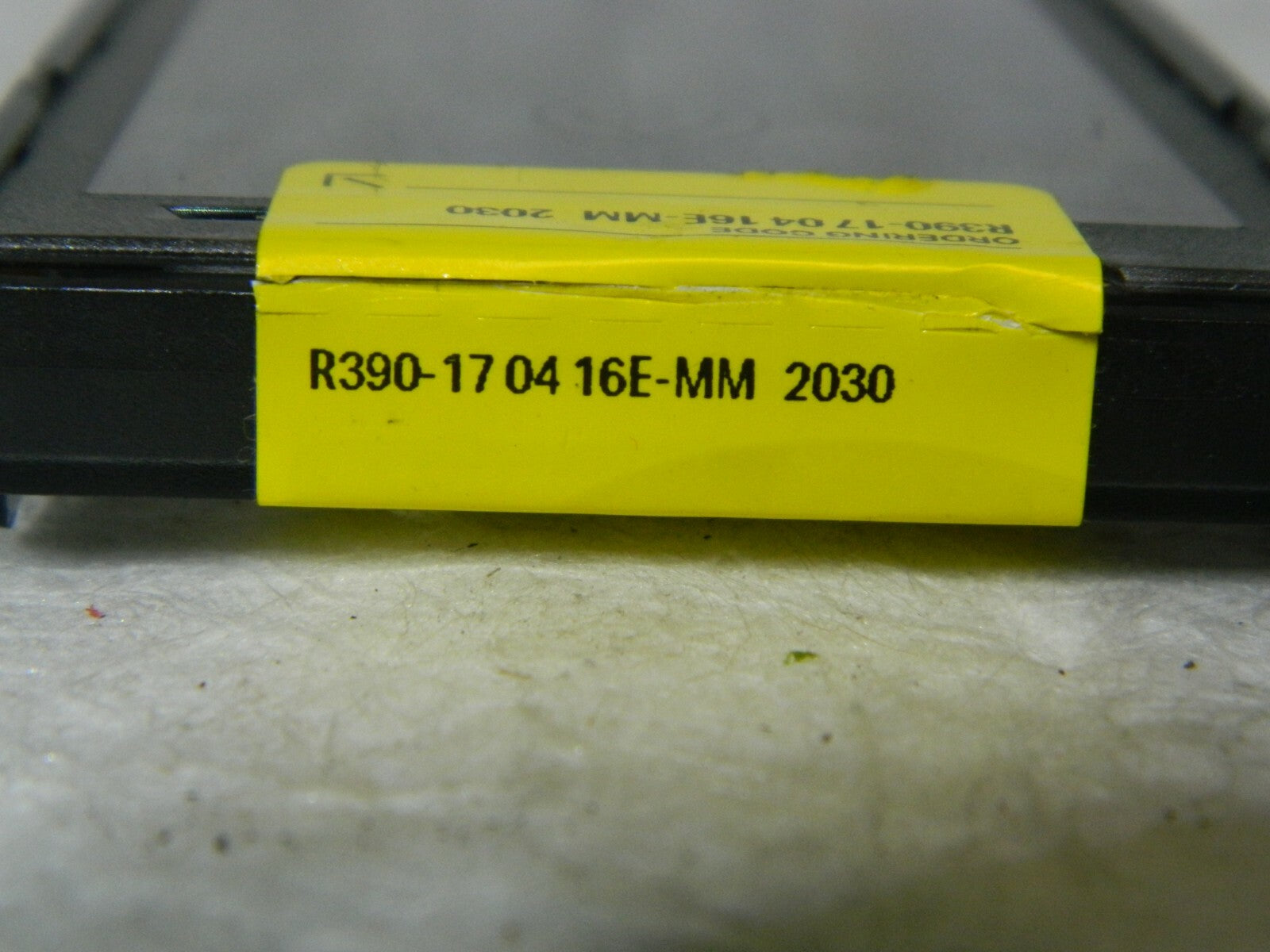

• Manufacturers Catalog Number R390-17 04 16E-MM 2030

Please review photos, comes as shown.
