Drill Bit Size / Cutting Diameter (DC) 4.7 mm
Flute Count (NOF) 2xD
Coating TiAlN
Length Group 8xD
Usable Length (LU) 38.3 mm
Shank Type Round
Applicable Material Non-Ferrous Metals|Steel|Hi-Temp Alloys|Hard Metals|Cast Iron|Stainless Steel
Shape Solid Carbide
Connection Diameter Machine Side (DCONMS) 6 mm
Cutting Edge Material Carbide
Length Chip Flute (LCF) 48 mm
Tool Type Solid Carbide
Coolant Supply Property (CSP)
Coolant Thru Grade GC34
Point Angle (SIG) 140 Degrees
Measurement Type Metric
Overall Length (OAL) 90 mm
Decimal Equivalent 0.185″
Flute Helix Angle (FHA) CW|33.3 Degrees

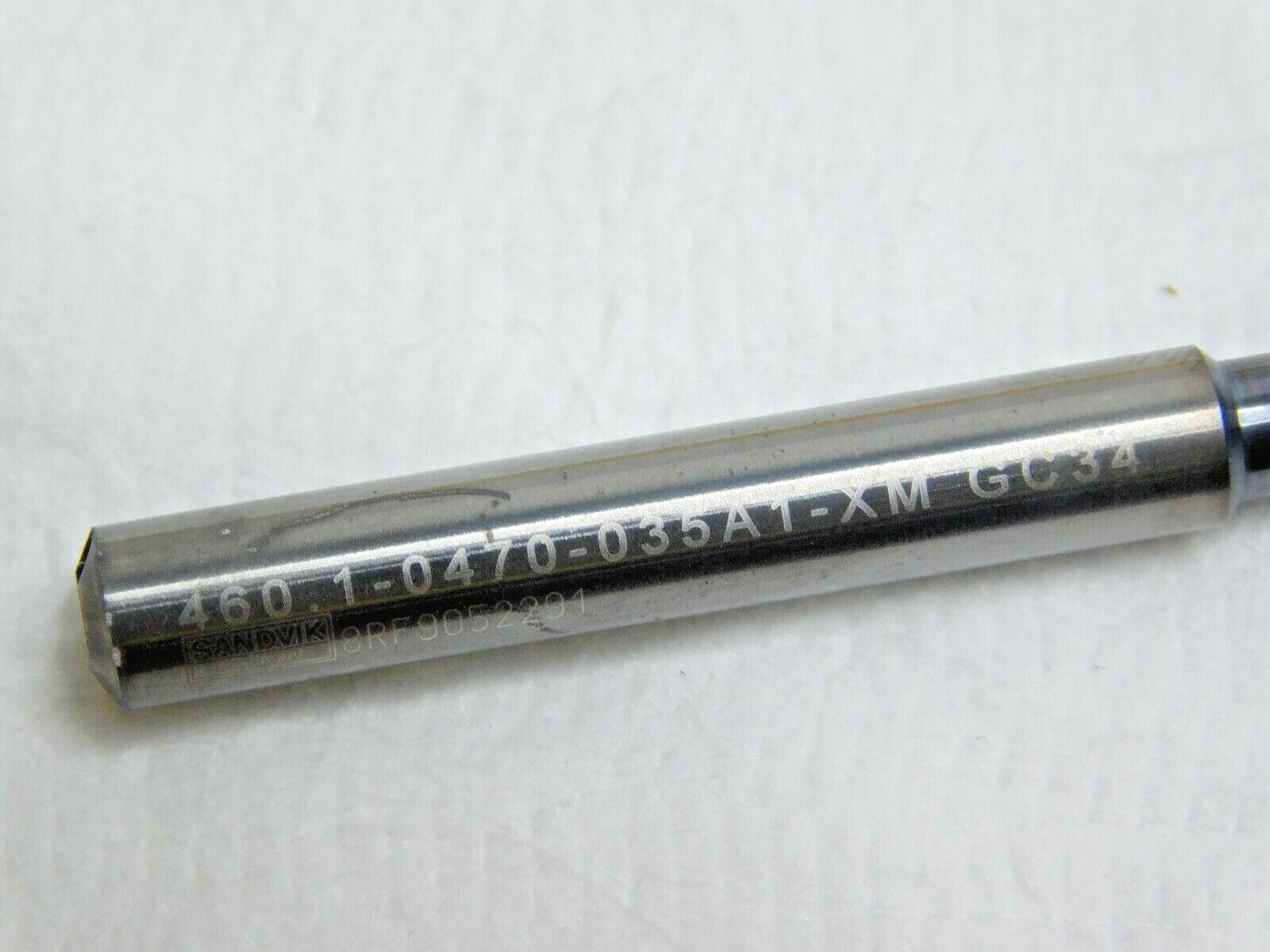

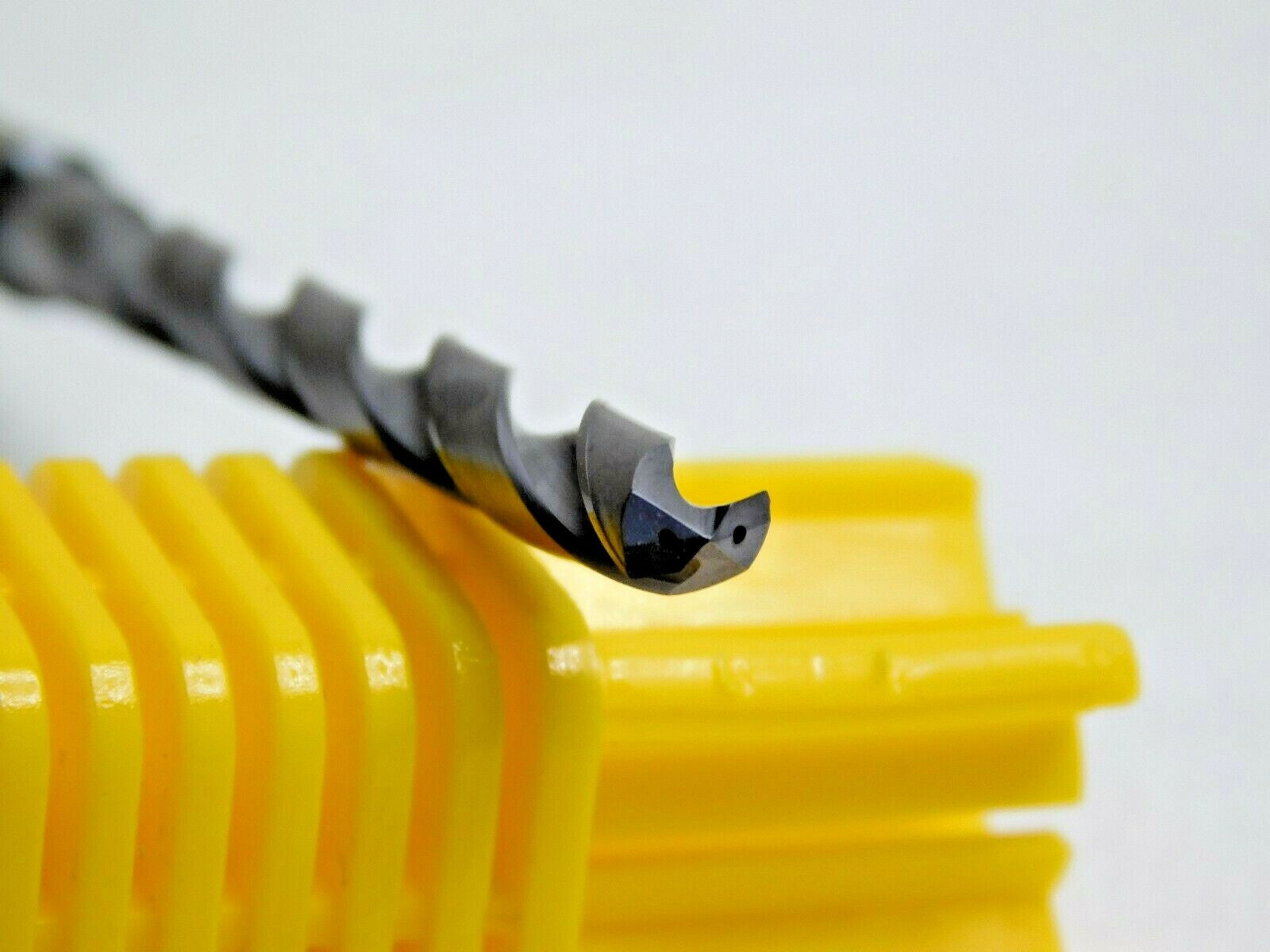

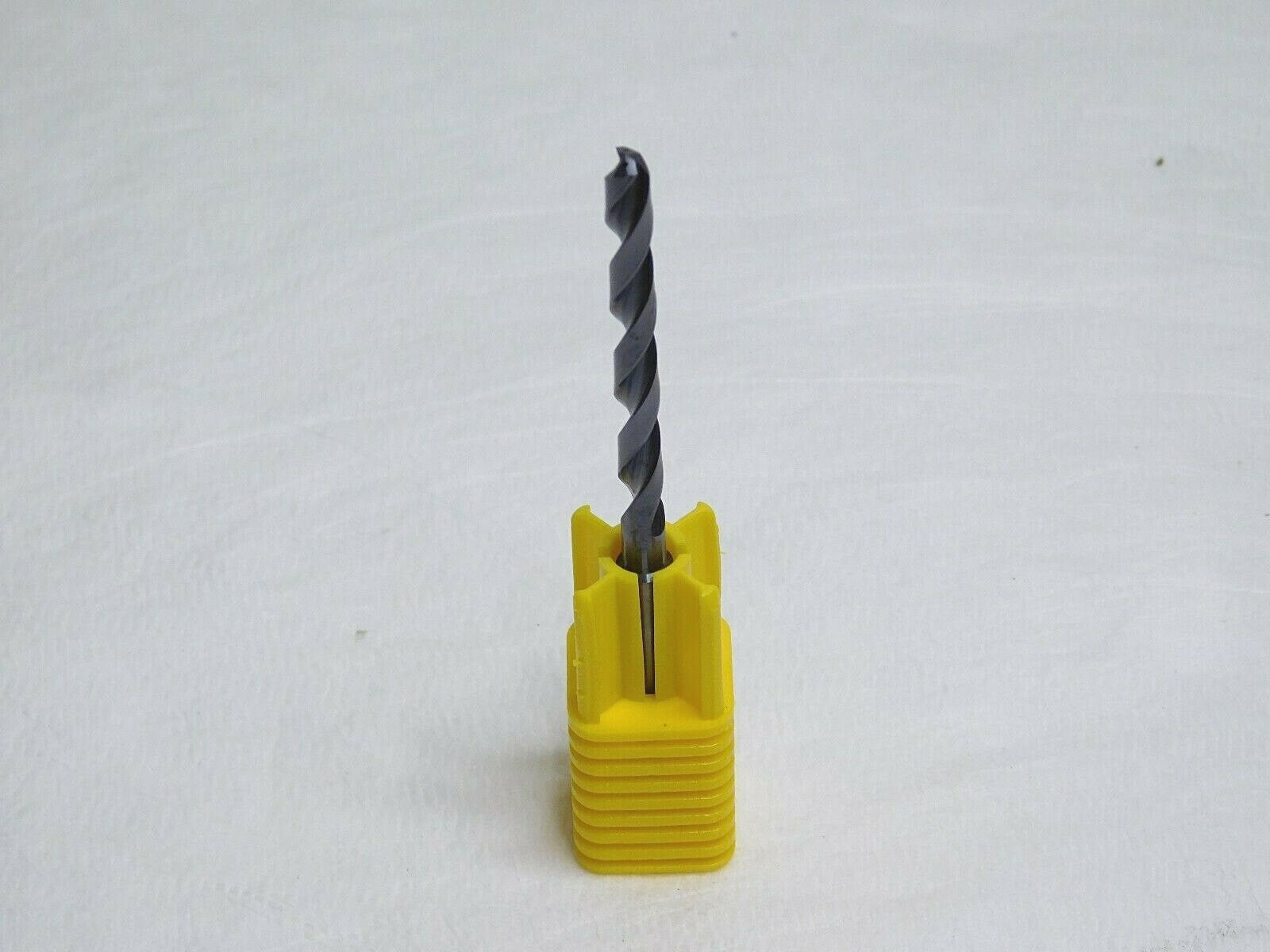

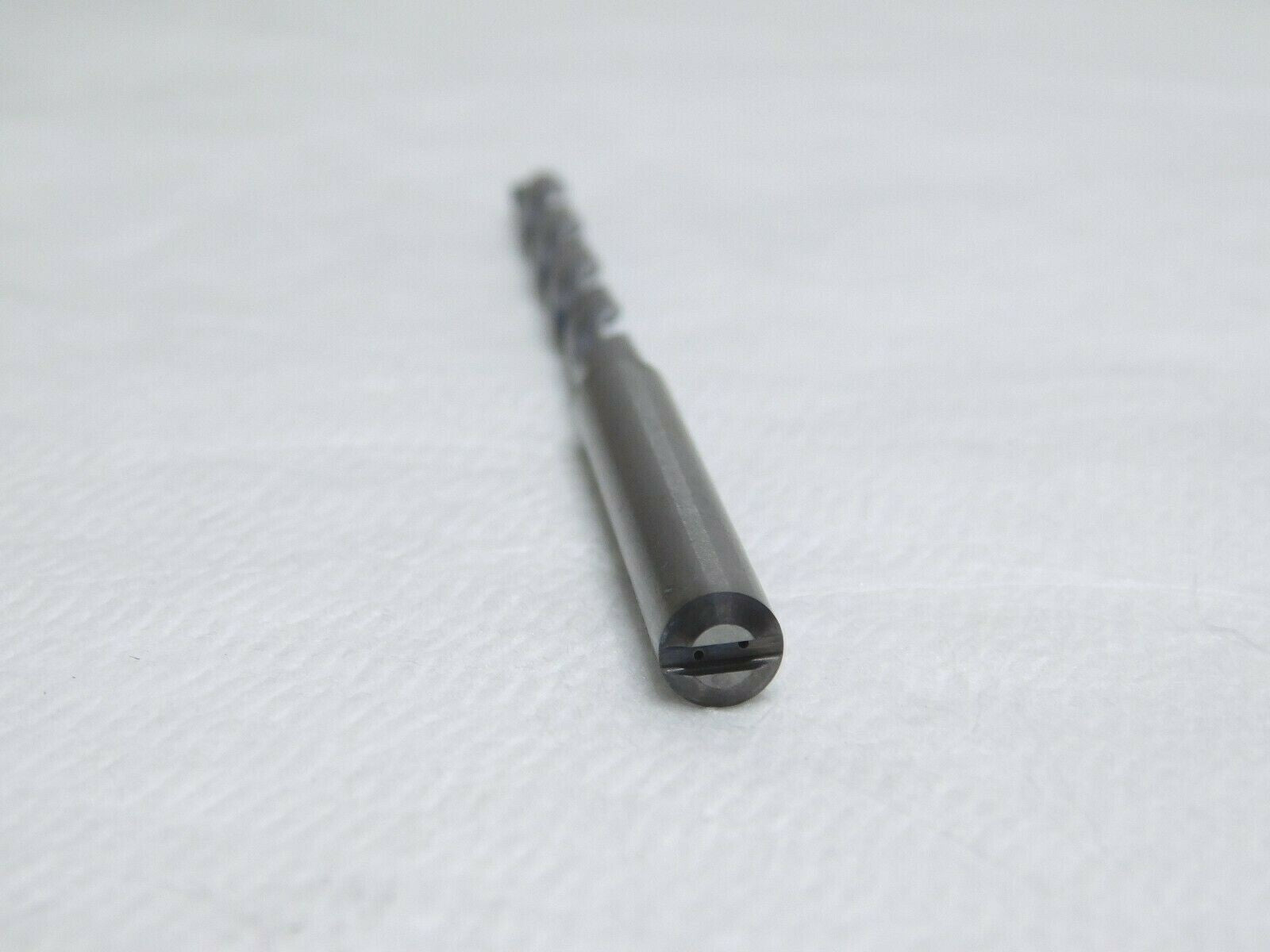

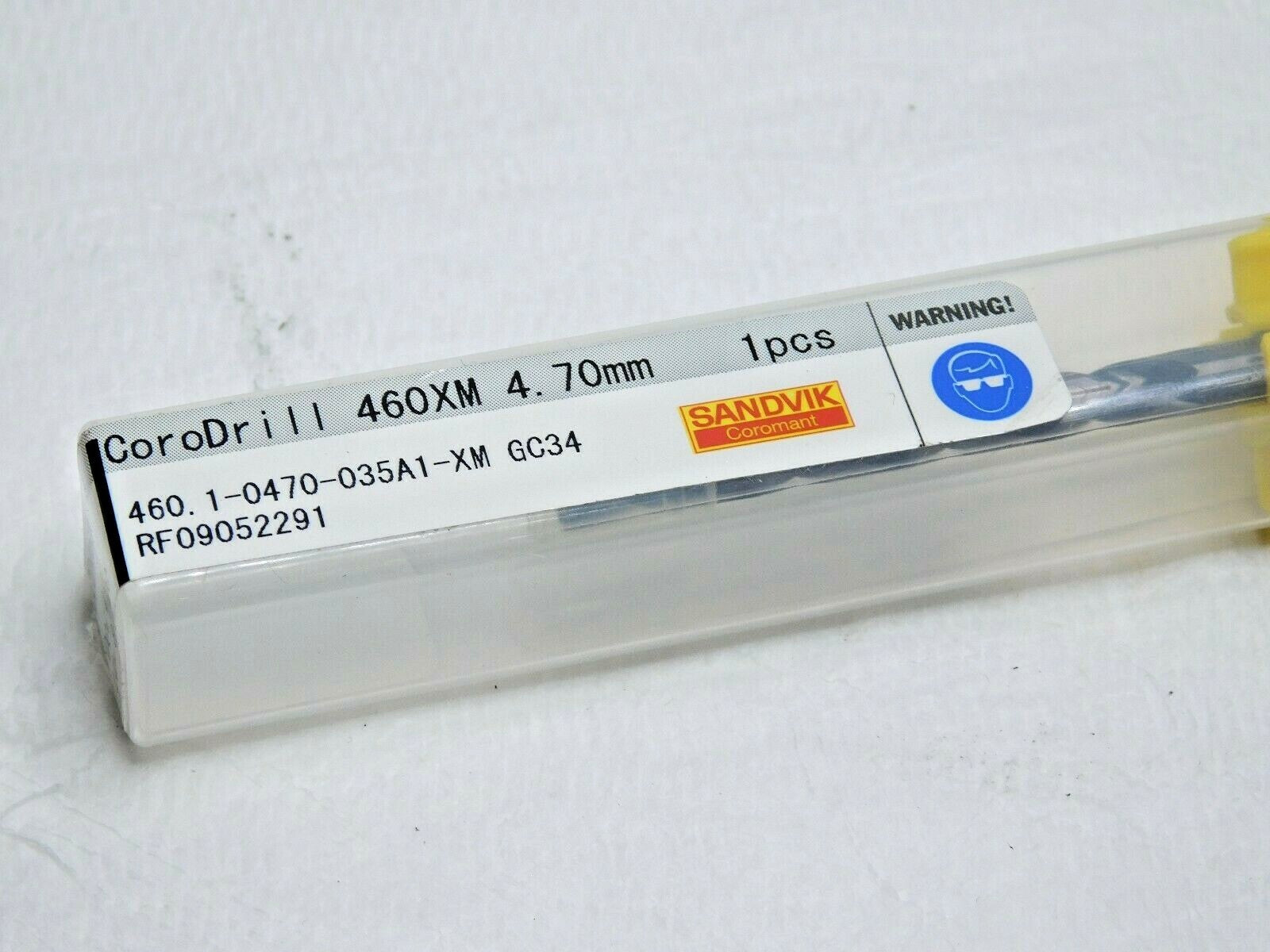

This listing is for One Carbide Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
