Sandvik Coromant Carbide Coolant Drill 6mm 2FL 861.1-0600-072A1-GM GC34 6151023
Sandvik Coromant Carbide Coolant Drill 6mm 2FL 861.1-0600-072A1-GM GC34 6151023
Regular price
$99.06 USD
Regular price
$210.00 USD
Sale price
$99.06 USD
Shipping calculated at checkout.
Sandvik Coromant
MSRP: $210.00
Model: 6151023
Description:
Drill Bit Size (mm) 6.00
Drill Bit Size (Decimal Inch) 0.2362
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiAlN
Overall Length (Decimal Inch) 5.0394
Through Coolant Coolant Through
Shank Diameter (Decimal Inch) 0.2362
Shank Diameter (mm) 6.00
Flute Length (Decimal Inch) 3.3858
Cutting Direction Right Hand
Flute Length x Diameter Ratio 12xD
Flute Type Spiral
Number of Flutes 2
Point Type Standard
Shank Type Straight
Spiral Type Regular Spiral
Maximum Drilling Depth (Decimal Inch) 2.8347
Specification Designation ANSI; ISO
Shank Length (Decimal Inch) 1.4173
Shank Length (Inch) 1.4173
Threaded Shank No
Drill Point Length (mm) 1.00
Drill Point Length (Decimal Inch) 0.0394
Drill Bit Diameter Tolerance (mm) m7
Drill Bit Diameter Tolerance (mm) m7
Series/List CoroDrill 861

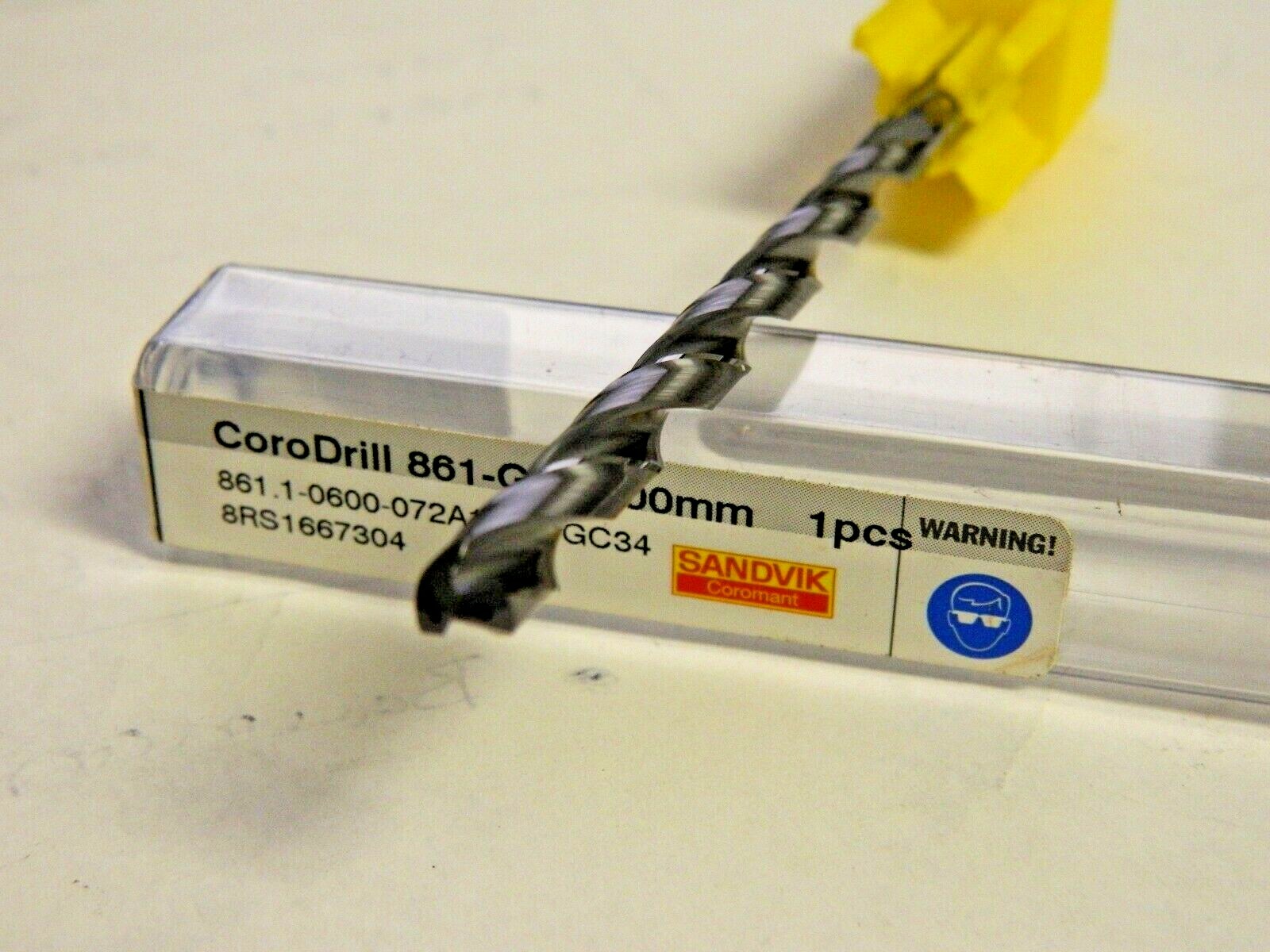

This listing is for One Carbide Coolant Drill that is in the picture as well as described. Please ask any questions prior to buying!
