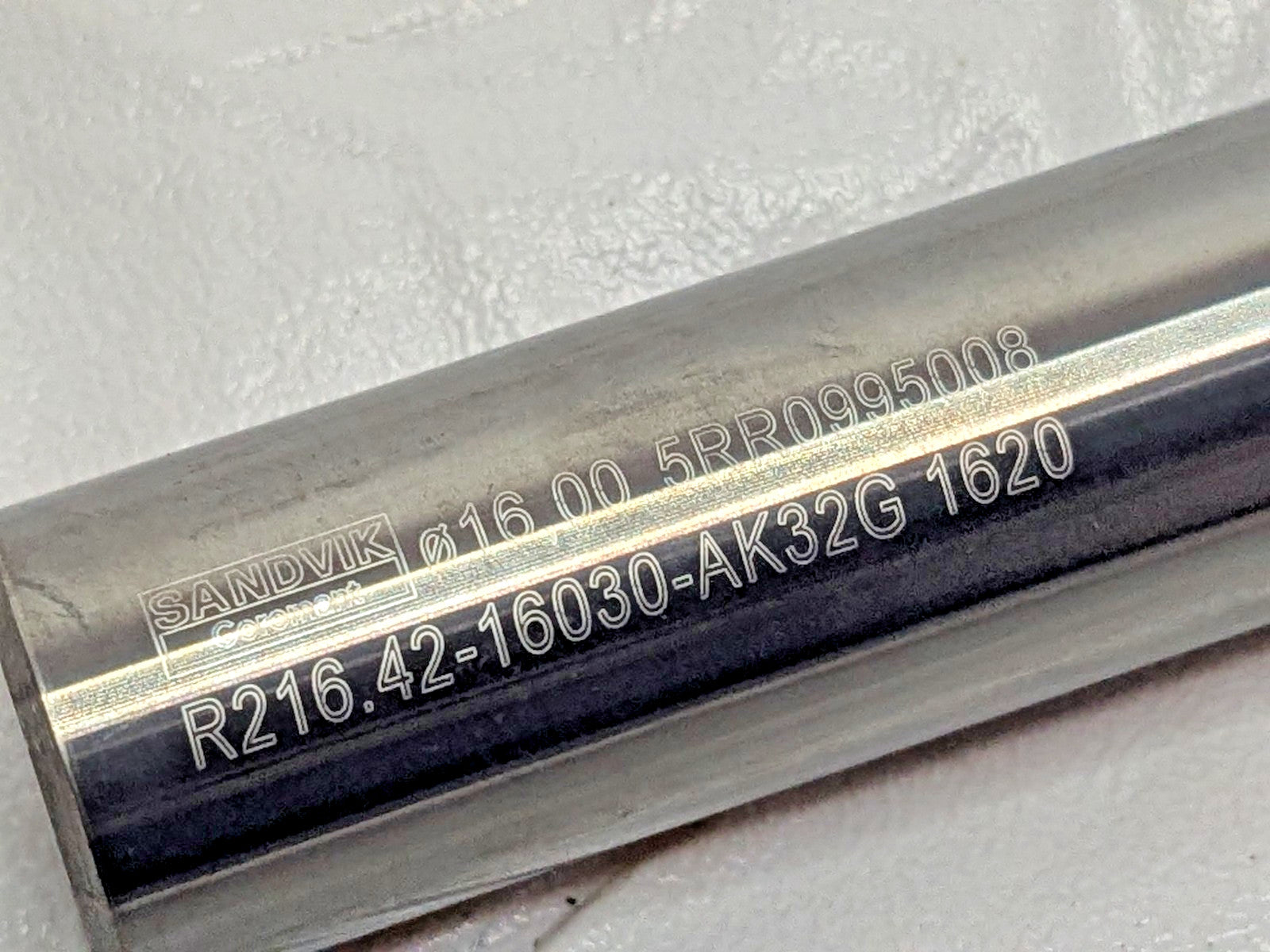

Sandvik Coromant Carbide Ball End Mill 2FL R216.42-16030-AK32G 1620 5743533

Sandvik Coromant
Carbide Ball End Mill

MSRP: $600

• Mill Diameter (mm) 16.00
• Mill Diameter (Decimal Inch) 0.6299
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Length of Cut (mm) 32.00
• Length of Cut (Decimal Inch) 1.2598
• Shank Diameter (mm) 16.00
• Overall Length (mm) 125.00
• Single Or Double End Single
• Coating/Finish Family TiAlN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; S; K; M
• Coating/Finish TiAlN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Material Grade 1620
• Length Type Standard
• Coating Classification PVD
• Helix Style Medium
• Nose Radius (mm) 8.00
• Reach Length (mm) 32.00
• Mill Diameter Tolerance h9
• Shank Diameter Tolerance h6
• Series R216.42
• System Of Measurement Metric
• Manufacturers Catalog Number R2164216030AK32G1620
• Material Removal Type Roughing & Finishing
• UNSPSC Code 27112803

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
