SANDVIK COROMANT 2ct Turning Insert: CNMG543-QM 4325, Solid Carbide 6434082

SANDVIK COROMANT 2ct Turning Insert: CNMG543-QM 4325, Solid Carbide 6434082

MSRP: $50

• Insert Style CNMG
• Insert Size Code 543
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.6250
• Corner Radius (Decimal Inch) 0.0469
• Corner Radius (mm) 1.19
• Insert Material Carbide
• Manufacturer Grade 4325
• Coating/Finish TiCN; TiN; AI2O3
• Relief Angle 0
• Insert Thickness 6.35
• Insert Thickness (Decimal Inch) 0.2500
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Hole Diameter (Mm) ( - 0 Decimals) 6.35
• Hole Diameter (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (mm) 15.88
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 1/4
• Clearance Code N
• Tolerance Code M
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Insert Length (Decimal Inch) 0.5874
• Insert Length (mm) 14.92
• Iso Code CNMG 16 06 12-QM 4325
• UNSPSC Code 23242105
• Chip Breaker G

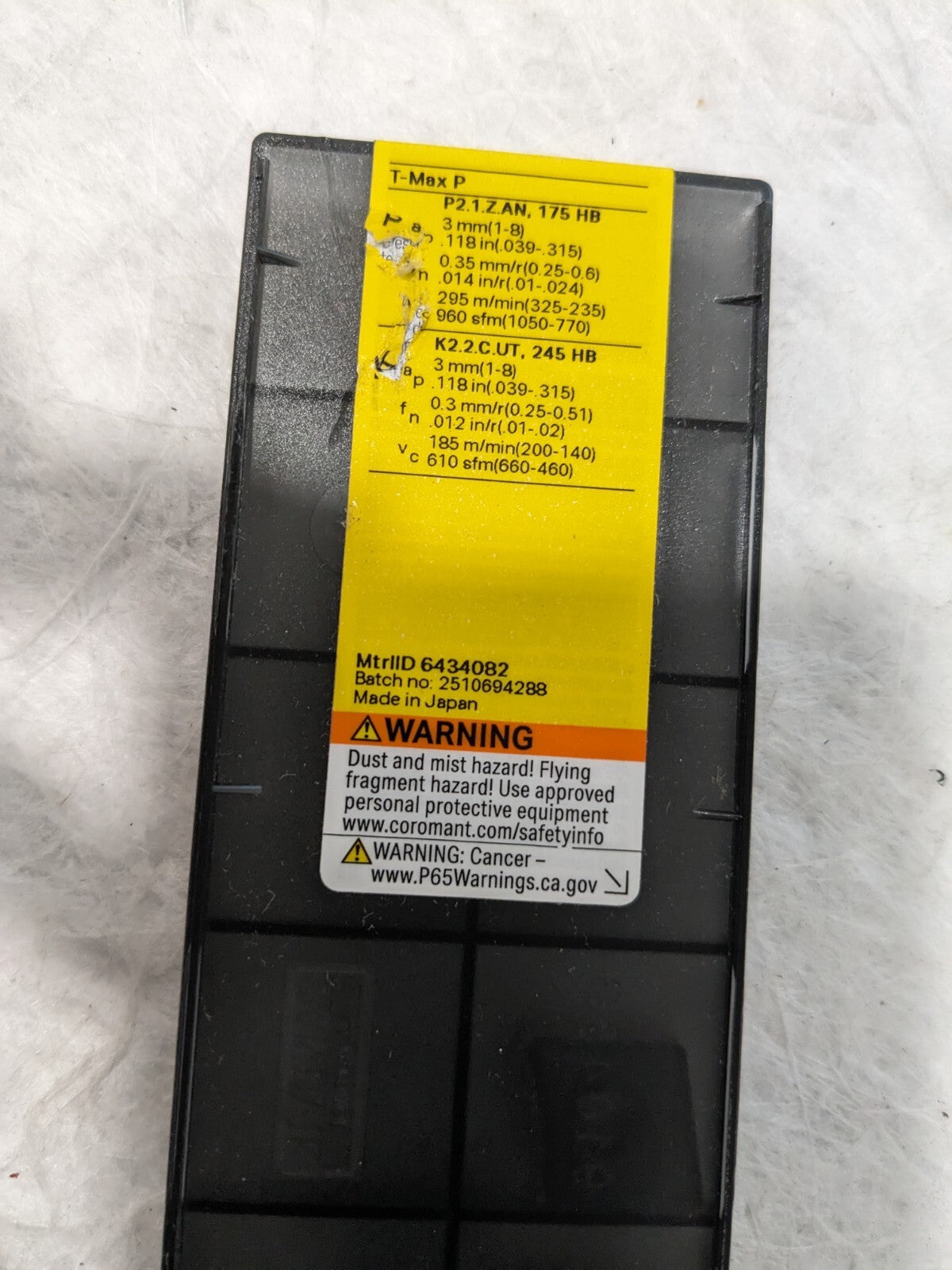

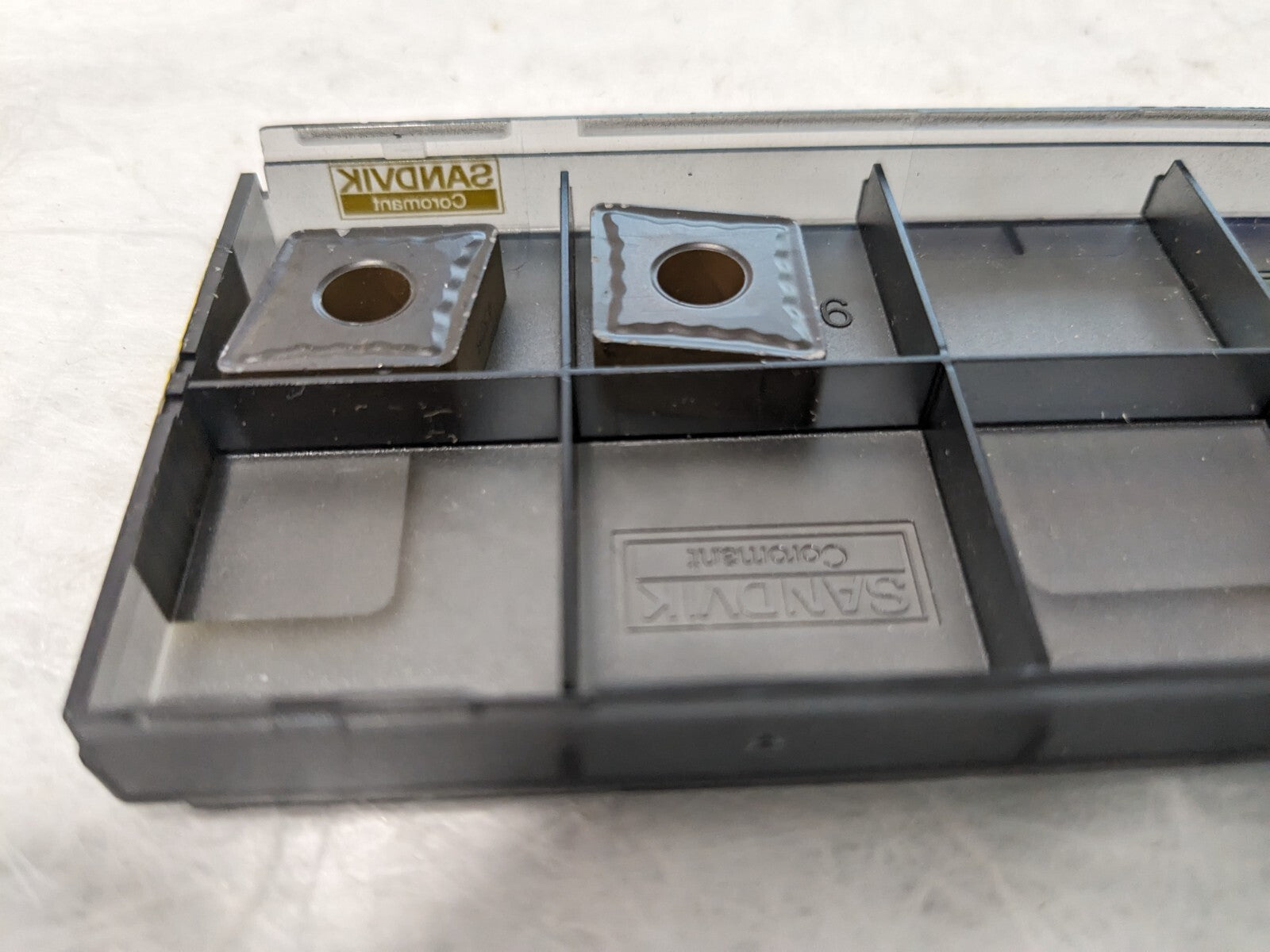

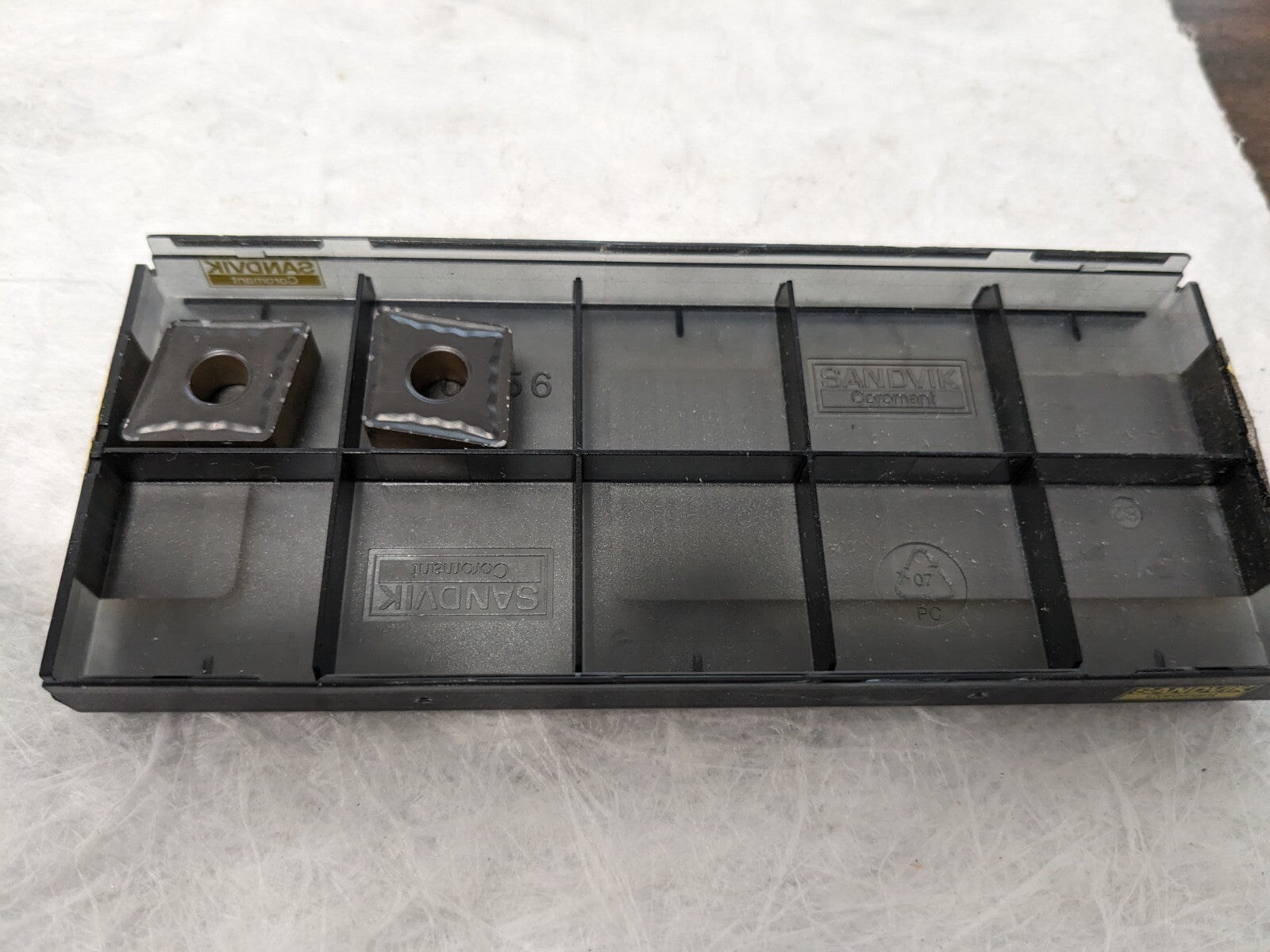

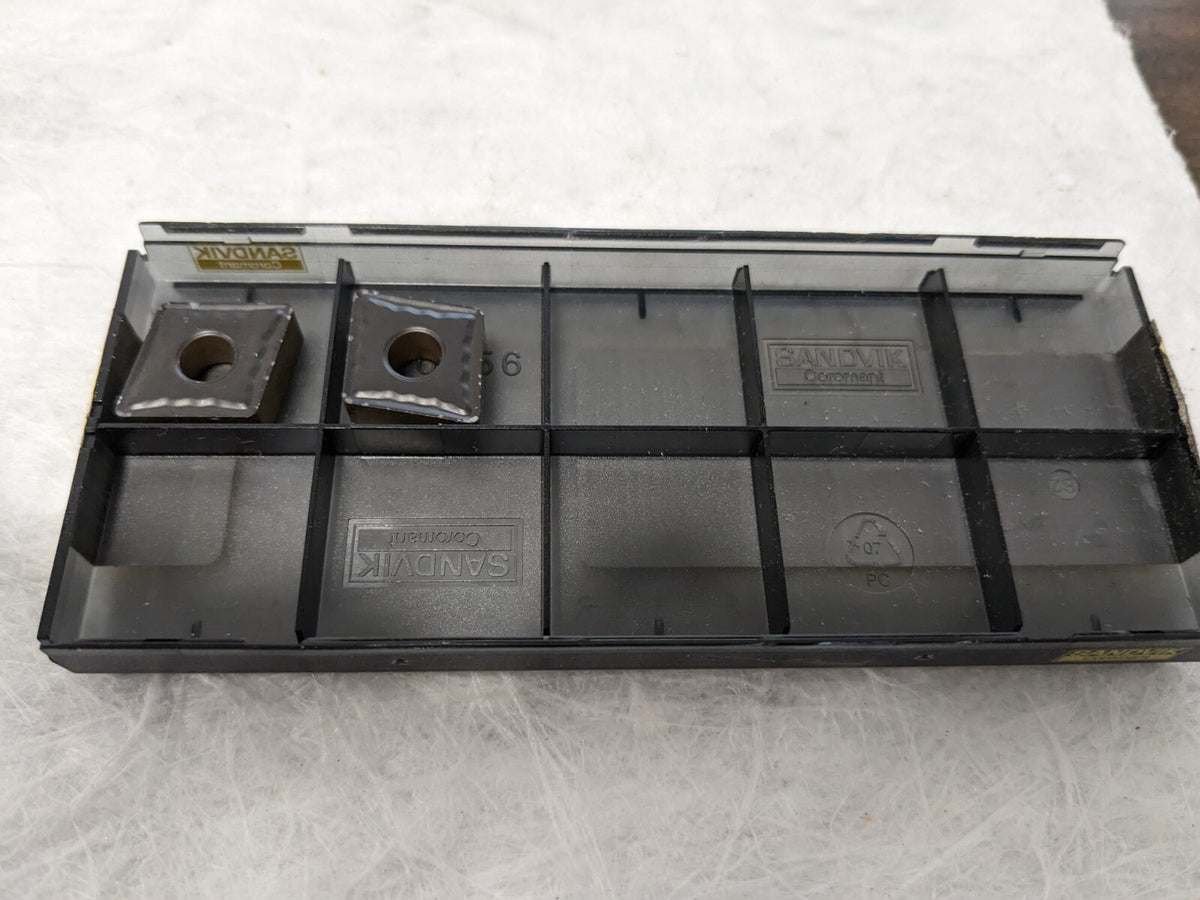

 Please review photos, comes as shown.
