SANDVIK COROMANT 10pk Turning Insert: CCMT21.52UM 1515, Solid Carbide 5724191

SANDVIK COROMANT 10pk Turning Insert: CCMT21.52UM 1515, Solid Carbide 5724191

MSRP: $100

• Insert Style CCMT
• Insert Size Code 21.52
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.2500
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Insert Material Carbide
• Manufacturer Grade 1515
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 7
• Wiper Edge No
• Insert Thickness 2.38
• Insert Thickness (Decimal Inch) 0.0938
• Insert Hand Neutral
• Number Of Cutting Edges 2
• Insert Shape Code C
• Corner Radius (Inch) 1/32
• Hole Diameter (Mm) ( - 0 Decimals) 2.80
• Hole Diameter (Decimal Inch) 0.1102
• Maximum Depth of Cut (mm) 5.65
• Maximum Depth of Cut (Decimal Inch) 0.2224
• Inscribed Circle (Inch) 1/4
• Inscribed Circle (mm) 6.35
• Insert Holding Method Screw
• Insert Thickness (Inch) 3/32
• Clearance Code C
• Tolerance Code M
• Series CoroTurn 107
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.0000 - 0.3000
• Insert Length (Decimal Inch) 0.2539
• Insert Length (mm) 6.45
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Iso Code CCMT060208UM1515
• Manufacturers Catalog Number 5724191
• UNSPSC Code 23242105
• Chip Breaker UM

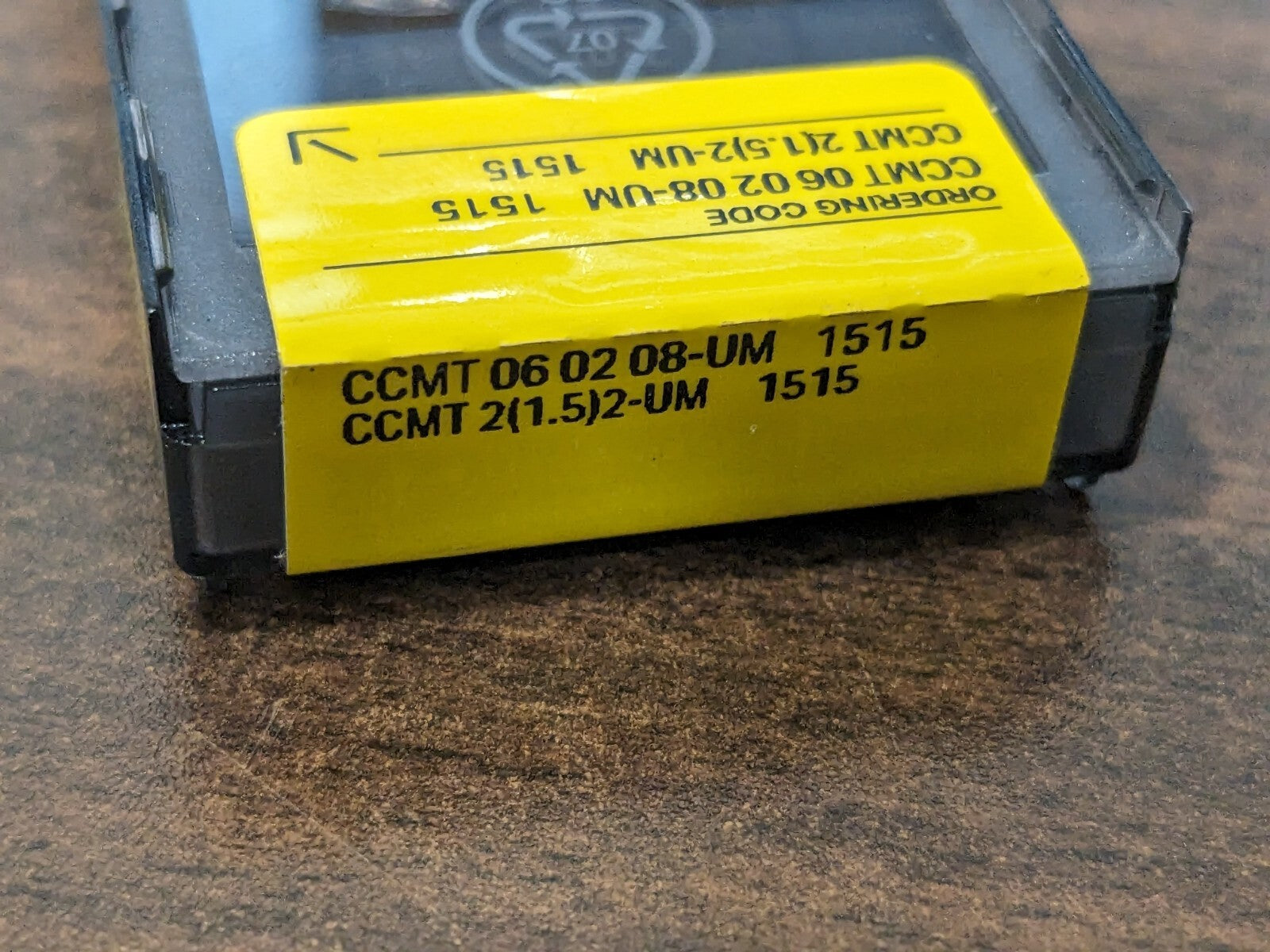

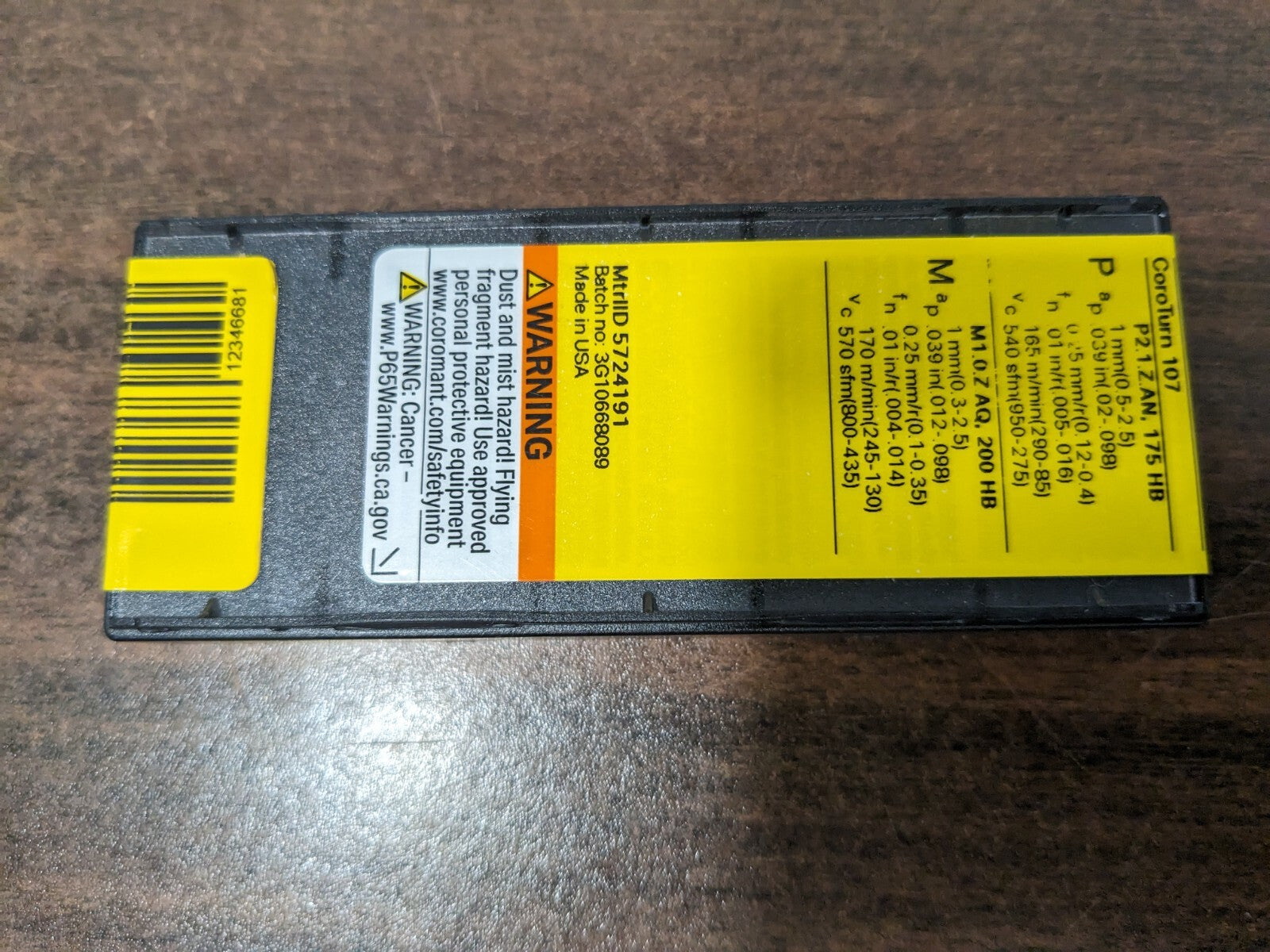

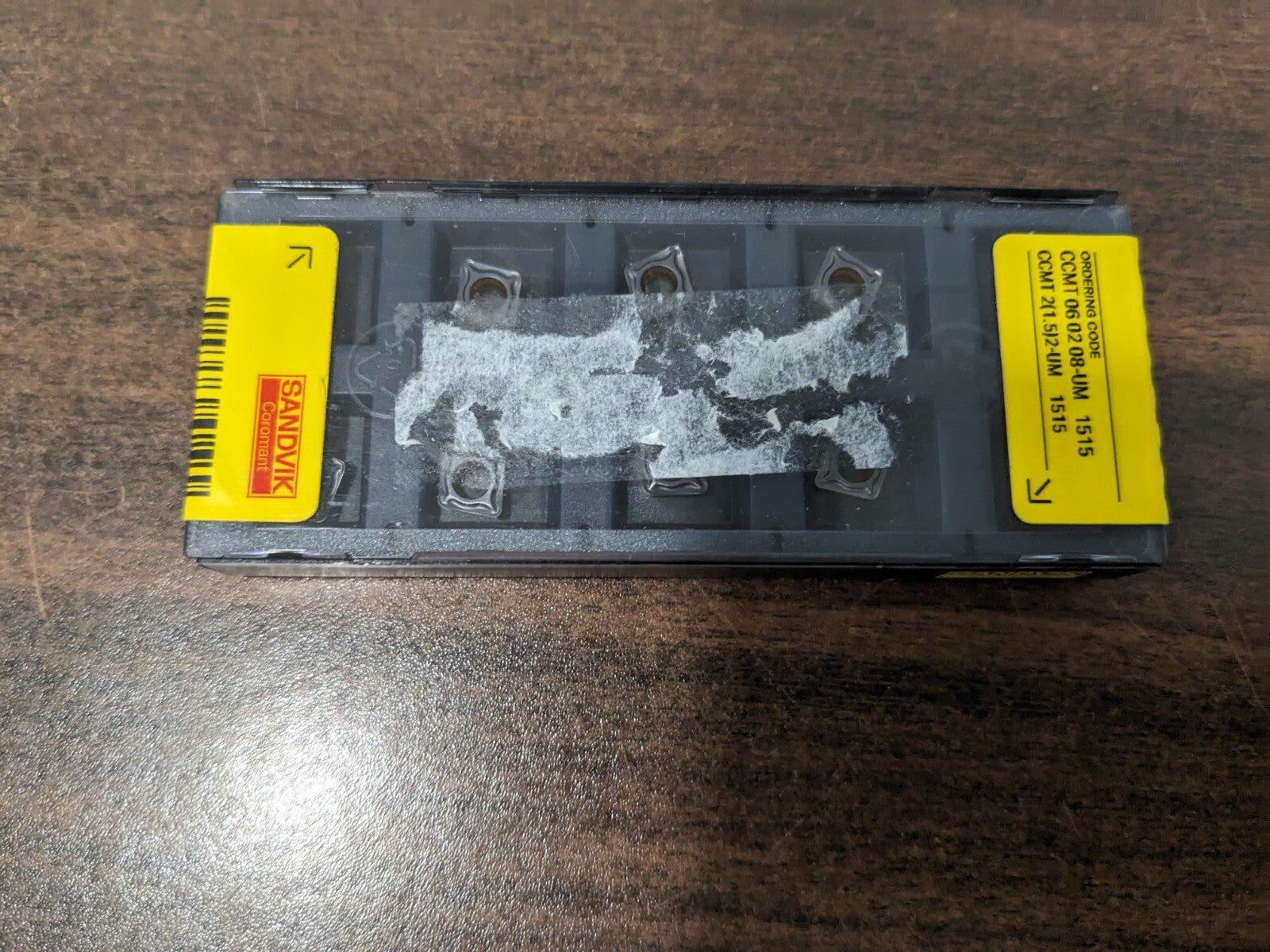

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
