Sandvik Coromant 10pc CNMG T-Max P Negative Basic Shape Turning Inserts 6533091

Sandvik Coromant

10pc CNMG T-Max P Negative Basic Shape Turning Inserts 6533091
MSRP: $160

• Alternate Catalog Number CNMG 12 04 08-PF 4315
• ANSI Code CNMG 432-PF 4315
• Brand Sandvik Coromant
• Catalog Number 6533091
• Chipbreaker PF
• Corner Radius 0.0312 in
• Country of Origin IN
• Finish MTCVD Coated
• Gross Weight Per Pack 0.0200 lb
• Hand of Insert Neutral
• Hole Diameter 0.2029 in
• Included Angle 80 deg
• Inscribed Circle 1/2 in
• Insert Size Neutral
• Insert Style CNMG
• ISO Code CNMG 12 04 08-PF 4315
• Item Group 112
• Length 0.5077 in
• Manufacturer Sandvik Coromant
• Manufacturer's Grade 4315
• Material Carbide
• Material Grade K/P
• Maximum Depth of Cut 1.5 mm
• Relief Angle 0 deg
• Series T-Max® P
• Shape C-80 deg Diamond
• Stock Status NONSTOCK
• Thickness 0.1874 in
• Type Negative Basic Shape
• Width T-Max® P

Straight hole and non-flat surface clamping interface

2-side cutting

+/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance

ER treated cutting edge

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials

For external turning operations and internal machining

0.1 - 0.4 mm/r cutting feed

20 life cycle state

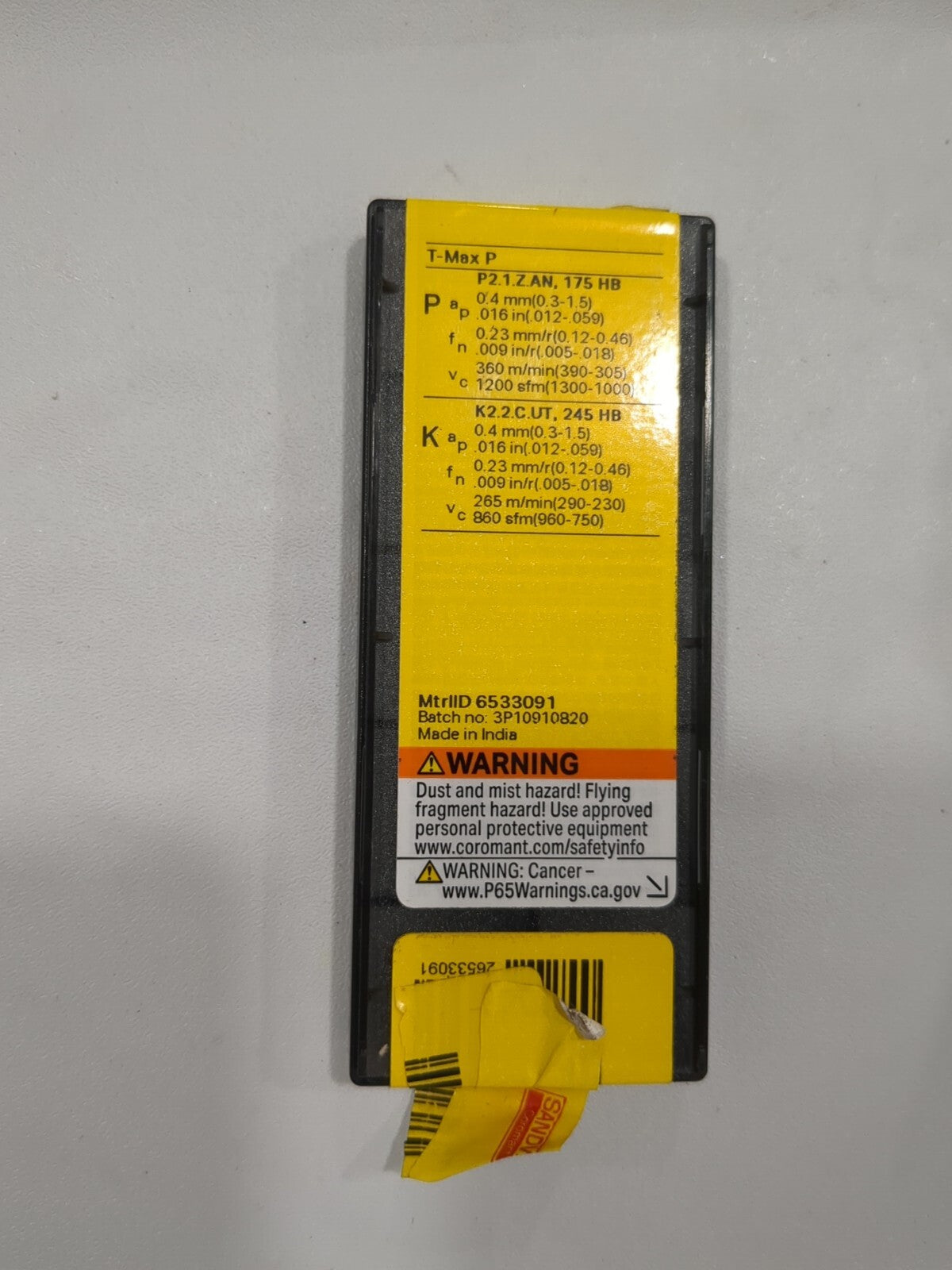

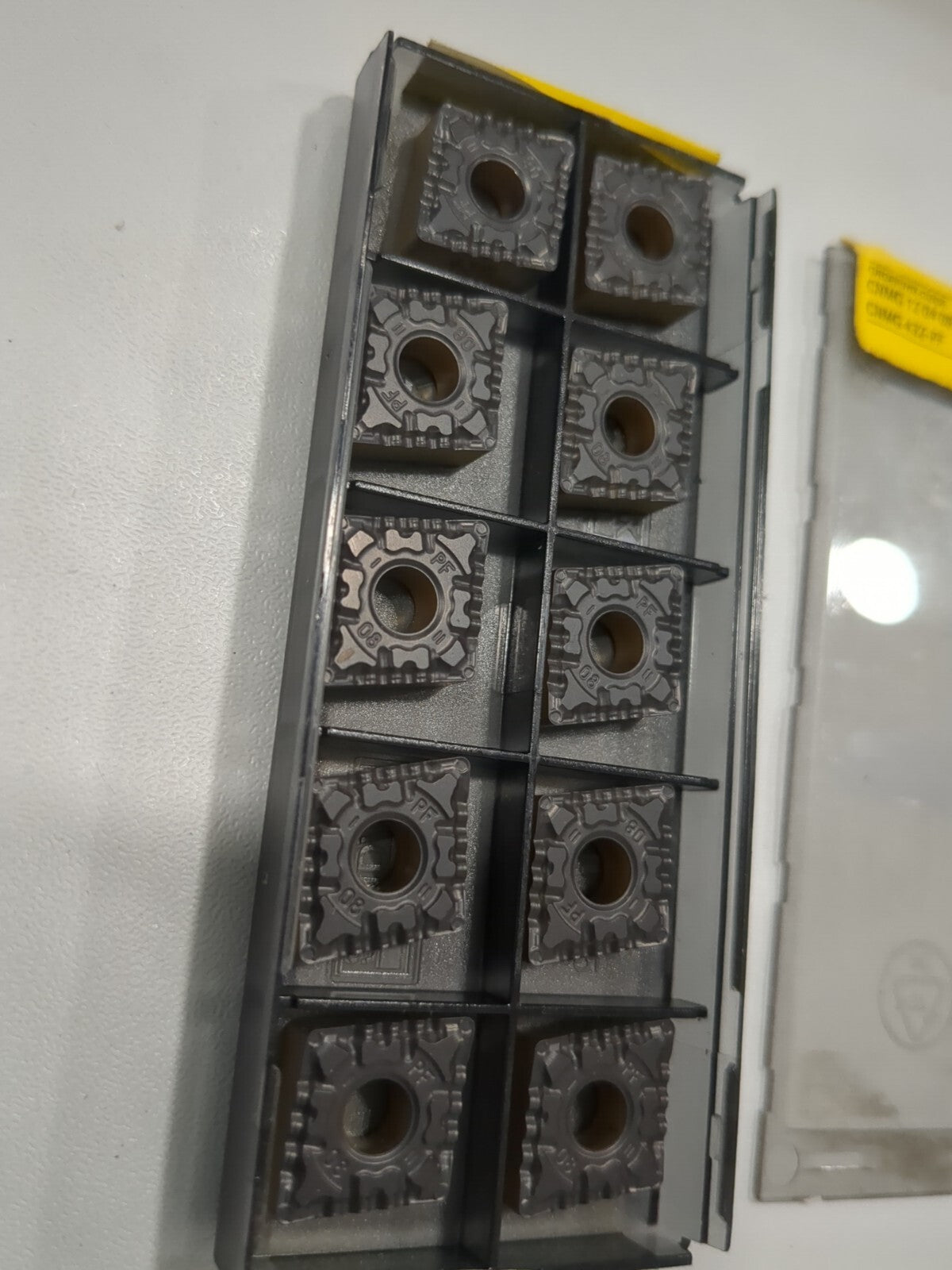

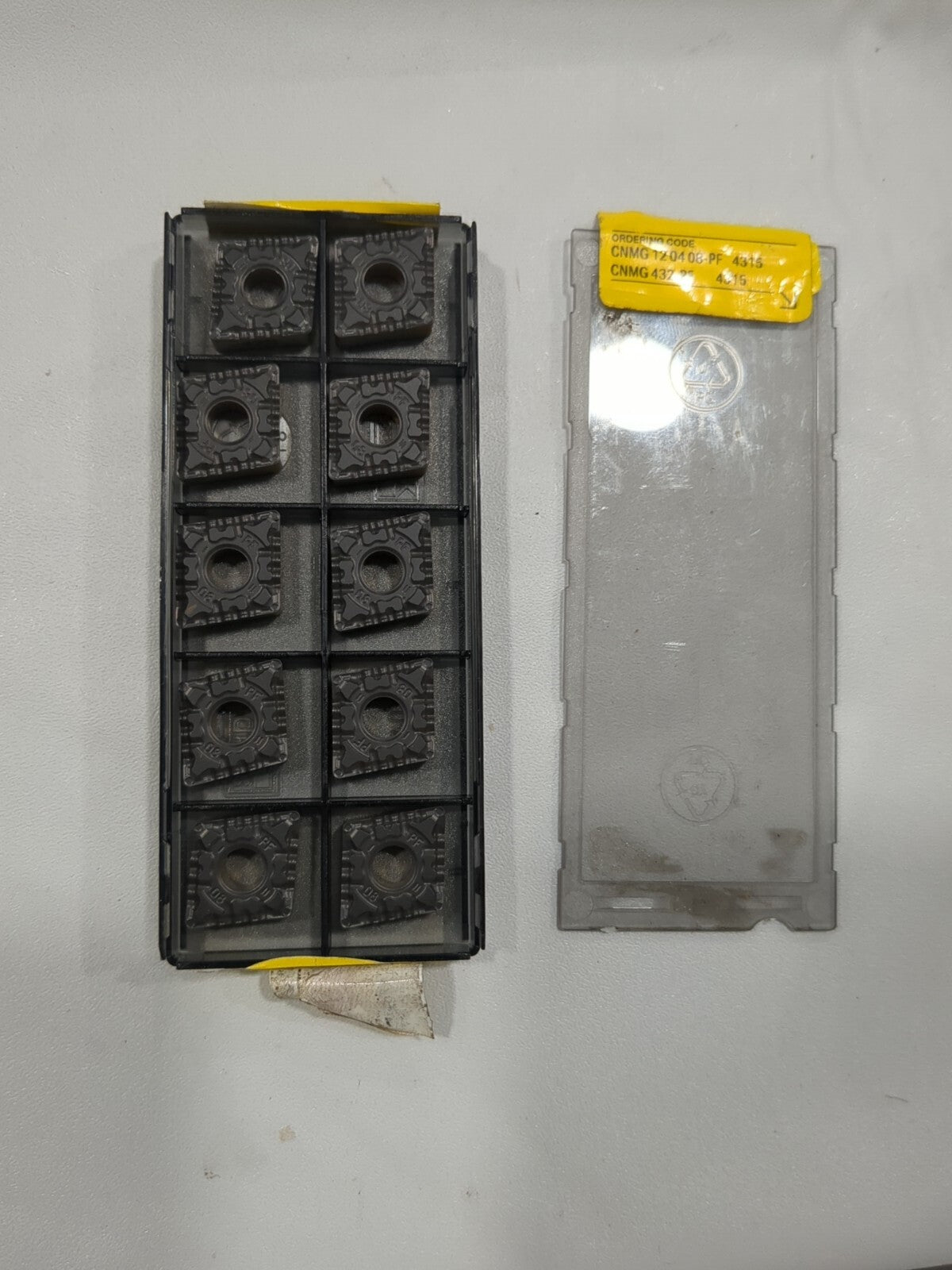

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
