Sandvik CNMG433 WMX Grade 3205 Carbide Turning Insert 10 5724950
Sandvik CNMG433 WMX Grade 3205 Carbide Turning Insert 10 5724950
Regular price
$51.89 USD
Regular price
$110.00 USD
Sale price
$51.89 USD
Shipping calculated at checkout.
MSRP: $110.00
Model: 5724950
Description:
Insert Style: CNMG
Insert Size: 433
Material: Carbide
Length (mm) : 12.90 --
Length (Decimal Inch) : 0.5079 --
Inscribed Circle (mm) : 12.70
Inscribed Circle (Decimal Inch) : 0.5000
Inscribed Circle (Inch) : 1/2
Thickness (Inch) : 3/16
Thickness (Decimal Inch) : 0.1874
Thickness (mm) : 4.76
Corner Radius (Inch) : 3/64
Corner Radius (mm) : 1.20
Corner Radius (Decimal Inch) : 0.0472
Manufacturer's Grade: 3205
Coating: TiCN/Al2O3/TiN
Chip Breaker: WMX
Hole Diameter (mm): 5.16
Hole Diameter (Decimal Inch): 0.2032
ISO Number: CNMG120412WMX3205
Relief Angle: 0
Coating Process: MTCVD
Manufacturers Catalog Number: 5724950 --
Primary Workpiece Material: K --
Included Angle: 80
Cutting Direction: Neutral
Insert Hand: Neutral
Series: T-Max P
Maximum Depth of Cut (mm): 11.70
Maximum Depth of Cut (Decimal Inch): 0.4606 --
Insert Holding Method: Pin & Clamp
Shape: Diamond

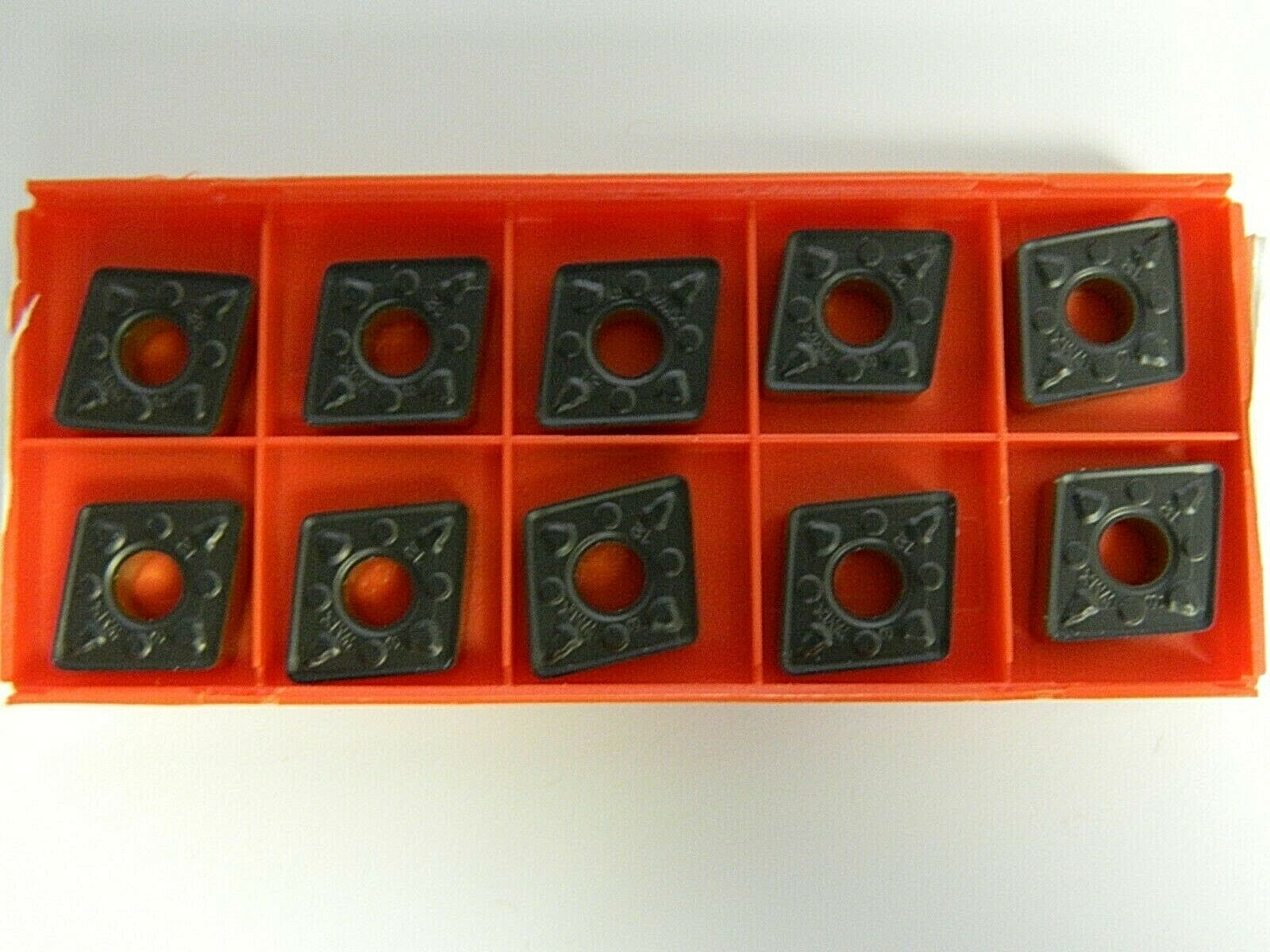

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
