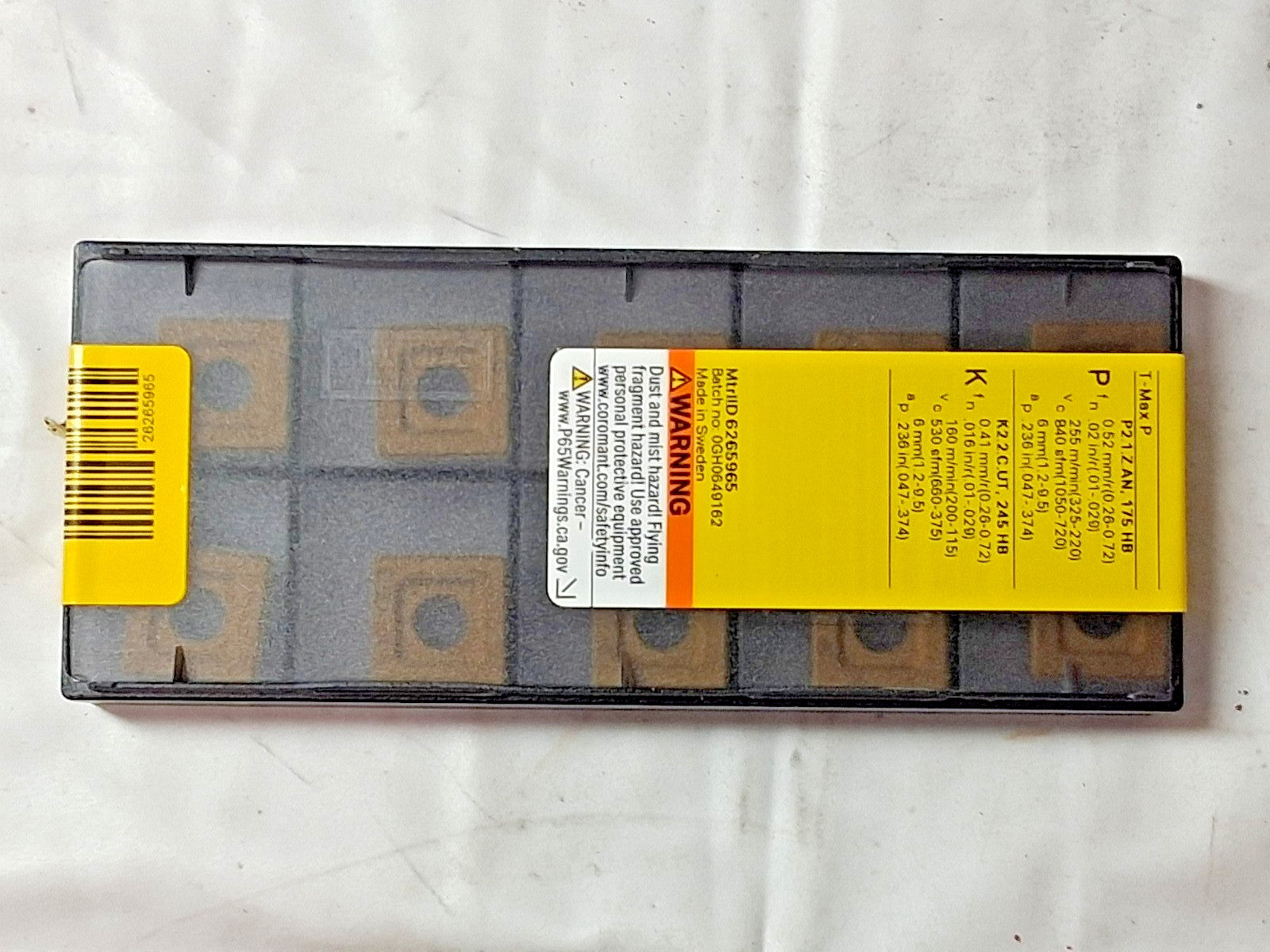

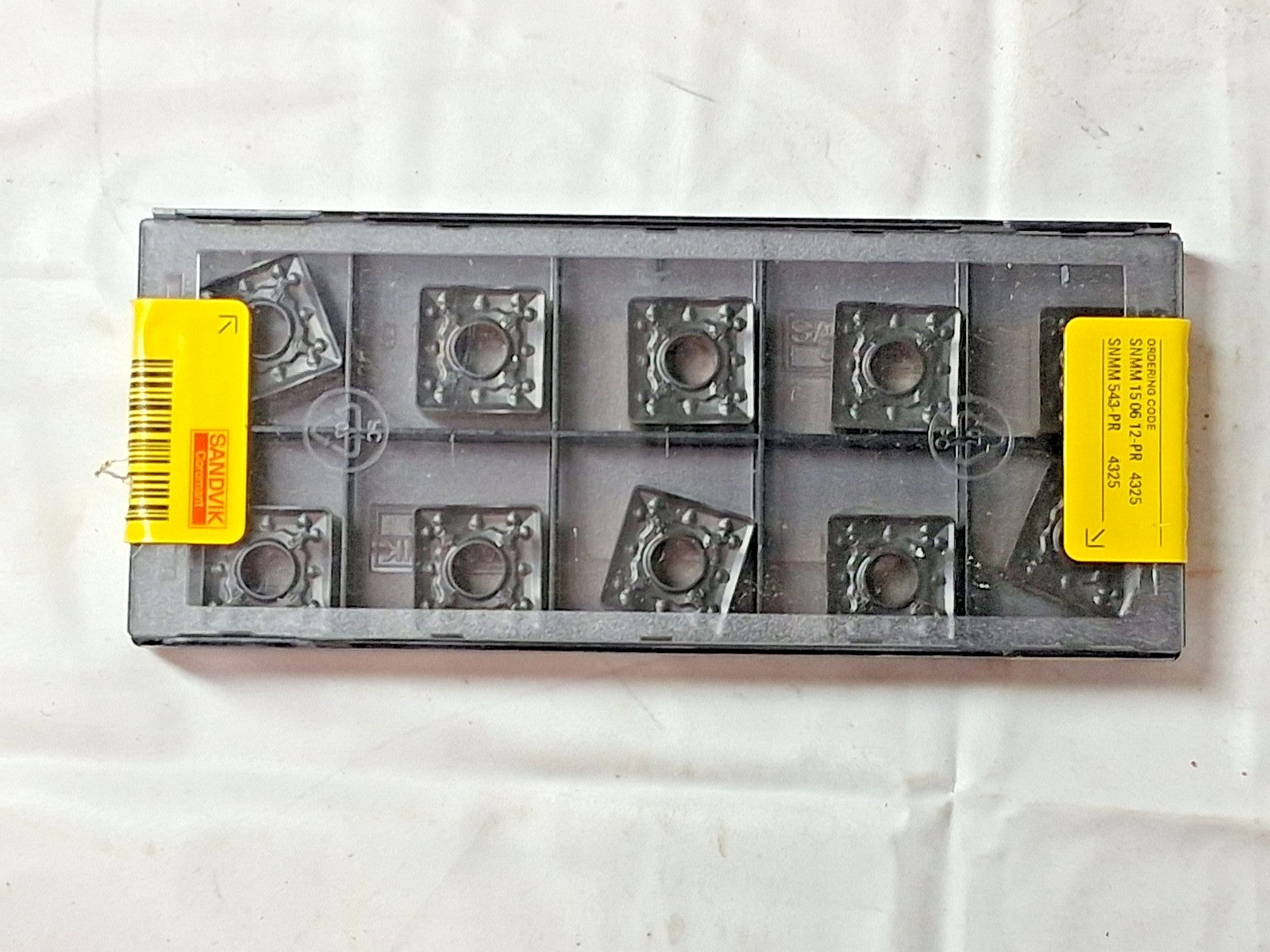

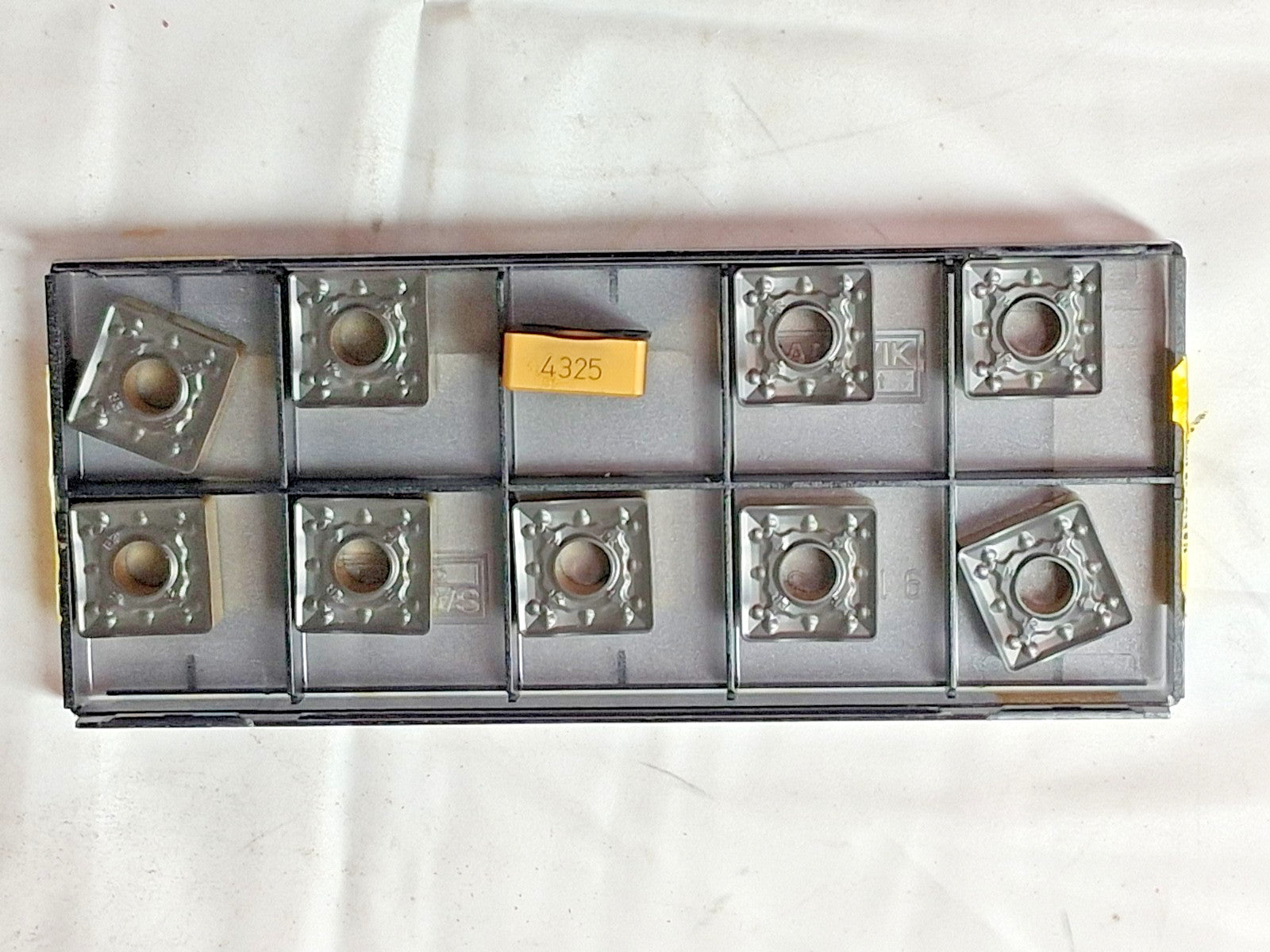

Sandvik Carbide Turning Inserts QTY10 SNMM543PR 4325 6265965

Sandvik
Carbide Turning Inserts 10 pack

MSRP: $320

• Manufacturer Sandvik Coromant
• Mfr Part # 6265965
• Country Of Origin Sweden
• Insert Style SNMM
• ANSI Size Code 543
• ISO Size Code 150612
• Insert Shape S - Square
• Included Angle 90.00
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Corner Radius (Inch) 3/64
• Corner Radius (mm) 1.20
• Corner Radius (Decimal Inch) 0.0472
• Insert Material Carbide
• Manufacturer Grade 4325
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0.000
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Insert Thickness 6.35
• Insert Hand Neutral
• Series T-Max P
• Grade Characteristics Steel (P) - High Wear-Resistance to High Toughness
• Side Clearance Negative
• Insert Shape Code S
• Hole Diameter (Decimal Inch) 0.2500
• Hole Diameter (mm) 6.35
• Maximum Depth of Cut (mm) 14.68
• Maximum Depth of Cut (Decimal Inch) 0.5780
• ANSI Insert Code SNMM543
• ISO Insert Code SNMM150612
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process MTCVD
• Primary Workpiece Material Code P
• Iso Code SNMM150612PR4325

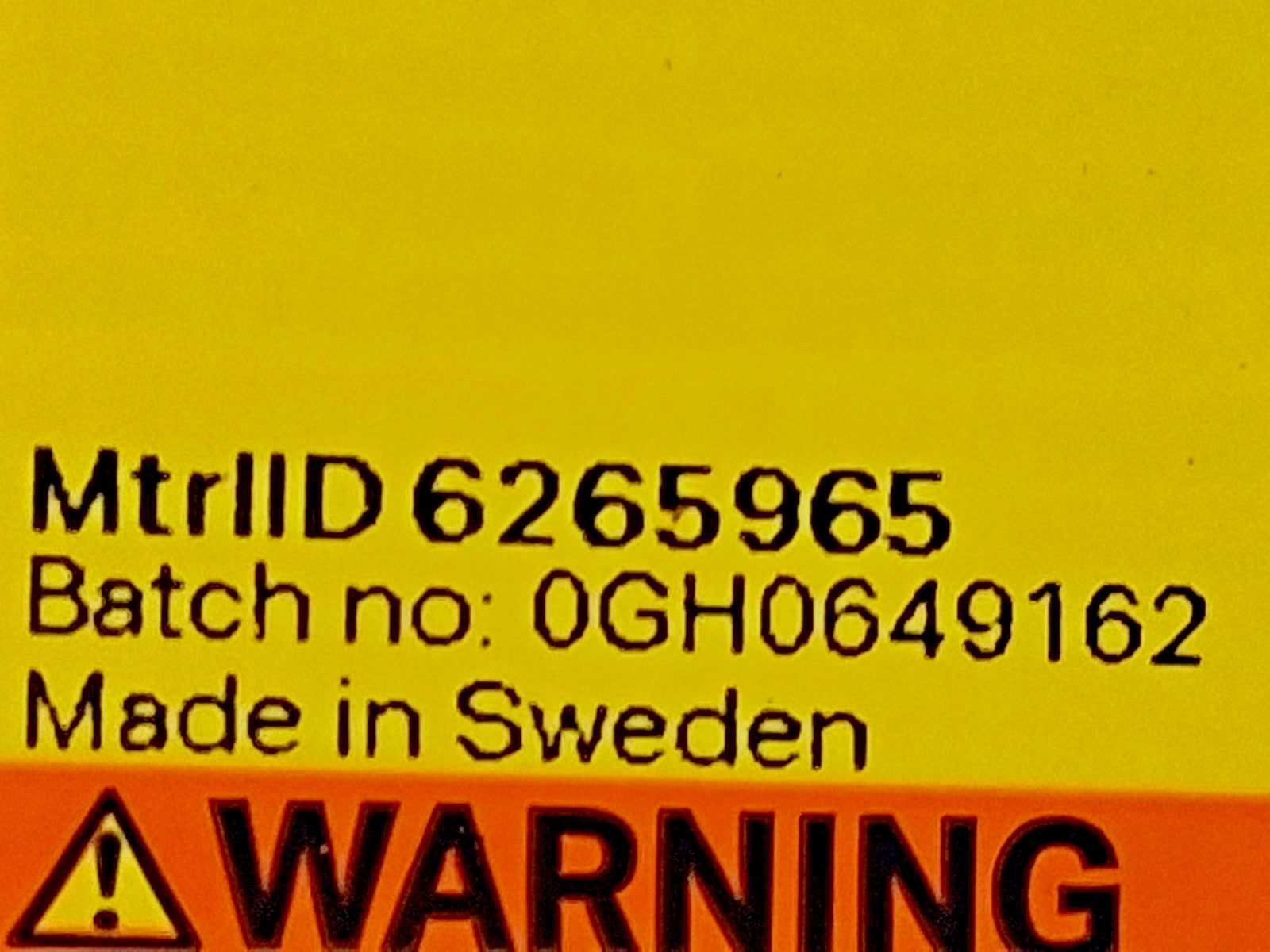

• Manufacturers Catalog Number 6265965
• Chip Breaker M
• UNSPSC Code 23242105
• Insert Size Code 543

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.
