Sandvik Carbide Turning Inserts QTY10 CNMG543QM 4315 6612765

Sandvik

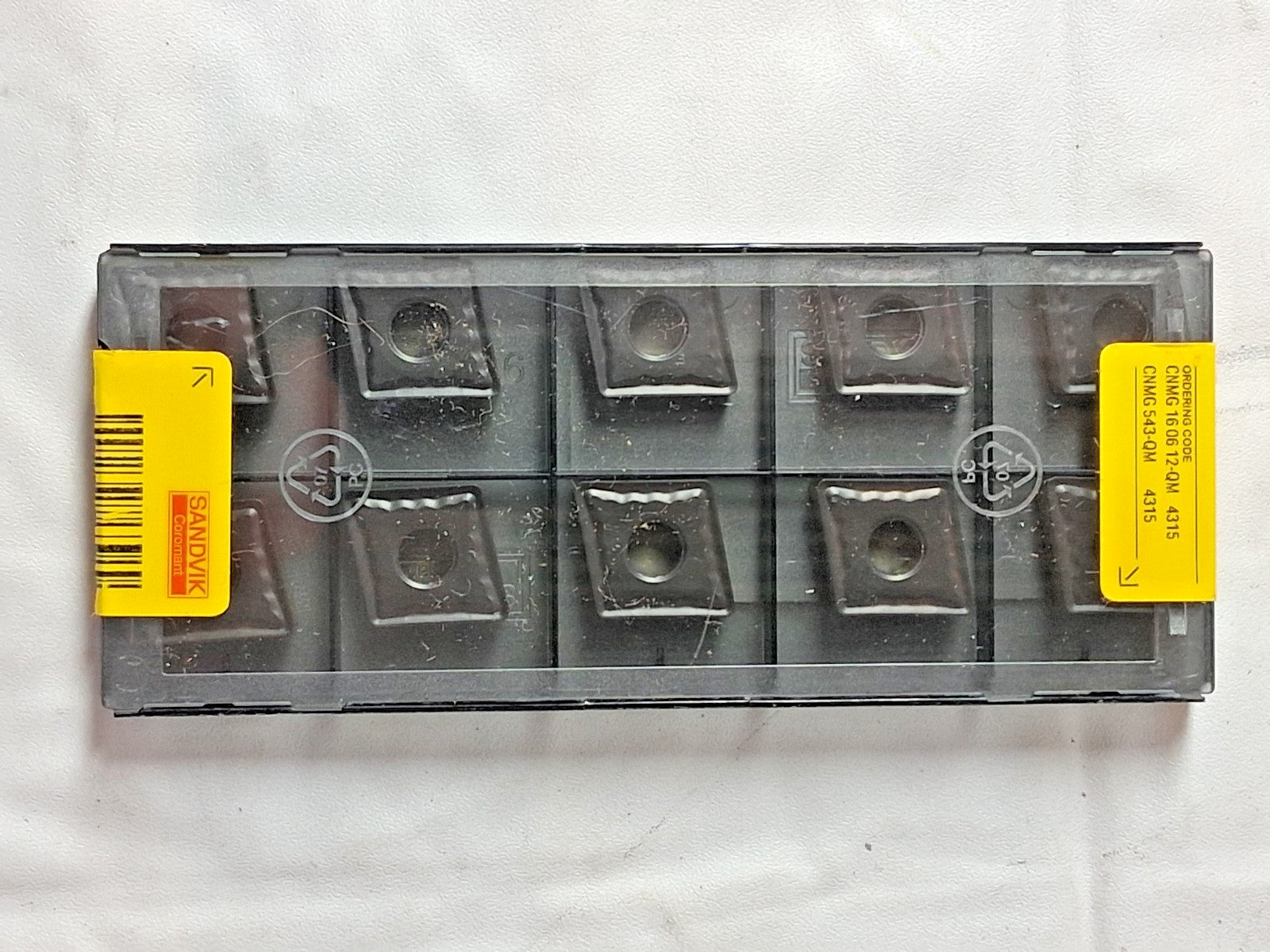

Carbide Turning Inserts 1 pack of 10

MSRP: $325

• Manufacturer Sandvik Coromant

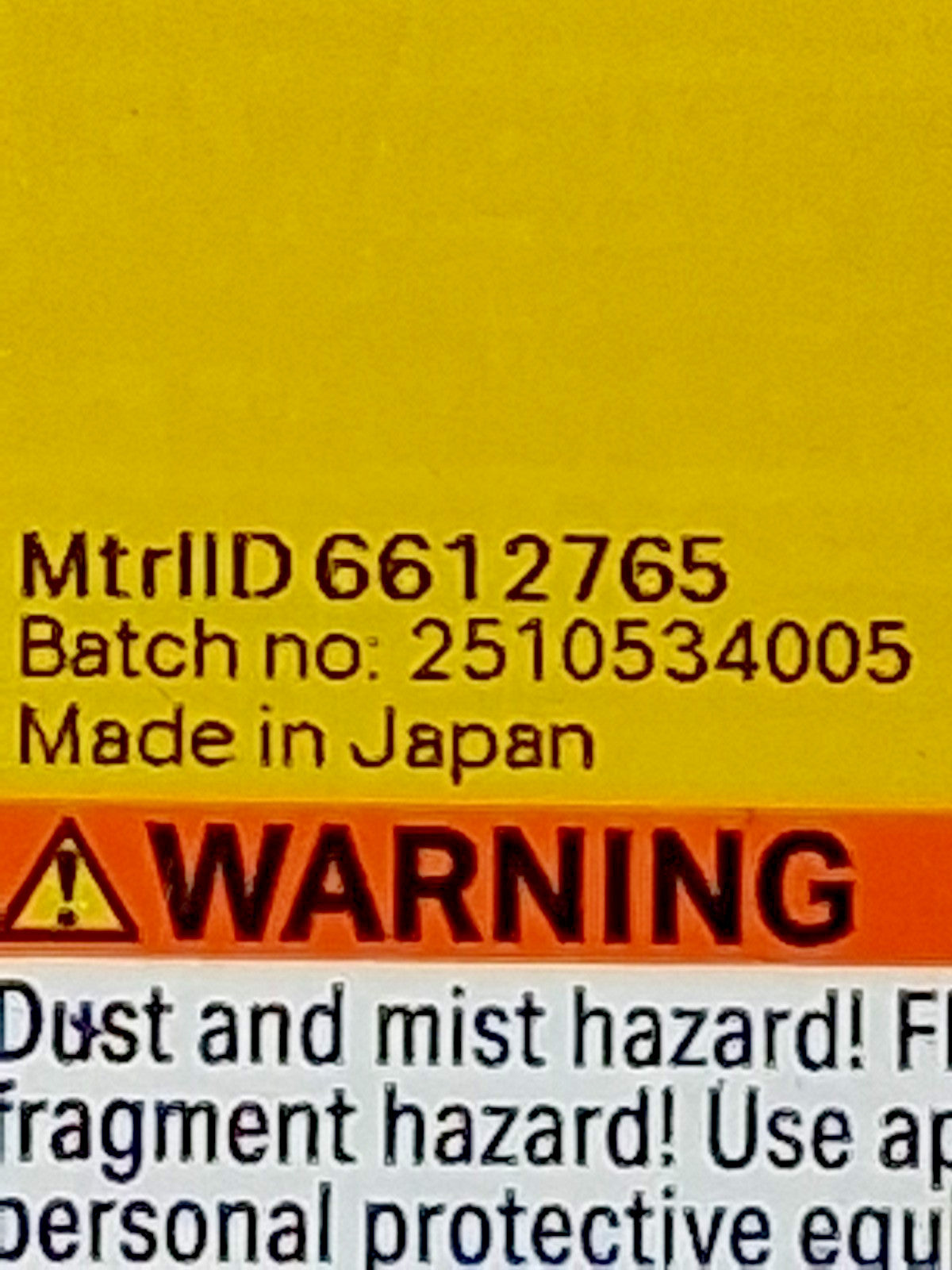

• Mfr Part # 6612765
• Country Of Origin Japan

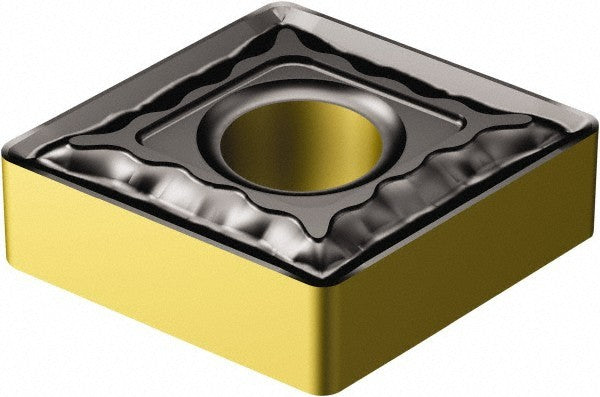

• Insert Style CNMG
• ANSI Size Code 543
• ISO Size Code 160612
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80.00
• Inscribed Circle (Decimal Inch) 0.6252
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (mm) 15.88
• Corner Radius (Inch) 3/64
• Corner Radius (mm) 1.20
• Corner Radius (Decimal Inch) 0.0472
• Insert Material Carbide
• Manufacturer Grade 4315
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0.000
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Insert Thickness 6.35
• Insert Hand Neutral
• Series T-Max P
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2500
• Hole Diameter (mm) 6.35
• Maximum Depth of Cut (mm) 14.92
• Maximum Depth of Cut (Decimal Inch) 0.5874

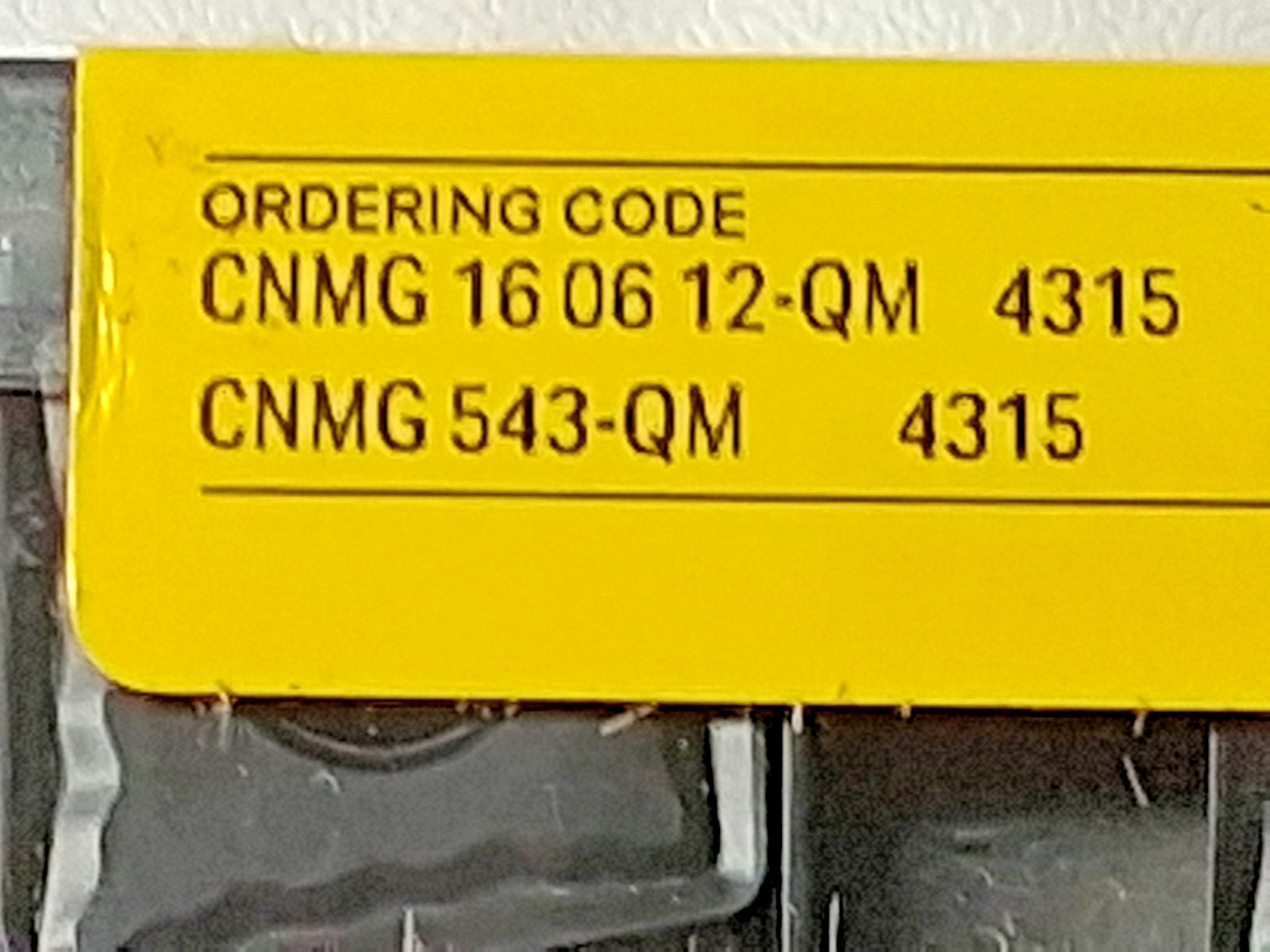

• ANSI Insert Code CNMG543
• ISO Insert Code CNMG160612
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Insert Length (Decimal Inch) 0.6346
• Primary Workpiece Material Code P
• Iso Code CNMG160612QM4315
• Manufacturers Catalog Number 6612765
• Chip Breaker G
• UNSPSC Code 23242105
• Insert Size Code 543

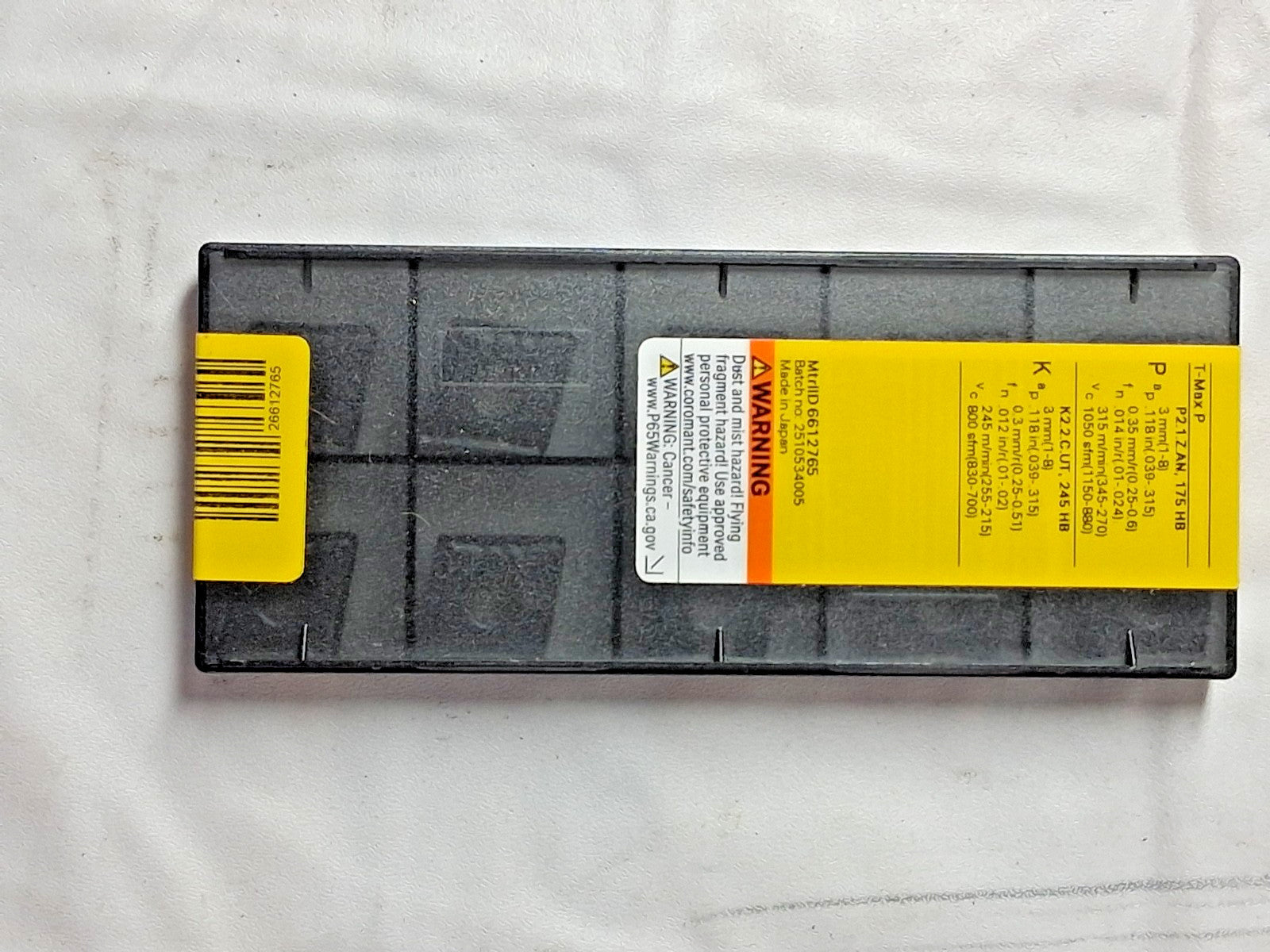

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
