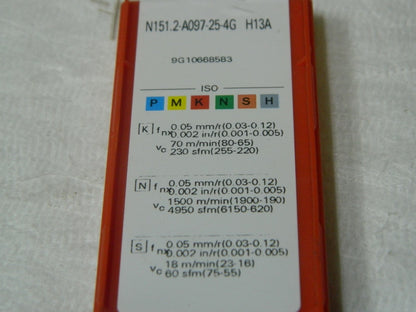

Sandvik Carbide Grooving Insert 09725N151.2 4G Grade H13A Qty 10 10075984
Sandvik Carbide Grooving Insert 09725N151.2 4G Grade H13A Qty 10 10075984
Regular price
$56.29 USD
Regular price
$115.00 USD
Sale price
$56.29 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Sandvik
MSRP: $115.00
Model: 10075984
Description:
Insert Style N151.2
Insert Size 09725
Material Carbide
Cutting Width (mm) 2.46
Cutting Width (Decimal Inch) 0.0969
Manufacturer's Grade H13A
Coating Uncoated
Cutting Direction Neutral
Insert Hand Neutral
Lead Angle 0
Relief Angle 7
Insert Seat Size 25
Chipbreaker 4G
Multi-Use Application Parting
Multi-Use Tool Yes
Corner Radius (mm) 0.32
Corner Radius (Decimal Inch) 0.0126
Series T-Max Q-Cut
ISO Number N1512A097254GH13A
Manufacturers Catalog Number 5737118
Insert Thickness (Decimal Inch) 0.2673
Insert Thickness (mm) 6.7900
Series Number T-Max Q-Cut
Material Carbide
Cutting Direction Neutral
Insert Seat Size 25
Insert Style N151.2
Series T-Max Q-Cut
Series T-Max Q-Cut
Material Carbide
Manufacturer's Grade H13A
Insert Style N151.2
Insert Size 09725
Cutting Direction Neutral
Corner Radius (Inch) 0.0126
Coating Uncoated
Multi Use Application Parting
MultiUseTool Yes

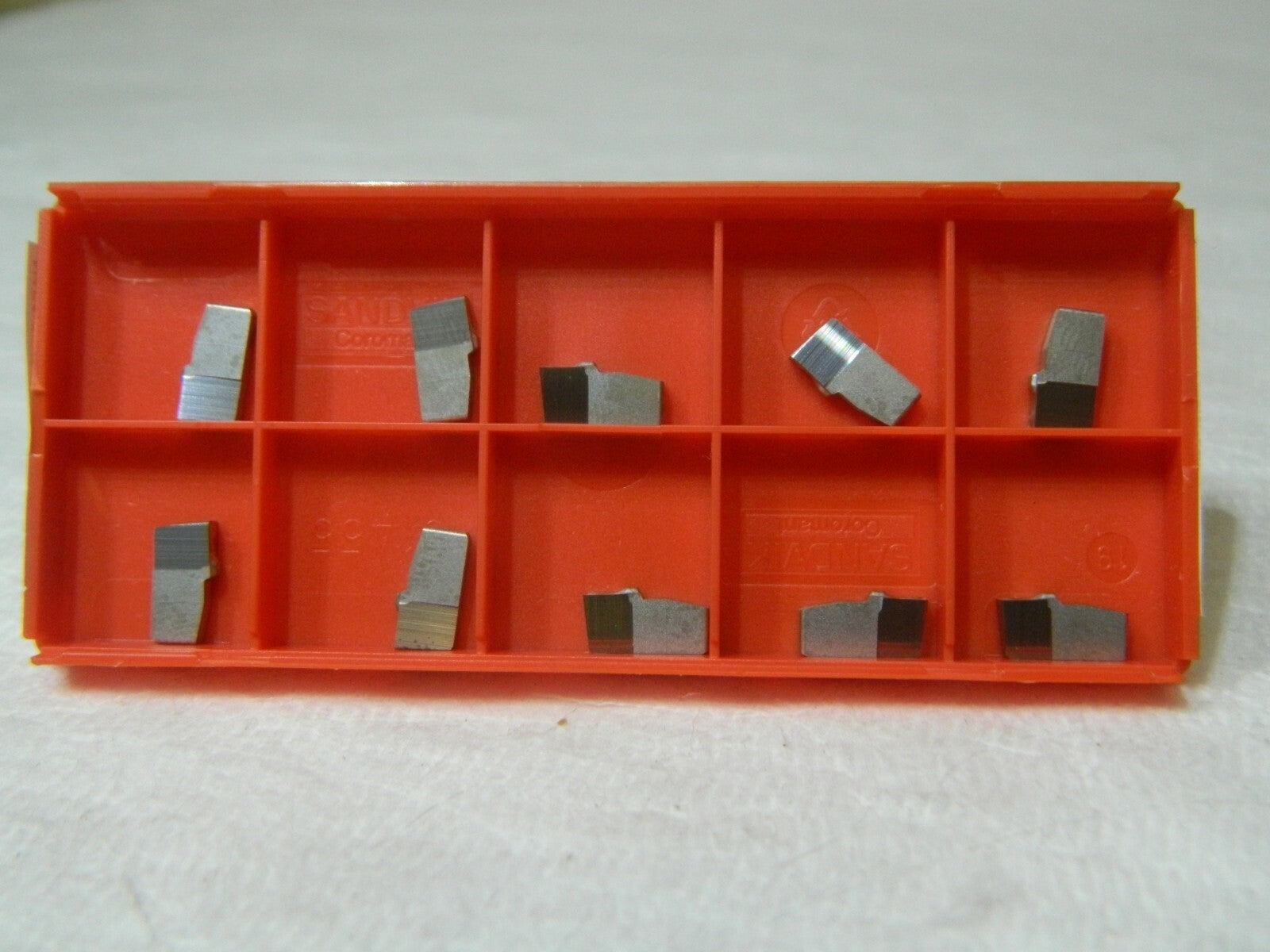

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
