Sandvik Coromant Carbide Turning Inserts CCMT32.52 UM 1125 QTY 10 5723697

Sandvik
1 Pack of 10 Carbide Turning Inserts

MSRP: $215

• Insert Style CCMT
• ANSI Size Code 32.52
• ISO Size Code 09T308
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Inch) 1/32
• Corner Radius (mm) 0.79
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade 1125
• Coating/Finish AlCr2O3; TiAlN
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Insert Thickness 3.97
• Insert Hand Neutral
• Series CoroTurn 107
• Chip Breaker Operation Medium Machining; Roughing
• Grade Characteristics Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.1732
• Hole Diameter (mm) 4.40
• ANSI Insert Code CCMT32.52
• ISO Insert Code CCMT09T308
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code M
• Coating Process PVD
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Insert Length (Decimal Inch) 0.3493
• Insert Length (mm) 8.87
• Primary Workpiece Material Steel
• Primary Workpiece Material Code S; M
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Iso Code CCMT 09 T3 08-UM 1125
• Chip Breaker UM
• UNSPSC Code 23242105
• Insert Size Code 32.52

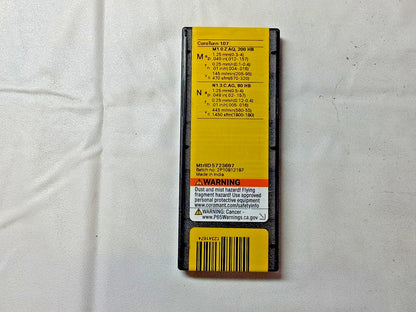

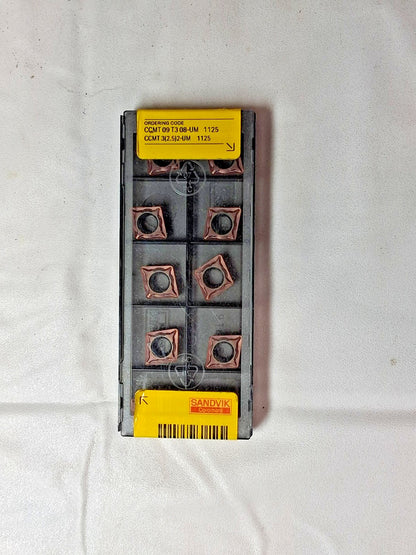

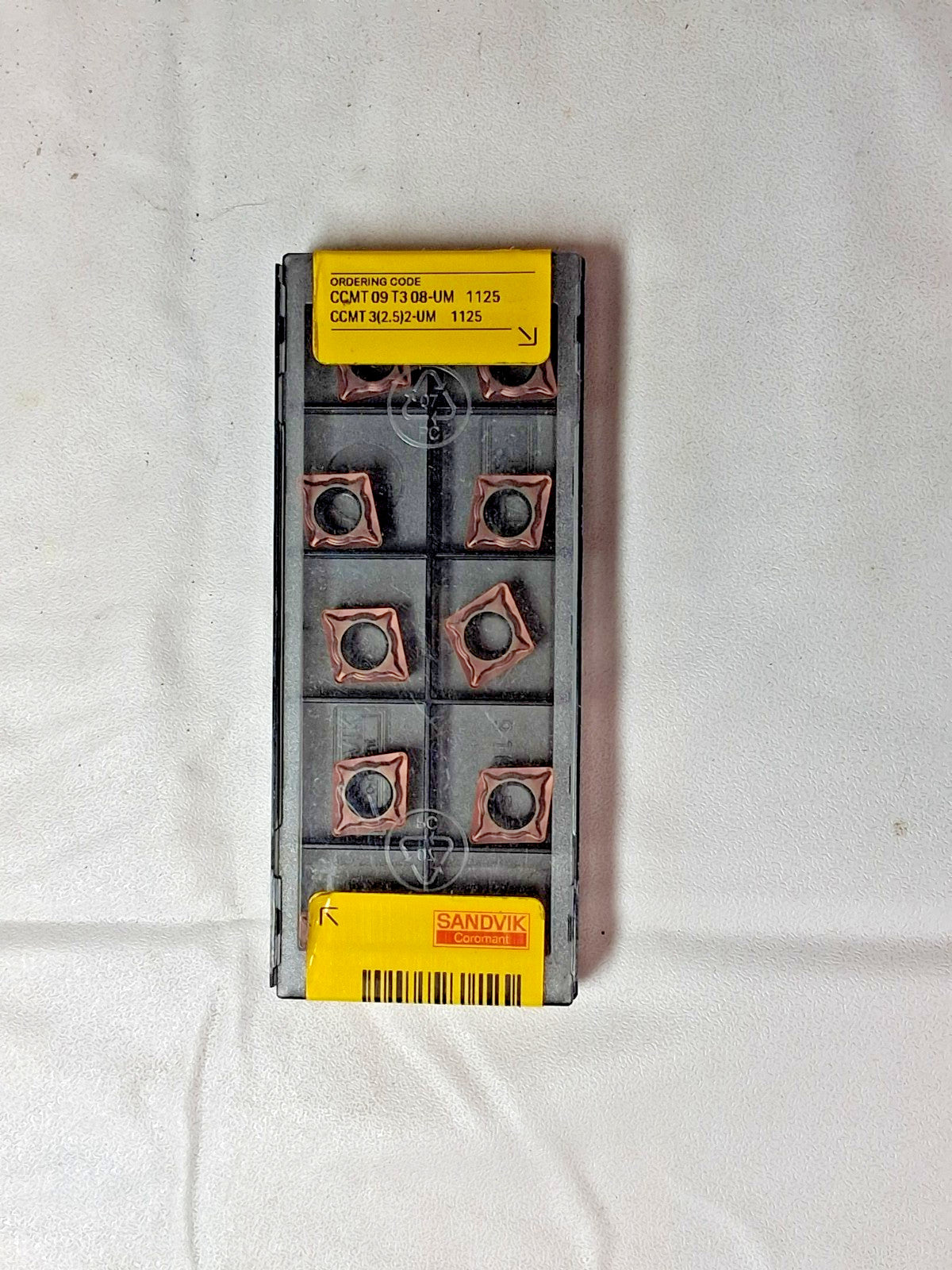

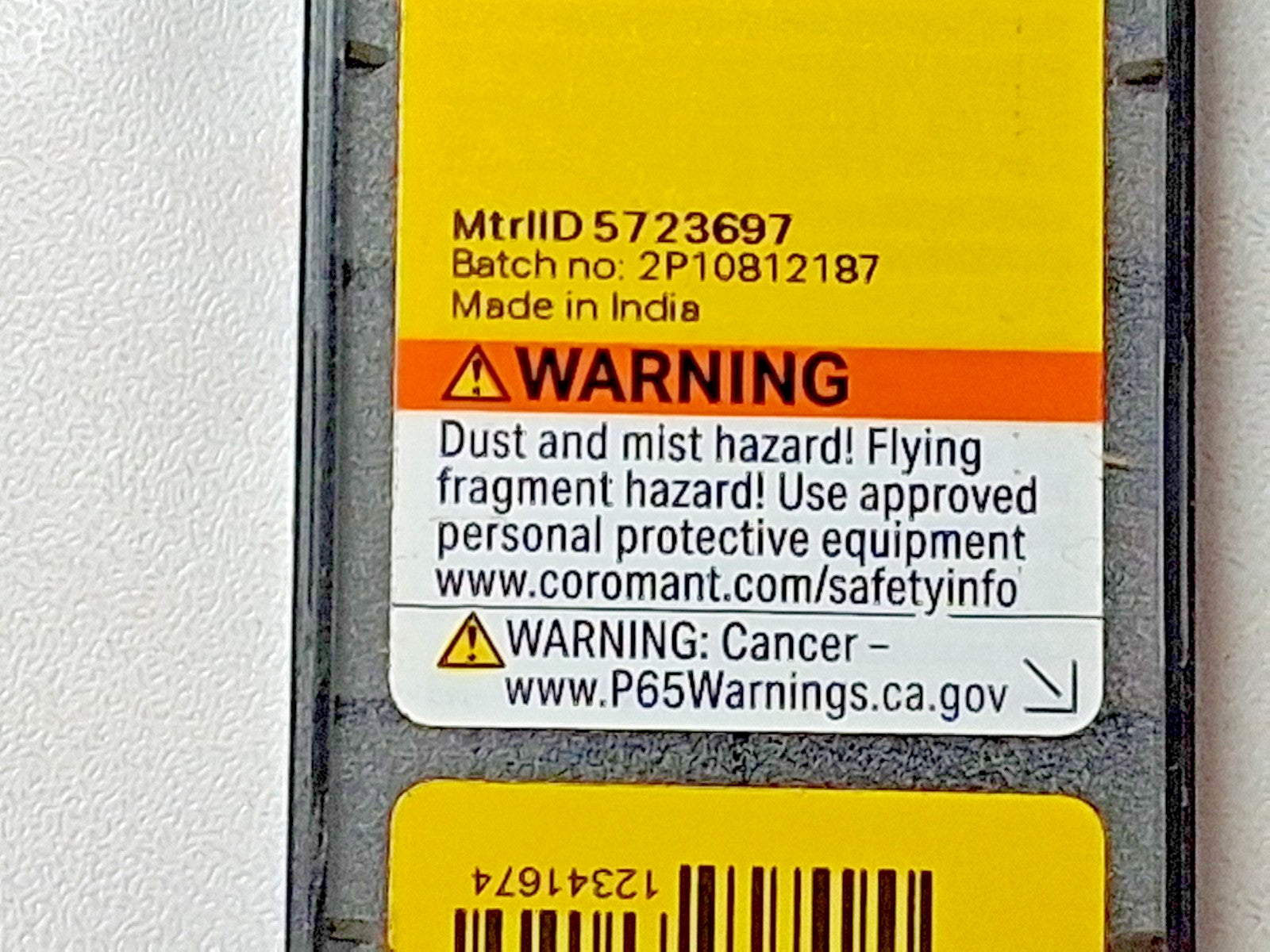

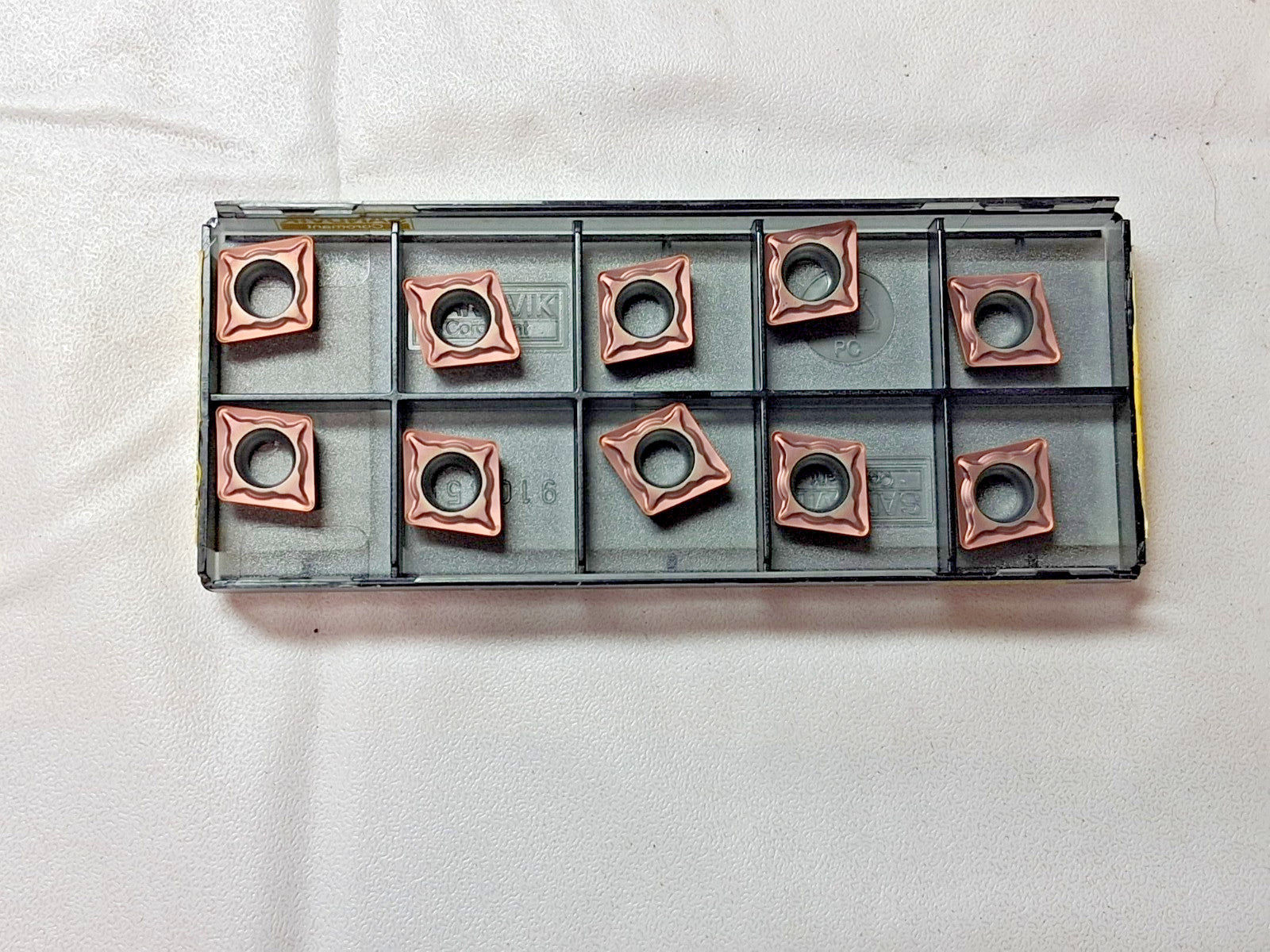

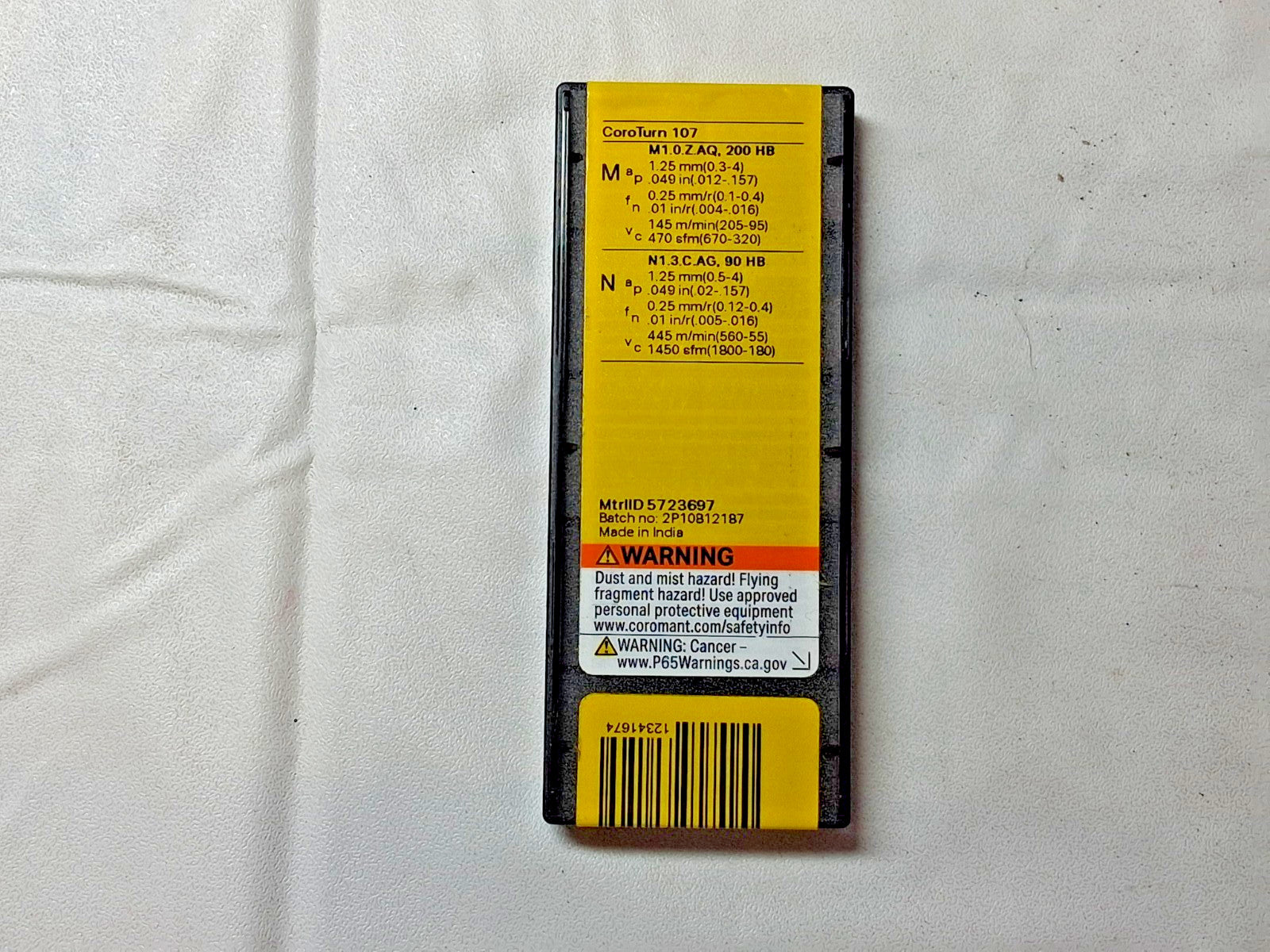

Please review photos, comes as shown.
