SANDVIK 10pc Milling Inserts ANSI R300-0828E-MM 2040 Solid Carbide 5744410

SANDVIK 10pc Milling Inserts ANSI R300-0828E-MM 2040 Solid Carbide 5744410

MSRP: $190

• insert Style R300
• Insert Size 08
• Insert Material Solid Carbide
• Insert Shape Round
• Manufacturer Grade 2040
• Corner Radius (Decimal Inch) 0.1575
• Corner Radius (mm) 4.00
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.1094
• Thickness (mm) 2.78
• Coating/Finish TiN; TiCrN; Al2O3
• Insert Size Code 0828
• Material Grade P45; S30; M40
• Thickness (Inch) 7/64
• Inscribed Circle (Decimal Inch) 0.3150
• Inscribed Circle (mm) 8.00
• Thickness Range (Decimal Inch) 0.1000 to 0.1250
• Inscribed Circle Range (Decimal Inch) 0.3000 to 0.3500
• Length Range (Decimal Inch) 0.0000 to 0.3200
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.1575
• Maximum Depth of Cut (mm) 4.00
• Series R300
• Coating Process CVD
• Hole Diameter (Mm) ( - 0 Decimals) 0.11
• Hole Diameter (Decimal Inch) 0.1102
• Rake Positive
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Ansi Code R300-0828E-MM 2040
• Iso Code R300-0828E-MM 2040
• Standards ISO; ANSI
• Convex Radius (Decimal Inch) 0.1575
• Rake Angle 0
• Cutting Edge Style Rounded
• Manufacturers Catalog Number R300-0828E-MM 2040
• Cutter Series Compatibility A20M; A10K; A12M; R300; A16K
• Chip Breaker MM
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Single
• Included Angle Degree 360
• Width (Decimal Inch - 4 Decimals) 0.3150
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.3150
• Country of Origin UNITED STATES

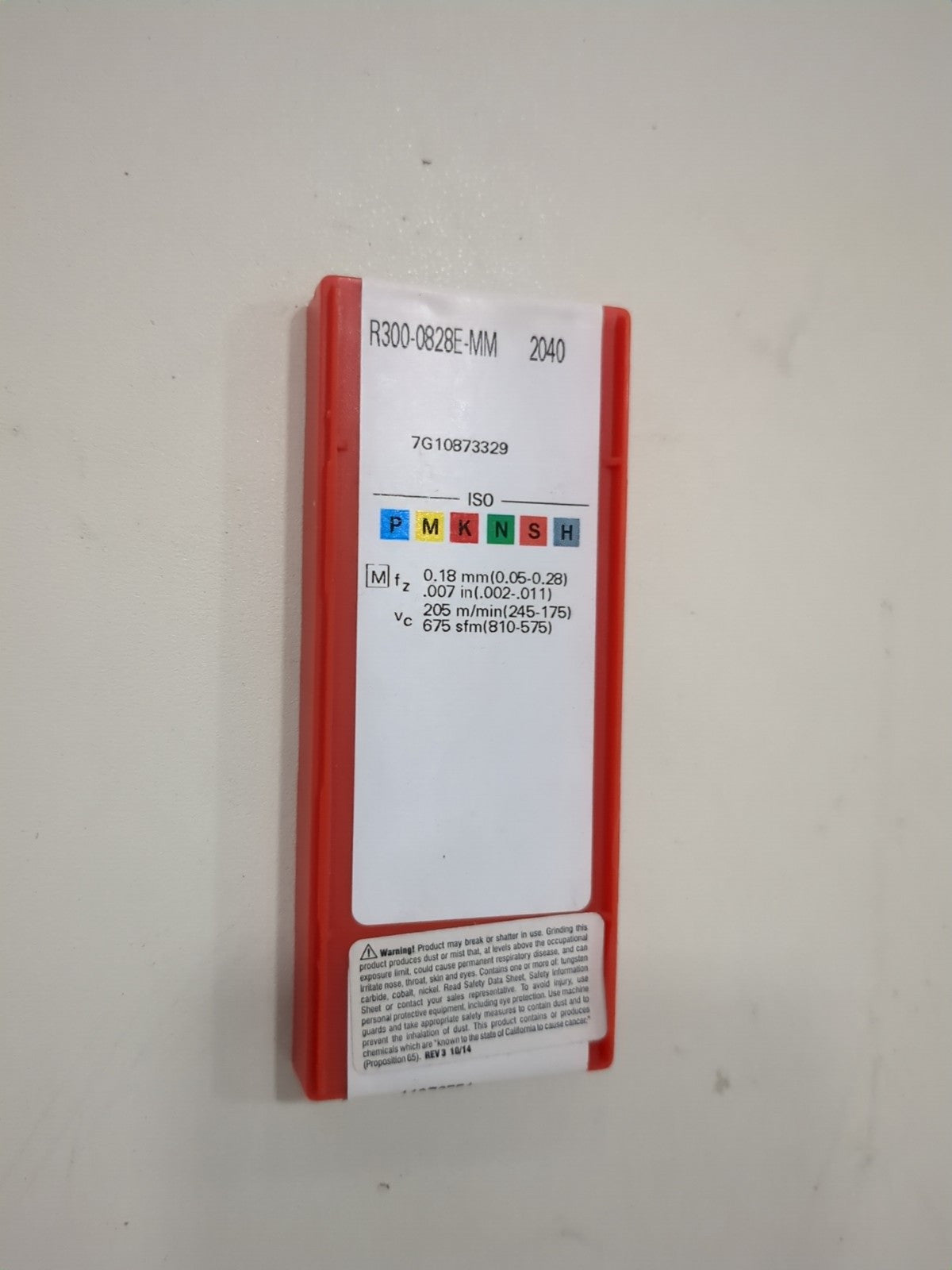

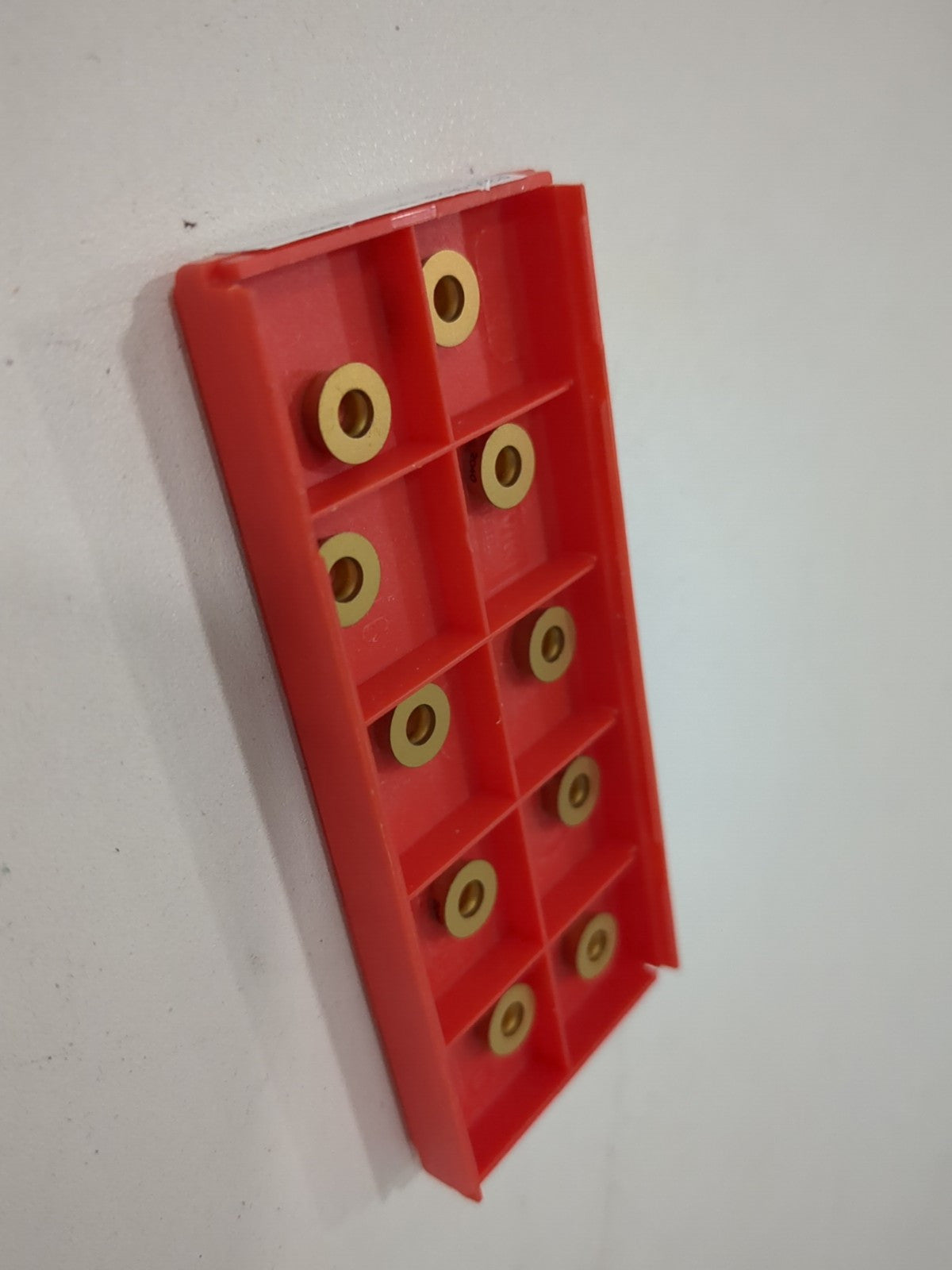

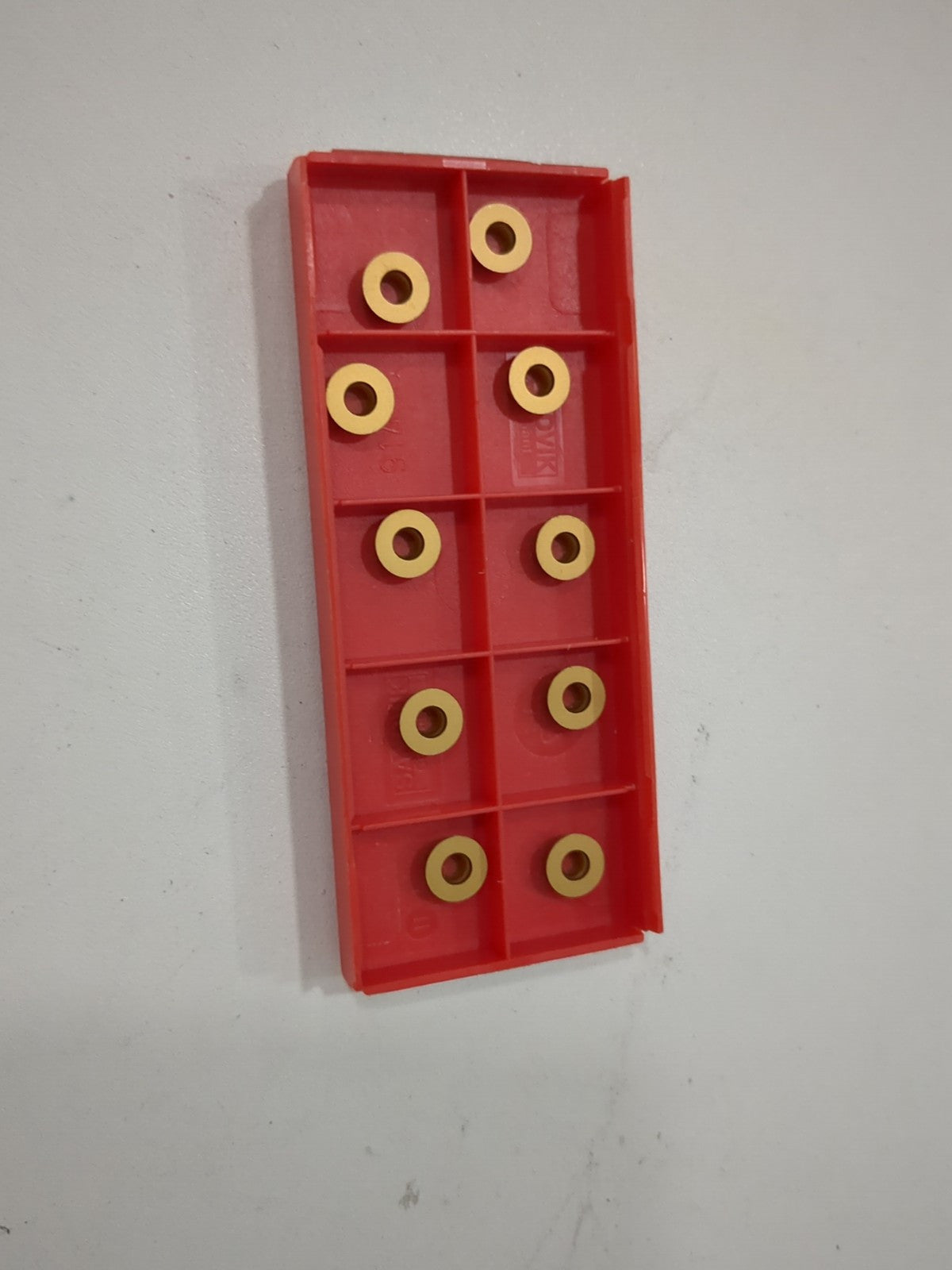

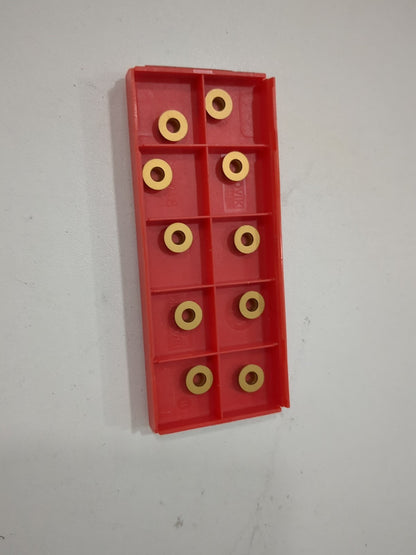

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
