SANDVIK 10pc Milling Inserts ANSI 600-1252M-ML S40T Solid Carbide 7082920

SANDVIK 10pc Milling Inserts ANSI 600-1252M-ML S40T Solid Carbide 7082920

MSRP: $155

• Insert Style 600
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Round
• Manufacturer Grade S40T
• Corner Radius (Decimal Inch) 0.2362
• Corner Radius (mm) 6.00
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.2047
• Thickness (mm) 5.20
• Coating/Finish TiN; TiCrN; Al2O3
• Insert Size Code 1252
• Material Grade S35; M40
• Inscribed Circle (Decimal Inch) 0.4724
• Inscribed Circle (mm) 12.00
• Thickness Range (Decimal Inch) 0.2000 to 0.2200
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.4500 to 0.5000
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.2362
• Series 600
• Coating Process CVD
• Hole Diameter (Decimal Inch) 0.1772
• Rake Positive
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium
• Primary Workpiece Material Code S; M
• Ansi Code 600-1252M-ML S40T
• Iso Code 600-1252M-ML S40T
• Standards ISO; ANSI
• Convex Radius (Decimal Inch) 0.2362
• Rake Angle 20
• Cutting Edge Style Rounded
• Manufacturers Catalog Number 600-1252M-ML S40T
• Cutter Series Compatibility 600
• Chip Breaker ML
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Single
• Included Angle Degree 360
• Width (Decimal Inch - 4 Decimals) 0.4724
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.4724
• Country of Origin UNITED STATES

(Description).

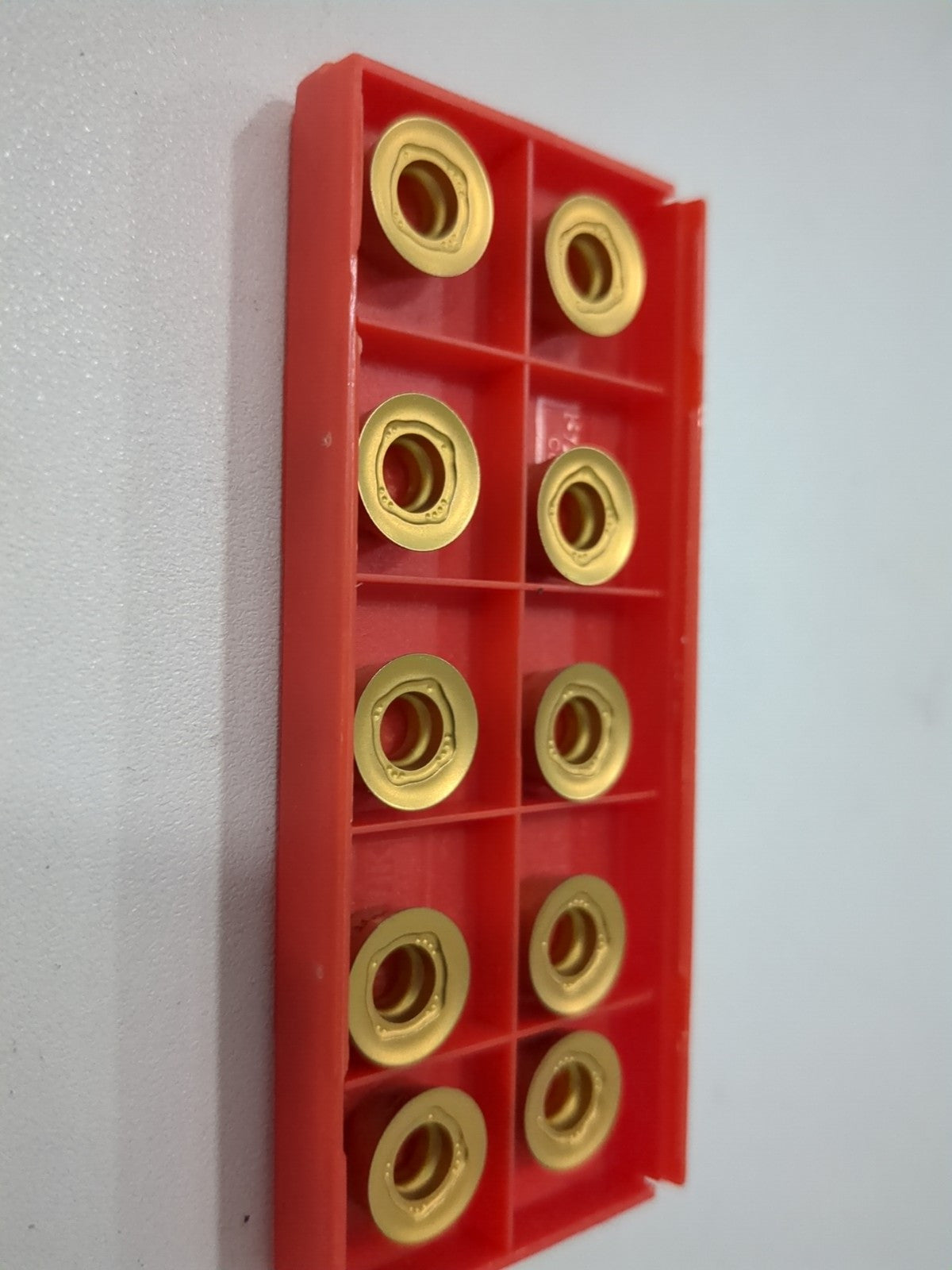

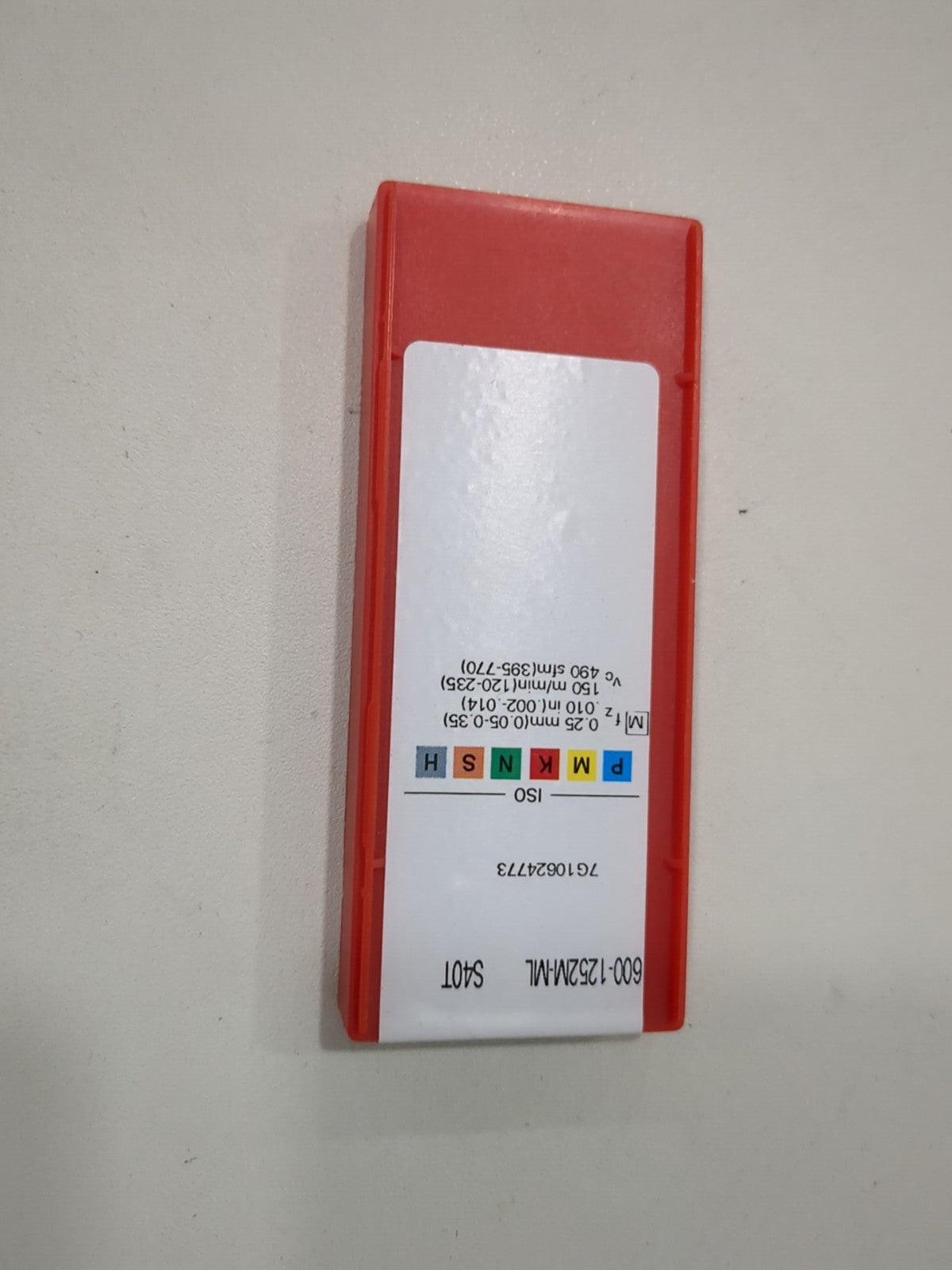

Please review photos, comes as shown.
