ROBBJACK Square End Mill: 3/16" Dia 3fl solid carbide S1-301-06

ROBBJACK Square End Mill: 3/16" Dia 3fl solid carbide S1-301-06

MSRP: $30

• Mill Diameter (Decimal Inch) 0.1875
• Mill Diameter (Inch) 3/16
• Number Of Flutes 3
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.3750
• Length of Cut (Inch) 3/8
• Shank Diameter (Inch) 3/16
• Shank Diameter (Decimal Inch) 0.1875
• Overall Length (Decimal Inch) 2.0000
• Overall Length (Inch) 2
• Single Or Double End Single
• Coating/Finish Family Bright/Uncoated
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous
• Primary Workpiece Material Code N
• Coating/Finish Bright/Uncoated
• Variable Helix No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight
• Material Grade C2
• Length Type Stub
• Mill Diameter Tolerance +0.0000/-0.0020 in
• Shank Diameter Tolerance -0.0001/-0.0002 in
• Overall Length Tolerance +0.0600/-0.0600 in
• Series S1-301
• System Of Measurement Fractional Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # S1-301-06

Robbjack's Square End Mill is a high-quality cutting tool designed for precision machining. With a diameter of 3/16", this solid carbide mill features a 3-flute design for efficient material removal and a square end type for clean, sharp corners. The overall length and length of cut are unspecified, ensuring versatility in various applications. The shank diameter is not mentioned, leaving it to the buyer's discretion for compatibility with their equipment. This product carries a California Prop 65 warning, and the unit quantity is not specified, with the country of origin being unknown. For specific details, please see the product description or contact the manufacturer directly.

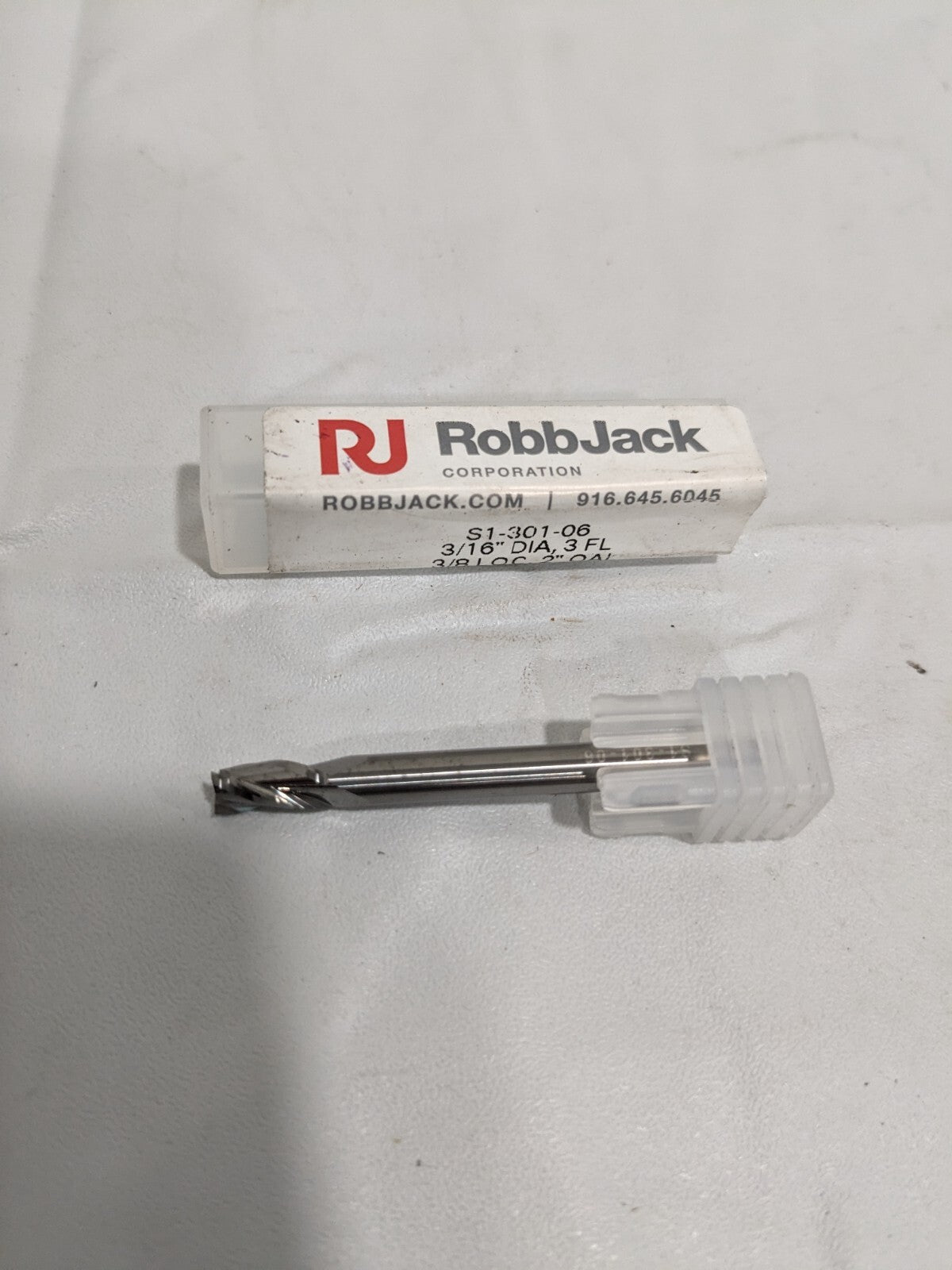

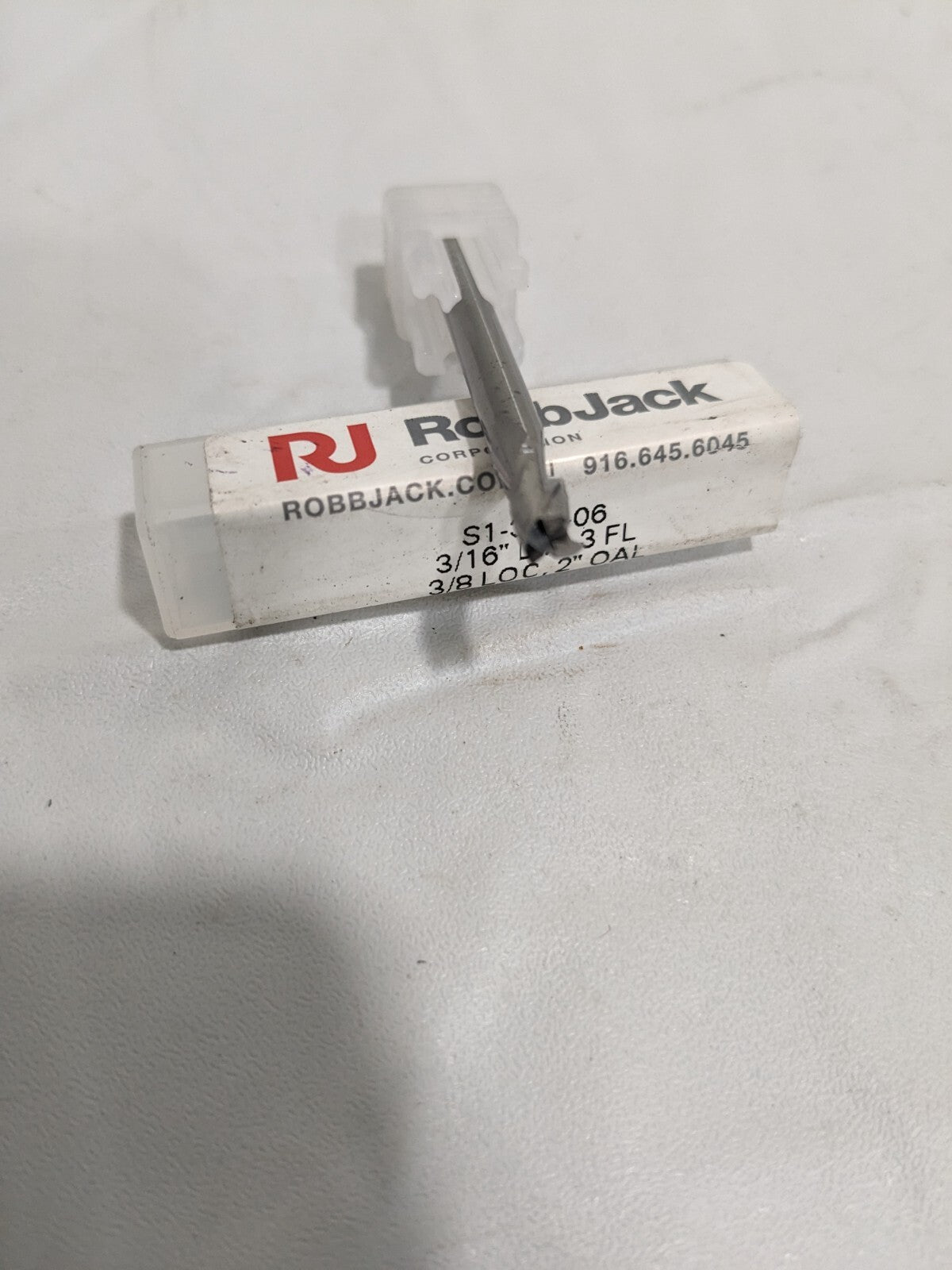

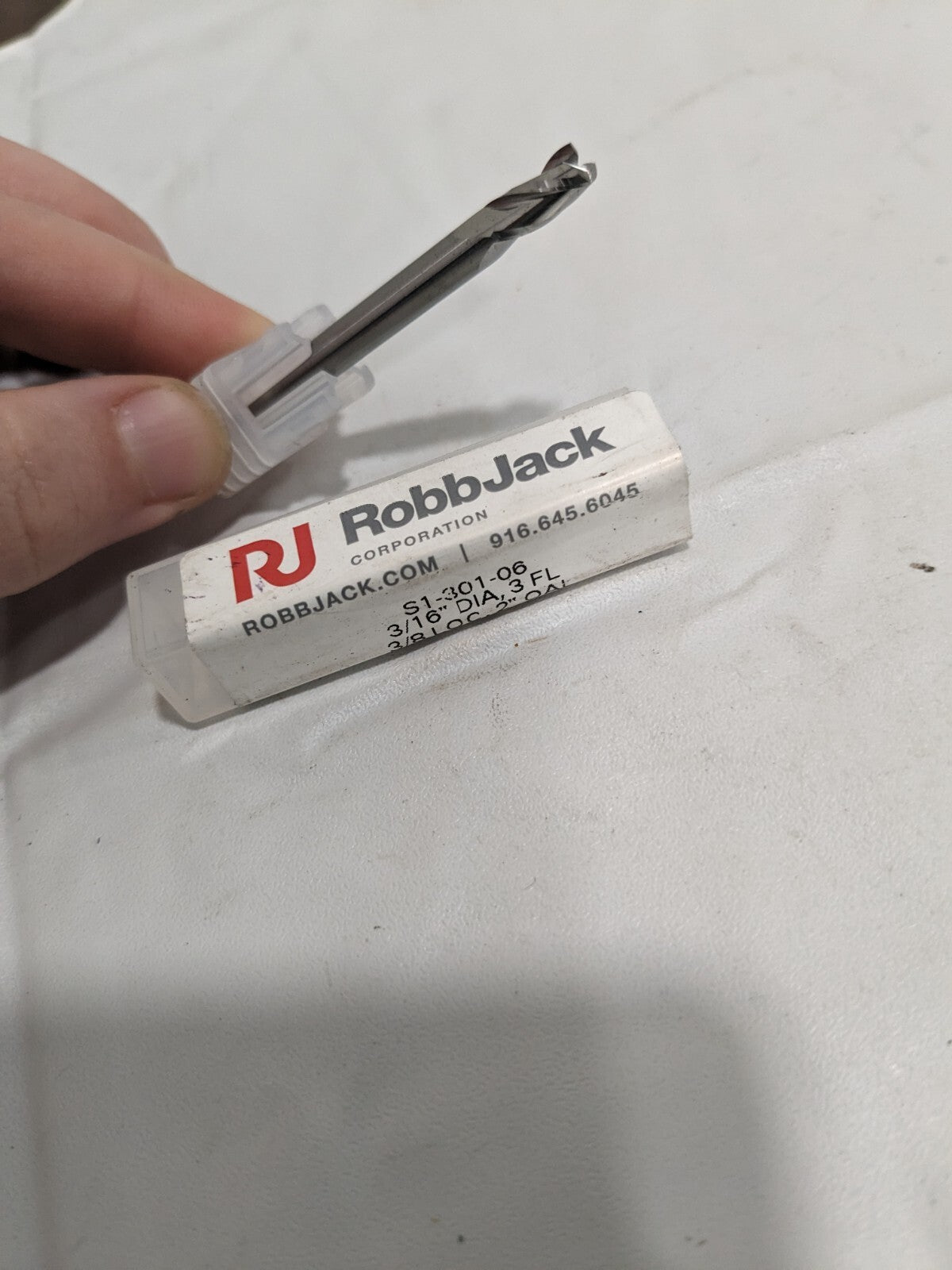

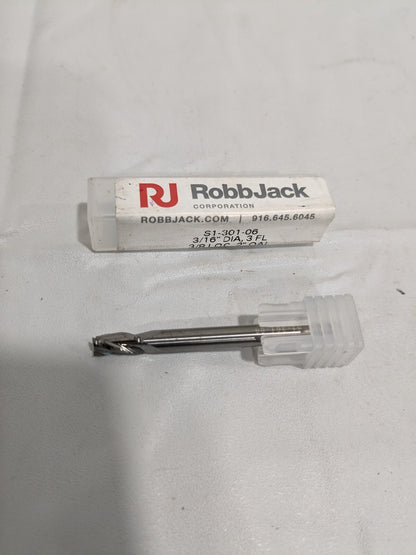

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
