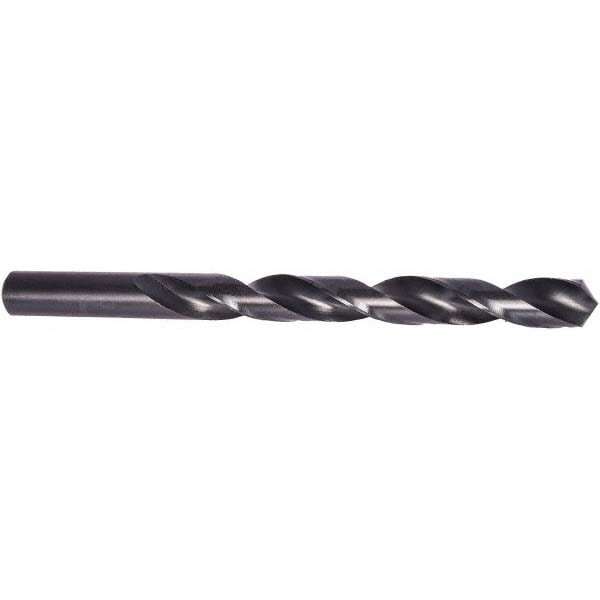

PTD 12pc Jobber Drill: 1.10 mm Dia, 118 deg Point HSS

MSRP: $35

• Drill Bit Size (mm) 1.10
• Drill Bit Size (Decimal Inch) 0.0433
• Drill Bit Material HSS
• Drill Point Angle (Degrees) 118
• Coating/Finish Oxide
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Standard
• Primary Workpiece Material Cast Iron; Steel
• Specification Number DIN 338
• Coolant Through No
• Number of Flutes 2
• Primary Workpiece Material Code P; S; K; M; N
• Shank Diameter (Decimal Inch) 0.5156
• Overall Length (mm) 36.00
• Overall Length (Decimal Inch) 1.4173
• Spiral Type Regular
• Flute Length (mm) 14.00
• Flute Length (Decimal Inch) 0.5512
• Proprietary Coating/Finish Steam Oxide
• Series 2AB
• Tool Application Drilling
• Flute By Diameter Ratio 13xD
• Shank Diameter (mm) 1.1
• Maximum Drilling Depth (Decimal Inch) 1.3750
• Shank Length (mm) 22
• Shank Length (Decimal Inch) 0.8661
• Number of Flats 0
• Drill Bit Diameter Tolerance h8
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Shank Type Straight
• Tool Performance General Purpose
• Standards ANSI
• Double Margin No
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.0000 - 0.0500
• Drill Bit Size Range (mm) 0.00 - 2.00
• Specification Designation DIN
• UNSPSC Code 23241634

(Description).

Please review photos, comes as shown.
