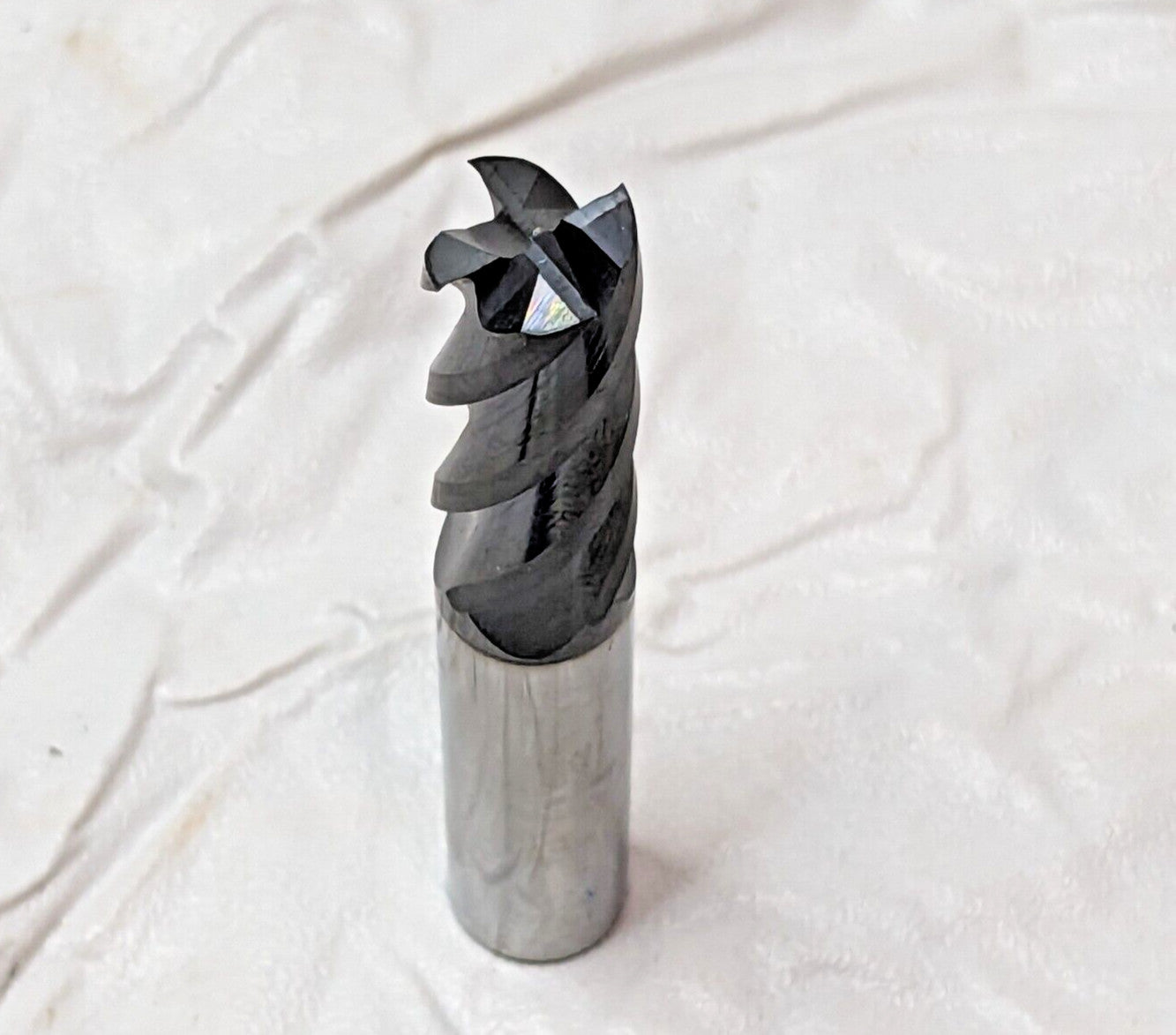

PROMAX Carbide Square End Mill 4FL 3/4" X 3/4" X 1-5/8" X 4" 111-04814

PROMAX
Carbide Square End Mill

MSRP: $150

• Mill Diameter (Inch) 3/4
• Mill Diameter (Decimal Inch) 0.7500
• Number Of Flutes 4
• End Mill Material Solid Carbide
• End Type Single
• Length of Cut (Inch) 1-5/8
• Coating/Finish AlTiN
• Overall Length (Inch) 4
• Shank Diameter (Inch) 3/4
• Centercutting Yes
• Cutting Direction Right Hand
• Variable Helix No
• Helix Angle 40
• Chipbreaker No
• Extended Reach No
• Length Of Cut Range (Decimal Inch) 1.5000 - 2.0000
• Shank Type Square
• Length of Cut (Decimal Inch) 1.625
• Material Grade Micrograin
• Shank Diameter (Decimal Inch) 0.75
• Overall Length (Decimal Inch) 4
• Flute Direction Right Hand
• Flute Type Spiral
• Shank Diameter Tolerance +0.0001/-0.004 in
• Mill Diameter Tolerance -0.002 to +0.000 in
• Series 111
• UNSPSC Code 27112803

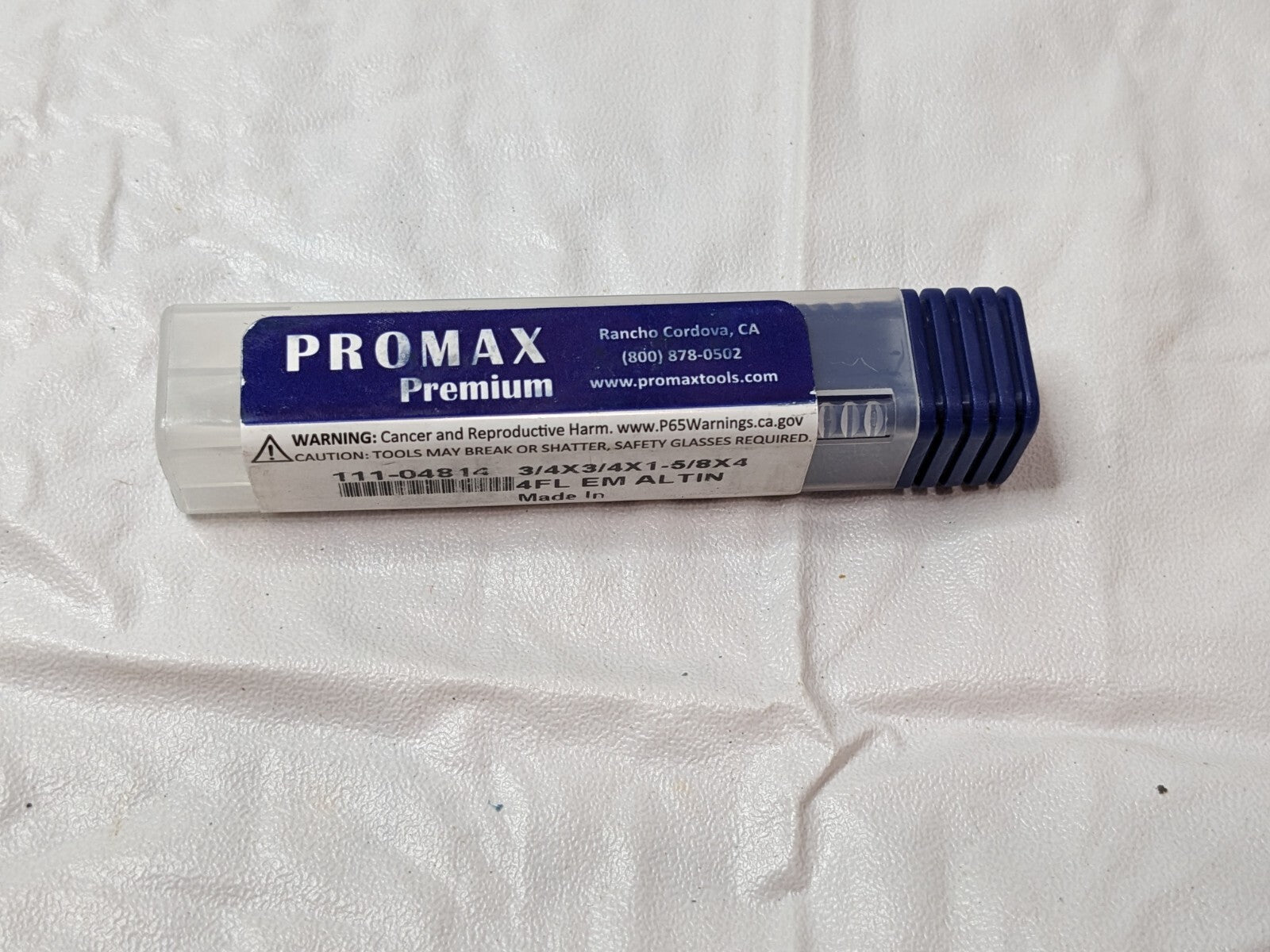

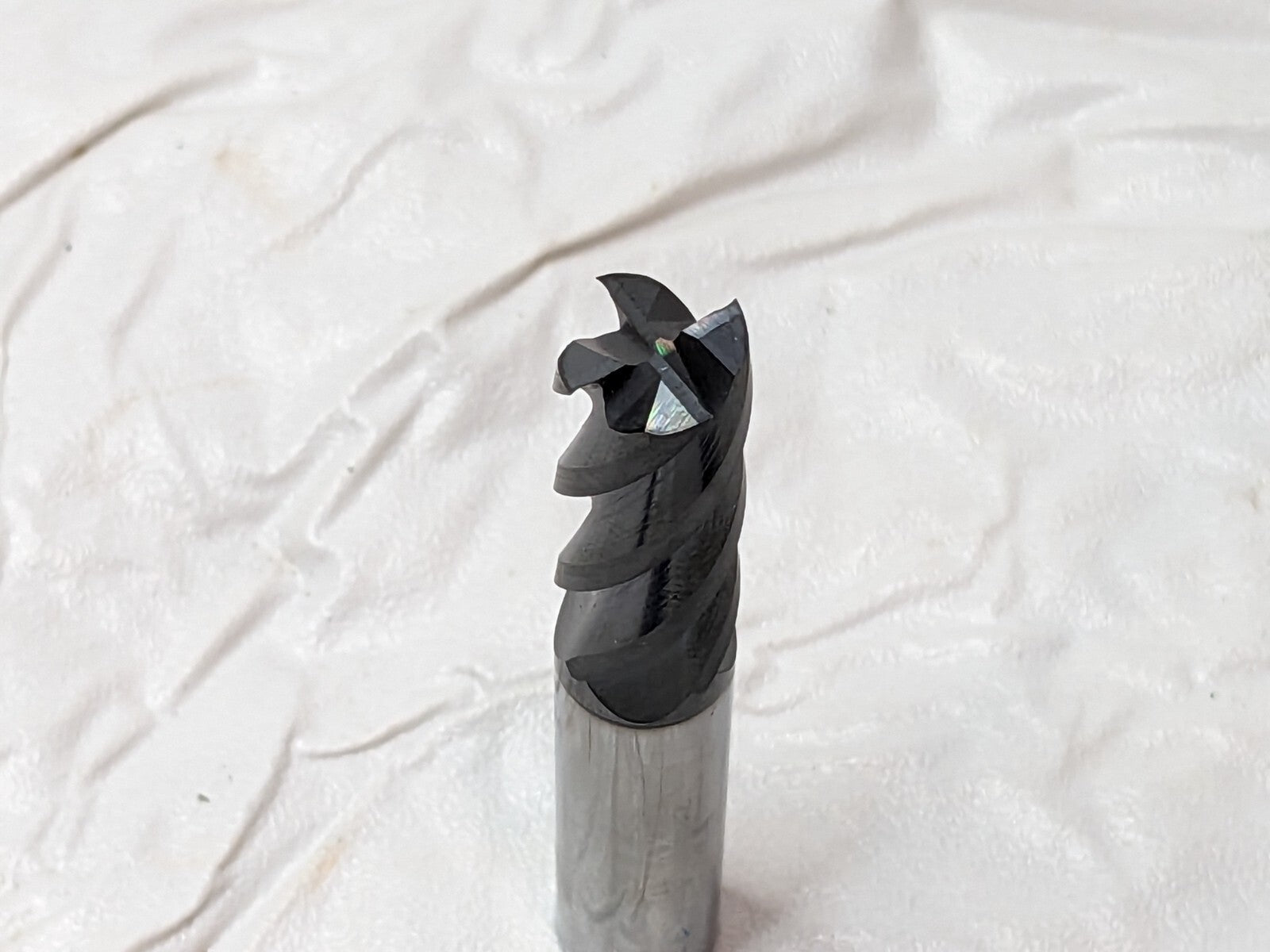

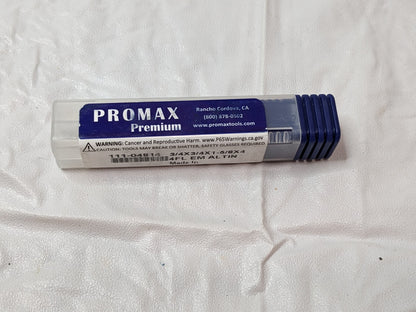

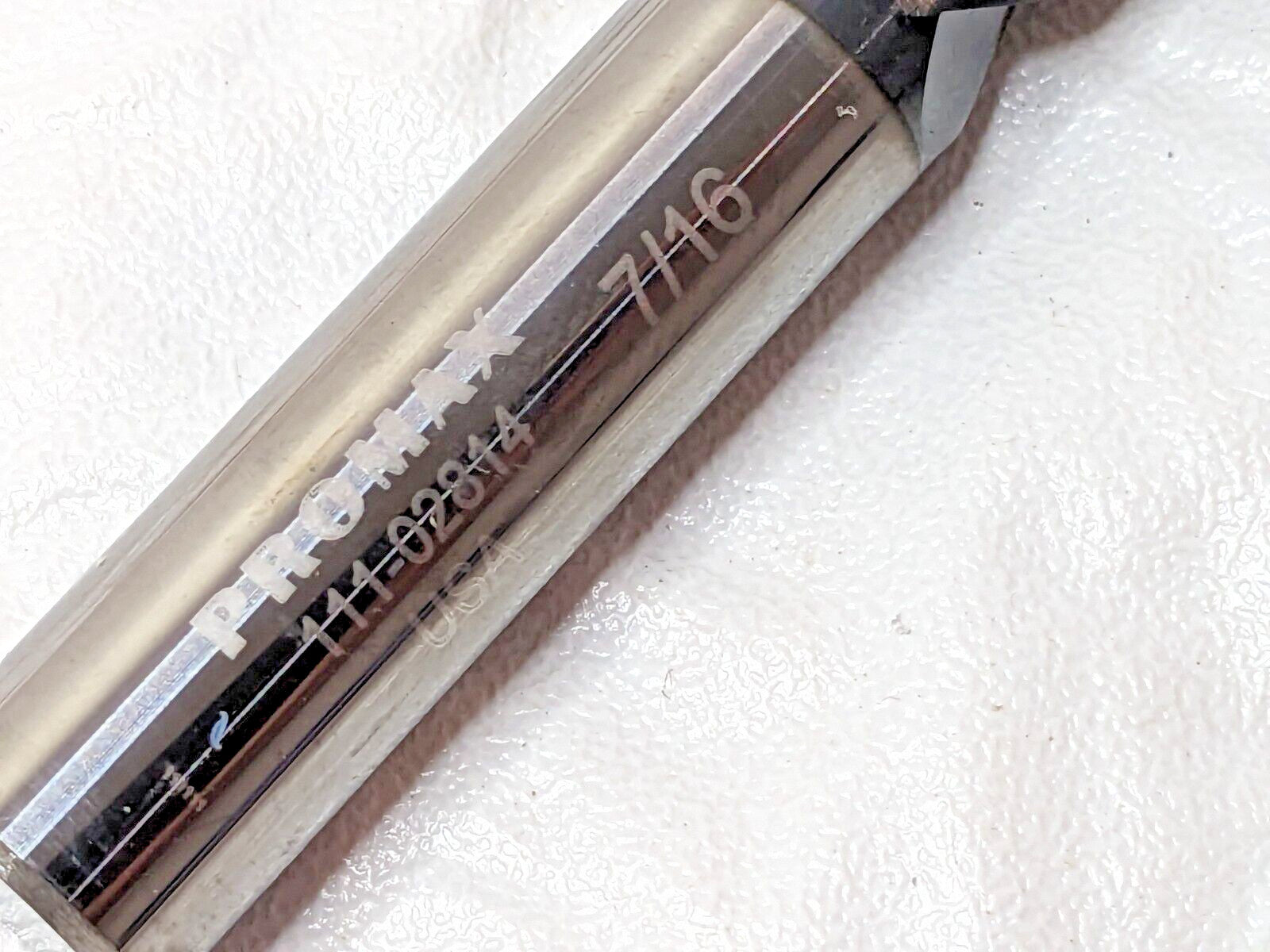

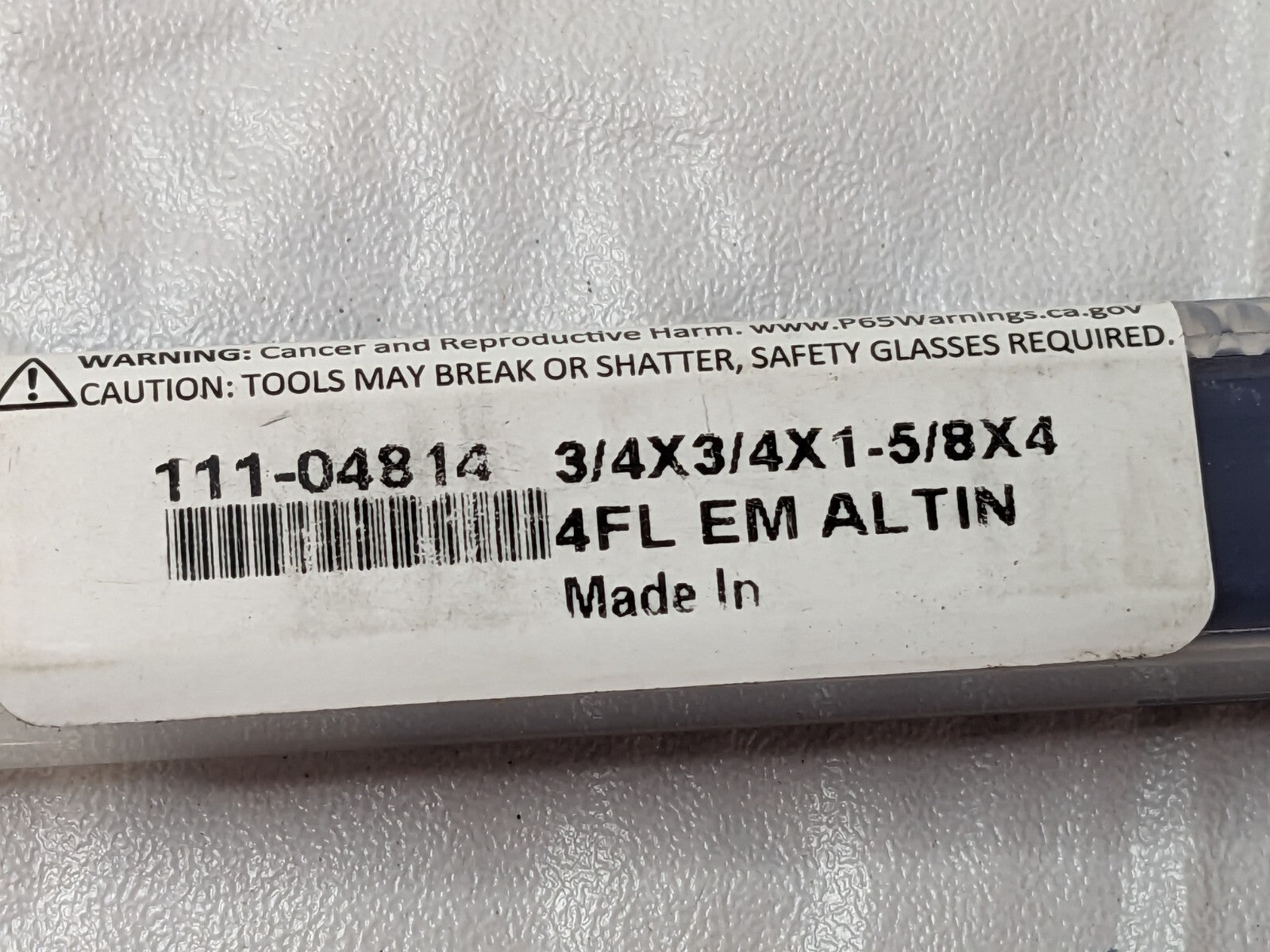

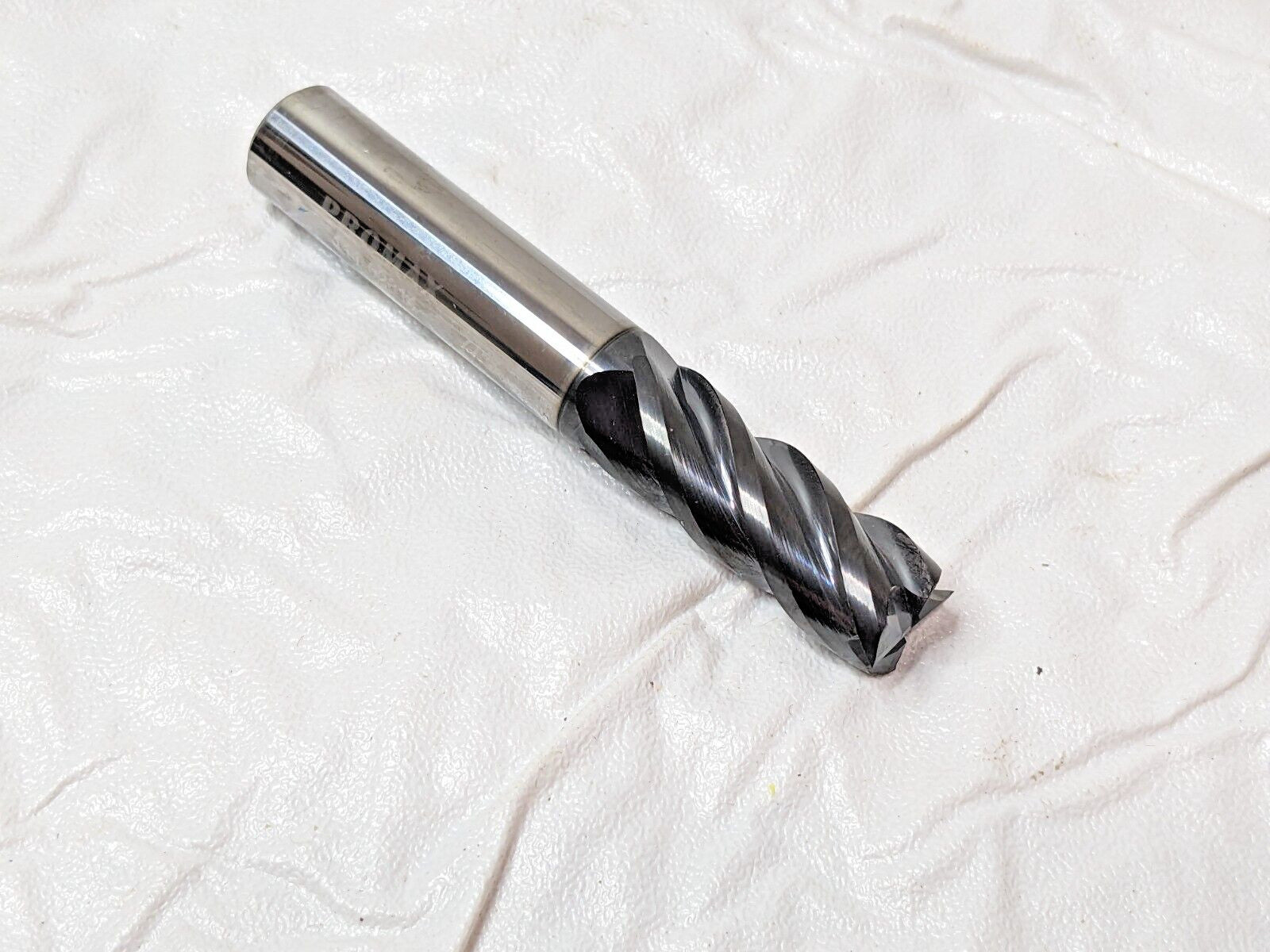

Please review photos, comes as shown.
