PRECISION TWIST DRILL 12ct Jobber Drill: #76, 118 deg Point hss 5999214

MSRP: $40

•

• Drill Bit Size (Wire) #76
• Drill Bit Size (Decimal Inch) 0.0200
• Drill Bit Material High Speed Steel
• Cutting Direction Right Hand
• Coating/Finish Bright/Uncoated
• Number of Flutes 2
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Drill Point Angle (Degrees) 118
• Coolant Through No
• Shank Type Straight-Cylindrical
• Flute Length (Inch) 3/16
• Shank Diameter (Decimal Inch) 0.0200
• Overall Length (Inch) 7/8
• Overall Length (Decimal Inch) 0.875
• Flute Length (Decimal Inch) 0.1875
• Series R10P-R15P-R18P
• Tool Application Drilling
• Flute By Diameter Ratio 9xD
• Maximum Drilling Depth (Decimal Inch) 0.1875
• Maximum Drilling Depth (Inch) 3/16
• Shank Length (Decimal Inch) 0.6875
• Shank Length (Inch) 11/16
• Number of Flats 0
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Tool Performance General Purpose
• Standards ANSI
• Double Margin No
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.0000 - 0.0500
• Specification Designation ANSI
• UNSPSC Code 23241634

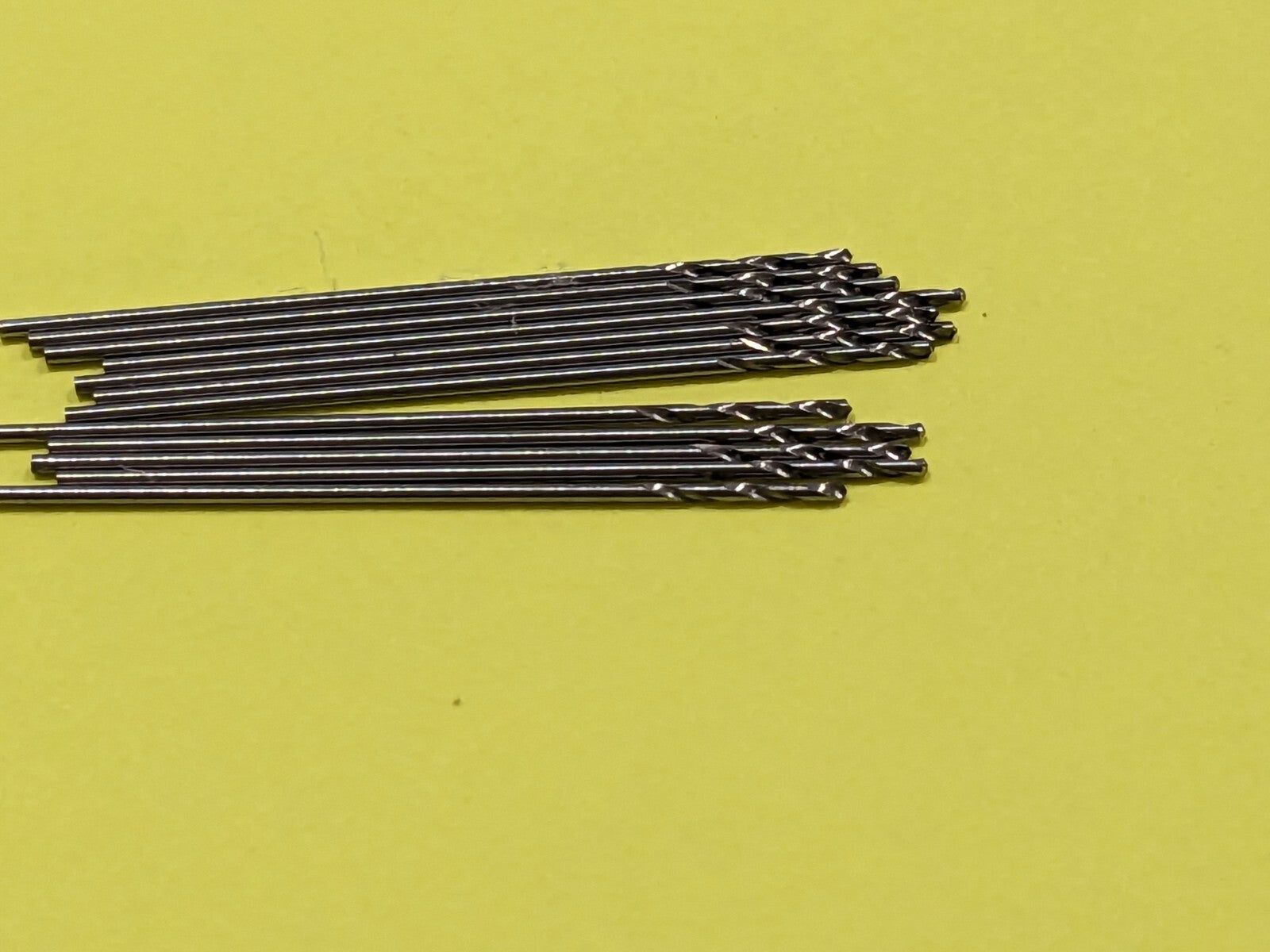

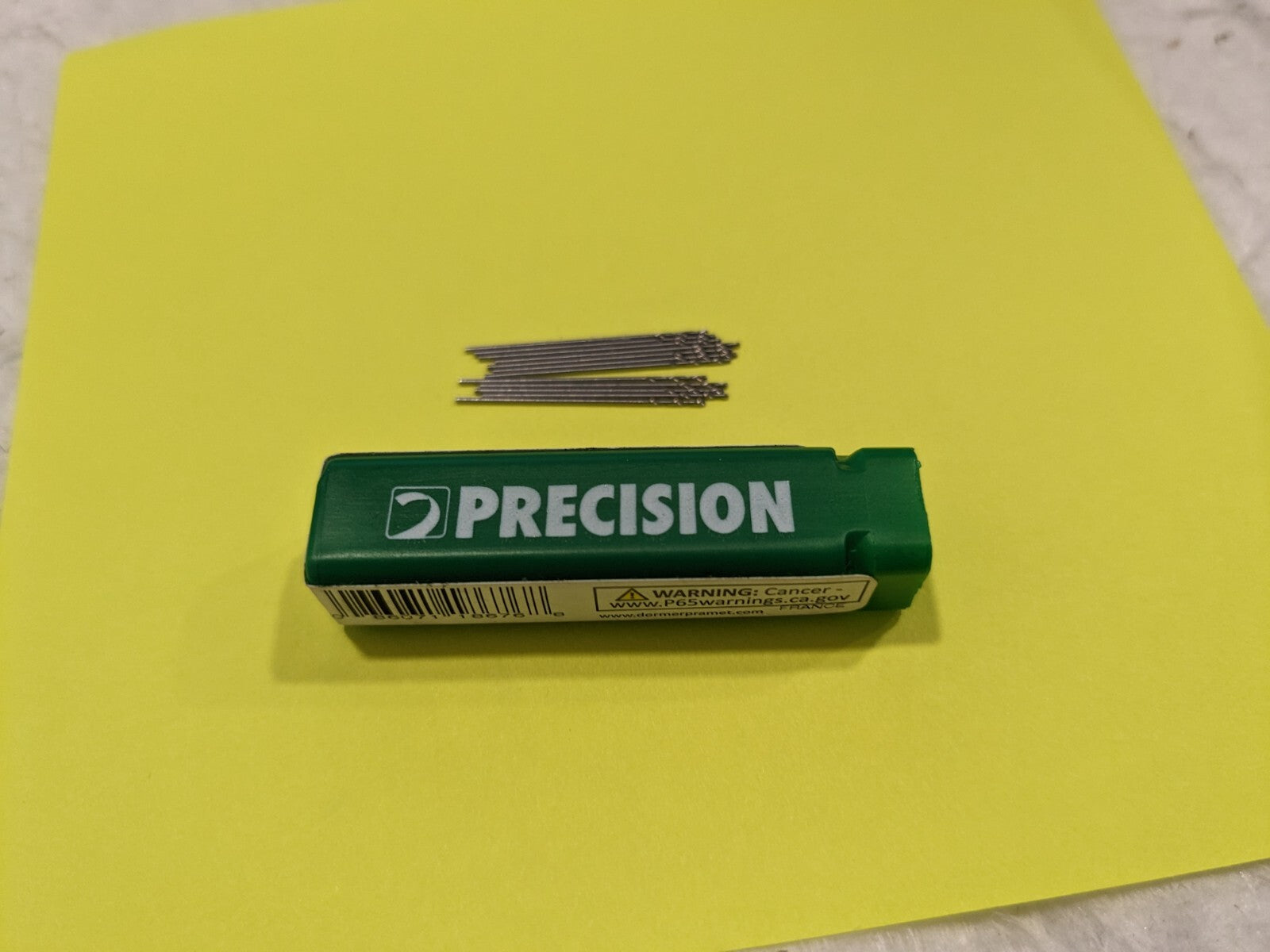

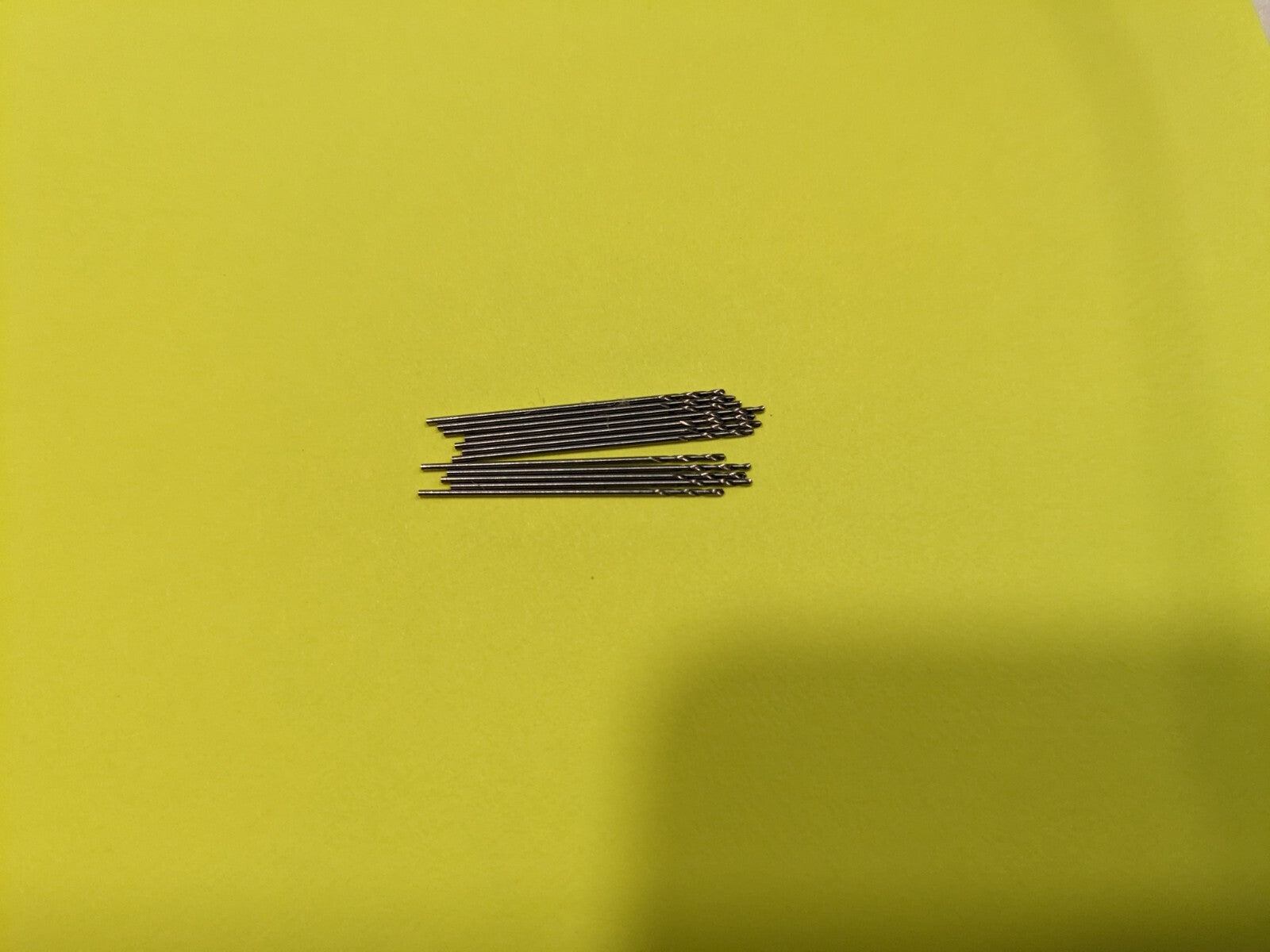

Please review photos, comes as shown.
