Precision Twist Carbide Jobber Length Drill Bit 13/64" Dia 118 deg 6002704

Precision Twist
Carbide Jobber Length Drill Bit

MSRP: $45

• Drill Bit Size (Inch) 13/64
• Drill Bit Size (Decimal Inch) 0.2031
• Drill Bit Material Solid Carbide
• Drill Point Angle (Degrees) 118
• Coating/Finish Bright/Uncoated
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Standard
• Primary Workpiece Material Aluminum & Non-Ferrous
• Coolant Through No
• Number of Flutes 2
• Flute Length (mm) 44.45
• Flute Length (Decimal Inch) 1.7500
• Flute Length (Inch) 1-3/4
• Primary Workpiece Material Code P; H; K; M; N
• Shank Diameter (Decimal Inch) 0.2031
• Overall Length (mm) 76.20
• Overall Length (Inch) 3
• Spiral Type Regular
• Overall Length (Decimal Inch) 3.0000
• Series D33F-D33W-D33L-D33M
• Tool Application Drilling
• Flute By Diameter Ratio 9xD
• Shank Diameter (Inch) 13/64
• Maximum Drilling Depth (Decimal Inch) 1.7500
• Maximum Drilling Depth (Inch) 1-3/4
• Shank Length (Decimal Inch) 1.2500
• Shank Length (Inch) 1-1/4
• Number of Flats 0
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Shank Type Straight
• Tool Performance General Purpose
• Standards ANSI
• Double Margin No
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.2000 - 0.2500

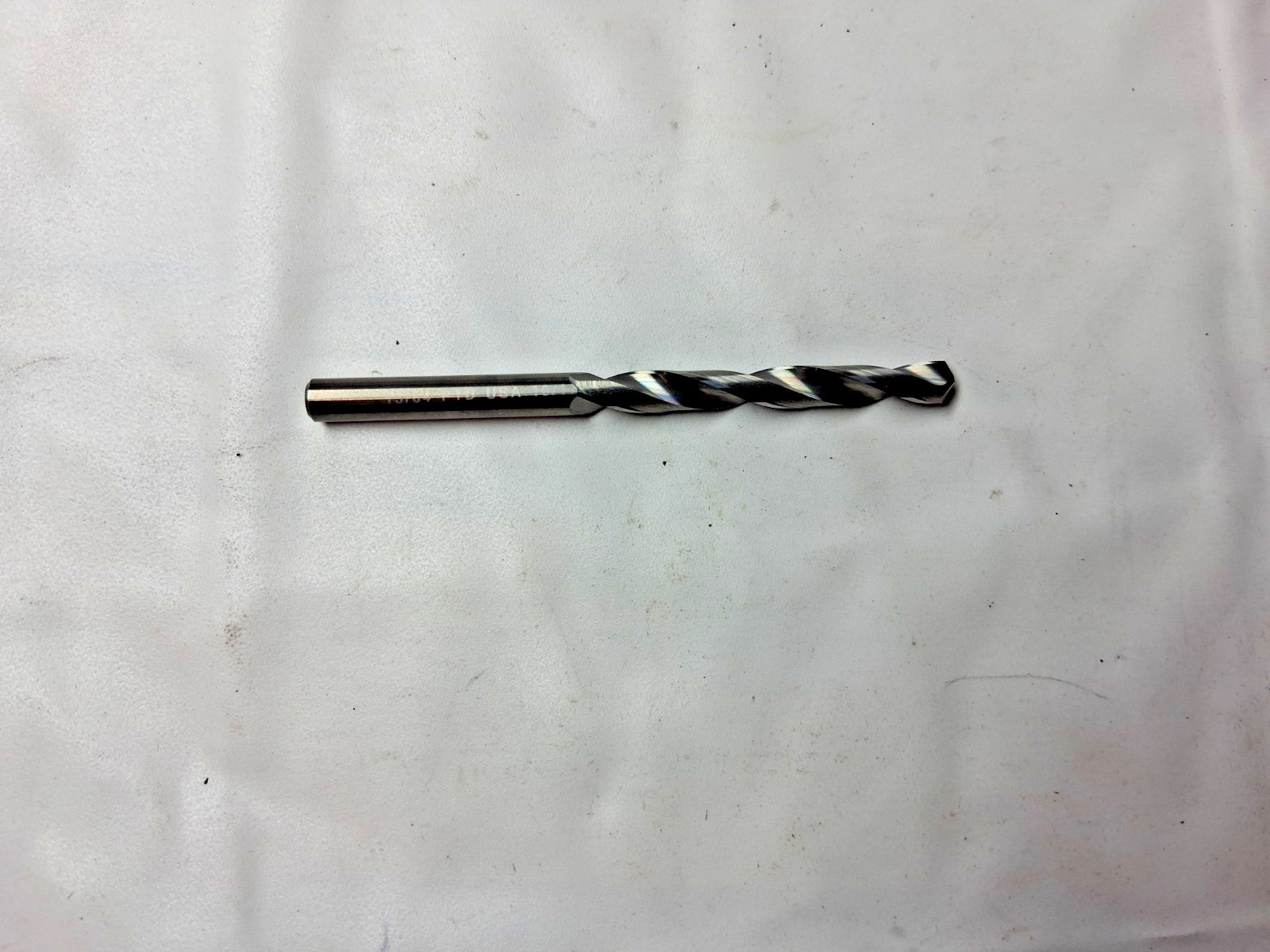

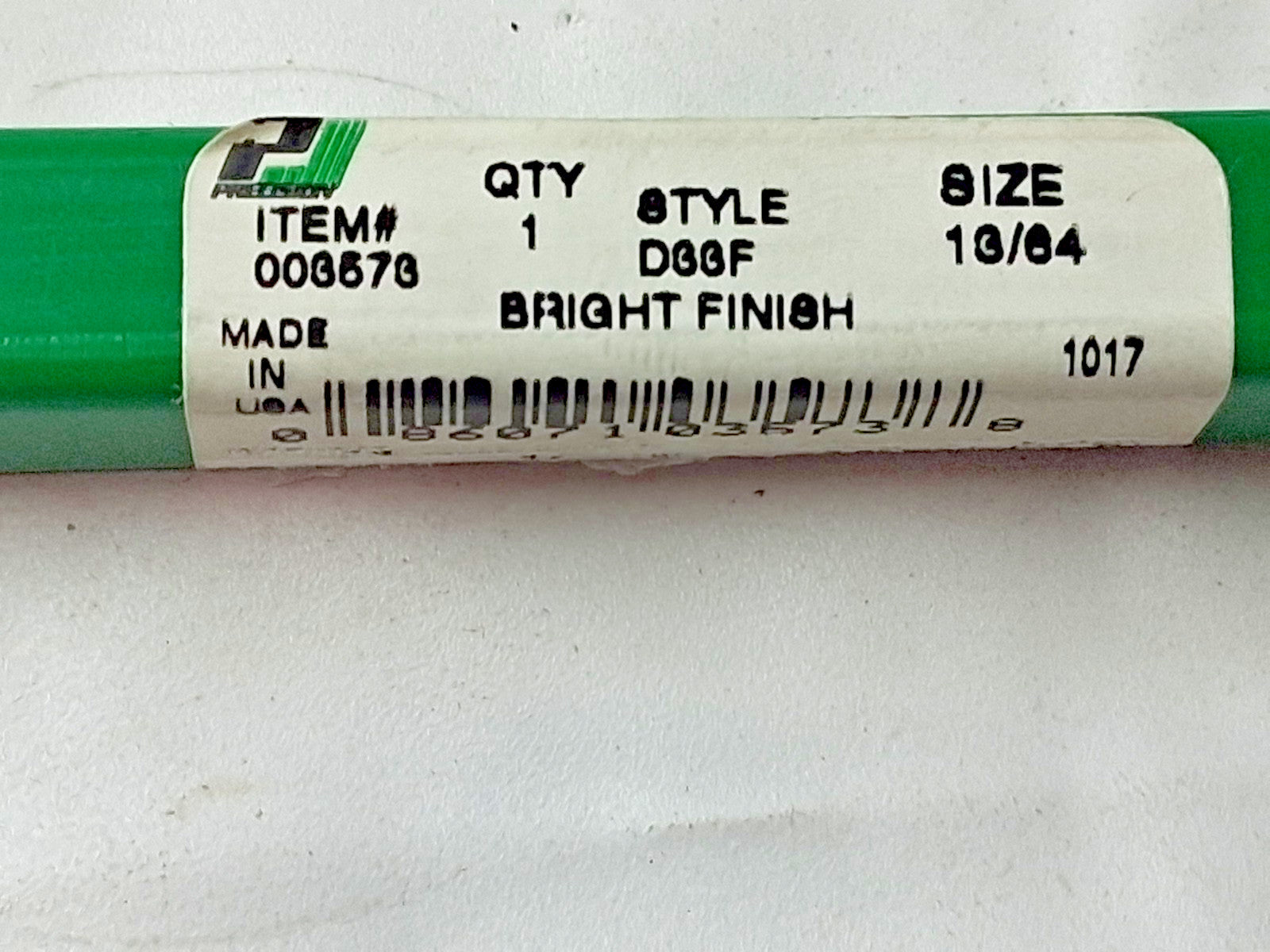

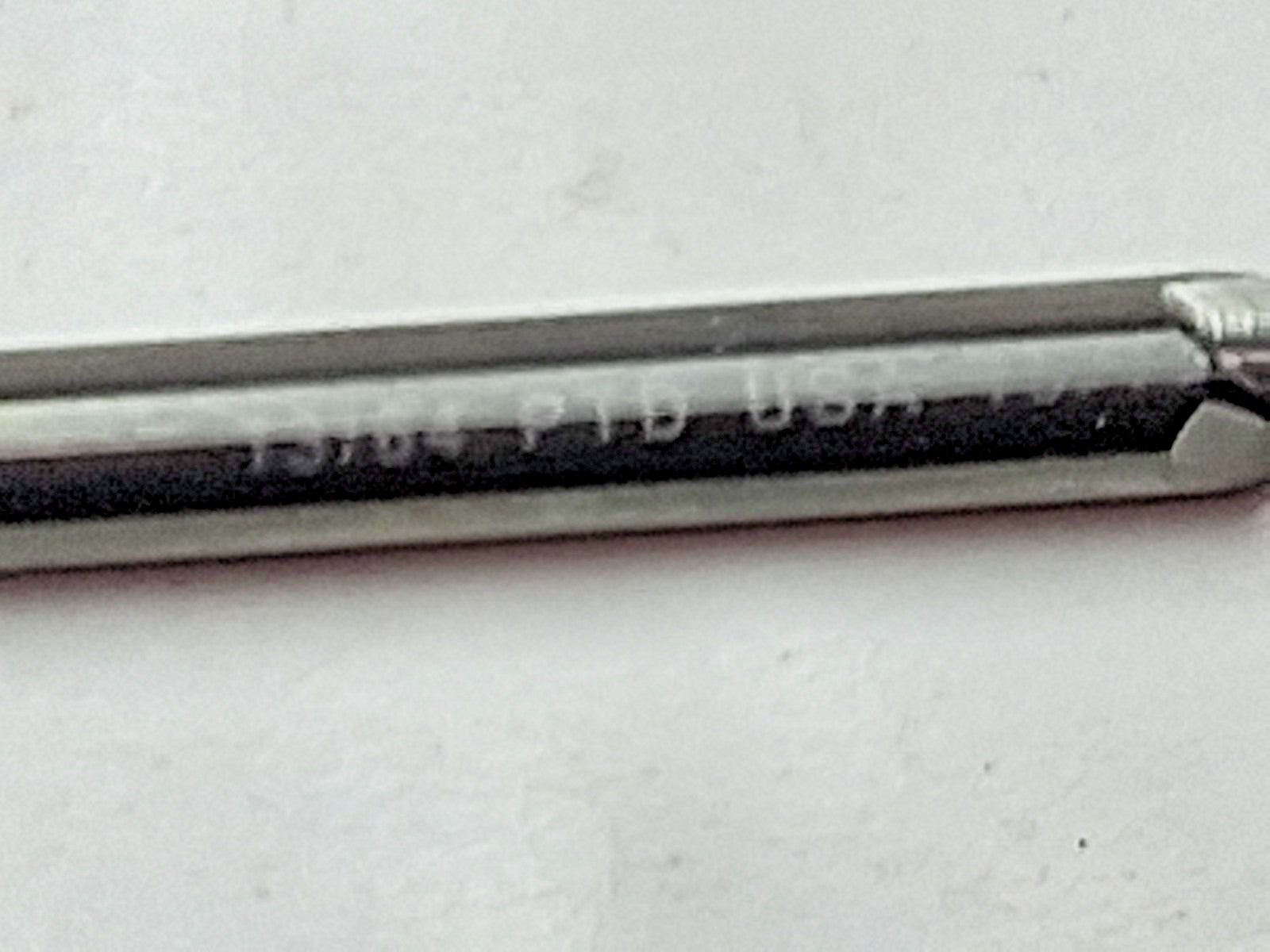

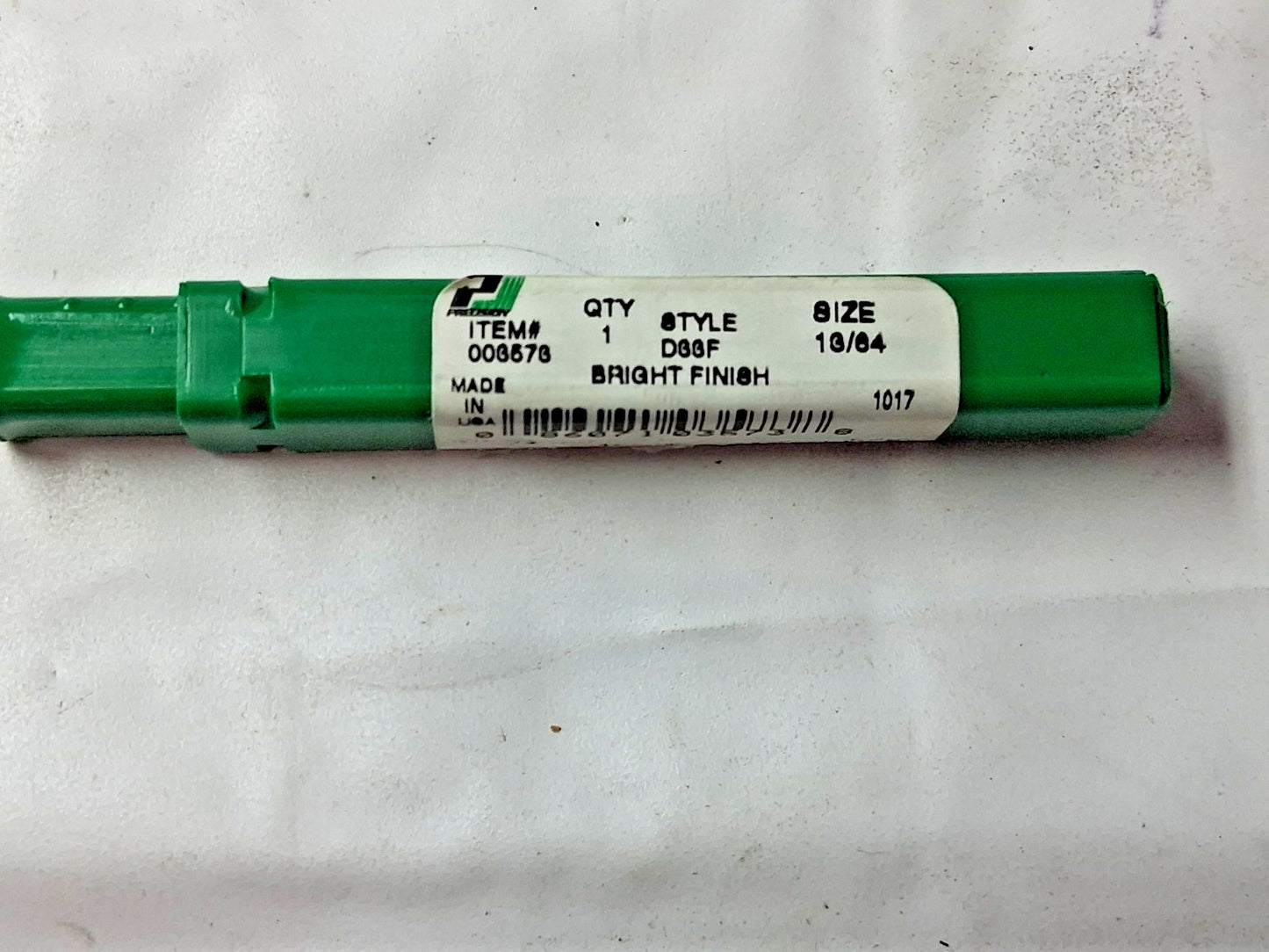

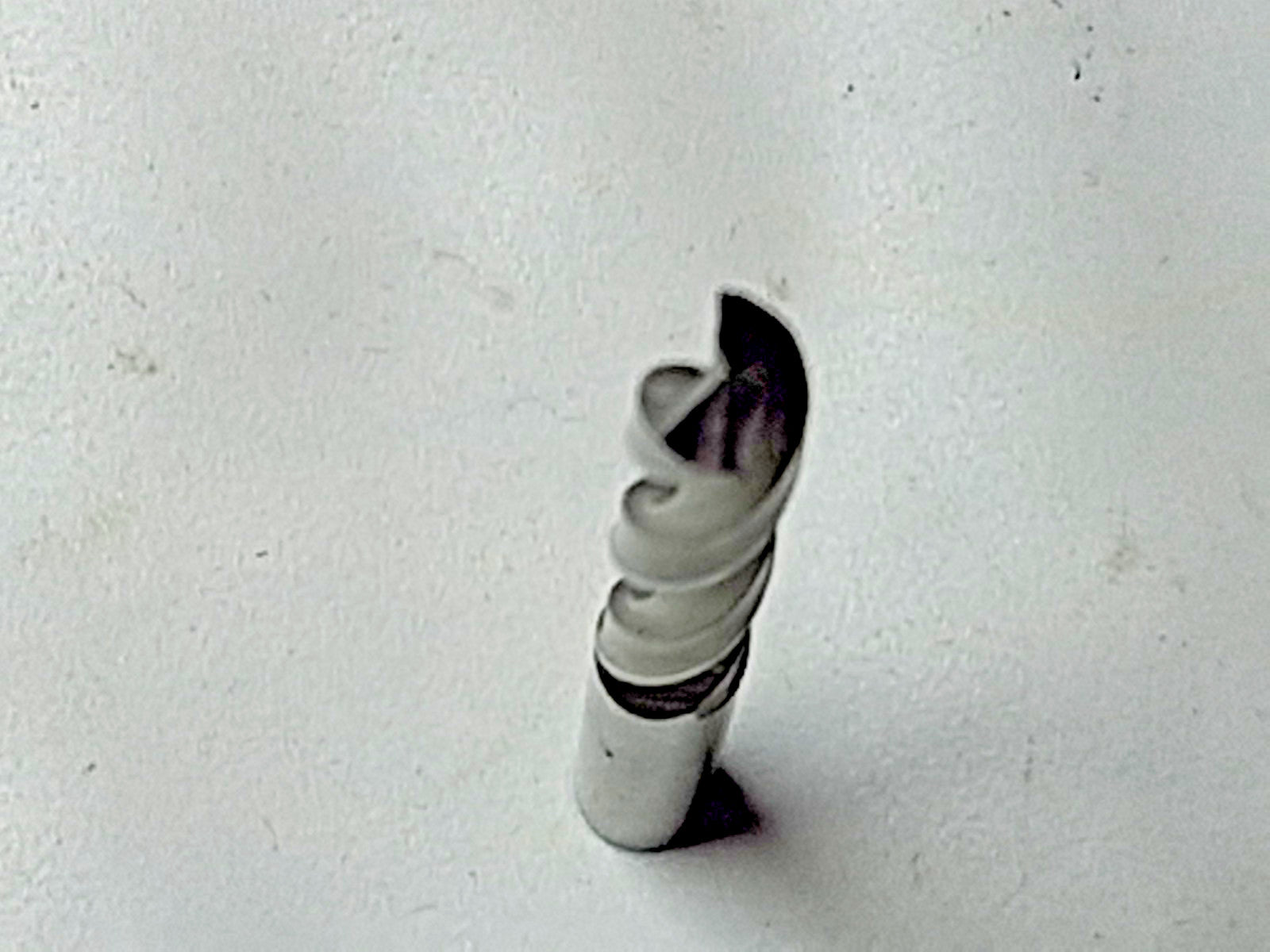

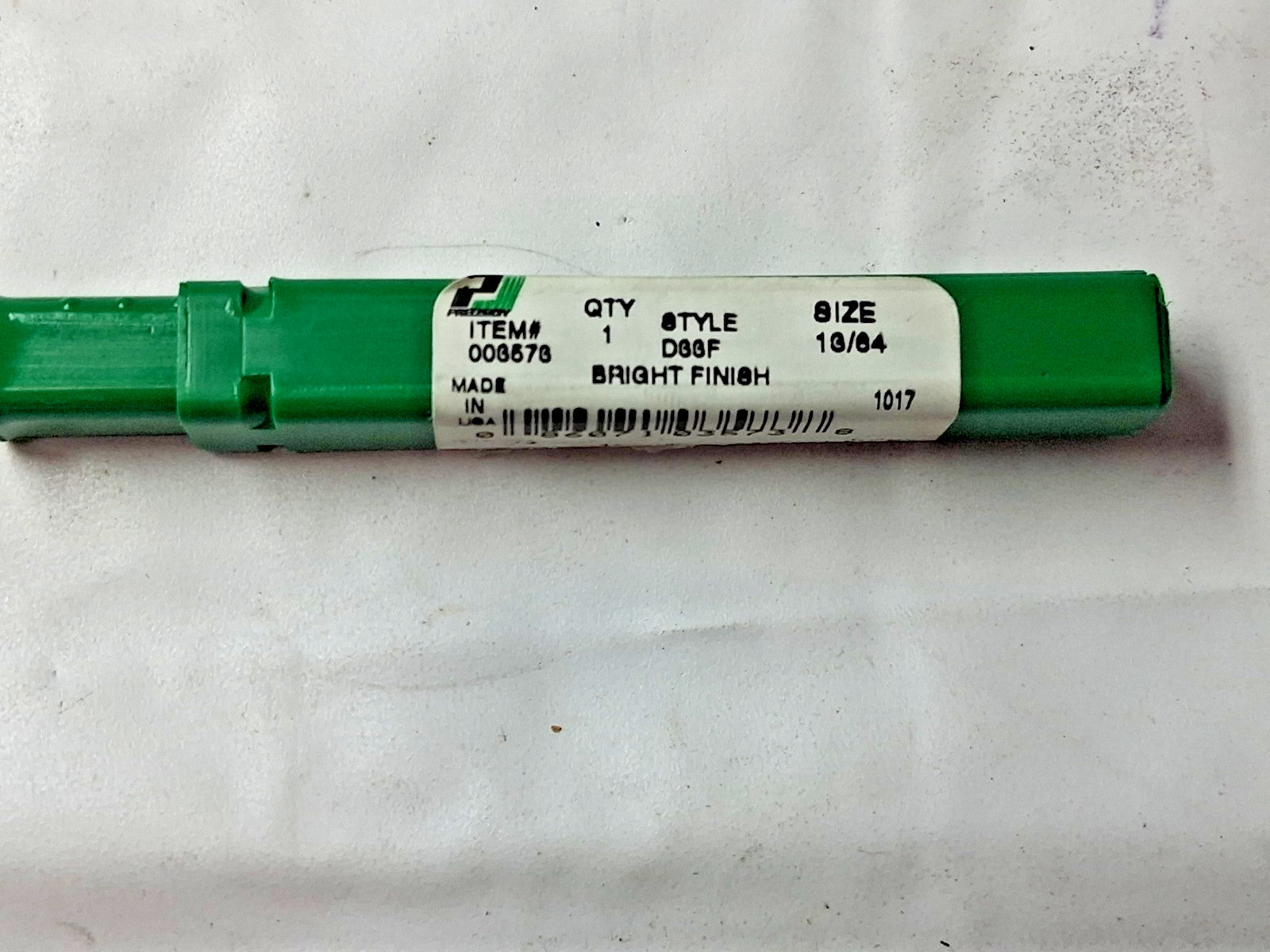

Please review photos, comes as shown.
