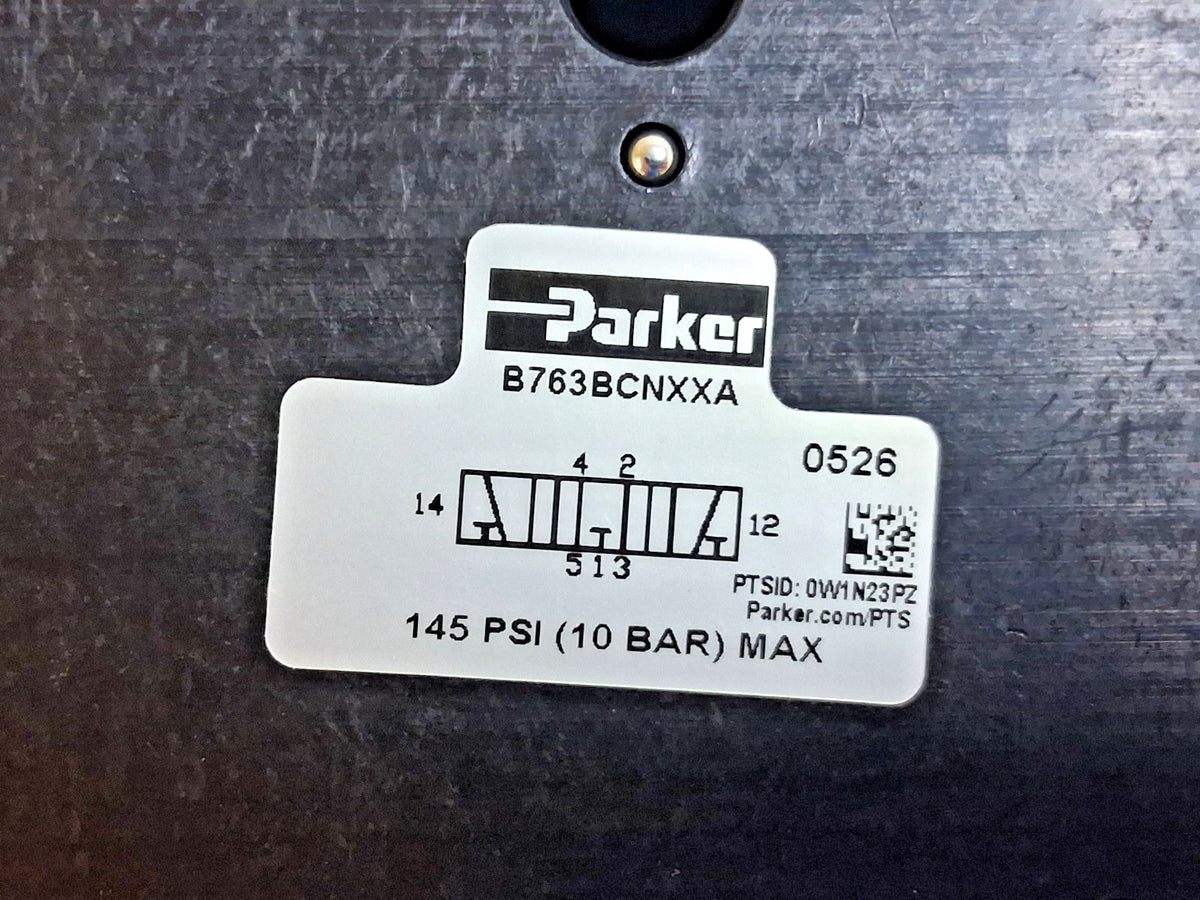

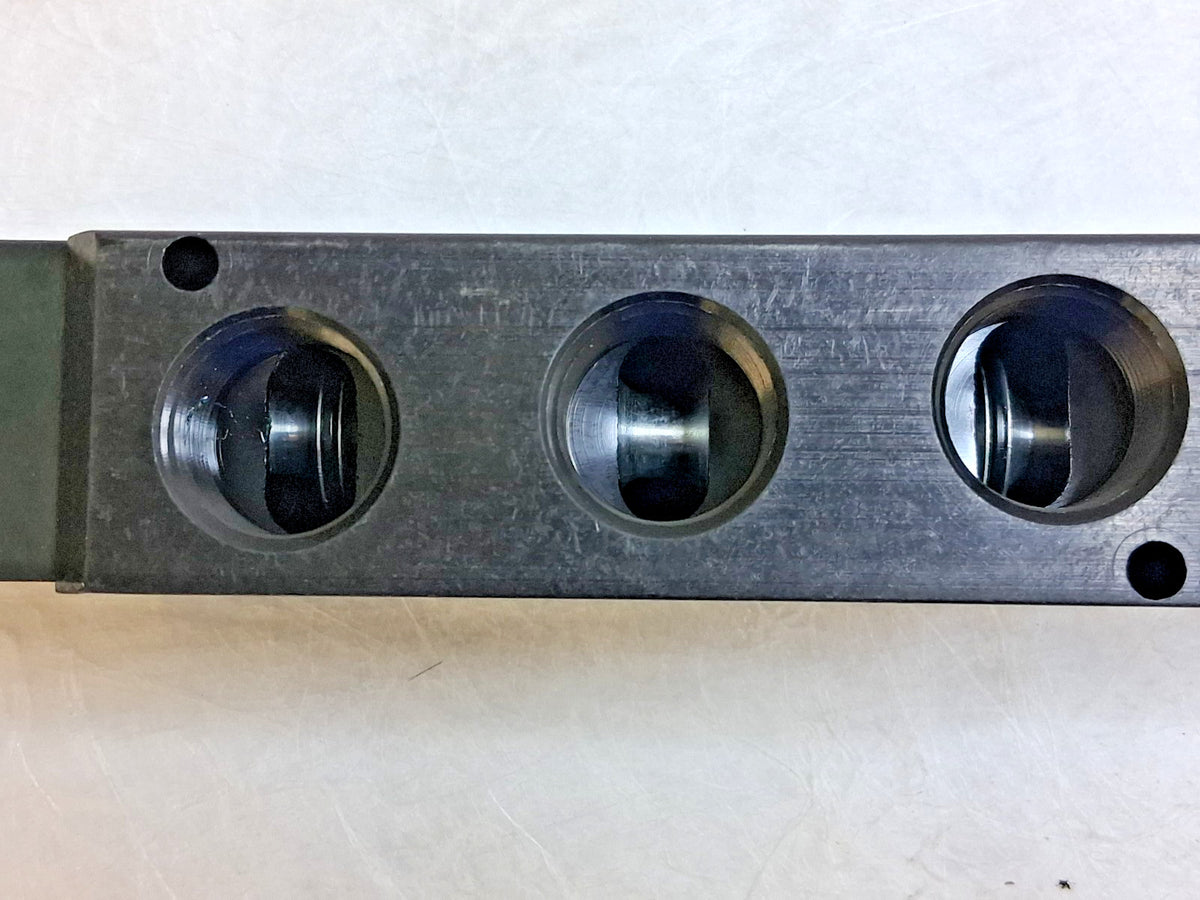

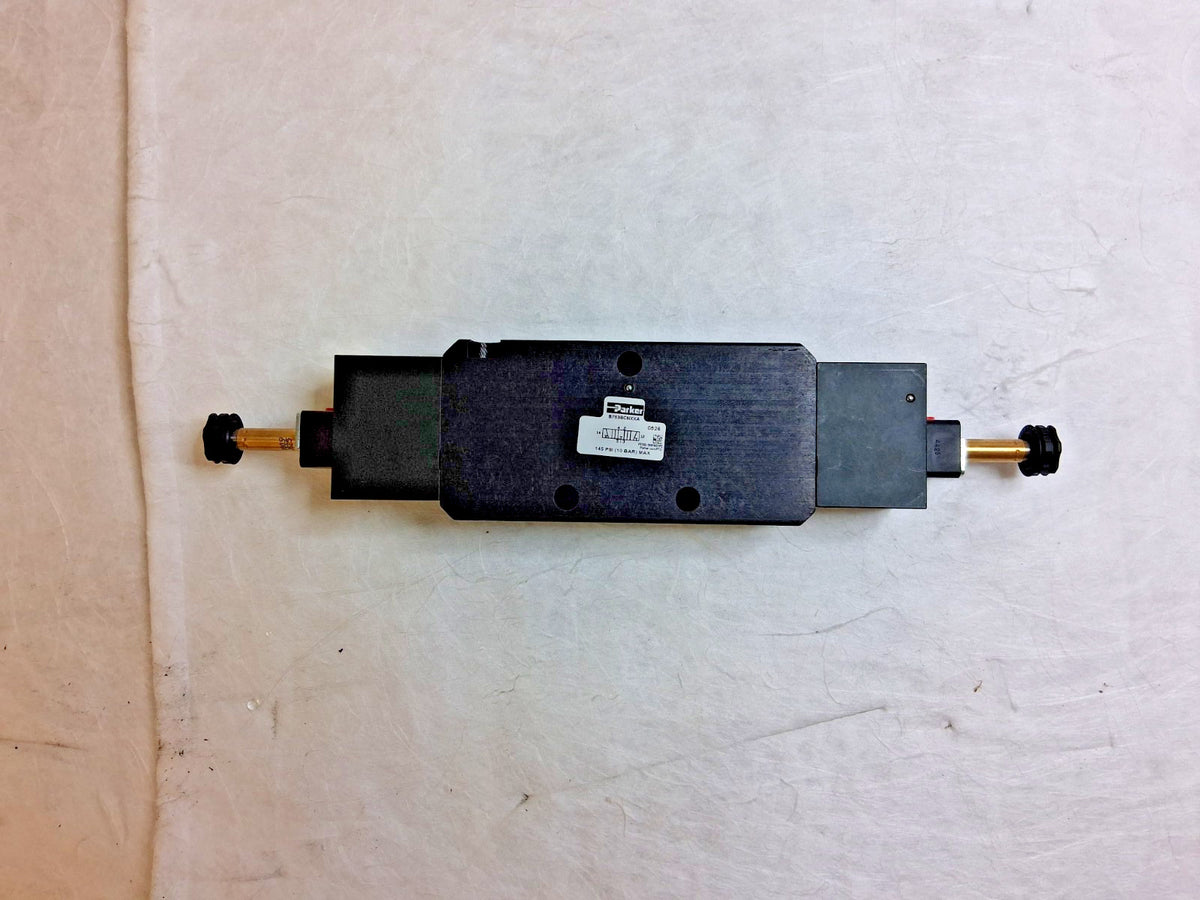

Parker Solenoid Valve 1/2" Port NPT B763BCNXXA

Parker
Solenoid Valve 1/2" Port NPT

MSRP: $790

• Valve Type: Internally-Piloted Valve Way & Position: 4-Way/3-Position
• Valve Configuration: In-Line Port Size: 1/2 in
• Port Size: .50 in Valve Unactuated State: Center Exhaust Open
• Thread Standard: NPT Body Material: Aluminum
• Seal Material: Nitrile Maximum Working Pressure (PSI - 3 Decimals): 145.000
• Cv Factor Nc: 5.9000 Overall Height (Decimal Inch): 2.5900
• Overall Length (Decimal Inch): 11.2900 Standards: CE Marked
• Inlet Size: 1/2 in Cv Rating: 5.900
• Minimum Working Pressure (psi): 45.0 Special Item Information: Valve Less Coil; Flush - Locking Override Function
• Applications: Pneumatics Width (Decimal Inch - 4 Decimals): 1.6500
• Maximum Temperature (F) ( - 0 Decimals): 120.000 Type Of Power: Double Acting
• Minimum Temperature (Deg F - 3 Decimals): 5.000 Type: IP 65
• Maximum Temperature (C): 49.00 Minimum Temperature (C - 2 Decimals): -15.00
• UNSPSC Code: 40141605

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

Please review photos, comes as shown.
