Parker PVDF Tube .500" OD x 0.31" Tube Wall Thickness 50 Ft 110-050003

Parker PVDF Tube .500" OD x 0.31" Tube Wall Thickness 50 Ft 110-050003

$100.00 USD
$200.00 USD $100.00 USD
Sale Sold out
Shipping calculated at checkout.

Parker PVDF Tube .500" OD x 0.31" Tube Wall Thickness 50 Ft 110-050003
Item Description
Parker

MSRP: $200

Model: 110-0500031-NT-50

Description:

Product Type 1/2 Industrial Wall
Tube O.D. (Inch) 0.5
Tube O.D. (MM) 12.7
Tube I.D. (INCH) 0.375
Tube I.D. (MM) 9.52
Tube Wall Thickness (Inch) 0.031
Tube Wall Thickness (Inch) 0.79
Max PSI  83
Max BAR  5.7
Minimum Burst Pressure (PSI) 332
Minimum Burst Pressure (BAR) 22.9
Minimum Bend Radius (Inch) 4
Minimum Bend Radius (MM)102
Minimum Working Temperature (F) 80
Minimum Working Temperature  (C) 62
Maximum Working Temperature (F) 265
Maximum Working Temperature (C) 130
Compatible Fittings  Compression, Compression­Align, TrueSeal
Color Natural
Tubing Material PVDF
Industry Standards ASTM D 3222? FDA Compliant? RoHs? VW­1, UL­83
Tube Type Flex
Application Environmental, Food, Gas Transfer, Semiconductor,Thermal Cycling, Water Systems
Media Chemicals, Water, Gasses, Food
Style Smoothbore

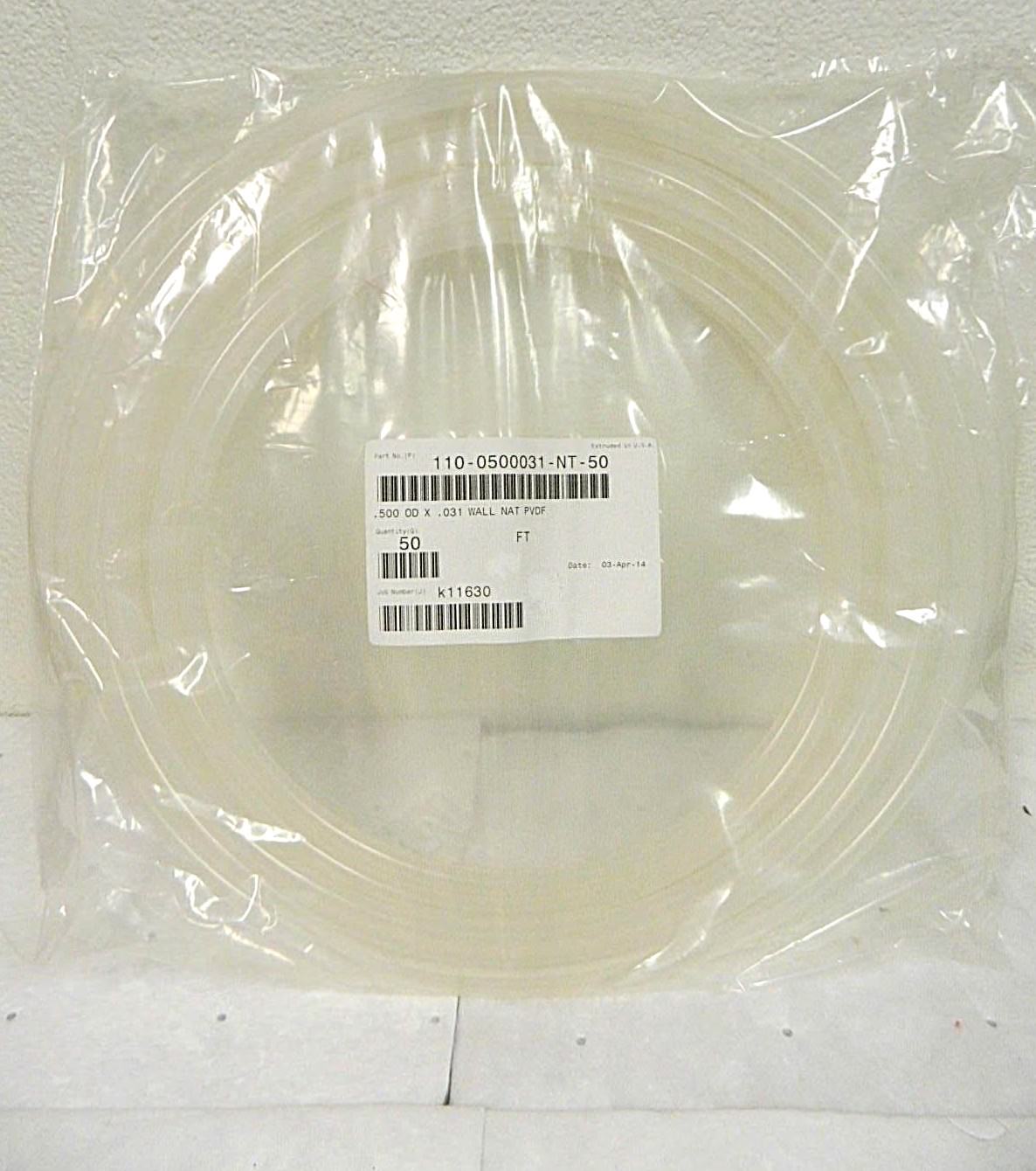

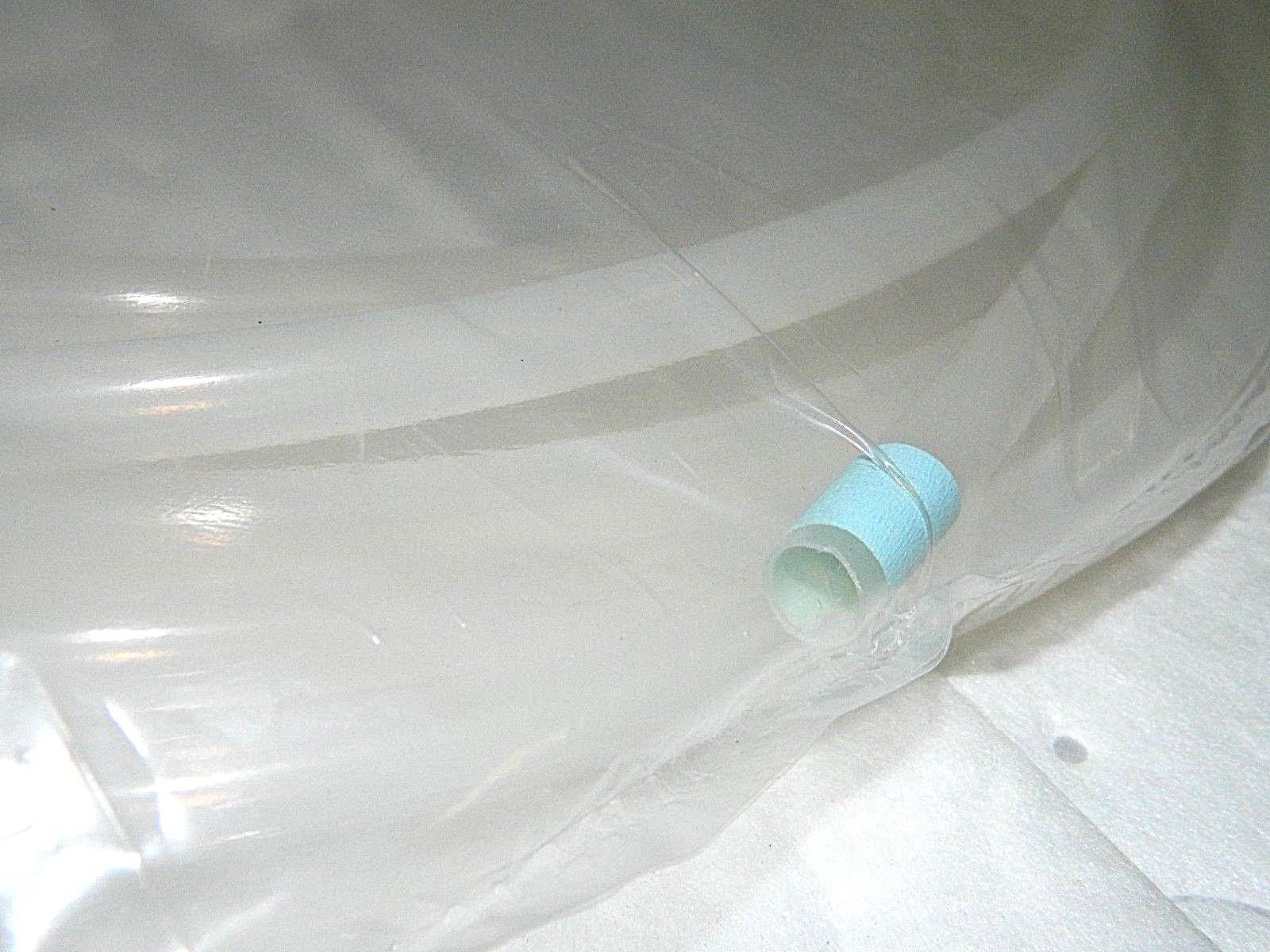

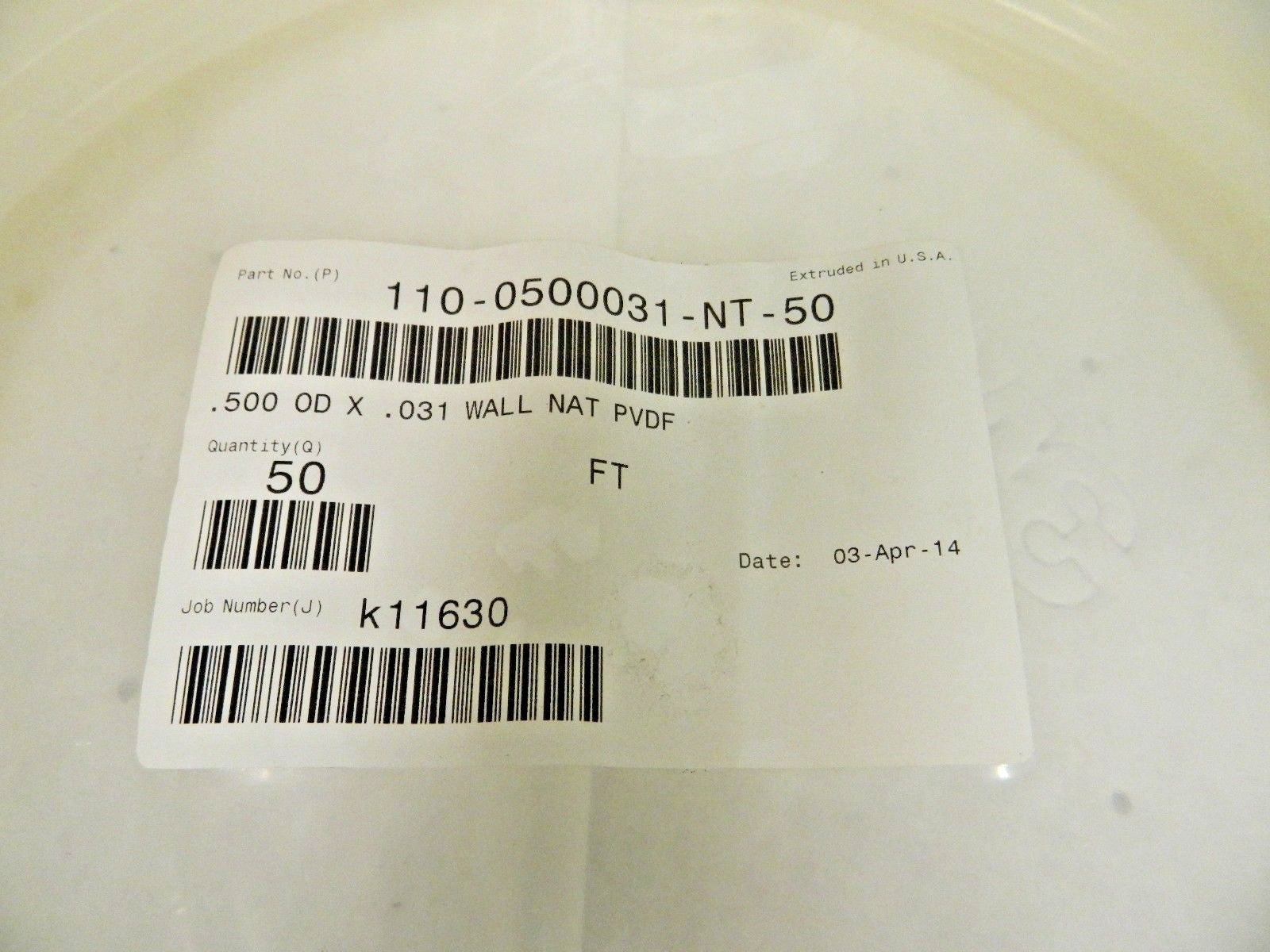

This listing is for One PVDF Tube that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!

Florida customer's are required to pay a 7% sales tax.
