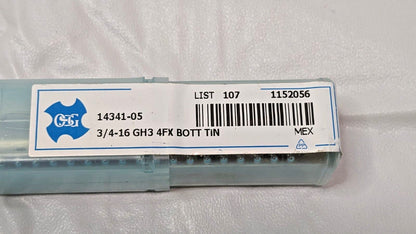

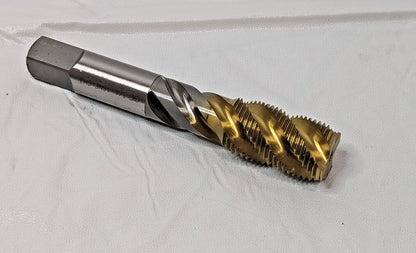

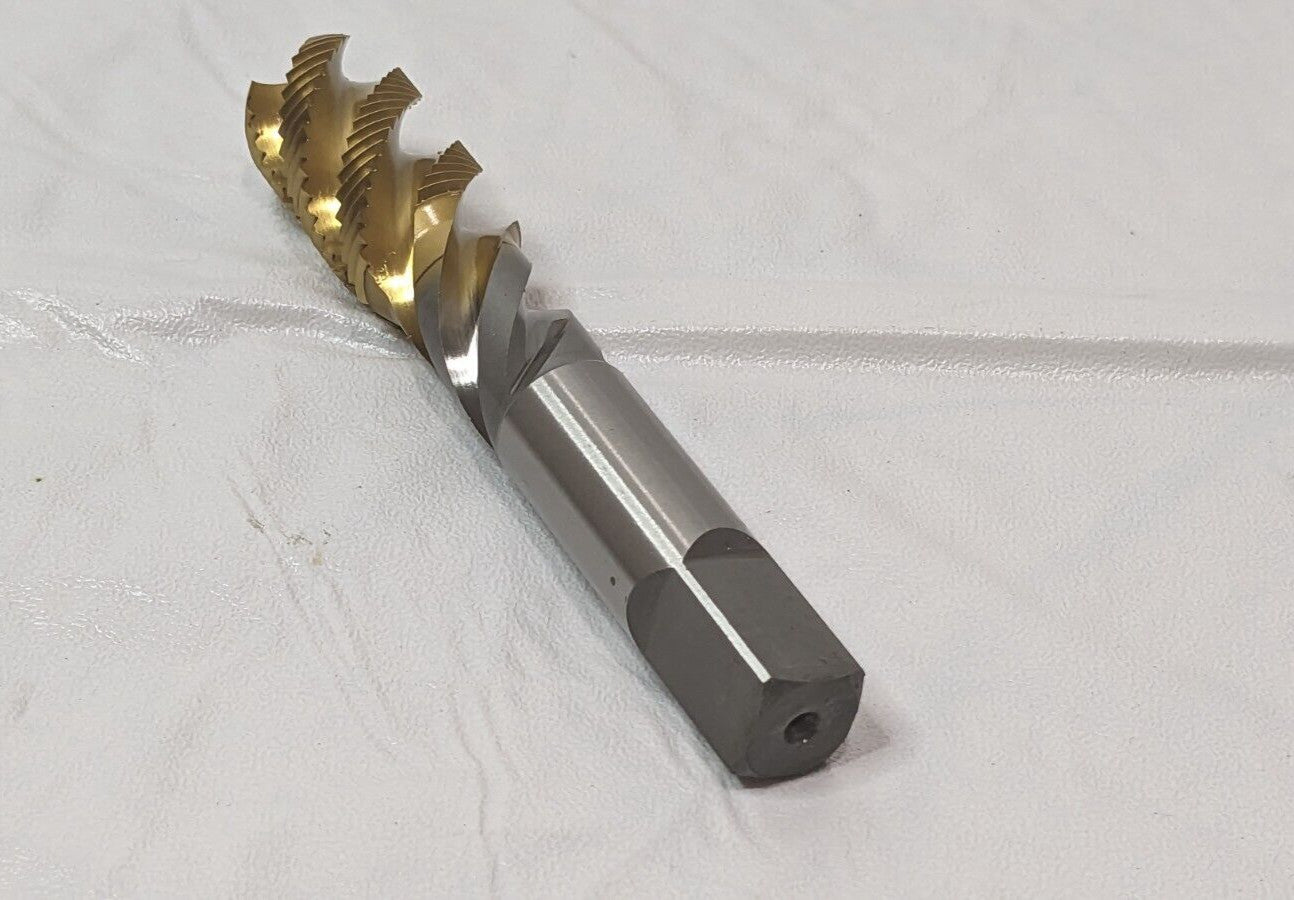

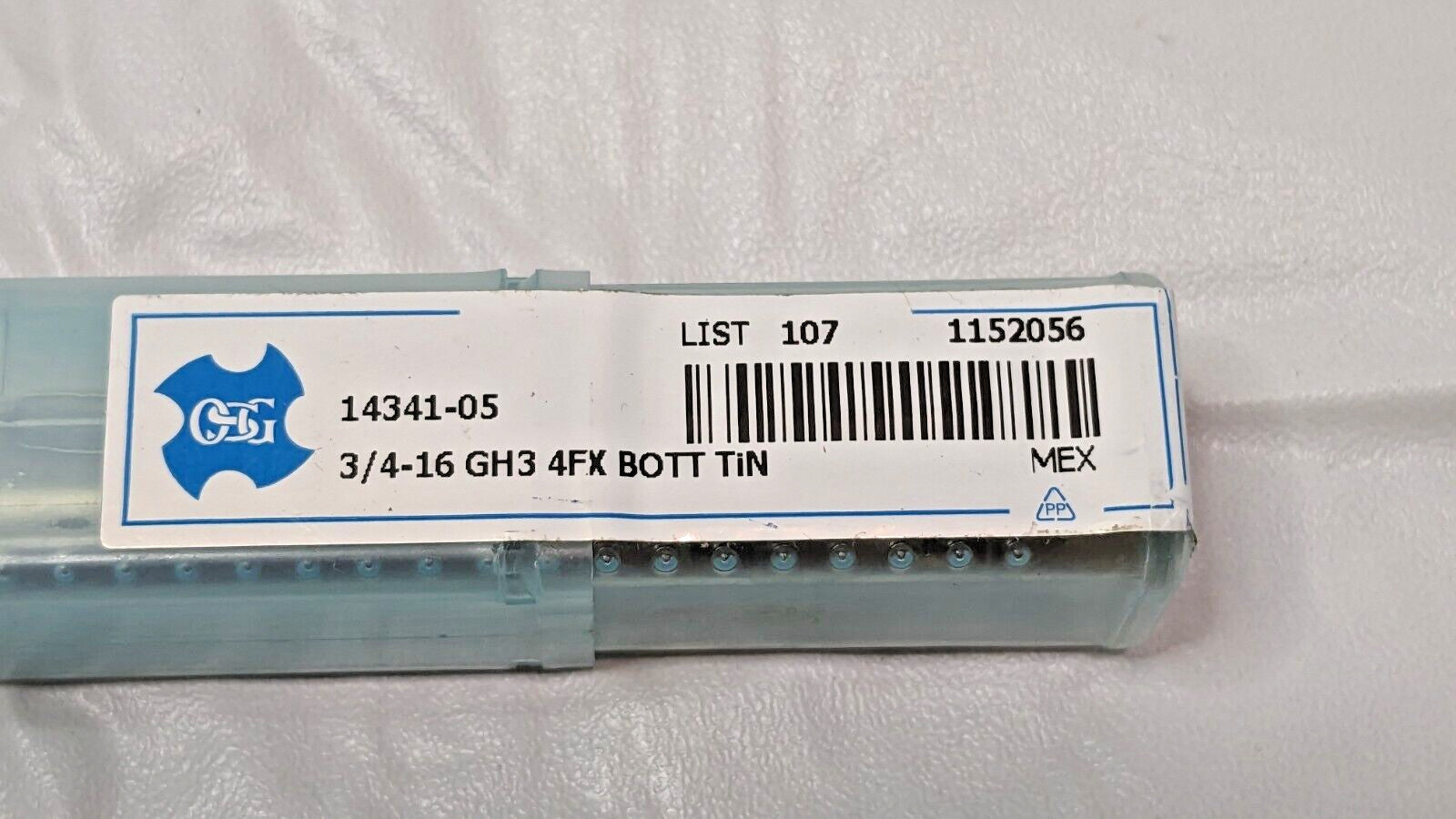

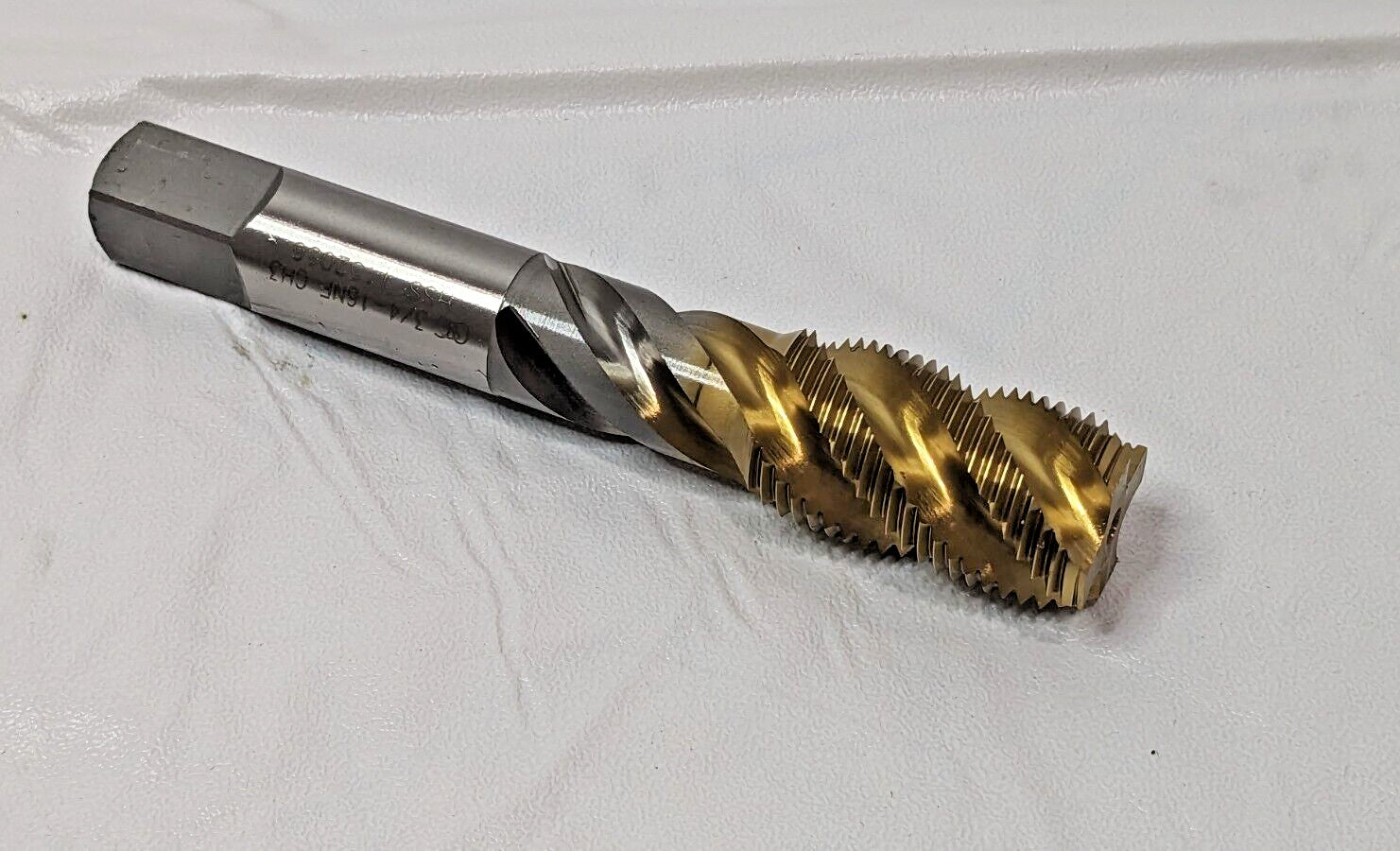

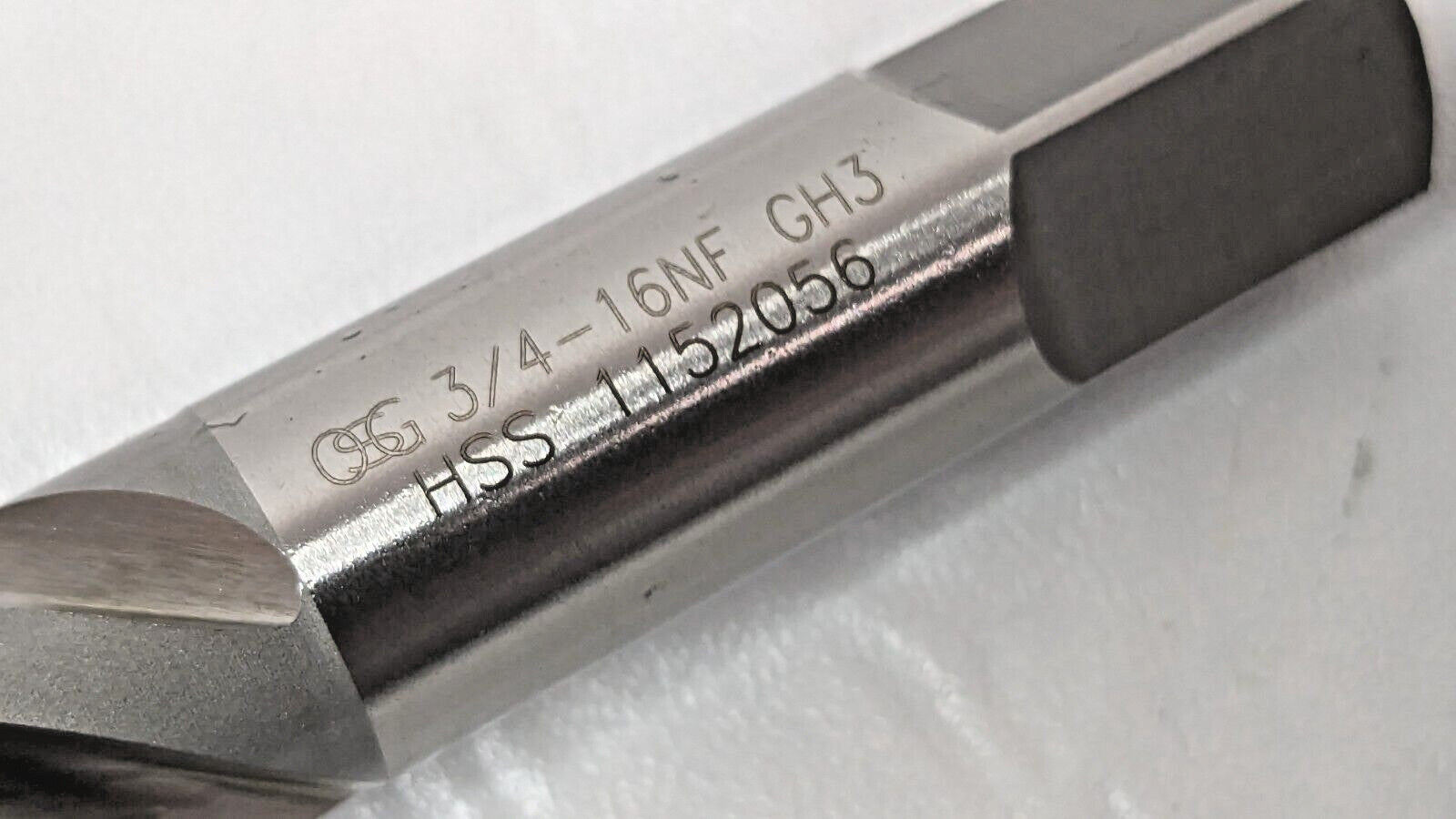

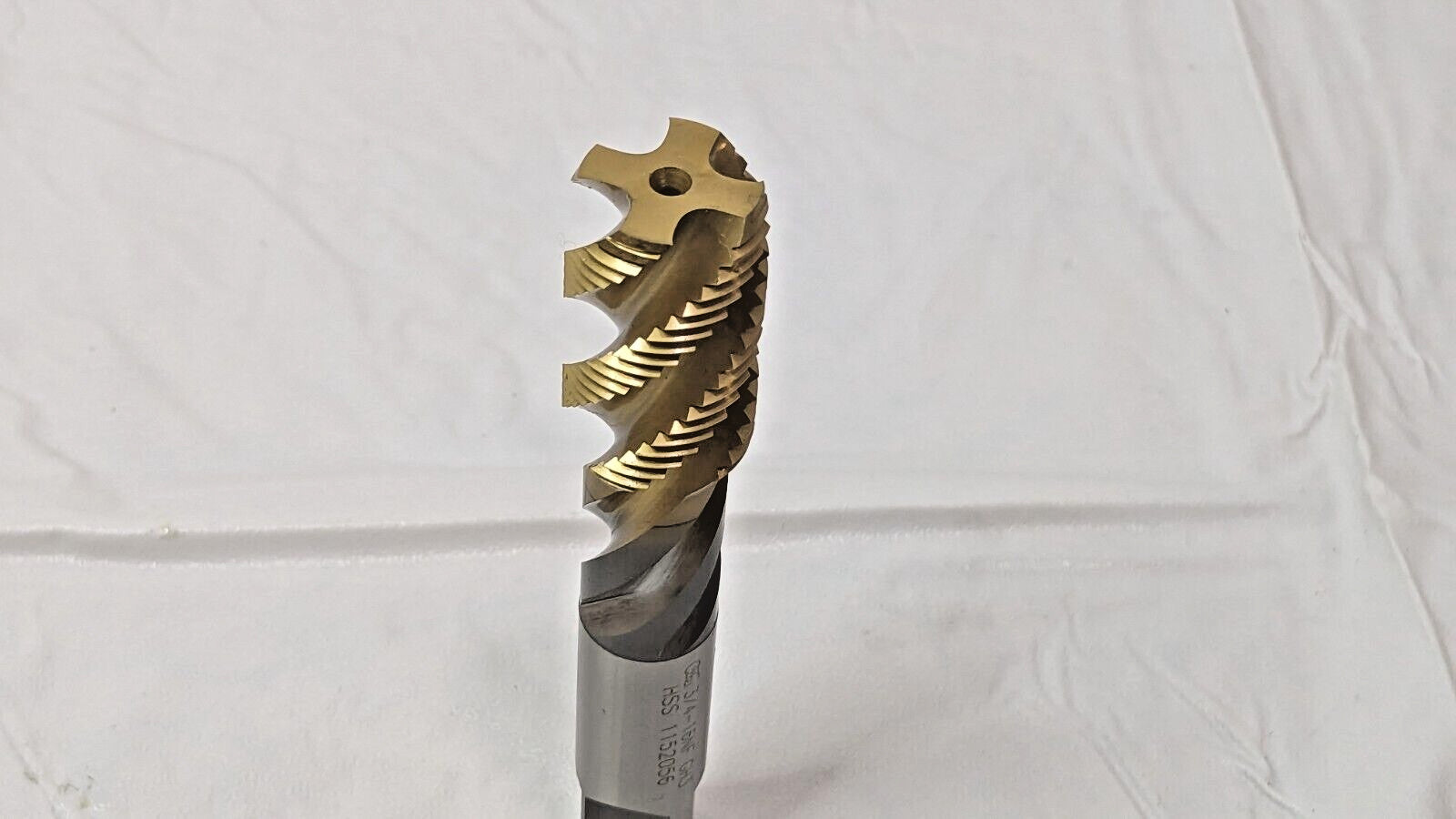

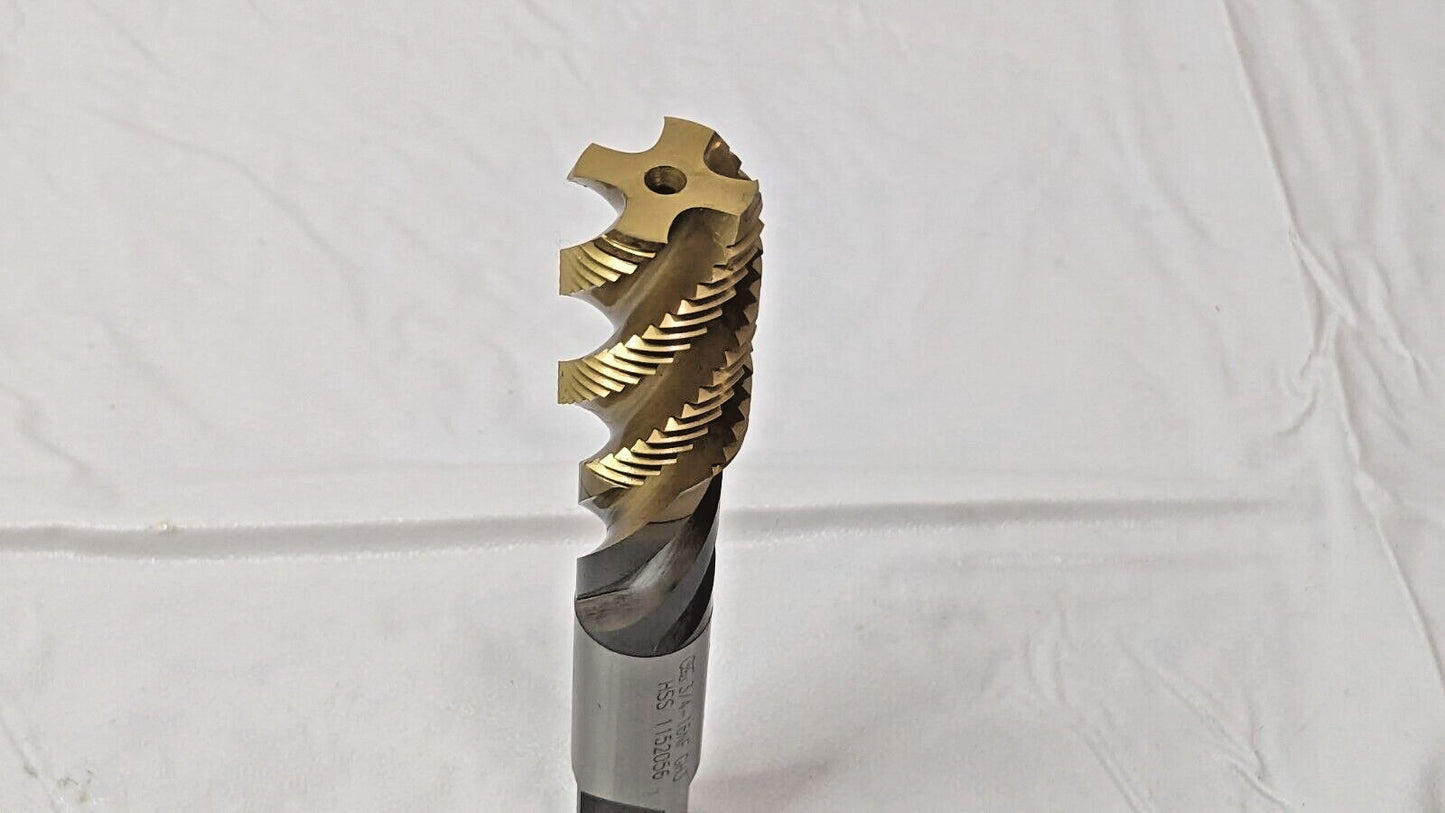

OSG Spiral Flute Tap Bottoming Chamfer 3/4-16NF GH3 4FL TiN HSS 1434105

OSG
Spiral Flute Tap 3/4-16NF GH3

MSRP: $100

• Thread Size (Inch) 3/4-16
• Thread Standard UNF
• Chamfer Bottoming
• Material High-Speed Steel
• Thread Limit H3
• Class Of Fit 3B
• Coating/Finish TiN
• Thread Direction Right Hand
• Coolant Through No
• Number Of Flutes 4
• Material Application Cast Aluminum; High-Carbon Steel; Low-Carbon Steel; Aluminum; Cast Iron; Medium-Carbon Steel
• Flute Direction Right Hand
• Helix Angle 50
• Proprietary Coating/Finish TiN
• Primary Workpiece Material Aluminum & Non-Ferrous; Cast Iron; Steel
• Threads per Inch 16
• Overall Length (Inch) 4-1/4
• Thread Length (Decimal Inch) 1.2400
• Overall Length (mm) 2.00
• Primary Workpiece Material Code P; K; N
• Shank Diameter (Decimal Inch) 0.5900
• Shank Diameter (mm) 19.34
• Neck Length (mm) 18.00
• Square Length (mm) 19.50
• Square Length (Decimal Inch) 0.6875
• Square Size (Decimal Inch) 0.4420
• Flute Style Spiral
• Series 107
• UNSPSC Code 27112806

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
